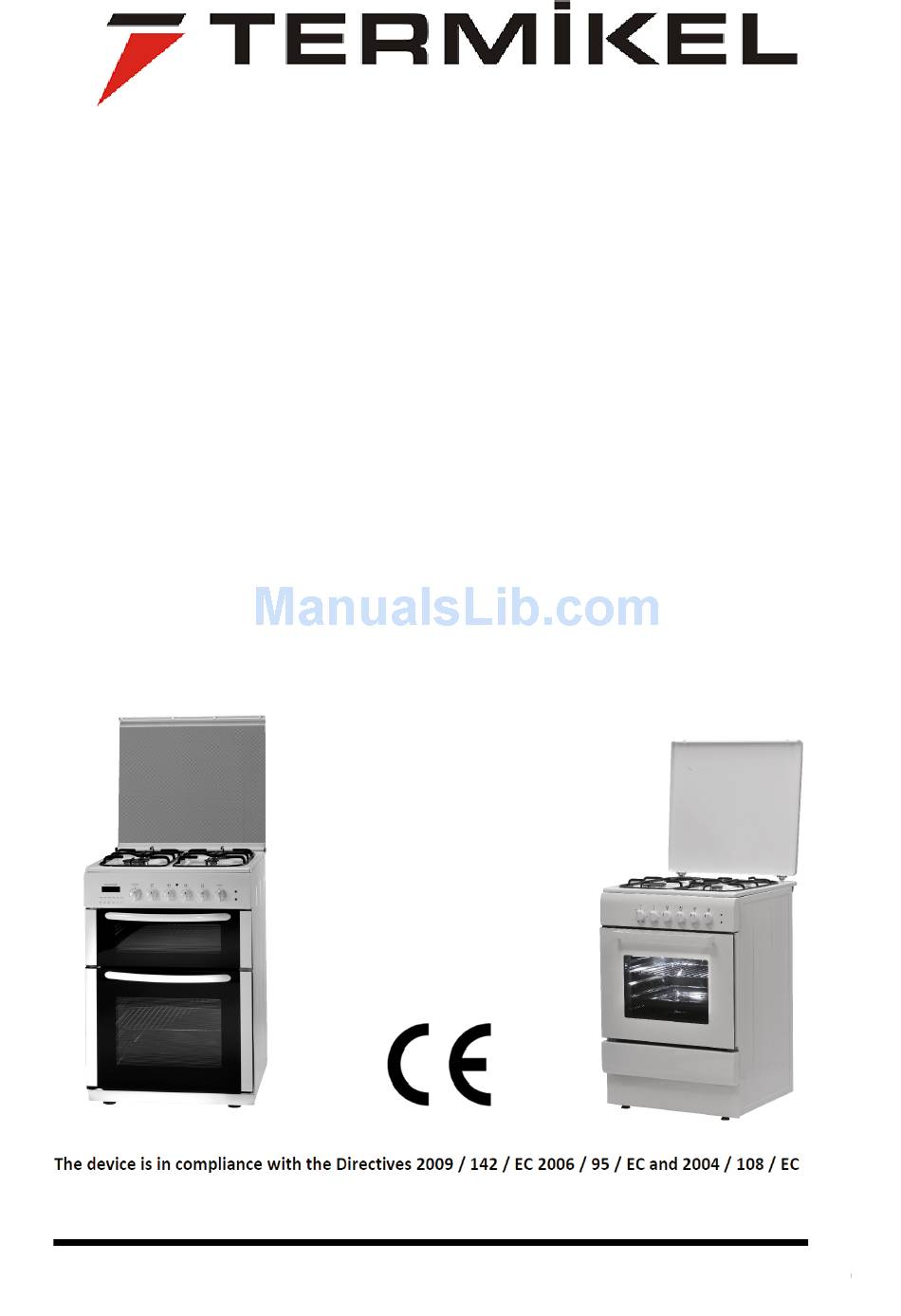

The device is in compliance with the Directives 2009 / 142 / EC 2006 / 95 / EC and 2004 / 108 / EC
Please read these instructions carefully before attempting to install or use this
product. It is advisable to keep these instructions in a safe place for future reference.
Installation and Operating Instructions
USER INSTRUCTIONS
50 cm Double Cavity Dual Fuel Cooker
3 Gas Burners + 1 Electrical Burner with Digital Timer
50 cm Double Cavity Dual Fuel Cooker
3 Gas Burners + 1 Electrical Burner with Mechanical Timer
50 cm Single Cavity Dual Fuel Cooker
3 Gas Burners + 1 Electrical Burner with Digital Timer
50 cm Single Cavity Dual Fuel Cooker
3 Gas Burners + 1 Electrical Burner with Mechaical Timer
0 cm Single Cavity Dual Fuel Cooker
3 Gas Burners + 1 Electrical Burner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Termikel 14220

  • Page 1 USER INSTRUCTIONS 50 cm Double Cavity Dual Fuel Cooker 14220 3 Gas Burners + 1 Electrical Burner with Digital Timer 14221 50 cm Double Cavity Dual Fuel Cooker 3 Gas Burners + 1 Electrical Burner with Mechanical Timer 14200 50 cm Single Cavity Dual Fuel Cooker...
  • Page 2 INTRODUCTION Thank you for choosing this quality cooker. It has been designed to give years of trouble- free service provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your cooker. Included is some important safety information in addition to guidelines and recommendation which will enable you to take full advantage of all the functions available.

  • Page 3: Table Of Contents

    INDEX GENERAL INFORMATION ..........1 PURPOSE .

  • Page 4: General Information

    TECHNICAL SPECIFICATION Supply voltage: 230V 50 -60 Hz 52 kg Gross weight: 50 width; 60 depth; 90 height External dimensions (cm): Top cavity capacity (litres): Bottom cavity capacity (litres): PARTS IDENTIFICATION 14220 14221 14200 14201 14202 Fig. 1 - 1 -...

  • Page 5: Replacing The Lamp 1

    IMPORTANT SAFETY NOTICE - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Children being supervised not to play with the appliance. - Children less than 8 years of age shall be kept away unless continuously supervised.

  • Page 6: Installation

    INSTALLATION POSITIONING • Remove all packing materials including the protective film covering the chrome-plated and stainless steel parts (if applicable). • The kitchen should be dry and well ventilated. Position the cooker ensuring free access to all the controls. • The distance between the hob and extractor hood should be at least 750mm.

  • Page 7: Connecting The Cooker To The Gas Supply

    CONNECTING THE COOKER TO THE GAS SUPPLY Before installing the cooker to the gas supply system, ensure that the appliance is compatible with the local distribution conditions (nature of the gas and gas pressure). In the event of incompatibility replace the nozzles and adjust the gas fittings.

  • Page 8: Cookware Selection

    • The flame should not lick around from the bottom of a pan but cover only two-thirds of its surface. This will reduce the gas consumption and prevent the flame from soiling the utensils. • The size of the flame depends on the position of the knob. The full flame should be used until the dish begins to boil, then it is better to use the simmering flame.

  • Page 9: Control Panels

    2. If the hot plate is not to be used for a long time, apply a little grease to the painted surface. 3. Do not allow spills to be burnt onto the hot plate since baked stains are very difficult to remove. Control Panels 14220 Lower Oven Upper Burner Heating D igital Timer...
  • Page 10 ADJUSTMENT OF DIGITAL TIMER TIMER SETTING ETTING THE REAL TIME OF THE DAY ALARM DURATION SETTING ime setting can only be done when there is no active cooking With this function you can get your alarm clock beep after a period set by you.
  • Page 11 COOKING WITHOUT A PROGRAM (MANUAL) 4. After entering this value the clock will switch off the power and NOTE: The cooking time entered should be less than the ALARM DURATION SETTING It means that you start and finish the alarm will beep. HAND icon will start flashing. You can silence With this function you can get your alarm clock beep after a period difference between the current time of the day and the end time cooking...

  • Page 12: Using The Cooker - Top Cavity Grilling

    Adjustment of Mechanical Timer : Mechanical Timer can be adjusted by its button on front panel. Timer must be adjusted to start the oven cooking. Cooking time can be adjusted between 10 to 90 minutes with mechanical timer. You should position the button to ‘ON’ manually if cooking time will exceed 90 minutes.

  • Page 13: Oven Functions

    OVEN FUNCTIONS LEVEL FUNCTION DESCRIPTION Close Oven is not working Outer Heating Element and Grill Heating Oven Lamp Element works together.Recommends to use Double Grill for big and powerfull grill. Oven Lamp and Grill heater works. Oven Lamp Recommend to use for frying.Thermostat must Grill Heating Element be at maximum position.

  • Page 14: Maintenance And Cleaning

    MAINTENANCE AND CLEANING NOTE! Switch off the cooker at the mains supply before cleaning and wait for it to cool. GENERAL COMMENTS • Clean the cooker regularly to maintain its working condition and aesthetic appearance. • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

  • Page 15: Replacing The Lamp

    Removing the door For easier cleaning, the door can be removed and placed on a canvas. To remove the door proceed as follows: 1. Open the door completely and lift levers near the two hinges. 2. Grasp the door on both sides with both hands, lift it forming an angle of around 30°...

  • Page 16: Securing The Safety Chains

    IMPORTANT SAFETY NOTICE This cooker MUST be secured to the wall, 4. After entering this value the clock will switch off the power and 4. After entering this value the clock will switch off the power and the alarm will beep. HAND icon will start flashing. You can silence please follow the instructions below.
  • Page 17 TOTAL HOB HOTPLATE BURNER BURNER BURNER GAS POWER POWER 14200,14201, 1X3000 1X1750 1X1000 1000 5750 WATT 14220,14221, WATT WATT WATT WATT 14202 N ECTOR DIAMETER N ECTOR DIAMETER G20 , 20 G20 , 13 G30/G31 , G30/G31 ( 28- G30/G31 ,...
  • Page 18 This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
