Hardware Installation

Internal IDE Models
Before beginning drive installation, disconnect power from your computer system. The fol-
lowing steps must be performed to properly install your drive:

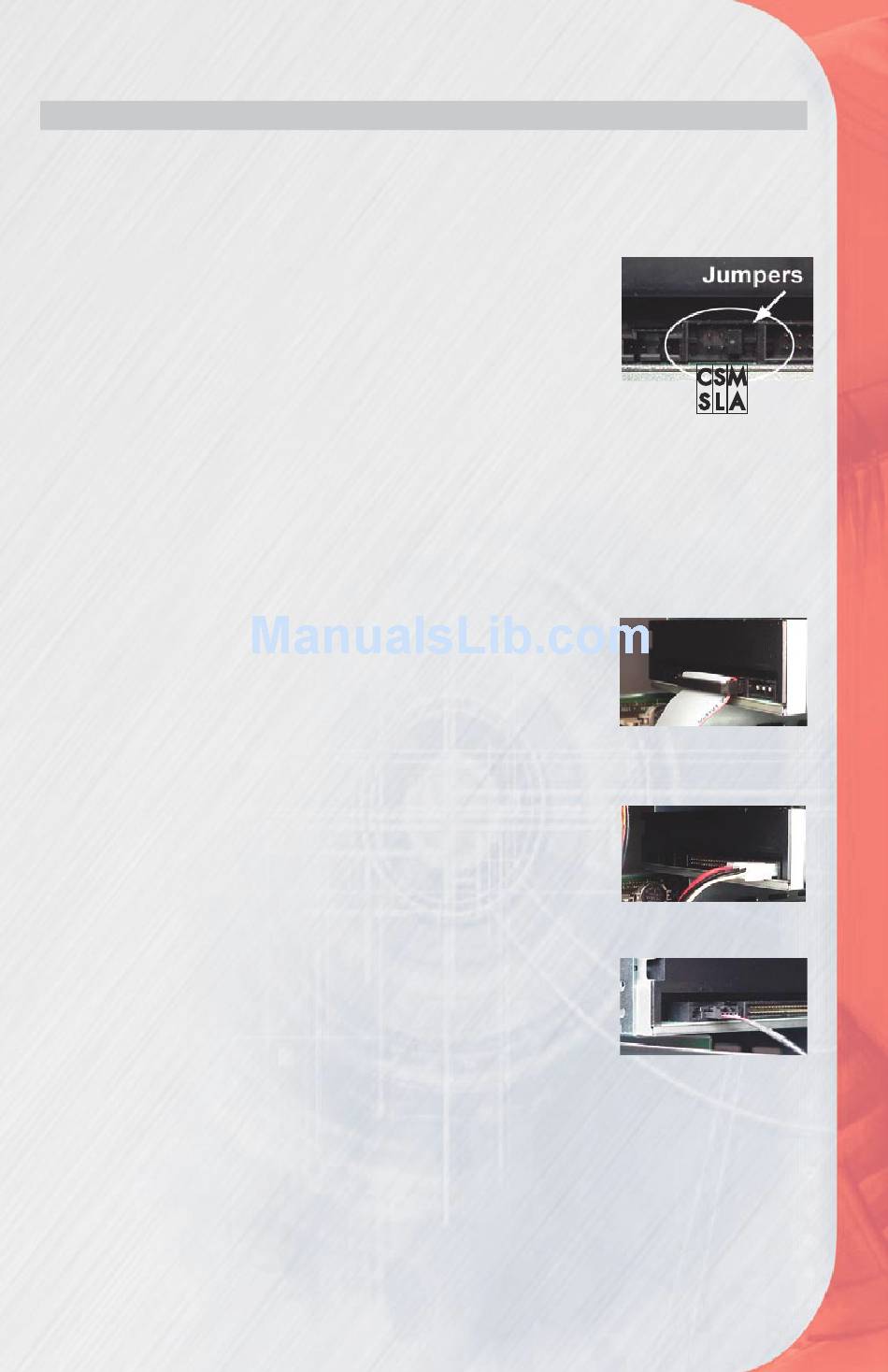

1. Set Drive Jumper Settings
The mode select jumpers are 6 straight angle pins located on
the rear of the DVD-R/-RW Combo drive.. By placing a jumper
on the pins, you can select the ATA device operating Mode:
2. Mount Drive
Remove computer cover and faceplate if required. Refer to your computer system's
manual for removal information. If the drive is replacing a CD-ROM, remove CD-ROM
presently installed in your system. Place the drive in any free half-height drive slot at the
front of your computer. (It can be mounted horizontally or vertically.) Carefully start slid-
ing the drive into the opening with the disc tray facing the front of the computer. Before
you push the drive all the way in complete steps 3-5.
3. Attach IDE BUS Cable
Your computer system should have a primary and secondary
IDE BUSes, with your Hard Drive most likely being the Master
on the primary BUS. Connect BUS cable as follows, assuring
that pin 1 of cable (side with red stripe) is connected to pin 1
(closest to the power connector) of the drive's interface connec-
tor. Please remember that each BUS can only have one master
and one slave devices.

4. Attach Power Cable

Connect an internal computer power supply cable to the power
socket at the back of the drive. One side of the plug has bev-
eled edges, so the power connector fits only one way. Push plug
completely into the socket making sure the plug fits correctly
5. Attach audio cable
If you have a sound card and speakers, and would like to play
audio CDs on your computer, you will need to install a CD/
DVD audio cable. The sound cable connects to your sound
card at one end and the other end connects to the digital audio
connector at the left rear of the drive. Refer to the instructions
that came with your sound card for details on any sound-driver
software required

6. Completing the installation

After you have connected all the necessary cables, push the drive completely into the
computer's drive slot. Mount drive per your computer's instructions, and fasten using the
included screws. Replace computer cover and all outer screws.
MA: Master, default position
SL: Slave configuration
CS: Cable Select configuration
C S M
S L A
