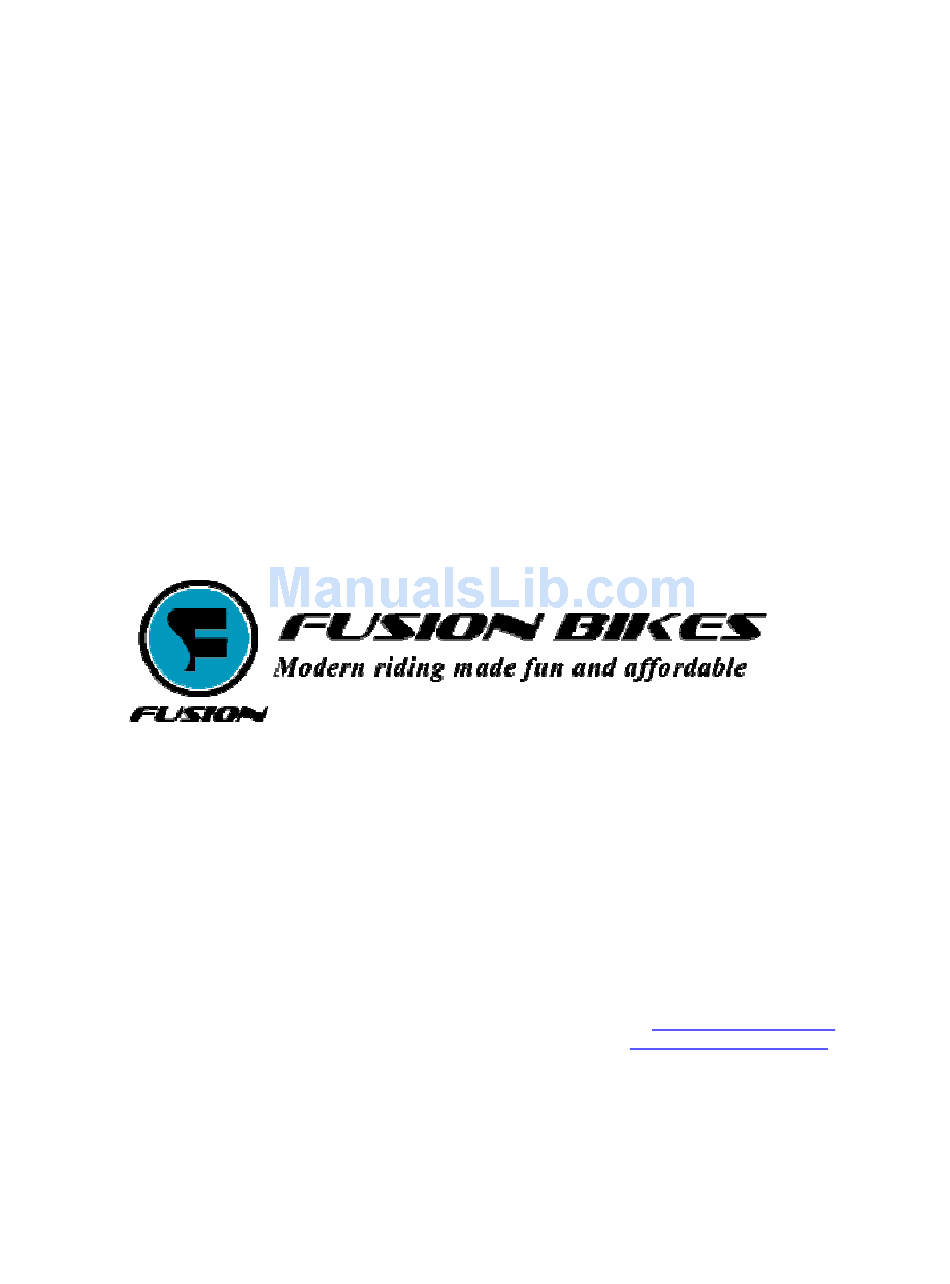

- Page 1 Visit us at www.fusionbikes.com.au Email: sales@fusionbikes.com.au...
- Page 2 <<General Bike Assembly Instructions>> Dear Customer, Thank you for purchasing the Fusion Range of Mountain Bikes. THIS IS A PARTIALLY ASSEMBLED BICYCLE REQUIRING ATTACHMENT FOLLOWING PARTS IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS The bike you have bought comes 85% assembled so there are only a few remaining components requiring attention.
- Page 3 This page is left blank intentionally...
- Page 4 Atilla KinetiK Compact Symmetry...
- Page 5 Final checks Please ensure all nuts and bolts are tightened. Congratulations. The assembly is complete. Well done!! Please ensure you read the maintenance manual along with this instructions template for proper use of the mountain bike. Once again thank you for your purchase and we hope you have countless hours of easy riding with this Mountain Bike.
- Page 6 (The disc brake assembly set should contain the cable wire, the round metal disc brake, the caliper mechanism, and a pack of nuts/screws) Stem Handlebar Front Wheel Peddles Crank 2) Tools required for assembly. Before you begin, please ensure you have the following tools. These tools will be required in the assembly process.
- Page 7 Let’s get started ……. 3) Attaching the Handlebar to the Stem of frame. Now that we have the right tools, let begin by removing the bike out of the box. Set the main bike frame on a flat surface such that it is balanced. This will allow us to connect the handlebar to the stem of the main bike frame with ease.
- Page 8 Fig 1 Fig 2 Fig 3 Pull down, then lock the wire into position by adjusting the nut in the disc brake. Clip access wire and cap the end. Fit the front and rear reflectors to the bike The red reflector is to be attached to the rear end on the seat post. The white reflector is to be attached to the front end on the handlebar.
- Page 9 Incorrect quick-release use is dangerous because these mechanisms hold the wheels in place. The most common mistake is simply turning the lever like a nut until the wheel seems tight. Used this way the lever and wheel can loosen as you ride. Adjusting the brake lever and tightening the brakes Step 1: Pull the brake handle so that the slot in section is exposed Step 2: Take the brake cable.
- Page 10 Slide the stem up to remove it from the main frame Flip the stem upside down. Re-attach the stem be tightening the top and side nuts using your allen key. Place the rubber seal back over the top nut. Align the handlebar such that the centre point is in the middle of the stem. Once you are happy with the positioning, using the centre plates, tighten the handlebar to the stem using the Allen key and screwing the nuts into position.
- Page 11 6) Attach the seat post to the frame Remove the seat and the bar from the package. Slide the indented side of the bar into the seat. Adjust the position of the seat by tilting it up or down to your own comfort level. Tighten the seat post by adjusting the nuts using a wrench.
- Page 12 7) Attach the pedals to the Crank Set The pedals are designated left and right. The left pedal is to be attached to the left side of the crank. The right pedal is to be attached to the right side of the crank. To secure the pedals, please use a wrench to tighten it to the crank set.
