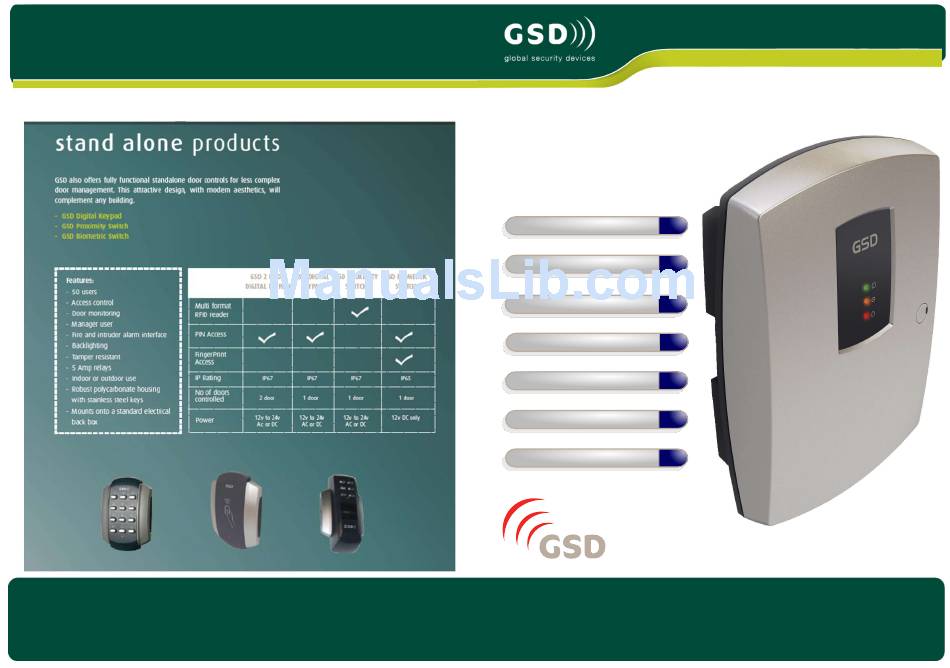

YOUR SECURITY IS OUR PRIORITY Other products from GSD Contents Installation Instructions Installation Diagrams System Overview Wiring Diagrams Network Diagrams Operating Instructions For more information on the Wireless Network System visit our website www.globalsecurity.ie Fingerprint Enrollment Wi-Plus Controller Installation Manual Global Security Devices Ltd: No.3 Broomhill Business Complex, Tallaght,...
Page 2
W. 87mm D. 21mm H. 119mm - Surface Mount W. 87mm D. 35mm H. 119mm Phase 1- Setting up the GSD Controller via the PC application Phase 2 - Configuring the GSD Controller via the PC application Features Phase 3 - Defaulting Door Controls...
Page 3
Installation Diagrams Installation Diagrams 1. To open front cover of GSD Controller, remove screw cap using screwdriver then loosen screw. 3. screw the rear enclosure to the wall. as shown below. 2. Remove door from unit (see inset) before screwing the rear enclosure to the wall.
System Overview System Overview RS485 Connection to Door Controls Wireless Connection to Door Controls RS485 Network to Controllers Note: If using a single Controller, Note: If using a single Controller, RS485 Network to Controllers Max number of Controllers 3 an RS232 cable may be used. an RS232 cable may be used.
Page 5
Controller to avoid any ground loop issues. When the fire alarm is activated ( ie 0V See page 11 on “Configuring GSD Controller Communication” to setup the application removed from IP3) all fire doors will be for serial communications...
Page 6
All dip-switches ON. The dip-switches should then be set to the controller Address 1 - Set SW1 ON Address 2 - Set SW2 ON Address 3 - Set SW3 ON address as shown above in section “Setting the GSD controller address”...
Page 7
“Site Database Management” will appear. on ‘Create New Network’. B. Click on “Create New Site”, then click “Create New Wi-Plus Site” Click Yes on the pop-up to proceed. and save the name of the new installation site. The application will then launch.
Operation Instructions Operation Instructions Phase 3 - Defaulting Door Controls Phase 4 - Enrolling Door Controls Step Description Step Description The controller is now ready to allow Door Controls to enroll onto the All Door Controls should be installed at this point and powered up. Network –...
Page 9
Operation Instructions Operation Instructions Phase 5 - Configuring Users Phase 4 - Enrolling Door Controls Step Description Step Description Once all Door Controls are enrolled onto the network – go back to the Enable a User by ticking the ‘Enabled’ box for each User. PC application and click ‘Secure Network’...
Page 10
Operation Instructions Operation Instructions Enrolling User Fingerprints Phase 6 - Configuring Access Levels Step Description Step Description Access Levels are controlled by creating UserGroups and assigning the Note: Make sure the USB Fingerprint reader is attached to the PC UserGroup to a User as described in section ‘Configuring Users’. On the Users Tab , Select a User for fingerprint enrolment UserGroups are created by combining pairs of DoorGroups with Timezones.
Page 11
Finger Placement Wi-BIO Finger Placement Wi-BIO Correct Finger Placement Incorrect Finger Placement Note: Incorrect placement : finger does not fully cover the sensor window. Good Quality Image Poor Quality Image Note: Ensure that the core of finger is centered on the sensor window during the enrollment process.
