MA833A OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA833A and is the answer not in the manual?

Questions and answers

Related Manuals for Macvision MA833A

Summary of Contents for Macvision MA833A

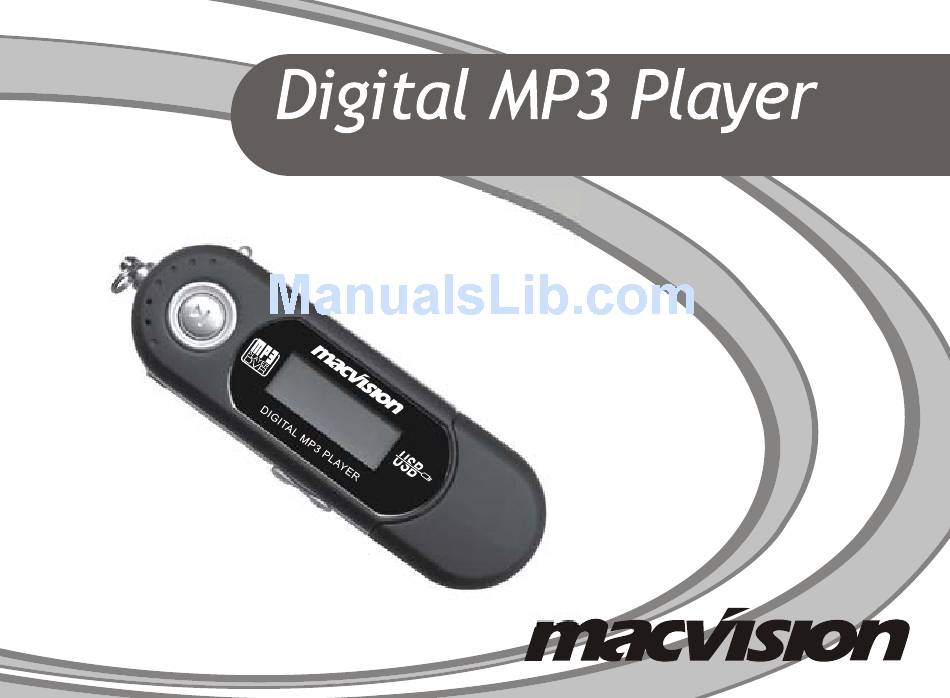

  • Page 1 MA833A OPERATION MANUAL...

  • Page 2: Fcc Certification

    FCC Certification THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : ( 1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

  • Page 3: Table Of Contents

    Table of Contents 1. Function summary 2. Announcement 3. Getting to know the player Appearance and keystroke Display screen 4. Basic functions Start up/shutdown Enter a menu Browse Tracks Use different function modes Adjust volume Key lock function Press PLAY 5.
  • Page 4 7. Voice recorder Record mode Choose record type 8. Play recorded files 9. Transfer recorded file of ACT into WAV on your PC 10. System Setup How to enter Brief introduction to every options Detailed operating instructions 11. Use USB disk New folder 12.

  • Page 5: Function Summary

    MP1, MP2, MP3, WMA, WMV, ASF, WAV (Easy to work with Windows Media Player). Firmware upgrades (Check periodically) www.macvision.com will provide the latest software upgrades and functions. Function of free-drive U disk Manipulate files via the "mobile disk" in "My PC" without any additional programs on your PC(drive program needs to be installed for operating systems prior to WIN2000).

  • Page 6: Announcement

    Full-cartoon menu Graphic menus with corresponding text display. USB connection Quick connection to USB port. 2. Announcement Thanks for purchasing our MP3 player. Before using the unit please read this manual carefully to obtain the best possible performance from your player and keep it for future reference.

  • Page 7: Display Screen

    Display screen Reread mode Cycle mode Display electric quantity Work mode 0 4 : 1 3 Play state Play time File format S k y. M P 3 Song number Singer/Name of song Sound effect mode/Follow and contrast 4. Basic functions Start up/shutdown Start up or shutdown player by press and hold "PLAY".

  • Page 8: Use Different Function Modes

    Use different function modes Go into different modes from main menu by sliding Mode key clockwise or anti-clockwise then pressing Mode key: Select Music mode, display shows something like this: Main menu: 0 1 : 1 3 Jay - Sky.mp3 Select Record mode, display Select Play mode, display shows something like this:...

  • Page 9: Adjust Volume

    Adjust volume Decrease volume by pressing VOL-; increase volume by pressing VOL+. Key lock function The unit will lock automatically after the pre-set lock time (please see pg. 14 to reset the Auto locking time) To unlock the unit: Push the "Next" key then the "Last" key to unlock the unit. (Please refer to the screen display): Push key to unlock !

  • Page 10: Operation

    5. Operation Music mode , Play mode Stop state Play state Play submenu Stop submenu Action Play Stop Press Exit from menu Exit menu Play Hold Shutdown Shutdown Shutdown Shutdown Long press Enter main menu Enter main menu Enter main menu Enter main menu Mode Enter/stop Enter/play...

  • Page 11: Record Mode

    Record mode Stop state Action Record state Press Start to record Pause record Play Stop record Hold Shutdown Press Enter record submenu Mode Hold Enter main menu 6. Play music Add and Delete files To add and delete music file on your PC or Notebookcomputer to your MP3 player, simply connect the unit to the USB port of your PC or Notebook computer, click open the "RemovableDisk"...

  • Page 12: Simple Operation

    Delete file (stop submenu) Files can be deleted under their respective modes. 1). On Stop mode. 2). Press Mode to enter "stop submenu". 0 1 : 1 3 Jay - Sky.mp3 ROOT 3). Dial Next or Last to choose "delete 4).

  • Page 13: Sound Effect Mode

    Sound effect mode 0 1 : 1 3 1). Playing music 2). Enter play submenu by pressing MODE. Jay - Sky.mp3 3). Dial Next to choose menu item. 4). Enter "Equalizer" by Natural pressing MODE. 5). Dial Next to choose, press Mode to 6).

  • Page 14: Voice Recorder

    How to know whether a song has lyrics: If there is a lyric file matching the song, the icon on the upper left corner of music mode should change to " " . How to display the lyrics: 1). Find lyric match with song: 2).

  • Page 15: Choose Record Type

    If "The space is full" displays, there is no more space for new files; delete other files to open more space. If "The directory is full" displays, there are 99 record files in the current directory; delete files or switch to another directory. Choose record type 1).

  • Page 16: Play Recorded Files

    8. Play recorded files 1). Enter main menu. 2). Dial Next to choose "Replay mode". 3). Press Mode to enter replay mode. 4). Press Play to start playing. 00:00:00 8K/ACT 0 1 / 1 5 REC04 2 0 0 4 / 0 7 / 2 8 5).

  • Page 17: Brief Introduction To Every Options

    1). Enter main menu. 2). Dial Next to choose "system setup". 3). Press Mode to enter "System setup". Record Time Brief introduction to every option Record time Set save time and date for record files Backlight The number of seconds the display light stays on Language Set different language Set a timer to shut player down automatically...

  • Page 18: Detailed Operating Instructions

    Detailed operating instruction Set "Record time" 1). Interface for system setup. 2). Press Mode to enter the record time interface. 2004-07-27 Record Time 12:00:01 3). Press VOL+/- to select number to 4). Dial Next/Last to increase/decrease number: change: 2004-07-27 2005-07-27 12:00:01 12:00:01 5).
  • Page 19 Set Keylock time 2). Dial Next to select 1). Interface for setting system. Keylock time "Keylock time". Record Time 3). Press Mode to enter interface. 4). Dial Next/Last to adjust time. 5). To exit press Mode after change. The keys will locked automatically, in the status without any operation and over the system keylock time.
  • Page 20 Set Replay Press Mode to enter interface, Dial to choose: "Manual mode" denotes that you set a pause manually; "AUTO mode" denotes that it can pause automatically in replay. Adjust Contrast See "Backlight time", operations are the same. Online Mode Operating systems earlier than Windows 2000 Service Pack 4 cannot support two partitions.

  • Page 21: Use Usb Disk

    Advanced Tip: Exit menus rapidly by pressing Play after setting options. This function works on any menu. 11. Use USB disk This player has a standard USB function, supports Windows98 (a driver needs to be installed), Windows 2000 and newer (drivers need not to be installed), MacOS X 10.3 or Linux Red Hat 8.0 or newer.

  • Page 22: Upgrade Player

    12. Upgrade player Upgrade this player or service the system firmware with the utility installed on the PC. 1). Enter main menu. 2). Dial Next to choose "system setup". 3). Press Mode to enter "system 4). Dial Next to choose "firmware setup".

  • Page 23: Miscellaneous Settings

    Upgrades for firmware are for improvement and optimization of the performance of the player. It could impact normal operation if you fail to upgrade firmware. Upgrading the firmware could cause the player to function incorrectly if not done properly. Please read the instructions before you begin. This operation is meant for people who have some computer experience.

  • Page 24: Play Mode (Play Submenu)

    Play mode (play submenu) You can choose different play modes while playing music or record files. Play Random Play the music in current folder at random Repeat One Repeat to play one single music file Repeat All Repeat to play all music in current folder Play Directory Play all the music in current folder Browse and play, Intro...

  • Page 25: Reread Mode (Play Submenu)

    Attention: The speed setting will apply to all songs until changed. Reread mode (Play submenu) Enter by pressing "REC/A-B" directly or from submenu. A-B reread 1). Play music or record. 2). Press Mode to enter submenu. 0 1 : 1 3 Jay - Sky.mp3 3).

  • Page 26: Reread Times (Play Submenu)

    3). It begins to record the voice of user when 4). Play original voice if the time ends and the Reread icon changes to follow-read icon icon changes to , dial next to enter this function length is the same as the time of the A-B reread at this time.

  • Page 27: Important Recommendation

    14. Important recommendation Function of "Dream space" In the past, MP3 users who wanted others to see his individual data could only delete their privacy settings while friends borrowed his MP3. Now, the function of "dream space" solves that problem. Using the included utilities, users can separate the disk into two partitions with optional proportions.

  • Page 28: Definition

    Attention: Data in disk will be erased if you separate the disk into two sections, please back up the data on the disk beforehand. Uniting two disks into one disk will also clean out the data. Warning: Do not lose your username and password. You can only erase the encrypted disk by uniting partitions, which will erase the files.

  • Page 29: Troubleshooting

    16. Troubleshooting Check if the batteries are installed correctly; No power Check if the USB connection is solid; Check if the player has been started. Check if the volume is turned down; Check for a problem with the connection of earphones; No sound in earphones Ensure the cleanliness of the earphones;...

  • Page 30: Technical Specifications

    Note: "DRM" Stands for "Digital Rights Management". DRM refers to a collection of systems used to protect the copyrights of electronic media. These include digital music and movies, as well as other data that is stored and transferred digitally. For example, the Apple iTunes Music Store uses a DRM system to limit the number of computers that songs can be played on.
  • Page 31 Simple Chinese, Trad Chinese, Japanese, Korean, Multi-language English, French, Italian, German, Spanish, Swedish, show Portugal, Danmark, Dutch Supported operating Windows98/SE/ME/2000/XP/2003, Mac OS 10, Linux 2.4.2 systems Attention: The specification or design is subject to change without prior notice. Customer Service Number: 1.800.938.9886 Website: www.macvision.com...
