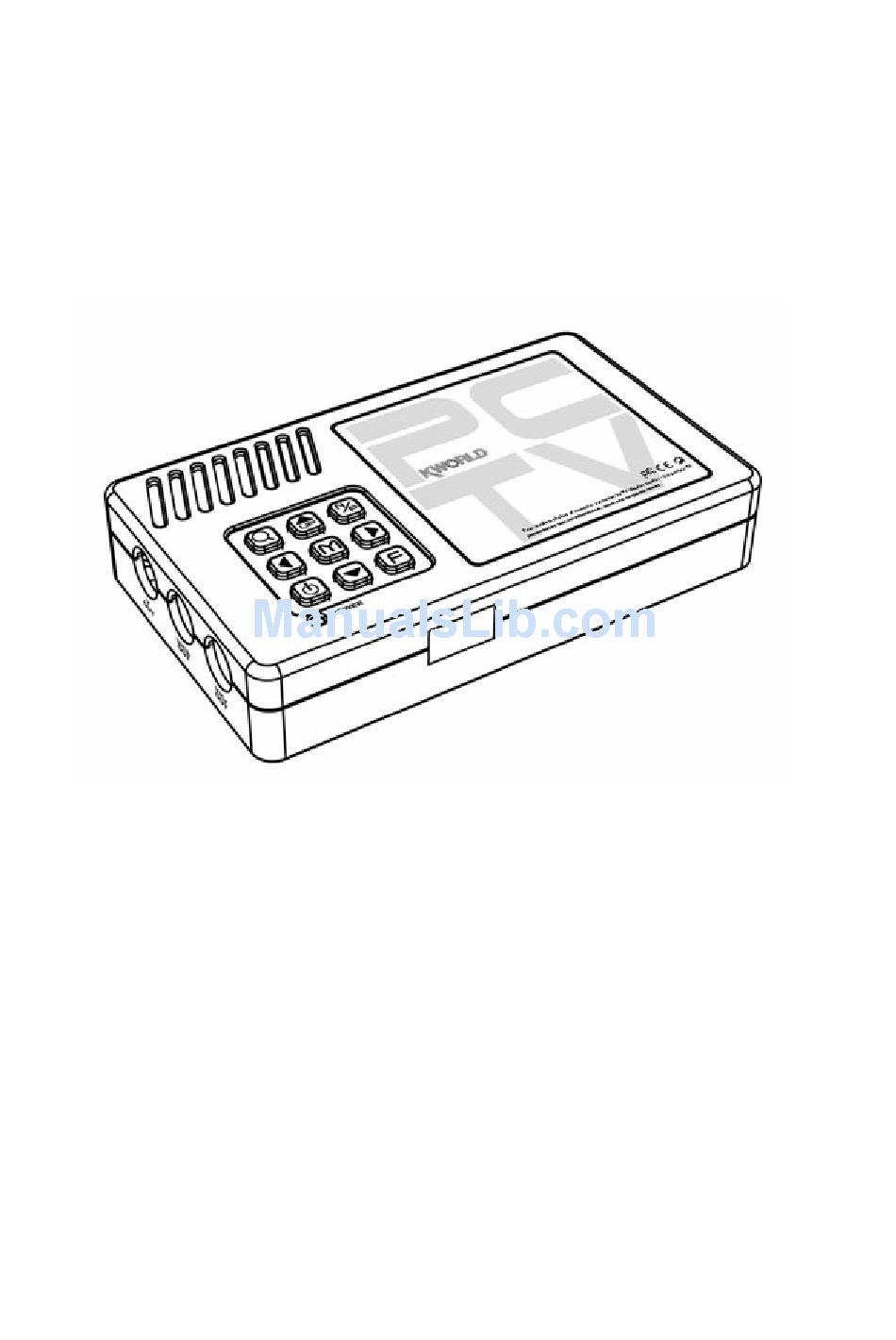

- Page 1 PC to TV Converter User Manual...
- Page 2 1. Introduction The KWorld PC to TV converter provides automatic conversion of PC desktop images to high quality video images for standard television viewing. 1.1 Support Mode and Resolution IPC Compatible Apple MAC G4,G4 Apple iMac, Resolution VGA mode Cubic,G3...
- Page 3 Brightness, Contrast, Hue, Saturation, Flicker, OSD color & Reset. LED power indicator. Independent Horizontal Size and Vertical Size adjustment (programmable 2D scaling). 64 stages of output Brightness, output Contrast, output Hue, and output Saturation adjustment. 16 stages of FINE TUNING (Sharpness), and Flicker adjustment. Remote Control functions: POWER, VIDEO STANDARD, Position control, RESET, MENU, FREEZE, and ZOOM adjustment.
- Page 4 User’s Manual. c. Y Cable. d. USB power cable. e. Video Cable. f. S-Video Cable. g. Lithium battery *1 for remote control. h. Kworld PC-TV Adapter Box. i. Y.Cb.Cr Cable. Y Cable Video Cable Y.Cb.Cr Cable S-Video Cable USB power line...
- Page 5 3. Hardware Connection...
- Page 6 HDTV Connection...
- Page 7 4. Function 4.1 Input/Output Connections a. SCAN CNVTR: VGA signal input/output. Connect to the Y cable. b. RGB OUT: Output RGB signal. c. S-VIDEO OUT: Output S-VIDEO signal connects to TV or VCR. d. VIDEO OUT: Output VIDEO signal, connects to TV or VCR. e.
- Page 8 4.2 Buttons and Switches POWER: Power Switch. NTSC/PAL: NTSC/PAL button switches between different TV Standards. MENU: Displays the OSD menu on screen. Main menu controls the following functions: H-SIZE, V-SIZE, FREEZE, BRIGHTNESS, CONTRAST, HUE, SATURATION, FLICKER, OSD BACKGROUND, RESET. ZOOM: Switches on-screen video between 2x ZOOM and normal. RESET: Resets all functions to factory standard settings.
- Page 9 4.3 Remote Control a. POWER: Power switch. b. RESET: Resets all functions to factory standard settings. c. N/P: NTSC/PAL button switches between different TV Standards. d. ZOOM: Switches on-screen video from normal to 2x zoom. e. M: Displays the OSD menu on screen. Main menu controls: H-SIZE, V-SIZE, FREEZE, BRIGHTNESS, CONTRAST, HUE, SATURATION, FLICKER,...
- Page 10 4.4 OSD MENU 1. H-SIZE: Adjusts the horizontal size of on-screen video. 2. V-HIZE: Adjust the vertical size of on-screen video. 3. FREEZE: Freezes current TV screen. 4. BRIGHTNESS: Adjusts the video brightness 64 degrees. (Default value is 32). 5. CONTRAST: Adjusts the video contrast 64 degrees. (Default value is 32).
