Summary of Contents for KWorld PC TO TV VIDEO BOX
- Page 1 PC TO TV VIDEO BOX User’s Manual Kworld Computer Co., Ltd. www.kworld.com.tw...
-
Page 2: Chapter 1 Introduction
The PC TO TV VIDEO BOX is a high-resolution video scan converter that converts computer’s RGB signal into NTSC or PAL signal. No software driver is required. Simply connect the PC TO TV VIDEO BOX to any TV or video projector for a hyper-effective presentation. -
Page 3: Chapter 2 Installation

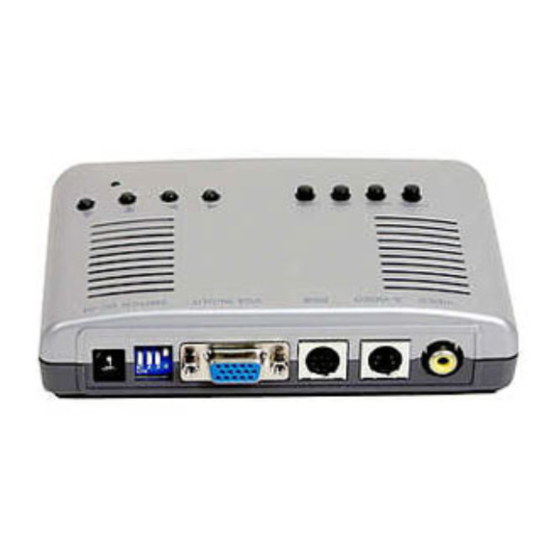

KWORLD PC TO TV VIDEO BOX Chapter 2 Installation Picture 1. The installation diagram of the PC TO TV BOX 1. Power off your computer. Disconnect your monitor with your computer. 2. Connect the 15 Pin Male Signal Cable (Y Shaped) to the “VGA IN/OUT” on this PC TO TV BOX. - Page 4 Chapter 3 Function Description Picture 2. The PC TO TV VIDEO BOX After installation, you should see your computer display on your TV. To configure your PC TO TV VIDEO BOX, you can use touch button on the unit. Button Definition 1.”POWER” button Power On/Off the PC TO TV BOX 2.”RESET”...
- Page 5 Freeze the display video on the TV Chapter 5 Switch TV System The PC TO TV VIDEO BOX supports either NTSC or PAL TV system. You can use the TV standard switch to change the TV system. Please power off the Video before change the setting.
- Page 6 KWORLD PC TO TV VIDEO BOX Chapter 6 Trouble Shooting Problems Possible solutions Abnormal TV Display 1.Press the RESET button 2.Check the TV Standard Switch in on right position (Please refer to Chapter 5 Switch TV System) 3.Check the Signal Cable is connected well No Power LED light 1.Check the power adapter plug-in correctly...
