While the main objective of the Aqua Logic is to automate the operation of your pool/spa system, there
may be certain times when you want to override the automatic operation and control the equipment manu-
ally. To operate the pool equipment manually while keeping the automation active, perform the following
procedures. Note that if you turn a relay on manually, it will remain on until either you turn it off manually,
or the next time the programmed automatic operation would normally turn that relay off. Example: the
filter pump is programmed to run from 9:00A to 5:00P daily. If you turn the filter pump on manually at
8:00PM, it will run continuously until the next day at 5:00PM at which time it will turn off and follow the
normal program from then on. Manually turning off a relay works in a similar fashion.
System Off (remote displays)
or
Service (main unit display)

Output Names

The Aqua Logic is shipped from the factory with each output labeled with a generic name (e.g. AUX1,
VALVE3, etc.). One of the features in the software (see Configuration Menu, page 16) is that each output
can be assigned a new name that is more descriptive of the equipment being controlled. This makes it much
easier to operate all of the equipment on your pool without having to memorize what each output controls.
Insert name labels are also provided to be placed next to each display pushbutton. Since there is no way
to know how your particular system is configured, this manual will use the original generic names for each
output.
Pool Filter Pump
The pool filter pump can be manually operated whether in Standard (single pump) or Dual Equipment
(separate pumps for both pool and spa) mode. When in Standard mode, the display will refer to the pool
filter pump as "FILTER". When in Dual Equipment mode, the display will read "FILTER PUMP".
Single Speed Filter Pump: If the pump is currently off, press the "FILTER" button to turn on the pump.
Pressing the "FILTER" button again will turn off the pump. However, if there is a heater in the system, and
it is operating, and the "Heater Cooldown" feature is enabled (Configuration Menu) then: when you press
the "FILTER" button to turn off the filter, only the heater will turn off, the "FILTER" LED will flash and the
display will indicate "Heater Cooldown". At this point the filter pump will automatically turn off after 5
minutes of heater cooldown operation. If you want to override the heater cooldown, simply press the
"FILTER" button again to turn off the filter pump.

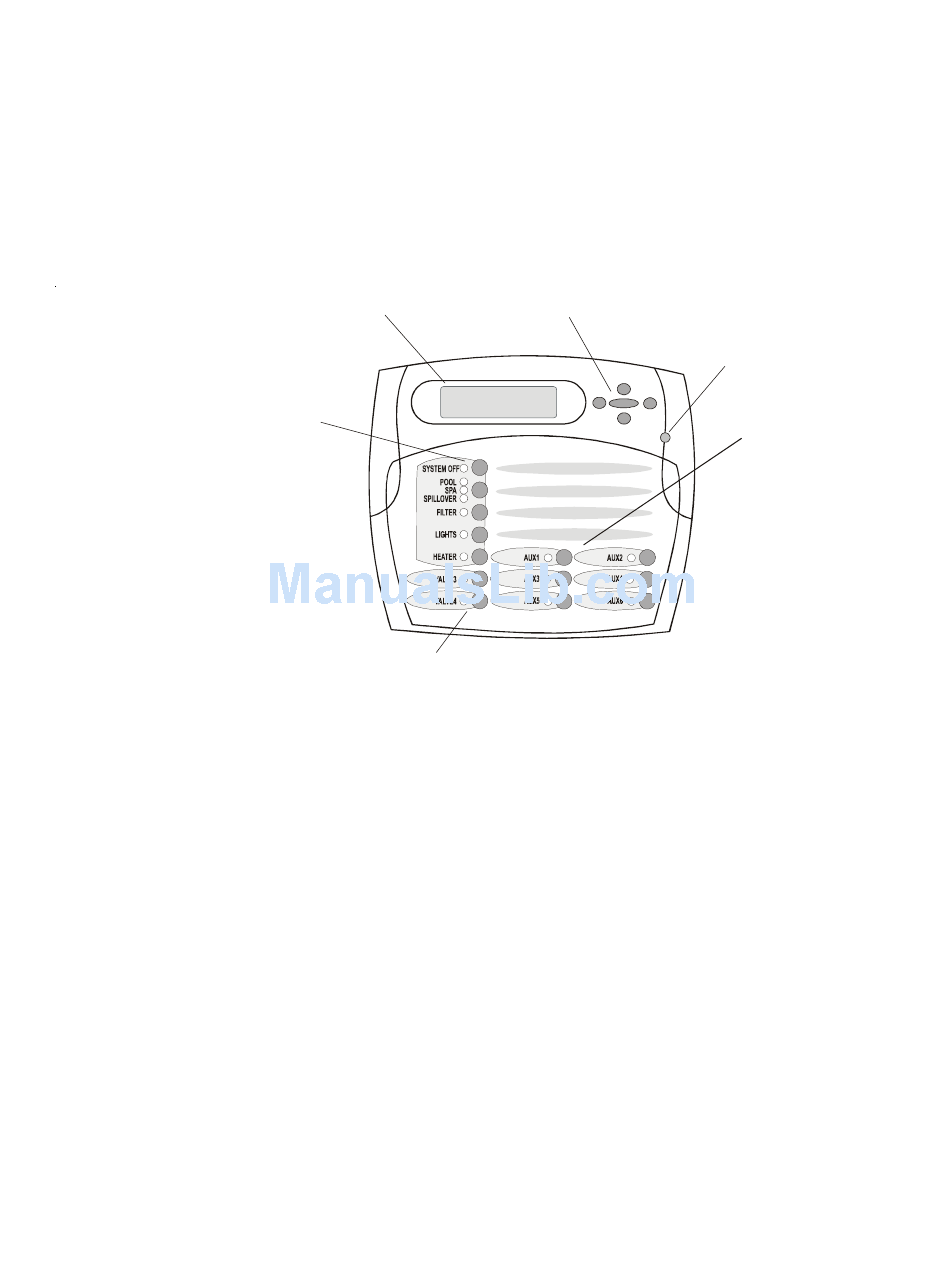

Manual System Operation
Display
Valve4 or Heater2
(See Configuration Menu)
Menu and Navigation Buttons
PS-8
Display
3
Check System LED
Aux1 - Aux6
(On/Off)
