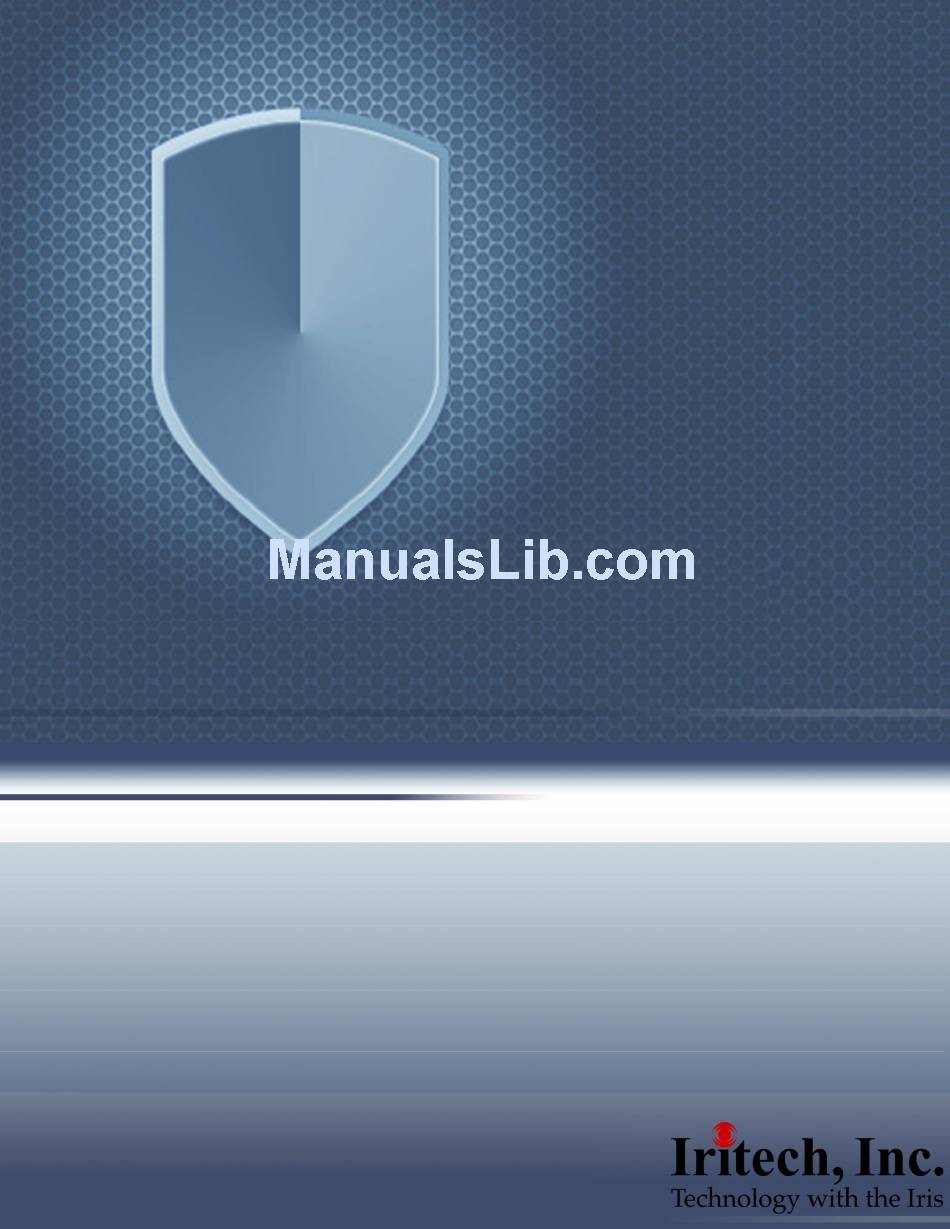

- Page 1 IriShield IriShield -USB MK 2120U Hardware Developer’s Manual Doc Ver. 1.5...
- Page 2 IriTech’s hardware and software and is not to be released, reproduced, or used for any other purpose without written permission of IriTech, Inc. IriTech reserves the right to make changes on this hardware and software with the intent to improve its functionalities. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on part of IriTech.
-
Page 3: Table Of Contents
Key Features ............................4 Warnings and Precautions ........................5 Product Inventory ..........................6 Hardware Specifications ........................7 Capture Volume ............................ 9 Conditions for Using USB ........................10 Legal Notice ............................12 9.1. Warranty Terms ........................12 ©IriTech, Inc. 2014 Confidential and Proprietary Information... -
Page 4: Preface
Your feedback is important for us to help and provide you with the most accurate and highest quality information. If you have any comments about this documentation, please send us an email including the version of this document and the section that pertains to your comments. ©IriTech, Inc. 2014 Confidential and Proprietary Information... -
Page 5: Introduction
Powerful SDK for easy software development Safest for eyes: Safe infrared illumination at less than 2% of the LED Eye Safety Standard Regulation Ready to be integrated with IriTech’s enterprise SW environment ©IriTech, Inc. 2014 Confidential and Proprietary Information... -
Page 6: Warnings And Precautions
Do not drop the device or submit to sudden impact or mechanical stresses. Handle the electronics with proper anti-static protection and techniques to prevent shorting any microchips. Any damage to the device caused by these activities will void the warranty. ©IriTech, Inc. 2014 Confidential and Proprietary Information... -
Page 7: Product Inventory
Product type package of IriShield -USB MK 2120U includes the following components. Item Quantity IriShield -USB MK 2120U Micro USB cable Standard Pouch Software Package * Software Package can be downloaded from IriTech’s Website. ©IriTech, Inc. 2014 Confidential and Proprietary Information... -
Page 8: Hardware Specifications
(Less than 2% of the LED Eye Safety Standard Regulation of 10 mW/cm Memory 64 MB NAND Flash Memory 128 MB Mobile DDR SDRAM External Connection 1 USB Connection (supports USB 2.0) Compliance Eye safety (IEC 62471:2006-07) RoHS FCC Class B IP54 ©IriTech, Inc. 2014 Confidential and Proprietary Information... - Page 9 Iris images will be stored inside the memory of device. This memory is warranted for storing and deleting up to 100,000 cycles. Therefore, if the count of stored/deleted images exceeds 100,000 cycles, the device will be out of warranty Drawing Note: All dimensions are in millimeters. ©IriTech, Inc. 2014 Confidential and Proprietary Information...
-
Page 10: Capture Volume
IriShield -USB MK 2120U - HW Developer’s Manual Capture Volume The optimal distance for best image is 5cm (2 inches) from the image sensor. ©IriTech, Inc. 2014 Confidential and Proprietary Information... -
Page 11: Conditions For Using Usb
-USB MK 2120U - HW Developer’s Manual Conditions for Using USB IriShield -USB camera should be used with the accompanied USB cable supplied by IriTech. The PC must be equipped with a USB 2.0 Host Adapter and a USB 2.0 port. ... - Page 12 MS Windows 7. You can verify whether your operation system has the correct service pack by checking System Properties. For Windows XP, the Service Pack version should be Service Pack 2 or later versions. Please contact IriTech if other operating systems need be supported. ©IriTech, Inc. 2014...
-
Page 13: Legal Notice
• You must assist IRITECH in diagnosing issues with your product and follow IRITECH’s warranty processes. • You must obtain warranty service from IRITECH or an authorized service center specified by IRITECH. IRIECH will not reimburse you for service performed by others. - Page 14 • If IRITECH asks you to return defective parts or products, you must do so within 7 days after you receive the replacement parts or products. IRITECH will charge you for replacement parts or products if you fail to do so.
