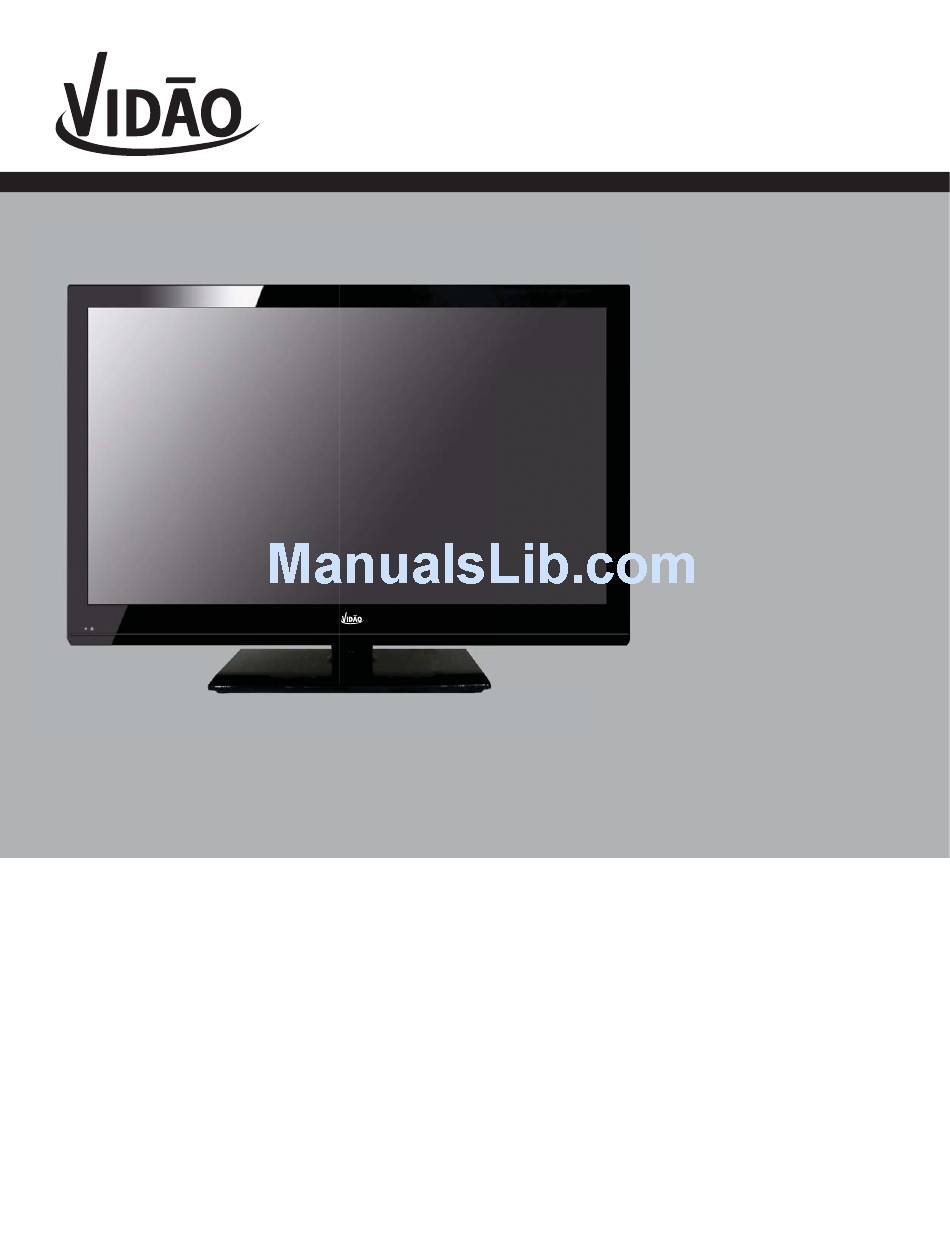

- Page 1 32E66 Ver 1.0 USER’S MANUAL 32” LCD TELEVISION For technical support, the VIDAO Technical Support Center is available 24-hours a day, 7- days a week for technical assistance or troubleshooting. To contact us by phone, please call 1-800-936-1168.
-
Page 2: Important Safety Instructions
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. 32E66-1... -
Page 3: Safety Instructions
To protect the TV during a lightning storm, or when it is left unattended and unused for long periods of time,unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges. 32E66-2... - Page 4 If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance. 32E66-3...
- Page 5 - Connect the equipment into an outlet on a circuit different from that to which the television is connected. - Consult your dealer or an experienced radio / TV technician for assistance. Any changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment. 32E66-4...
-
Page 6: Table Of Contents
Other Settings ................................24 Restore Default ................................24 Setup Wizard ................................24 Closed Captions ................................25 Advanced Settings ..............................26 Parental Control ................................27 TV Settings Favorite ..................................29 Show / Hide .................................29 Channel Label ................................29 Aspect Modes ................................30 USB Modes .................................31 Specifications ................................32 Troubleshooting ................................33 32E66-5... -
Page 7: Introduction
P leas e refer to this guide whenever you have ques tions about features and fuctions . T his ins truction book will get you up and running with the bes t pos s ible connection type for your devices . E njoy! The 32E66 package includes the following items. Save the carton & packing for future shipping • Remote Control •... -
Page 8: Installing The Base
Installing the Base Align and insert screws (4) to connect pedestal base and arm. Align and insert screws (6) to connect pedestal arm to the back of the TV. 32E66-7... -
Page 9: Remote Control
32E66 To operate this TV using your Cable / Satellite remote, follow the programming instructions included with the providers’ remote. VIDAO Universal Remote codes: Comcast or Direct TV : 10030. AT & T (U-verse) : 1043. RCA Universal : 0030. -
Page 10: Overview
Remote Control Overview 32E66 Notes: 1. If direct sunlight shine directly on the remote sensor, the remote control’s operation may be unstable, and the effective range will be reduced. 2. Do not hit or violently shake the remote control. 3. Never expose the remote control to high temperature or humidity. - Page 11 Press to select a program’s second audio channel (if available). (page. 22) 28. CCD Press to select closed caption subtitles (if available) CC Off> CC on > CC on mute. (Page. 25) 29. NUMBER KEYS Press number keys to enter channel numbers. 32E66-10...
-
Page 12: Tv Overview
4. Volume (VOL+ / VOL-) - Press the VOL+ / VOL- buttons to adjust the volume up or down. 5. Power - Press the POWER button to turn the LED display ON / OFF. 32E66-11... -
Page 13: Rear Panel & Pedestal Removal
7. CVBS L / R - Connect a device using a composite connection. 8. Component Y Pb / Cb Pr / Cr, Audio in Input - Connect to a device with a component connection. 9. L / R Line Out- Connect to surround sound receiver. 32E66-12... -
Page 14: Installation
/ in door antenna, or wall outlet. • Finger tighten the Coaxial / RF Cable end to the TV input on the rear panel. • See pages 20-21 for TV setup and Channel Auto Coaxial / RF Cable (not included) Scan. 32E66-13... -
Page 15: Connection To Hdmi Input
Source Select device to HDMI in on rear panel.(pictured above) How to Use • Press the INPUT button on the remote, then use the arrows to highlight HDMI 1, 2 , or 3. Press ENTER. HDMI1 HDMI2 HDMI3 Media 32E66-14... -
Page 16: Connection To Component Ypbpr Input
*NOTE: The picture will be black & white if hooked up incorrectly. You must hook up audio cables seperately. How to Use • Press the INPUT button on the TV remote. Then use the arrow buttons to highlight component. Press ENTER. HDMI1 HDMI2 HDMI3 Media 32E66-15... -
Page 17: Connection To Composite Input
Match and insert the yellow, red, and white A / V cables into the Source Select device and TV. How to Use • Press the INPUT button on the remote. Then use the arrow buttons to highlight AV. Press ENTER. HDMI1 HDMI2 HDMI3 Media 32E66-16... -
Page 18: Connection To A Personal Computer
Match and insert the red and white audio cables from “Line Out” on the TV to “Line In” on your amplifier. NOTE: The TV’s speakers will still output audio. You can turn the Audio Amplifier TV’s speaker volume to 0 to prevent echoing. 32E66-17... -
Page 19: Connection To A Home Theater System
ENTER. Surround Left Surround Right How to Use (Audio) Speaker Speaker Select the appropriate input from your audio equipment. *NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings. 32E66-18... -
Page 20: Tv Setup
Step 3: Auto Scan • Press the arrow button to choose Cable or Air. • Go to next step . • Press the arrow button to initiate auto scan. NOTE: Channel Auto Scan may take several minutes to complete. 32E66-19... -
Page 21: Tv Channel Setup & Channel Auto Scan
Users without an indoor / outdoor TV antenna, there is no need to run Channel Auto Scan. Connect your cable or satel- lite set top box to one of the available inputs on the TV for viewing. See page 14-16 for connection details. 32E66-20... -
Page 22: Picture Setting
Adjust advanced video features to fine tune the picture. Press button to enter. *The Power Saving feature adjusts the brightness of the TV in order to save energy and reduce power consumption. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 32E66-21... -
Page 23: Audio Settings
Press button to select(Off / On) • AVL Press down arrow button to highlight AVL. Press button to select On>Off. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 32E66-22... -
Page 24: Date & Time Settings
Navigate using the arrow buttons to turn this feature on or off. • Clock and Date are automatically set the first time the tuner receives a broadcast channel. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 32E66-23... -
Page 25: Setup Settings
Press ENTER / button to enter. Menu Language English Transparency OSD Timeout 30Sec. Closed Captio Input Label Other Settings Restore Default Setup Wizard Select Move Exit NOTE: Closed Caption and Advanced are features described on the following pages. 32E66-24... -
Page 26: Closed Captions
CC Off CC Mode CC Off Analog CC Analog CC Digital CC Service1 Digital CC Service1 Option Option Select Move Exit Select Move Exit Note: When adjustments are completed, you may select another menu by pressing the Menu button. 32E66-25... -
Page 27: Advanced Settings
H-POS H-POS H-POS V-POS V-POS V-POS Clock Clock Clock Phase Phase Phase Auto Auto Auto Select Move Exit Select Move Exit Select Move Exit 32E66-26... -
Page 28: Parental Control
Not applicable TV RATING MPAA MPAA TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA : BLock Press ENTER to Lock or Unlock Select Move Exit Select Move Exit Select Move Exit NOTE: RRT Setting and Reset RRT are not user adjustable settings. 32E66-27... - Page 29 Mature Audience Only Canada English Canada French Select Move Exit Note: When adjustments are completed, you may select another menu by pressing the Menu button. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 32E66-28...
-
Page 30: Tv Settings
Use the arrow buttons to spell out each letter, number or character. Use arrow buttons to advance to the next space. Air/Cable Auto Scan Favorite Channel list Show/Hide Channel Number Channel Label KABC-SD Select Move Exit Select Move Exit 32E66-29... -
Page 31: Aspect Modes
The Zoom effect will crop images somewhat. 4. CINEMA When viewing 4:3 content, Cinema mode will fill the entire screen eliminating visible side black bars. It may also eliminate or reduce black bars on certain widescreen movies. 32E66-30... -
Page 32: Usb Modes
Bit Rate: 320K • Press Menu button to back to the previous Artist: Emms Christi... Sampling: menu and exit button to quit the entire menu. Year: 1995 Size: 11725kBytes • Press▼ button to hide the menu in the bottom. Songlist 32E66-31... -
Page 33: Specifications
2 X 8 W Dimension without Pedestal Installed 30.8” x 4.2”x 19.8”inches Weight without Pedestal 19.4 lb Y Pb Pr / Audio in HDMI RF IN CVBS L / R Input Connections PC-RGB IN PC Audio COAXAL Line Out (L / R) 32E66-32... -
Page 34: Troubleshooting
• Re-connect the antenna or cable wiring. • Restore default settings. See page Remote control does not function • Replace batteries with new ones. • Check that battery polarity is correct. • Point remote directly at the TV’s IR receiver. See page 8. 32E66-33... - Page 35 We warrant this product to be free from defects in material and workmanship under normal use for a one-year period from the original date of purchase from an authorized VIDAO dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
