Summary of Contents for Vidao 32A60

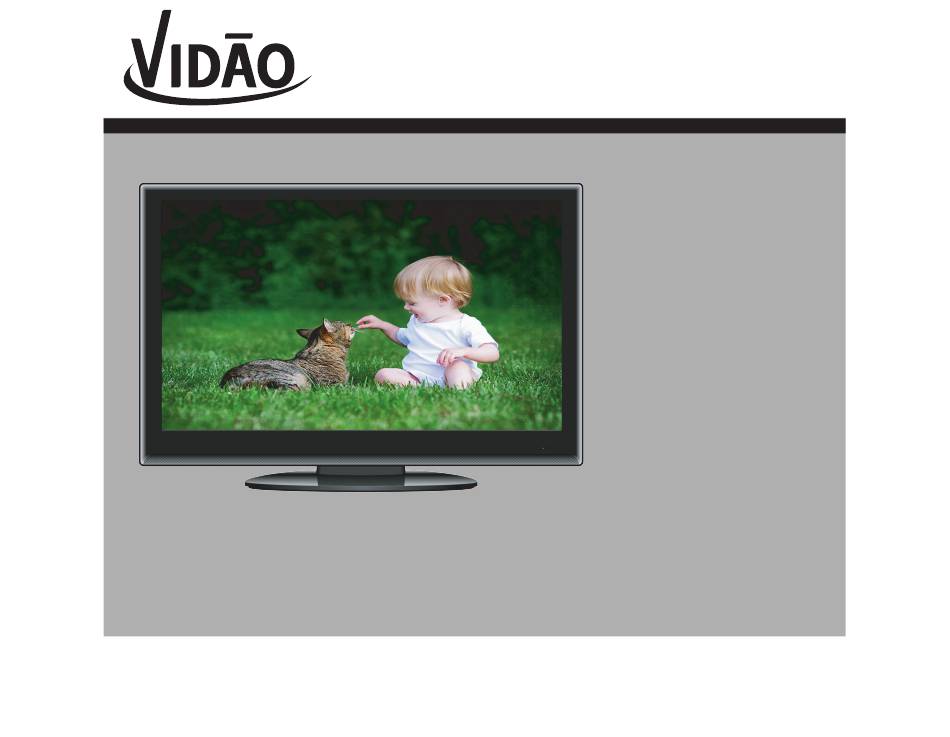

- Page 1 32A60 USER’S MANUAL 32” LCD TELEVISION For technical assistance or troubleshooting, please call 1-800-936-1168 or email 32A60-1 service@etecusa.com. The Technical Support Center is available 24-hours a day, 7-days a week.
- Page 2 - Connect the equipment into an outlet on a circuit different from that to which the television is connected. - Consult your dealer or an experienced radio / TV technician for assistance. Any changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment. 32A60-2...
- Page 3 (grounding) pin. As a safety feature, this plug will only fit into a grounded power ourlet. If you are unable to insert the plug into the outlet, contact your electrician to replace the obsolete outlet. Do not defeat the safety purpose of the grounding-type. To protect 32A60-3...
- Page 4 32A60-4...
-
Page 5: Table Of Contents
Initial Setup Wizard ....................Aspect Modes ......................TV Channel Setup & Channel Auto Scan ............. USB Modes ......................Picture Settings ..................... Specifications Contrast ........................ Troubleshooting ....................Brightness ......................Index ........................Color ........................Tint ........................Sharpness ......................Color Temperature ....................32A60-5... - Page 6 Thank you for purchacing the energy efficient 32A60 LCD television. It has been designed to offer today’s high definition television experience. With a display resolution of 1366x768 you are assured of one of the finest quality televisions available today. Your television provides both analog and digital inputs including two (3) High Definition...
- Page 7 IR receiver on the front of the TV. SLEEP DISPLAY IR Receiver INPUT EXIT ENTER LAST MUTE NOTE: Improper use of batteries can result in a chemical leakage or explosion. 32A60-7 AUDIO RETURN PICTURE CH.LIST TEMP GUIDE FREEZE ASPECT 32A60...
- Page 8 NOTE: When using the remote 32A60-8 control, point it directly at the TV.
-
Page 9: Side Panel
5. Power - Press the POWER button to turn the LED display ON / OFF (standby). When the power is on, the blue LED illuminates. The screen image will appear within a few seconds. Side Panel 32A60-9... - Page 10 10. Headphone Jack - Connect a stereo headphone (3.5mm – not included) for private listening. 5. Component Y Pb Pr Input - Connect to an AV device that features component (Y Pb Pr L R) video and audio output jacks. 32A60-10...
-
Page 11: Connection To Coaxial / Rf Cable / Antenna
Finger tighten the Coaxial / RF Cable end to the TV input on the rear panel. • See pages 17-18 for TV setup and Channel Auto Scan. • Tune to TV programming directly from the television tuner. 32A60-11... - Page 12 HDMI output to the HDMI input on the TV’s rear panel. HDMI 2 HDMI 2 How To Use HDMI 3 HDMI3 • Press the INPUT button on the remote control. Use arrow buttons to highlight the input to view (HDMI 1, 2,3) then press ENTER. 32A60-12...
- Page 13 TV’s rear panel. HDMI 1 HDMI 1 HDMI 1 HDMI 2 HDMI 3 How to Use • Press the INPUT button on the remote control. Use the buttons to highlight the input to view (Component) then press ENTER. 32A60-13...
- Page 14 TV’s rear panel. Component Component Component HDMI 1 How to Use HDMI 2 Press the INPUT button on the remote control. Use the • buttons to HDMI 3 highlight the input to view (AV) then press ENTER . 32A60-14...
- Page 15 Connect the TV’S Audio (L/R) output jacks to an Audio Amplifier SPDIF AC IN Audio out using an audio patch cable with RCA cable ends (not included). NOTE: The speakers of this TV still will output audio at this time. Audio cables (not included) Audio Amplifier 32A60-15...
- Page 16 ENTER . How to Use (Audio ) Select the appropriate input from your audio equipment. 32A60-16 *NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings.
-
Page 17: Connection To The Power Source
Auto Scan and press ENTER . Note: when Cab le is se lected, ‘AUTO ’ is the • Press the recommended sett ing. Othe rwise, p ress the button to select the Cab le Syste m : ST D > IRC > HRC > Auto . 32A60-17... - Page 18 STD > IRC > HRC > Auto (Auto is recommended). Channel Lock Channel Lock • Press the button to select Auto Scan and press ENTER . Auto Channel Scan may • take several minutes to complete the process. 32A60-18...
- Page 19 Color Temperature Press the preference. Use the buttons to select COOL (more Bluish tone), NORMAL or WARM (less Bluish tone) settings. 32A60-19 Note: When adjustments are complete, you may select another menu by pressing the MENU button.
- Page 20 English > Spanish > French. Note: This feature is not available when text is grayed out. You may select an alternative language using the remote control by pressing 32A60-20 Note: When adjustments are complete, you may select another menu by pressing the MENU button.
- Page 21 “Daylight Savings Time”. Navigate using the buttons to turn this feature on or off. Note: This feature is not available when text is grayed out. 32A60-21 Note: When adjustments are complete, you may select another menu by pressing the MENU button .
-
Page 22: Menu Language
Normal > Wide > Zoom > adjustments back to their original Cinema. factory settings. The Aspect feature is also available on the remote control. (See page 28) 32A60-22 NOTE: Closed Caption and Advanced are features described on the following pages. - Page 23 Channel Lock highlight Basic Selection. Navigate using the buttons and select CC 1-4, Text 1-4. Note: When adjustments are complete, you may select another menu by pressing the MENU button. Features are not available. 32A60-23 when text is grayed out.
- Page 24 • Highlight V-Pos. Navigate • Highlight Auto. Press the using the buttons to button to automatically adjust the position of images adjust the display to the best Channel Lock displayed up and down. Channel Lock setting. When prompted, select Yes to confirm. 32A60-24...
- Page 25 G - General Audience PG - Parental Guidance Suggested PG 13 - Parents Strongly Cautioned R - Restricted NC17 - No One Under 17 Permitted X - Adults Only 32A60-25 NOTE: Features are not available when text is grayed out.
- Page 26 Appropriate for Children 13 years old and up Channel Lock preference. 16 ans+ Appropriate for Children 16 years old and up 18 ans+ Mature Audience Only 32A60-26 Note: When adjustments are complete, you may select another menu by pressing the MENU button.
- Page 27 Use the buttons Channel Channel Lock Lock to spell out each letter, number or character. Use the buttons to advance to the next space. NOTE: The DTV SIGNAL is a measurement 32A60-27 of signal strength for the current channel viewed.
- Page 28 The zoom effect will also crop images somewhat. 4. CINEMA When viewing 4:3 content, Cinema mode will fill the entire screen eliminating the side black bars. It may also eliminate or reduce black bars on certain widescreen movies. 32A60-28...
- Page 29 -For Comcast or DirecTV remote controls, input the code- 10030. -For AT&T ( U-verse ) remote Controls, input the code- 1043. -For RCA Universal Remote Controls, input the code- 0030. 32A60-29...
- Page 30 140Watts Audio Power 2 X 6 W Dimension without Pedestal Installed 31.3” x 3.74”x 20.2”inches Weight without Pedestal 25.3lbs Input Connections Composite Video Y Pb Pr HDMI SPDIF Digital Audio Output PC/VGA PC Audio IN (3.5mm) Headphone Jack (3.5mm) 32A60-30...
-
Page 31: Restore Default
Re-connect the antenna or cable wiring. • Restore default settings. See page 22. • Replace batteries with new ones. Remote control does not • Check that battery polarity is correct. function • Point remote directly at the TV’s IR receiver. See page 7. 32A60-31... -
Page 32: Parental Control - Canada
Dash ( - ) Daylight Savings Time Default Settings Y Pb Pr 10, 13 Digital Cable Parental Control 25-26 Digital Set Top Box Password 25-26 Pedestal Stand Removal Digital Audio 10, 15, 24 Display Phase Display Modes for PC 32A60-32... - Page 33 We warrant this product to be free from defects in material and workmanship under normal use for a one-year period from the original date of purchase from an authorized VIDAO dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
