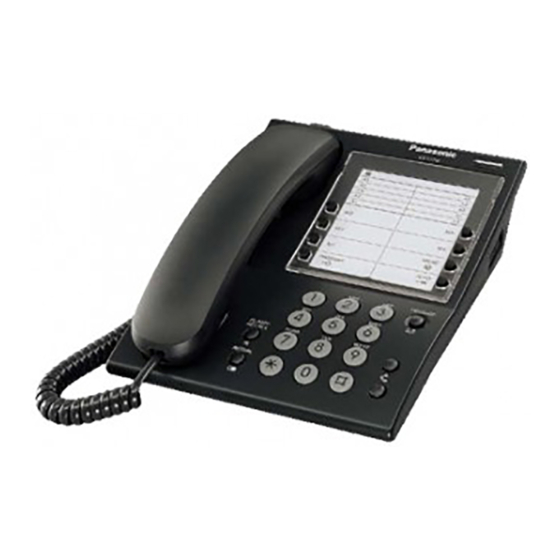

Panasonic KX-T7710 Quick Reference Manual

Hide thumbs
Most useful pages: More

Advertisement

Attention
When using the KX-T7710, keep the following conditions in mind.
If there is any problem, unplug the extension line and connect a known working phone.
If the known working phone operates properly, have the defective phone repaired by a
specified Panasonic Factory Service Centre. If the known working phone does not
operate properly, check the Panasonic KX series Business Telephone System and the
internal extension wiring.
Keep the unit away from heating appliances and electrical noise generating devices such
as fluorescent lamps and motors.
The unit should be kept free of dust, moisture and vibration, and should not be exposed
to direct sunlight.
Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a
soft cloth.
Do not disassemble this product. Dangerous electrical shock could result. The unit
must only be disassembled and repaired by qualified service technicians.
Do not use any handset other than a Panasonic handset.
Never attempt to insert wires, pins, etc, into the vents or other holes of this unit.
When a failure occurs which exposes any internal parts, disconnect the telephone line cord
immediately and return the unit to a service centre.
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS
OBJECTS.
Note:
In this manual, the suffix of each model number is omitted.
This Class B digital apparatus complies with Canadian ICES-003.
This product is intended to be connected to Panasonic KX series Business Telephone System.

Quick Reference Guide

KX-T7710
Model No.

Advertisement

   Summary of Contents for Panasonic KX-T7710

  • Page 1: Quick Reference Guide

    THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS OBJECTS. Note: In this manual, the suffix of each model number is omitted. This Class B digital apparatus complies with Canadian ICES-003. This product is intended to be connected to Panasonic KX series Business Telephone System.
  • Page 2: Features List

    Feature number Talk * The Feature numbers described in this manual are for KX-TD500 or KX-TD816/KX-TD1232. If a different Panasonic KX series Business Telephone System is connected, please refer to its manuals. * "Location of Controls" is shown on page 5.
  • Page 3 Features List Operation Desired Function During a Conversation Holding To retrieve a call at the holding extension Holding a call Transferring dial no. a call Announce. Useful Features To page All groups & external speakers Specific group group no. All groups Announce.
  • Page 4: Operations In Normal Mode

    1: 80 ms, 2: 90 ms, 3: 100 ms, 4: 110 ms, 5: 200 ms, 6: 300 ms, 7: 400 ms, 8: 600 ms Regarding other operations, please refer to the manuals for the connected Panasonic KX series Business Telephone Systems. – 4 –...
  • Page 5: Location Of Controls

    The KX-T7710 has two modes, NORMAL Mode and Panasonic PBX Mode*. Please use the corresponding side of the Telephone Card depending on the mode. *The PBX Mode may not be available depending on the model of the connected Panasonic KX series Business Telephone Systems.
  • Page 6: Things You Should Know

    Things You Should Know Wall Mounting Wall mounting adaptor Telephone line cord To temporarily place the handset down during a conversation: Removing the Telephone Card Cover – 6 –...
  • Page 7 Important Information NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, “IC:”, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
  • Page 8 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, ON L4W2T3 © 2003 Panasonic Communications Co., Ltd. All Rights Reserved. PSQW2023ZA Printed in Canada KK0403TT0...
