Summary of Contents for Outdoor Plus Custom Fire Pit

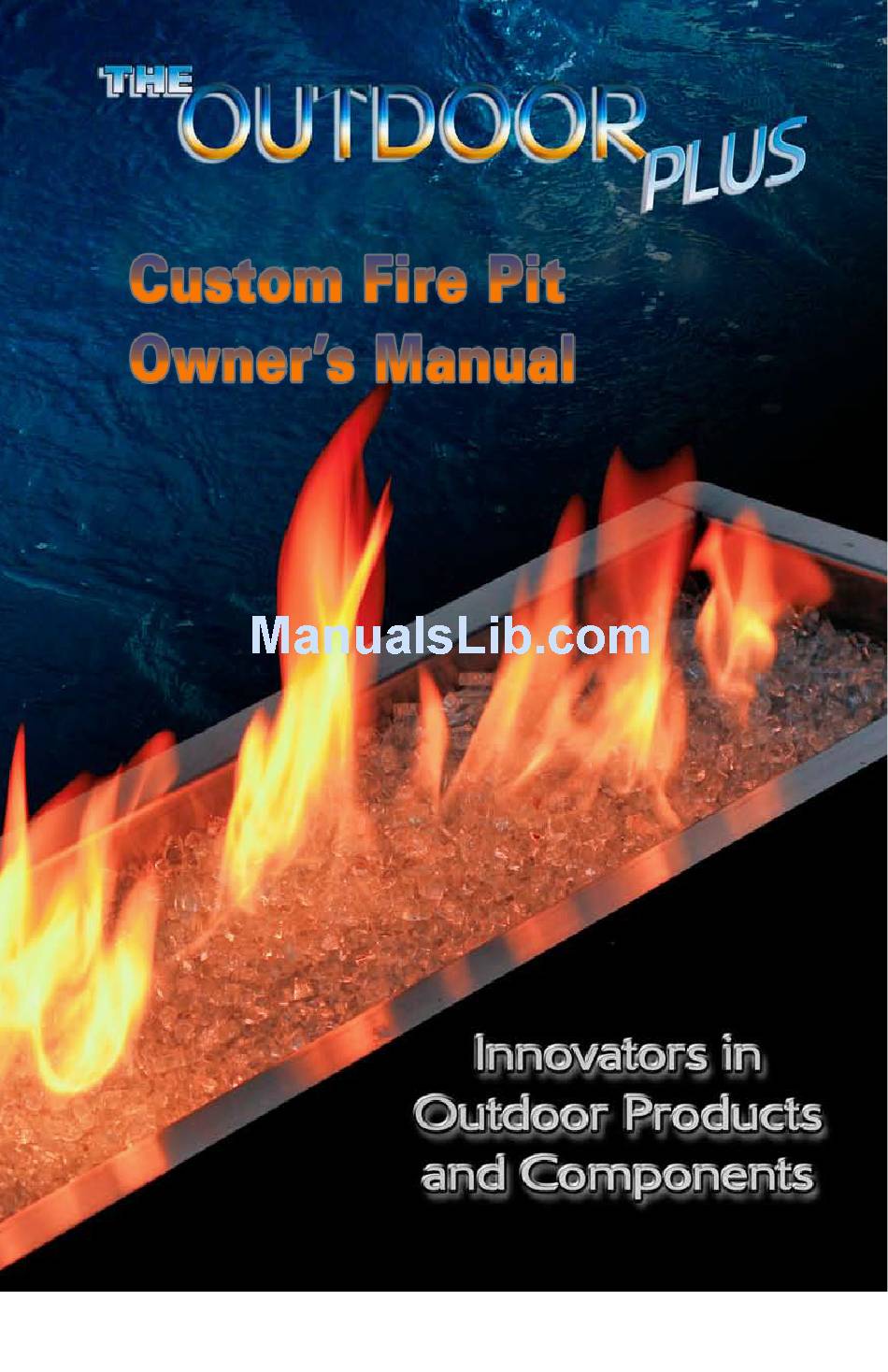

- Page 1 © 2013 The Outdoor Plus...
-
Page 2: Specifications
Never use this appliance in an enclosed space such as a camper, tent, car, or home. The Outdoor Plus fire pits are designed for outdoor use only. The Outdoor Plus 780 East Francis Street, Suite T... -
Page 3: Table Of Contents
Outdoor Plus fire pit. Save these instructions! The Outdoor Plus manufactures a wide range of products and models and specializes in custom fabrication. Although this manual describes features common to all fire pit models, the examples shown may not necessarily... -
Page 4: Safety Instructions
Safety Instructions WARNING! Do not store combustible materials, gasoline and any other flammable vapors and liquids. A propane gas cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. WARNING! Improper installation, adjustment, alteration, service or maintenance can cause in- jury or property damage. - Page 5 DANGER! In the event that a burner goes out, turn burner knobs to the full OFF position and let it air out. Do not attempt to use the fire pit until the gas has had time to dissipate. Propane gas source to the fire pit must be regulated. Do not operate if regulator has been removed.
-
Page 6: Set-Up
Set-Up Setting up for use with liquid propane (LP) 1 Place the fire pit in a desired location page 5 2 Connect the propane tank page 6 3 Perform a leak test page 10 4 Place the decorative stone or decorative fire objects page 11 5 Insert the battery in the igniter Setting up for use with natural gas (NG) -
Page 7: Placement And Location
Placement and Location Your Outdoor Plus fire pit is designed for outdoor use only. Never locate this appliance in a building, garage, or any other enclosed room or under a sealed overhead structure, or in any type of enclosed area such as a garage, shed, or breezeway. Keep clear of trees and shrubs. -
Page 8: Liquid Propane
Liquid Propane Your Outdoor Plus fire pit is built with a tank enclosure, but is not provided with a propane tank. You will need to provide one. The enclosure will ac- commodate a 2 lb propane tank. Use these specification for purchas-... - Page 9 Filler Valve: If you do not have an updated filler valve on your exist- ing propane tank, you will need to purchase one at your local hardware store, as you will not be allowed to refill the tank at any filling station. Transporting Gas Cylinder: Only one cylinder should be transported at a time.
- Page 10 Location of the Propane Tank Outdoor Plus fire pits are built with an enclosure that safely holds a 2 lb propane tank. Place the propane gas cylinder in the enclosure as shown below. Set-Up...
-
Page 11: Natural Gas
Natural Gas Ensure that the service supplying the fire pit is fitted with a conveniently positioned shut off valve with easy access. The shut off valve MUST NOT be inside the appliance! Requirements Always check the rating plate to make sure the gas supply you are hook- ing up to is the gas type the fire pit is manufactured for. -
Page 12: Leak Testing Procedure
Leak Testing Procedure Perform a leak test at least once a year whether the gas supply cylinder has been disconnected or not. In addition, whenever the gas cylinder is connected to the regulator or whenever any part of the gas system is disconnected or replaced, perform a leak test. -
Page 13: Decorative Glass Placement
Decorative Glass Placement After you have completed all plumbing installation, you can fill the fire bowl with the decorative glass. Depending on which glass option you chose, you may have one, two, or several bags of glass. Glass placement is entirely your choice according to your preferences. It will not affect the operation of the fire pit in any way. -
Page 14: Natural Gas Conversion
To The Authorized Gas Appliance Installer: Outdoor Plus are shipped from the factory equipped to burn on liquid pro- pane fuel. Gas conversion from LP to NG only requires turning the brass nut on the orifice assembly connected to the bottom of the burner. - Page 15 Orifice assembly for fire pit burners Converting the orifice assembly requires no additional parts. The gas orifice is self-contained for use with both LP and NG. As shown in the figure below, the entire assembly is composed of four pieces: •...
- Page 16 Disconnect the black LP hose from the gas valve inside the enclosure. You will need to attach a NG regulator in the enclosure to the gas valve where the LP hose was connected. Do not remove the flex line from the gas valve.
-
Page 17: Operating The Fire Pit
Operating the Fire Pit WARNING: DO NOT use solid fuel, such as wood or charcoal, in gas fueled fire pits. Upon completing the gas line connection, a small amount of air will be in the lines. When the first lighting the burner, it will take a few seconds for the lines to purge themselves of this air. -
Page 18: Lighting Instructions
For your safety, read before lighting. • Before operating smell all around the appliance area for gas odors and next to the floor because some gases are heavier then air and will settle on the floor. • Use only your hand to turn the manual gas control valve. Never use tools. -
Page 19: Turning Off Gas
Depress igniter button until you hear it sparking. You will hear a small popping noise. Keep igniter button pushed in while slowly turning the fuel flow valve to the full flow position at the fire pit. The fire pit should light within 5 seconds. If you do not hear the ig- niter sparking you may need to replace the battery. -
Page 20: Cleaning, Maintenance, Storage
When not in use and after cooling, cover your fire pit with a full length cover. The cover will help protect your fire pit from detrimental effects of weather and environmental pollutants (see your local Outdoor Plus dealer for details). - Page 21 Maintenance Periodically check the hose connecting the propane gas cylinder to en- sure it is not cracked or damaged in any way. All natural gas hook-ups should be serviced and inspected only by qualified installers only. Spiders and other insects can nest in the burners and block the gas and airflow to the burner ports.
-
Page 22: Replacement Parts
Replacement Parts A complete catalog of products and replacement parts available from The Outdoor Plus can be found online at www.theoutdoorplus. You can find a full range of products and accessories, including: • Burners: Pan burners, H burners, fire pit rings •... -
Page 23: One Year Limited Warranty
Warranty repair or replacement are the sole discretion of The Outdoor Plus and this warranty does not cover costs therein, in- cluding but not limited to: freight, removal, re-installation, etc. - Page 24 All text and images copyright 2013 The Outdoor Plus. All rights reserved.
