Nikkai A75HQ User Manual

Single scart set top box
Hide thumbs Also See for A75HQ:

Advertisement

Table of Contents

See also: Owner's Manual
Single Scart Set Top Box
User Manual
A75HQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A75HQ and is the answer not in the manual?

Questions and answers

Related Manuals for Nikkai A75HQ

Summary of Contents for Nikkai A75HQ

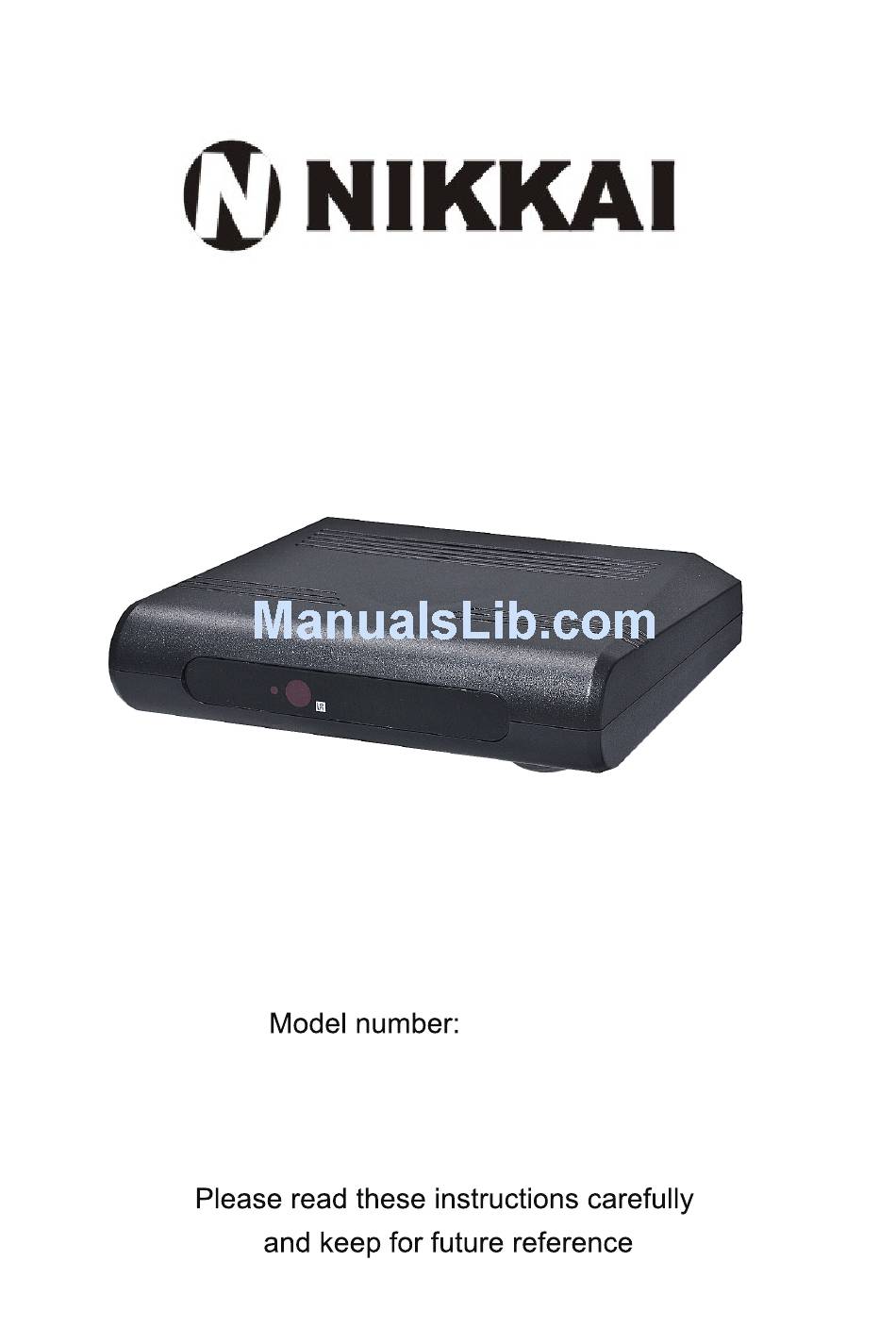

  • Page 1 Single Scart Set Top Box User Manual A75HQ...

  • Page 2: Table Of Contents

    CONTENTS Page Important safety instructions Front and rear panel features Remote control features Using the remote control Connections Getting started Basic functions Using the on screen menus Main menu Channel Configuaration Factory Default Games Trouble shooting Connection to the mains supply...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER To reduce the risk of electric shock, do not remove the cover or back.No user serviceable parts inside this unit. Refer servicing to a qualified technician. The lightning flash with the arrowhead symbol,within an equilateral triangle, is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the products inclosure, that may be of sufficient magnitude to constitute a risk of electric...

  • Page 4: Front And Rear Panel Features

    FRONT AND REAR PANEL FEATURES...

  • Page 5: Remote Control Features

    REMOTE CONTROL FEATURES Remote Control STANDBY Prev./Zoom+ Next./Zoom- PROG. INFO...

  • Page 6: Using The Remote Control

    USING THE REMOTE CONTROL Inserting the batteries in the remote control 1 Open the battery compartment cover. 2 Insert 2 AAAbatteries into the battery compartment withthe polarity the same as marked inside the batterycompartmentin the remote control. 3 Replace the batterycover. Step 3 Step 1 Step 2...

  • Page 7: Connections

    CONNECTIONS General There are many different types of TV/Recording devices and other equipment that you can connect to the Settop box. In this manual you will see some of the most common ways to connect your equipment. Connection to the TV with scart Scart cable Antenna SCART-TV...

  • Page 8: Getting Started

    GETTING STARTED Putting into operating Make sure that all the connections have been made before connecting to the mains supply. Plug the STB into the mains supply and the STB will switch on. Init Install When the STB is first started from standby mode, there are no channels stored inside the memory.

  • Page 9: Basic Functions

    BASIC FUNCTIONS TV/Radio Switch Press TV/Radio to switch between TV and Radio Station Switch • Press “ENTER” to switch to the quick select program list. • Press “VOL+ /VOL-” to select a different program class. • Press “CH+/CH-” to select the program. •...
  • Page 10 BASIC FUNCTIONS Display Program Information Press the “INFO” button twice to display the information of the current program when its in normal playing state. Program Return Press “RECALL” when in full screen mode to return to the previous channel. Audio and Language Switch Press “...
  • Page 11 BASIC FUNCTIONS EPG Explained. A) Current time and date. B) Program list. Press “CH+/CH-” to switch between programs. C) Information of EPG selection. D) Weekly Planner. Displays the time range in days of programs shown. Press “ ” to select a day. E) Daily Planner.
  • Page 12 BASIC FUNCTIONS Teletext • Press “TEXT” on the remote to enter into the teletext page. • Input three digits using the keypad to be directed to the corresponding page. • Press “CH-” to go to the previous page. Press “CH+” to go to the next page. •...

  • Page 13: Using The On Screen Menus

    USING THE ON SCREEN MENU Main Menu In the main menu of the system under Digital TV you will find 6 options. Pressing the “MENU” button will enter into this menu. The options are as follows: • Channel manager • Installation •...

  • Page 14: Channel

    USING THE ON SCREEN MENU A) Manual Search If you know the frequency of the program you are trying to tune, choosing manual search can save you time. • Move the curser to “Manual Search” by pressing “CH-/CH+” under the installation menu. •...
  • Page 15 USING THE ON SCREEN MENU A) Channel Organiser To enter the channel organiser follow this path: MENU->Digital TV-> Channel Manager->Channel Organiser Channel organiser menu includes the following options: (RED) • Favourite Channel (GREEN) • Delete Channel (YELLOW) • Move Channel (BLUE) •...
  • Page 16 USING THE ON SCREEN MENU B) Channel Sorting To enter the channel sorting menu follow this path: MENU->Digital TV-> Channel Manager->Channel Sorting Channels can be sorted using three options: 1. Choose the programs to be sorted via the selection area or country 2.
  • Page 17 USING THE ON SCREEN MENU D) Channel Edit In this menu you have the option to add or edit channels. To enter the channel edit menu follow this path: MENU->Digital TV-> Channel Manager->Channel Edit 1.Adding channels • Press the red button on the remote control to add a channel •...

  • Page 18: Configuaration

    USING THE ON SCREEN MENU E) Delete All Under Channel manger select “Delete All” using “CH+/CH-” buttons. In the Delete all menu screen there are two options: To select either of these two options use the “CH+/CH-” buttons. • All TV Channels •...
  • Page 19 USING THE ON SCREEN MENU B) TV This menu enables you to change the TV input mode suited to your preferences. To enter this menu follow this path: MENU->Digital TV-> Configuration-> TV In this menu there are six options which can be altered. These can be selected using the “CH+/CH-”...
  • Page 20 USING THE ON SCREEN MENU D) Time The time option allows you to change the time in the OSD screen. To enter the time menu screen follow this path: MENU->Digital TV-> Configuration-> Time The are four options to choose from in this menu screen. Press “CH+/CH-” to select time option.
  • Page 21 There are 8 Wakeup timers and each 1 will allow you to set 1 timer event only. Please see below examples of this function. Example 1: You are watching BBC1 but would like to switch to a programme on ITV1. It starts at 2:30pm on 15/01/2010 and runs for 30 minutes.

  • Page 22: Factory Default

    USING THE ON SCREEN MENU F) Parental Lock In this menu you can reset the system password. To enter the Parental Lock menu follow this path: MENU-> Digital TV-> Configuration-> Parental Lock • Key in the current/old password using the number keypad (default password is “0000"). •...

  • Page 23: Trouble Shooting

    TROUBLE SHOOTING In some regions, the digital terrestrial signal may be weak.It is advisable to use an outdoor antenna for watchingtheweaksignal channels. Problem Possible cause What to do Standby light not lit Mains lead unplugged Check mains lead Mains fuse blown Check fuse No signal found Aerial is disconnect...

  • Page 24: Connection To The Mains Supply

    CONNECTION THE MAIN SUPPLY This appliance is designed to operate from a mains supply of AC230V ~ 50Hz. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note The following: Important: The wires in the mains lead are...
