Page of 19

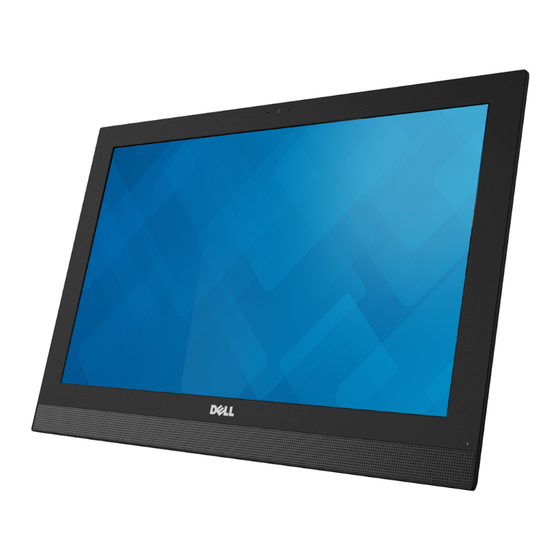

Inspiron 20
Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
2014 ‑ 08
Rev. A01
Regulatory model: W13B | Type: W13B001
Computer model: Inspiron 20 Model 3043
Views
Tilt
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.

   Summary of Contents for Dell Inspiron 20

  • Page 1: Specifications

    Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

  • Page 2

    Views Specifications Front Front Right Back Microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Power-status light Camera Indicates the power‑state of the computer. Allows you to video chat, capture photos, and record videos.

  • Page 3

    Views Specifications Right Front Right Back Media-card reader USB 2.0 port Reads from and writes to media cards. Connect peripherals such as storage devices, printers, and so on. Provides data transfer speeds up to USB 2.0 ports (2) 480 Mbps. Connect peripherals such as storage devices, printers, Headphone port and so on.

  • Page 4

    Press to select the input source. behaviour in Power Options. For more information, In HDMI‑IN mode, press to exit the OSD menu. see Me and My Dell at dell.com/support. VESA mount Brightness-control buttons (2) Mount the computer on the wall using a Press to increase or decrease the brightness of VESA‑compatible wall mounting kit.

  • Page 5

    Tilt 15° 80°...

  • Page 6

    Specifications Views Dimensions and Weight Height 312.54 mm (12.30 in) Width 489.50 mm (19.27 in) Depth 26.80 mm (1.06 in) Weight (maximum): Touchscreen 3.65 kg (8.05 lb) Non‑touchscreen 3.10 kg (6.83 lb) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability.

  • Page 7: System Information

    Specifications Views System Information Computer model Inspiron 20 Model 3043 Processor • Intel Pentium Quad Core • Intel Celeron Dual Core Chipset Integrated in processor Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer...

  • Page 8

    Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed 1333 MHz Configurations supported 2 GB, 4 GB, and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer Display Camera Power Adapter Battery Environment Reader...

  • Page 9: Ports And Connectors

    Specifications Views Ports and Connectors External: Network One RJ45 port Three USB 2.0 ports Audio/Video • One headphone port • One HDMI‑in port Internal: Mini card One half mini‑card slot for Wi‑Fi and Bluetooth combo card Dimensions and System Ports and Memory Communications Video...

  • Page 10

    Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11 b/g/n • Bluetooth 4.0 Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer Display Camera Power Adapter Battery Environment Reader...

  • Page 11

    Specifications Views Video Controller Intel HD Graphics Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer Display Camera Power Adapter Battery Environment Reader...

  • Page 12

    Specifications Views Audio Controller Realtek ALC290Q audio with Waves MaxxAudio 5 Speaker Subwoofer One (only available on models without a built‑in battery) Output: Average Peak 2.5 W Microphone Digital microphone in camera assembly Volume controls Program menus Dimensions and System Ports and Memory Communications...

  • Page 13

    Specifications Views Storage Interface SATA 3 Gbps Hard drive One 2.5‑inch drive Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer Display Camera Power Adapter Battery Environment Reader...

  • Page 14

    Specifications Views Media-Card Reader Type One 4‑in‑1 slot Cards supported • SD card • SD Extended Capacity (SDXC) card • SD High Capacity (SDHC) card • MultiMediaCard (MMC) Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer...

  • Page 15

    Specifications Views Display Type • 19.5‑inch HD • 19.5‑inch HD+ touchscreen Resolution (maximum) 1600 x 900 Dimensions: Height 263 mm (10.35 in) Width 452 mm (17.80 in) Diagonal 494 mm (19.45 in) Refresh rate 60 Hz Pixel pitch 0.27 mm Controls Brightness can be controlled through the brightness‑control buttons Dimensions and...

  • Page 16

    Specifications Views Camera Resolution: Still image 1 megapixel Video 1280 x 720 HD at 30 fps Diagonal viewing angle 77.6 degrees Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information Connectors Media‑Card Computer Display Camera Power Adapter Battery Environment Reader...

  • Page 17: Power Adapter

    Specifications Views Power Adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.70 A Output current 3.34 A Rated output voltage 19.50 VDC Temperature range: 0°C to 40°C (32°F to 104°F) Operating –40°C to 70°C (–40°F to 158°F) Storage Dimensions and System...

  • Page 18

    Specifications Views Battery Type 4‑cell 58 WHr lithium ion NOTE: Your computer may not support a battery depending on the configuration you ordered. Dimensions: Width 489.50mm (19.27 in) Height 28.30 mm (1.11 in) Depth 313.58mm (12.35 in) Weight (maximum) 0.32 kg (0.71 lb) Voltage 19.50 VDC Operating time...

  • Page 19

    Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 40°C (32°F to 104°F) –40°C to 65°C (–40°F to 149°F) Relative humidity (maximum) 10% to 90% (non‑condensing) 0% to 95% (non‑condensing) Vibration (maximum) 0.66 GRMS 1.30 GRMS Shock (maximum)
