TouchTunes Remote Control User Manual

March 2005
9900135-001 - Rev 00
Package contents
• Remote control (part number
• Mounting bracket
• 2 AAA alkaline batteries
• This guide
Overview
The dual-frequency remote control can transmit on one of two carrier
frequencies:
• 27.145 MHz (AM) to communicate with jukeboxes (Genesis I, II,
Maestro, Rhapsody) that use the existing receiver/demodulator.
• 433.92 MHz. (FSK) for jukeboxes with the new receiver/demodulator.
By default, the frequency is set to 433.92 MHz.

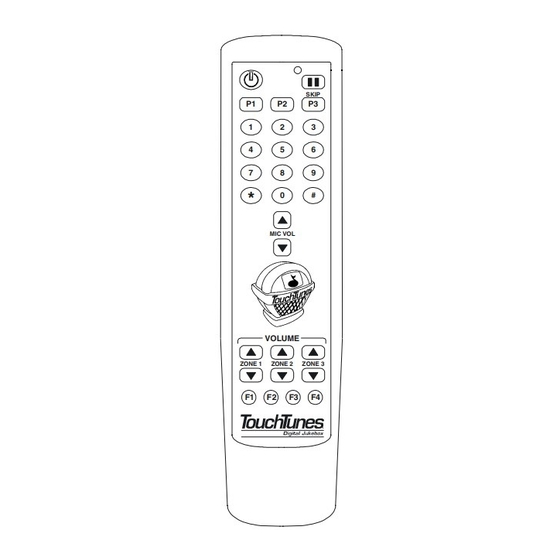

SKIP
P1 P2 P3
1 2 3
4 5 6
7 8 9
*
0 #
MIC VOL
VOLUME
ZONE 1 ZONE 2 ZONE 3
F1 F2 F3 F4

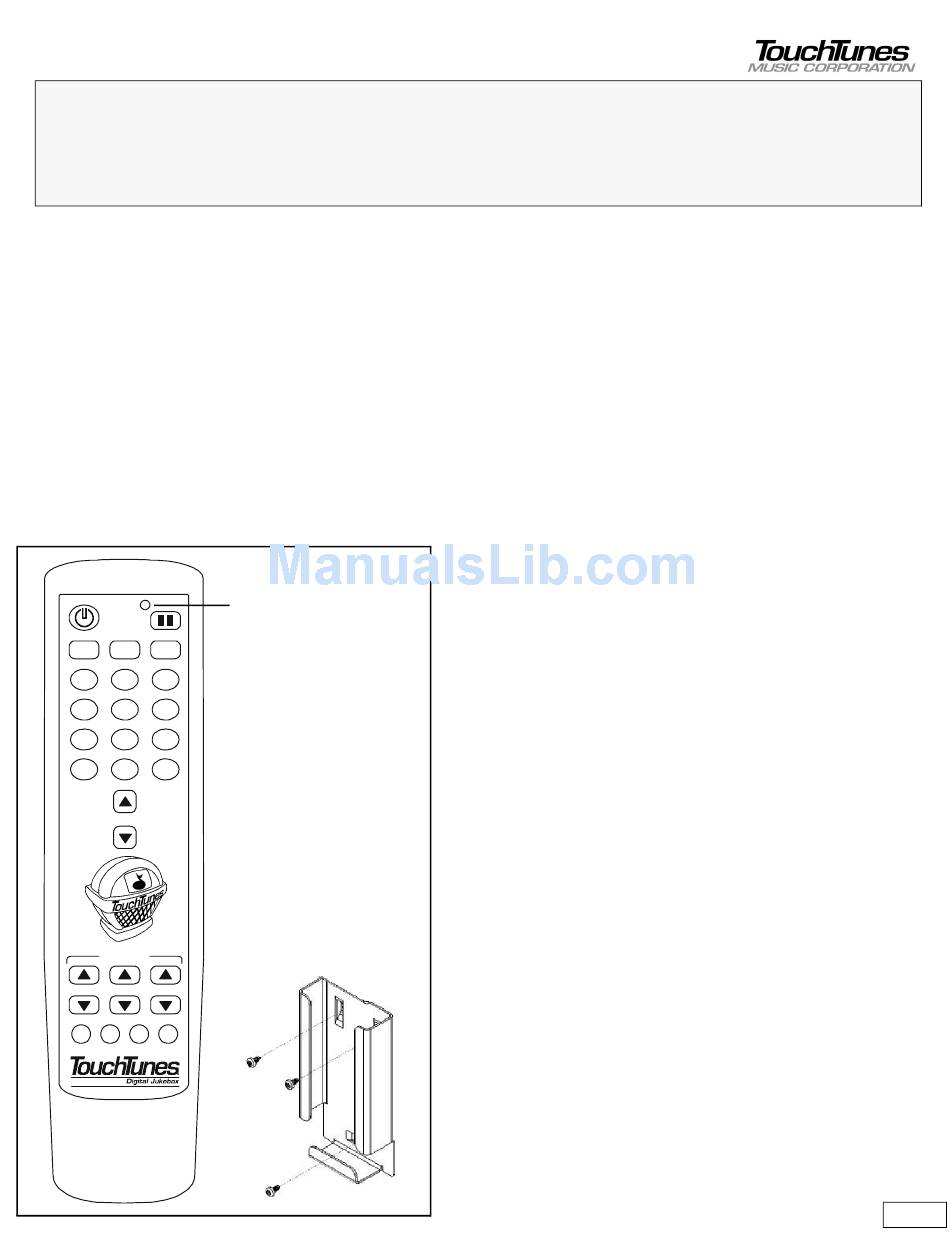

Remote Control

User's Guide
700031-001)
The red indicator light
flashes when the remote
transmits or when it is being
programmed.
Use the mounting bracket to
installed the remote control
on a wall for easy access.
Fasten the bracket to the wall
as illustrated.
The remote control is RF-based. This eliminates the need to point it
directly at the jukebox when using it. It has a range of up to 200 feet
depending on the type of the obstructions between it and the jukebox.
Concrete and metal provide more of a barrier than wood or plaster. The
remote control can also be affected by interference from other RF-based
devices.
The remote control is powered by two 1.5V AAA batteries. Insert the
batteries in the compartment on the rear of the remote. Use only high-
quality alkaline batteries.
Setting the carrier frequency
By default, the carrier frequency is set to 433.92 MHz. To
change it, do the following:
1. Press the and
PAUSE F1
until the red indicator light blinks two times.
2. Enter the three-digit numeric code for the frequency you want to use.
• 027 for 27.145 MHz
• 433 for 433.92 MHz
3. The red indicator light will light up for three seconds to confirm your
selection. If you enter an invalid code the light will blink five times.
4. The default manufacturer carrier frequency selection code is 433.
5. The carrier frequency selection code is memorized in a non-volatile
memory.
Setting the remote control ID
By default, the remote control ID is set to 000. To change it, do
the following:
1. Press the and
POWER F4
down until the red indicator light blinks two times.
2. Enter the new three-digit code to use. The new code must be in the
range to .
000 255
3. The red indicator light will light up for three seconds to confirm your
selection. If you enter an invalid code the light will blink five times.
4. You must now have the jukebox re-learn the remote ID. See the
TouchTunes Jukebox Software Manual for details.
keys at the same time and hold them down
keys at the same time and hold them
1 of 2
