Alinking ALC-9152 Operation Manual

Ip box camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

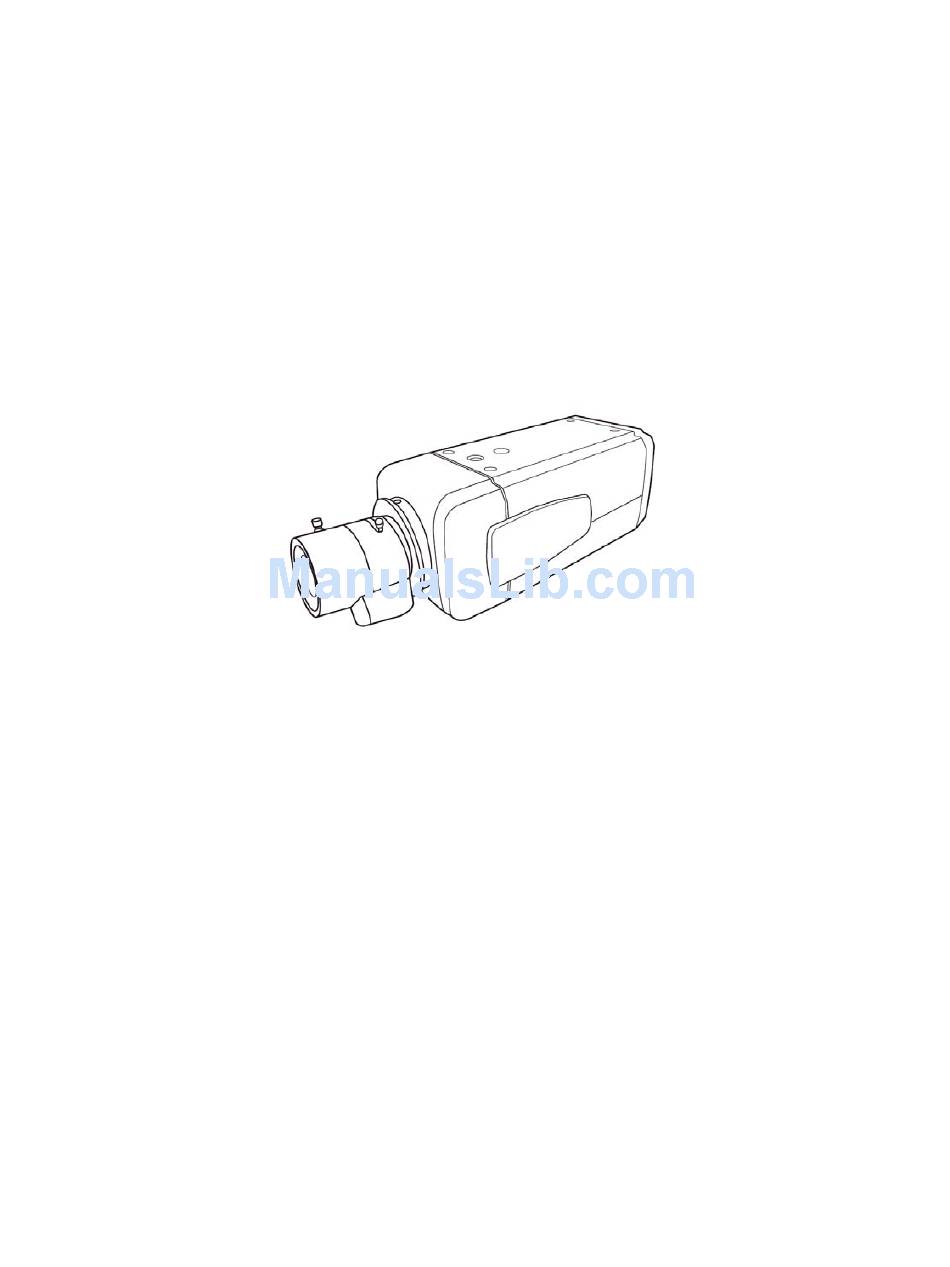

ALC-9152
IP Box Camera
Operation Manual
Software Version
1.26
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALC-9152 and is the answer not in the manual?

Questions and answers

Related Manuals for Alinking ALC-9152

Summary of Contents for Alinking ALC-9152

  • Page 1 ALC-9152 IP Box Camera Operation Manual Software Version 1.26...

  • Page 2: Table Of Contents

    Contents Contents .........................2 Package Contents ......................4 System Requirements.....................5 Overview........................6 Features and Advantages....................6 System Introduction .......................7 Hardware Installation....................10 Camera Settings ......................13 Camera Setting from a Router ..................15 Change the Internet Explorer Setting................16 Enter the Main Page.....................18 Camera Main Page.......................21 System Settings......................33 Basic Settings.......................33 System ........................33 Video/Image ......................34...
  • Page 3 Motion Detection....................77 Firmware upgrade .....................79 Factory Default....................81 Reboot .........................83 Attachment A: External Alarm..................84 Attachment B: Bandwidth Estimation .................87 Attachment C: Troubleshooting and FAQs..............88 FCC Class A Announcement ………………………………………………………...92...

  • Page 4: Package Contents

    Package Contents The package of this product contains the following items. Please contact your dealer if anything is missing. 2. A hexagonal wrench φ1.5mm 1. IP Box camera C Mount 4. Quick Installation Guide CD ROM (Manual/Software)

  • Page 5: System Requirements

    System Requirements IP Box Camera Network environment 10/100 Ethernet Cable CAT.5E or higher Monitoring system resource requirements Operating system Windows 2000 Professional SP4/XP Home SP2/VISTA Browser Internet Explorer 6.x or later versions System hardware CPU: Pentium 4, 2.4GHz or better RAM: 512MB (1GB recommended) VGA resolution: 1024x768 or higher DirectX Version...

  • Page 6: Overview

    Overview ALC-9152 IP Box Camera is a CCD color Day & Night IP Camera features with Sony HQ1 DSP technology which provides more detailed images at extreme low light condition. It offers a high resolution of 520~600 TV Lines(Color:520TVL; B/W:600TVL) and low light sensitivity of 0.01LUX@F1.0 in demanding video surveillance.

  • Page 7: System Introduction

    The product can automatically determine the type of the incoming current. This product offers three kinds of power to import (AC, DC, PoE), Please confirm the model that you buy. Model ALC-9152 DC12V (1A) DC12V (1A) & AC24V(10W) DC12V (1A) &...
  • Page 8 Tilt. LAN socket AC/DC power inlet External alarm RS-485 port External alarm connector (DI/DO) See Appendix A for details of D1/DO. Default Reset After booting up the system, press and hold the button for 5 seconds to reset the product to its default settings.
  • Page 9 TV OUT Please follow the below steps to adjust the lens focus before the installation: STEP 1: Use the BNC cable connect the video image to a monitor from the TV out STEP 2: Turn on the power SETP 3: Adjust the lens focus Auto Iris This camera used EIAJ auto iris standard.

  • Page 10: Hardware Installation

    Hardware Installation 1. Removing the protective cover A protective cover has been put on top of the sensor for protection. Please remove it first. 2. Adjusting lens mount This product uses the CS-mount. Therefore, please make sure that you purchase the correct type of lens for this product.
  • Page 11 4. Installing camera holder A holder is not included in the package, please find a fit holder to install the camera. a. Product location: You can install the product on the holder and hang it on the wall or ceiling. Please do not install this product in locations of poor ventilation.
  • Page 12 5. Connecting to LAN Please connect the camera to your network with a LAN cable from the LAN Socket. 6. Connecting to power supply This product offers three kinds of power to import (AC, DC, PoE), Please confirm the model that you buy.

  • Page 13: Camera Settings

    Camera Settings Please make sure the switch of the camera is in the "IP CAM" position before you do the camera setting. After the hardware has been installed, insert the supplied CD in the computer and execute the file IP Finder.exe following the steps below to search for and change the IP address of the camera. 1.
  • Page 14 4. Submit data (Submit) Click Submit to validate new settings. 3. Click Submit to validate new settings. 5. Confirmation When all changes have been confirmed, click “Exit” to quit. 4. When all changes have been confirmed, click Exit to quit. Notes: 1.

  • Page 15: Camera Setting From A Router

    Camera Setting from a Router You can use DHCP when you want to use the camera on the Intranet (LAN). However, the IP must fixed when you want to use the camera on a WAN. For this application, it is required to set up a virtual server on the ADSL router.

  • Page 16: Change The Internet Explorer Setting

    Change the Internet Explorer Setting This product uses ActiveX Control to play images and sound on your PC. The ActiveX Control application software will be downloaded to your PC when you connect it to the Internet. To ensure successful download of the software, the Internet Explorer "security settings" must be changed accordingly.
  • Page 17 Install IE Tab. Restart Firefox. IE Tab online learning.

  • Page 18: Enter The Main Page

    Enter the Main Page 1. Open the IE browser and key in the IP address of the product. Key in the IP address of the camera When the login screen appears, key in "root" in User Name Password fields. Click OK. Camera login screen 2.
  • Page 19 Click “Install ActiveX Control”. Setup prompt screen 4. The security warning screen appears. Click "Install". The ActiveX Control is named "UIC ActiveX Control". This software is owned by UIC and well certified. You can use it without any doubts about its validity. Click “Install”.
  • Page 20 5. When the firewall block screen pop up, please select “Unblock”. Click “Unblock”. 6. When ActiveX Control is installed successfully, you will see the camera image and interface. Camera main page and image...

  • Page 21: Camera Main Page

    Camera Main Page Descriptions: 1. Logo: An alinking web page will show on another IE page when clicking the logo. 2. Image area: The streaming will show at the image area. 3. Language (interface language selection): This product currently supports three languages: English, Simplified Chinese, and Traditional Chinese.
  • Page 22 Control Panel Description Note: When beginning to operate the PTZ options, you can only use the built-in zoom-in and zoom-out functions of this product. Other functions are enabled depending on operation of the Pan / Tilt. See the Pan / Tilt section for details. 1.
  • Page 23 5. Preset position: Defines the preset monitoring points of the camera (16 points) This function allows you to store the points you wish to monitor. Then you only need to press the code of the point you want so that the Pan/Tilt can rotate to this point to save time and labor of manual control.
  • Page 24 6. Tour: Auto cruise of the preset positions First, you must set the preset positions. This function allows you to set up to 5 cruising routes. This function must work with a Pan/Tilt. Step 1: Click Set to enter the cruise setup screen. Select the tour code and Step 2: enter the tour program name.
  • Page 25 Alert Message Description 1. Alert activation display When the position detection or alarm is activated, a red alert will blink on the screen to alert the user. Press to stop blinking. Alert activated display. Alert message display area. 2. Alert message Alert message: When the position detection or alert is activated, an alert message will display on the Alert Message box.
  • Page 26 Video Description 1. Video Format: sets the format for streaming MPEG4 (main stream): Stream mode at MJPEG+MPEG4 or Dual MPEG4 MPEG4 (sub stream): Stream mode at Dual MPEG4 Motion JPEG: Stream mode at MJPEG+MPEG4 See Setting > Video / Image > Video for details. 2.
  • Page 27 UDP: provides the fastest but most unreliable transmission service. Video steams are transmitted through UDP Port (50000~60000 by default) to ensure the fastest image transmission. However, video fragment or mosaics may occur due to poor transmission quality. TCP: provides reliable data transmission. Video steams are transmitted through RTSP Port (554 by default) to avoid video fragment or mosaics due to poor transmission quality.
  • Page 28 5. DayNight Setting When select "Day" mode, the image is in color, however, it turns black and white when shift into "Night" mode. The image will be more clearly and smoothly when use Night mode. If the "Auto" mode has been selected, the Day/Night selection function will be concealed. Please refer to Basic Setting>Video / Image>Sensor for more information.
  • Page 29 Record Description 1. REC: executes the video recording function Click this button to start video recording and save the image file in the preset directory (C:\video). A red mark appears at the bottom left corner of the image when the recording function is running.
  • Page 30 Select the WebPages into your trusted sites. 1. Select “Tools” on the IE browser. 2. Click Internet Options 3. Click Security 4. Select Trusted sites 5. Click Sites 6. Enter the IP Address of the product 7. Cancel the selection of the button 8.
  • Page 31 10. Close the entire IE browser then open a new IE. A "trusted sites" shall appear on the bottom of the banner. 3. Path: sets the save path and name for recorded images and snapshots. The filename is the recording date by default. You can identify the file by prefix of the filename.
  • Page 32 Audio Description 1. Voice communication When the speaker icon on the screen is green, it means the built-in microphone on the camera is receiving voice signals. When the microphone icon on the screen is green, it means the local microphone is sending voice signals to external speaker of a remote camera.

  • Page 33: System Settings

    System Settings System setting contains basic and application settings. The basic setting is executed for basic system information, transmission speed, audio/video code, user authorization, date/time, and IP filter, while the application setting is executed for event triggering definition and other relevant settings, definition of the motion detection area, firmware update, reset to factory default, and reboot.

  • Page 34: Video/Image

    streaming mode, login IP, changes, and the date/time information. You can copy the entries to a Word document and save them manually. Please note that all information is deleted when you turn off the machine. Basic Setting > System > System Log This function can send log file to syslog server to monitor the situation of IP cam.
  • Page 35 You can select MPEG4 or MJPEG as the video format. It is recommended to select MPEG4 for real-time browsing to optimize the bandwidth. MJPEG is a good choice for the best resolution when video recording is required for collection of evidence. MJPEG+MPEG4 stream mode 3GPP Duel MPEG4 stream mode.
  • Page 36 1. 3G phone: Your cellular phone functions properly and supports 3G service. The compatible cellular phones that have passed our test are: Nokia 6630, Nokia N73, Wibo WinII, Nokia E61, Nokia N70, Nokia N93 2. 3G phone number is available. 3.
  • Page 37 7. Select this stream name to proceed with linking. 8. Select “Yes” to connect. 9. Connecting. 10. Loading the image.
  • Page 38 11. Video stream screen. Note: Two ways to start 3GPP streaming 1. Without password Step1: Enable anonymous login. Step 2: Input rtsp://xxx.xxx.xxx.xxx/cam1/3gpp in mobile phone. Enable anonymous login 2. With password (if user name is root and password is root) Input rtsp://xxx.xxx.xxx.xxx/cam1/3gpp?user=root&pwd=root in mobile phone.
  • Page 39 Basic Setting>Video / Image>Video / Image>Video Resolution Generally speaking, selection of resolution is dependent on the bandwidth of the network you are using. This product offers different selections for video/audio settings. However, to ensure undisrupted image transmission, you need a higher uploading bandwidth. Generally, it is recommended to use CIF resolution for normal bandwidth.
  • Page 40 FPS selection Basic Setting > Video / Image > Video / Image >Video Quality You can select Fix Quality (resolution priority) or Fix Bitrate (fluency priority) at the same bandwidth. Five options are available for your choice: Best, Better, Normal, Fast, and fastest.
  • Page 41 Video quality selection 15 transmission speeds ranging from 50K to 3M are available in the Fix Bitrate mode. The higher the transmission speed, the better the quality and fluency. Fix bitrate...
  • Page 42 Basic Setting > Video / Image >PreProc Basic Setting > Video / Image > PreProc > PreProc Setting Camera position: Sets the position of camera on the screen—up, down, left and right Default: Select this option when the product is in normal deployment. Mirror reflection: Select this option when the product is in normal deployment, but from the reflection of a mirror.
  • Page 43 Click the color block to call out the color palette. Time and date information can be displayed on the screen. Basic Setting > Video / Image > Sensor Adjust brightness, contrast and color. Displays date, camera ID and relevant information on the video.
  • Page 44 Auto：The camera will judge the darkness to switch automatically into Day or Night mode. Manual：Set the Day or Night mode by Manual. External：Activate Day or Night Mode using external lighting sensor. Connect the sensor with IO input of the camera. Set up the activation in the "Event" function. Please refer to Application / Event / Event for more information.
  • Page 45 Basic Setting > Video / Image > Sensor >White Balance Setting Mode: Selects W/B mode. MWB Gain: Adjust the R Gain and 及B Gain value by manual. W/B options Basic Setting > Video / Image > Sensor > AE Setting Backlight: In backlight environment, you can adjust the parameter to brighter the image Mode: Select Auto exposure or Preset exposure.

  • Page 46: Audio

    Basic Setting > Audio Basic Setting > Audio >Device Audio Setting Audio: Full duplex, half duplex, simplex microphone only, simplex amplifier only, and audio off. Full duplex: Allows using a microphone and amplifier at the same time, or turning them off. Half duplex: Allows using a microphone or amplifier by manual switch.
  • Page 47 Audio transfer mode Audio input: 1 formats Audio output: 1 formats G726/24: Uses G.726 24Kbps for audio encryption/decryption. Gain: Adjust the volume of the audio. Audio encryption format...

  • Page 48: Ptz

    Basic Setting > PTZ Basic Setting >PTZ > PTZ Setup PTZ driver setup When the information in the PTZ driver column is “NONE”, the PTZ control options will not be displayed on the main page of the product. PTZ Setup Page Basic Setting >...

  • Page 49: User

    Basic Setting > User(User) The administration of the camera can set up access privileges by administrator, operator, and viewer to ensure the security and control of the camera. The access privileges and setting steps are described as below. Basic Setting > User > User List (access privilege list) The access privileges of the administrator, operator, and viewer are listed as follows.
  • Page 50 User setting Add a new user and set up a different privilege. Change the privilege or password of a user. You cannot change the name of the user. Delete a user from the list. Log in the username, password and privilege as required.
  • Page 51 Root cannot delete but can be updated Activate the anonymous view and camera rotation functions; define the number of viewers who are allowed for on-line review simultaneously. The default user name and password have been set as “root”. The root user cannot be deleted but root’s password can be changed.

  • Page 52: Network

    Basic Setting > Network (Network Settings) Basic Setting > Network > Network (Wired network setting page) Basic Setting > Network > Network > IP Assignment Wired network setting page DHCP setting: DHCP (Dynamic Host Configuration Protocol) is a protocol that enables automatic assignment of TCP/IP information to the client.
  • Page 53 For IP address, Subnet mask, Default gateway, DNS 1, and DNS 2, the DHCP server will assign these values automatically when DHCP is in "ON" status; otherwise, you need to key in the values manually. Note: Where no IP address is assigned from the DHCP server, the system will set the Link-Local Address automatically.

  • Page 54: Streaming

    Streaming port setting Basic Setting > Network > PPPoE (dial-up networking setting) PPPoE: Point-to-Point Protocol over Ethernet is a protocol that supports access to a high-speed wideband network using a PC and a wideband modem (such as xDSL, Cable, Wireless modem). The user need only to equip the PC with an Ethernet card and apply to an ISP (such as HiNet) and an ADSL provider (such as Chunghwa Telecom) for ADSL service to roam the Internet through ordinary twisted copper wires.
  • Page 55 camera has been completed. 6. To observe the new IP address acquired when PPPoE dialing has been executed successfully, follow the route Setting Basic Setting Network Notification for the IP information. You can acquire the new IP address via SMTP, FTP, and HTTP. Refer to the “Notification Setting”...
  • Page 56 PPPoE setting Basic Setting > Network > DDNS (Dynamic Domain Name Server Setting) The IP address (Ex. 210.168.0.22) is like a telephone number, while the website address is like a name in an address book. The DDNS allows the user to access the website by entering the name of the website without memorizing a bunch of cold numbers.

  • Page 57: Ddns

    update your WAN IP status whenever it is changed and report to the DDNS. If your router does not support direct communication with the DDNS, you can download a small application program on the DDNS service page to help you update your WAN IP. Item Description: Active: enables/disables DDNS DDNS Server: currently we support http://dyndns.org and http://oray.net.

  • Page 58: Upnp

    Basic Setting > Network > UPnP (Universal Plug and Play) If you connect your camera to a router, IP allocator, or wireless AP, your camera will possibly be blocked by the NAT and can’t be located on the Internet. To penetrate the firewall, activate the supportive item- UPnP.
  • Page 59 To activate the UPnP function in Windows OS: Ex: Windows XP: 1. Windows component installation. Step 1: Click Control Panel Step 2: Click Add/Remove Programs Step 4: Click Networking Services Step 5: Click Detail Step 6: Check UPuP User Interface Step 3: Click Add/Remove Windows 2.

  • Page 60: Smtp Server

    3. View the connection device using “My Network Place” Step 2: The LAN camera appears. Double-click to access the main page. 1. Open “My Network Place” Basic Setting > Network > SMTP Server (mail server setting) This camera is able to transmit images to a particular email address when a motion detection event occurs or a sensor is triggered.

  • Page 61: Samba

    SMTP Setting Basic Setting > Network > SAMBA This camera is able to upload the snapshots to a specified shared folder when an event is triggered. To use this function, a Samba setting is required. Options: Active: Enable/Disable Samba Authentication: Enable/Disable Username: the username Password: the password Path: specify the IP address of the computer you want to share with and the file name, i.e.

  • Page 62: Notification Of Ip Address Change

    Samba Setting Basic Setting > Network > Notification of IP address Change (IP address change notice) This setting is not necessary for a fixed IP. For a dynamic IP, you need to update the IP address every time you connect to the Internet to access the camera. This setting allows you to update the IP address by the automatic notification of IP address change.
  • Page 63 FTP Server: FTP Server name. FTP Port: FTP port. The default setting is 21 (recommended). FTP Upload path: the path to upload files. FTP Login name: the name to log in the FTP. FTP Login Password: the password to log in the FTP. Select Save to complete and activate your settings.

  • Page 64: Multicast

    Basic Setting > Network > Multicast This function allows multiple people to watch video streaming without limitation on the number of users, but is only applicable in the LAN environment. The video streaming format (MPEG4/MJPEG) depends on the selected image format setting in Basic Setting → Video/Image →...

  • Page 65: Date/Time

    Basic Setting > Date/Time Date/Time setting Basic Setting > Date/Time > Server Time (the date/time of the server) Basic Setting > Date/Time > PC Time (the date/time of your PC) Basic Setting > Date/Time > Time Setting (date/time setting) There are three ways to synchronize the time. 1.

  • Page 66: Ip Filter

    Basic Setting > IP Filter This function filters IP addresses and is able to allow or deny visits from particular addresses/target addresses. IP filter setting Basic Setting > IP Filter > General IP Filtering: enables/disables the IP filter Policy: allows/denies access Basic Setting >...

  • Page 67: Application Setting

    Application Setting Application Setting > Event This camera is equipped with intelligent security management functions. It ensures security monitoring by allowing user to define “trigger events” based on particular times and situations, and sets the camera respond to the event. Application Setting >...
  • Page 68 68 68...
  • Page 69 Add Event : Add Event setting page Options: • General: Name: Name the trigger event here. • Response to event trigger: the time setting of the trigger event Always: Always monitoring During time: Check the date you want to monitor (Sun~Sat) and the duration of monitoring here.
  • Page 70 Include pre-trigger buffer:When an event is detected,the camera will record the previous video image up to 10 seconds. Include post-trigger buffer:When an event is detected,the camera will record the post video image up to 10 seconds. Continue video upload: When the event is continue, the camera will record the viddeo image up to 10 seconds.
  • Page 71 indicate the sources of the trigger event. Click Save to save and activate your settings when you complete setting. Delete: delete the event cluster setting. Modify: modify the event cluster setting. Application Setting > Event > Trigger (manual test of trigger response) Whenever the camera detects abnormal events during the scheduled time, it will automatically respond by performing trigger response.
  • Page 72 Note: It is recommended to set up the Trigger Setting page (Setting-> Application Setting-> Event-> Trigger) before install the hardware alarm I/O! Trigger Alarm output: Alarm output Click “Set” to trigger the alarm. Click “Clear” to stop the alarm. (Please make sure to click “Clear”...
  • Page 73 Click Add FTP to go to the setting page and enter the information of the FTP server you specified. Add FTP server Name: the name of the FTP Network Address: IP address of the FTP Login: Log-in name...
  • Page 74 Password: Log-in password Upload Path: Uploading path Port: Port Passive: Check to set the FTP status as passive Click Add HTTP to go to the setting page and enter the information of the HTTP server you specified. Add HTTP server Name: HTTP name Network Address: HTTP IP address Login: Log-in name...
  • Page 75 Add TCP server Name: TCP server name Network Address: TCP IP address Port: TCP port Click Add UDP to go to the setting page and enter the information of the UDP server you specified. Add UDP server Name: UDP server name...
  • Page 76 Network Address: UDP IP address Port: UDP port Remove Modify Modify: Modifies the setting value Remove: Removes the setting value...

  • Page 77: Motion Detection

    Application Setting > Motion Detection You can open the setting frame by clicking on the area to monitor. To move area to monitor, drag the area with your mouse; to adjust the size of the frame, drag the arrow to adjust after you move the mouse to the edge of the area and left-click; There are 3 frames available for setting.
  • Page 78 Application Setting > Privacy mask The privacy zone function can mask the image in the mask zone to ensure confidentiality. First, select a mask zone (1 to 3) and a mask color in the privacy zone. Then, move the green frame to the area you want to mask. Moving the cursor to the bottom right corner of the frame can change the size of the frame.

  • Page 79: Firmware Upgrade

    Application Setting > Firmware upgrade CCD IP CAMERA Firmware upgrade Contact your dealer for more information about firmware upgrade. Please follow the steps below to execute the upgrade. Important! Read Carefully!! 1. Close all active applications on your PC. 2. Select “Firmware Upgrade”. The Firmware Upgrade Setting page appears.
  • Page 80 4. Click Submit. 5. The auto upgrade runs. The Upgrade Status shows the progress of the upgrade. CCD IP CAMERA Upgrading When the firmware upgrade has been completed, the machine reboots automatically. Reconnect to the server after 60 seconds. CCD IP CAMERA Wait to reboot Note: The new firmware is burned into the Flash ROM during the upgrade, so you must take care during the process and make sure it is not interrupted during the operation.

  • Page 81: Factory Default

    Application Setting > Factory Default You can use this function to reset to factory default, but all changes, including the IP address, you have made are deleted. CCD IP CAMERA Reset to the default setting Factory Default: Reset to factory default. CCD IP CAMERA Warning window Resets all parameters, except the IP parameters:...
  • Page 82 Backup: Data backup Back all parameters: Back up all changes you have made. When you click Backup, a file download window appears. Back up the file named param.bin ( Don't change the file name; otherwise, the backup may fail. File backup Restore backup parameters: You can select this function to restore the changes you have made.

  • Page 83: Reboot

    Application Setting > Reboot You can enable this function for the camera to reboot automatically.

  • Page 84: Attachment A: External Alarm

    Attachment A: External Alarm In addition to the motion detection executed by the internal software application, the product can connect to external infrared detectors, beepers, and smoke detectors. For more information about these external devices, contact to your local retailer, dealer or installation service provider.
  • Page 85 Alarm Equipment (Normal Open Mode) (Correct Diagram) ＋ Alarm input 1 － Please be aware the below connection is incorrect and must be avoid. Alarm Equipment (Normal Close Mode) ＋ － External Alarm I/O Circuit Diagram...
  • Page 86 Warning! • Where connecting of a low or high current loop to the external alarm input/output of the product is required, the wiring and connection shall be conducted by a qualified electrician. Incorrect wiring may bring about damage to the product fatal electric shock.

  • Page 87: Attachment B: Bandwidth Estimation

    Attachment B: Bandwidth Estimation Since the FPS is dependent on the bandwidth of the camera, the relationship between the size of an image file and the bandwidth is always the major concern of the system construction engineer. The table below shows the relation between the resolution and size of an MJPEG file in the NTSC system.

  • Page 88: Attachment C: Troubleshooting And Faqs

    Attachment C: Troubleshooting and FAQs Question Answer and Solution Function What encoder and decoder The camera uses MJPEG or MPEG4 compression technology to are used by the camera for provide quality images. MJPEG is a standard image compression sounds and images? technology applicable to different browsers without the need to install additional software.
  • Page 89 the IP Finder from execution. If you can not execute the IP Finder, please disable your anti-virus applications or firewall. Please be sure that the version of your Internet Explorer is 6.0 or Internet Explorer does not later. Should you have any difficulties, please log on the Microsoft display the camera screen website to update your browser.
  • Page 90 value is moderate). Re-connect to the camera main page and download the file again. Incomplete download or installation of the camera ActiveX control is the major reason for this problem. Check the security setting of your Internet Explorer. Close and re-open Internet Explorer, and enter the main page to see if you can log in.
  • Page 91 I can't control the camera Delay might occur when you are accessing a video stream and to move up, down, right, or remotely moving the camera horizontally. Where significant delay left smoothly. is identified when you move the camera horizontally or vertically deactivate the audio streams and/or reduce the size of the video stream...

  • Page 92: Fcc Class A Announcement

    FCC Class A Announcement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
