INSTALLATION AND OPERATION INSTRUCTIONS
CAUTION:
To prevent electric shock disconnect power to heater at main service before
wiring or service.
CAUTION:
Do not obstruct the front of the heater with curtains, furniture, doors,
etc. Do not place heaters under towel racks. Proper operation of the
heater requires a free flow intake and exhaust of air.
Warning:
To insure proper operation, all heaters must be thermostatically
controlled.
GENERAL

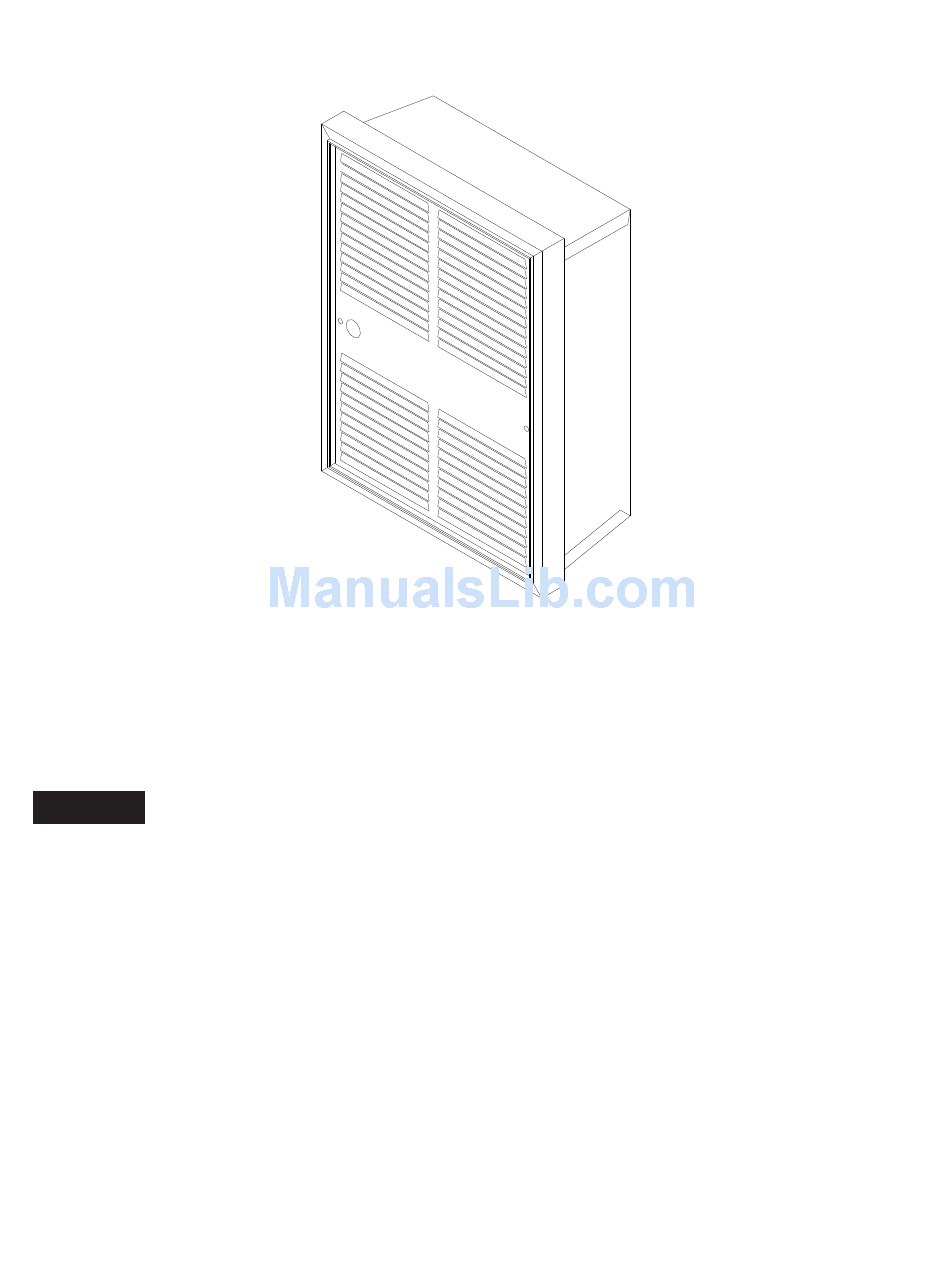

These heaters are designed for 2 X 4 recessed or surface mount installation. The heaters may be wall
mounted in a vertical or horizontal position and ceiling mounted. The minimum clearance from wall box to
adjacent wall or floor is 6 inches. These heaters must not be installed without wallbox model no. 30WB.
1.Position wall box a minimum of 6 inches from ajacent wall and floor. Secure to wall stud with nails or
screws. Wall box must be installed with front edge flush with finished wall surface. See figure 1.
2.Remove knockout in wall box for power source, and install cable clamp.
3.Insert supply cable through clamp allowing 6-8" for field wiring.
NOTE:
Field wiring must enter wall box where the corner wiring compartment is located.
303, 304, 305, CRH, CRQ, CFA SERIES
INSTALLATION OF WALL BOX 30 WB
FOR NEW CONSTRUCTION
1
Form 9940
Rev. 01/06
