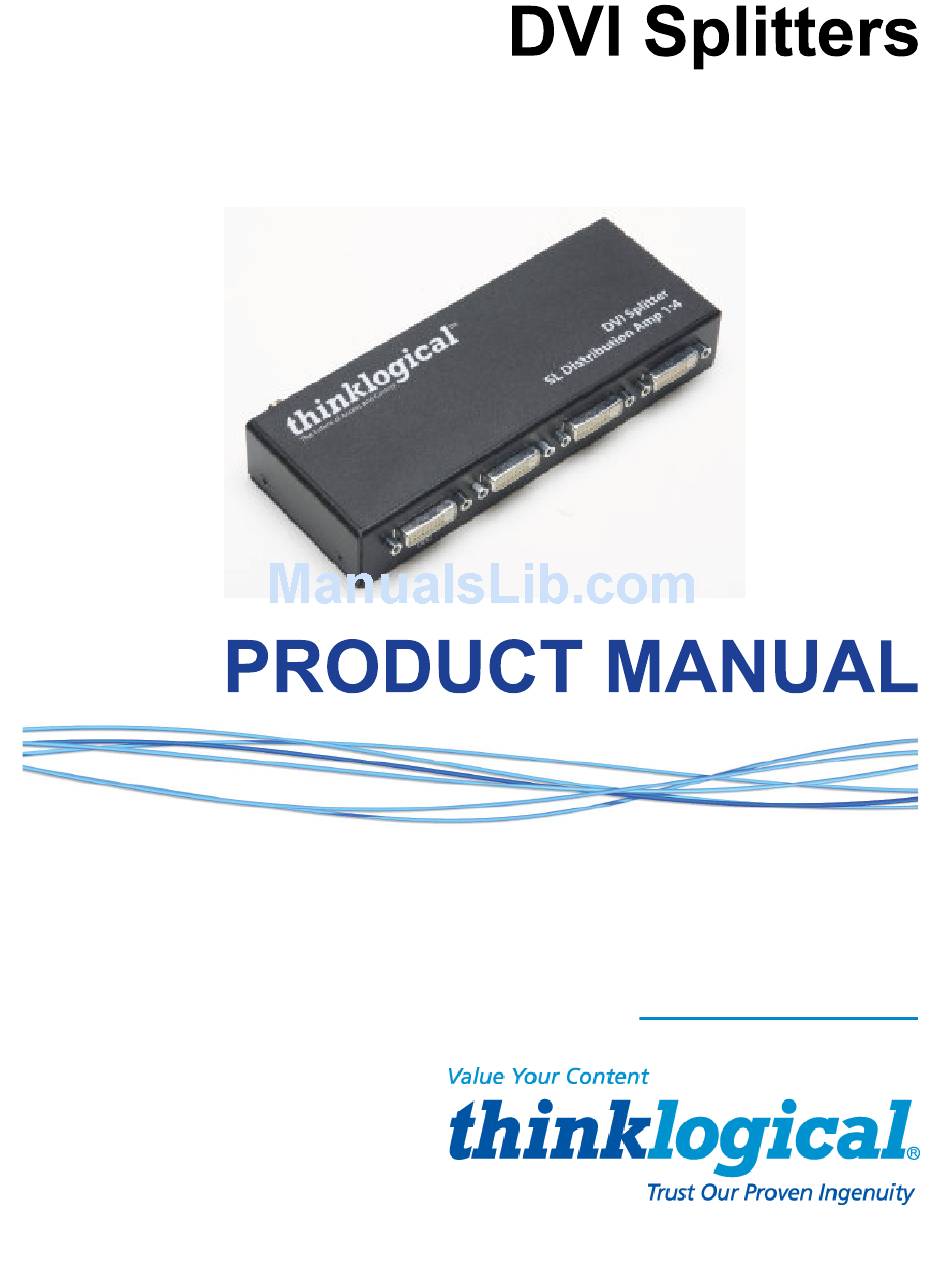

- Page 1 VDA Series Single-Link and Dual-Link Video Distribution Amplifiers/DVI Splitters Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 Fax: 1-203-783-9949 www.thinklogical.com...
- Page 2 Copyright Notice Copyright © 2014. All rights reserved. Printed in the U.S.A. Thinklogical, LLC® 100 Washington Street Milford, Connecticut, U.S.A. 06460 Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: VDA Series DVI Splitters Revision: Rev C, May, 2014 V D A S e r i e s D V I S p l i t t e r s , R e v .
-
Page 3: Table Of Contents
Table of Contents Introduction...…………………..……..1 About Thinklogical ® 1.1. Contents 1.2. Product Overview System Features.………….………...…4 2.1. General System Features 2.2. Technical Specifications 3. Installation...………………….………...6 4. Product Serial Number...…………..…10 5. How to Contact Us.…………………..10 5.1 Customer Support 5.1.1 Website 5.1.2 Email 5.1.3 Telephone 5.1.4 Fax... -
Page 4: Introduction
1. Introduction About Thinklogical Thinklogical is the leading manufacturer and provider of fiber optic KVM, video, audio, and peripheral extension and switching solutions used in video-rich, big-data computing environments. Thinklogical offers the only fiber optic KVM matrix switches and routers in the world that are accredited to The Common Criteria, EAL4 and TEMPEST. -
Page 5: Contents
1.1.Contents When you receive your Thinklogical VDA Series DVI Splitter, depending on your order, you ® should find the following items: VDA-000001 • 1 Single-Link DVI In to 2 Single-Link DVI Out (VDA-000001) • DVI-D (M) TO DVI-D (M), 2M Cable (CBL000009-002MR) Qty 1 +5VDC Power Supply (PWR-000022-R) •... - Page 6 Cords & Cables Supplied as Required: V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4 Page 3...
-
Page 7: Product Overview
1.2. Product Overview Thinklogical’s VDA-1DVI Splitter sends a single-link DVI video source to 2 single-link DVI displays, while the VDA-2 sends a single-link DVI video source to 4 single-link DVI displays, each without any signal loss. The VDA-3 sends one dual-link DVI video source to 2 dual-link DVI displays, also without loss of signal. -
Page 8: Technical Specifications
100-240 VAC, 50-60 Hz, universal AC power supply VDA-1, -2, -3 3 Watts per unit Power Consumption VDA-5 15 Watts per unit DC Adapter (VDA-1, -2, -3) AC/DC adapter universal input 90-264 VAC (supplied) VDA-1, VDA-3 DVI-D (3) VDA-2 DVI Connectors DVI-D (5) -
Page 9: Installation
3. Installation (Also see the Quick Start Guides in the Appendix beginning on page 12.) VDA-1: Connect a Single-Link DVI-D male to male cable from your DVI Monitor 1 to the DVI OUT 1 DDC connector on the VDA Splitter’s front panel. Connect a Single-Link DVI-D male to male cable from your Output Monitor 2 to the DVI 2 connector. - Page 10 VDA-2: Connect a Single-Link DVI-D male to male cable from your DVI Monitor 1 to the DVI OUT 1 DDC connector on the VDA Splitter’s front panel. Likewise, connect a Single- Link DVI-D male to male cable from your DVI monitors 2, 3 & 4 to the DVI OUT 2, 3 & 4 connectors.
- Page 11 VDA-3: Connect a Dual-Link DVI-D male to male cable from your DVI Monitor 1 to the DVI OUT 1 DDC connector on the VDA Splitter’s front panel. Connect a Dual-Link DVI-D male to male cable from your Output Monitor 2 to the DVI 2 connector. Turn the monitors on.
- Page 12 VDA-5 (4x SL 1:2) 4 splitters per chassis each distribute a Single-Link DVI video source to two Single-Link DVI displays. VDA-5: (4 splitters in 1 chassis) Connect a Single-Link DVI-D male to male cable from DVI Monitor 1 to the DVI OUT 1 DDC connector on Bank 1 of the VDA Splitter’s rear panel.
-
Page 13: Product Serial Number
4. Product Serial Number Thinklogical products have a unique serial number printed on an adhesive label that is fixed, typically, ® to the underside of the unit. The serial number includes a date-code formatted as 2 digits for the week and 2 digits for the year, plus two to four digits for a unique unit number. -
Page 14: Email
(ii) modifications to or repairs of the product that are made by any party other than Thinklogical or a party acting on Thinklogical’s behalf, or (iii) combination of the product with third party products that is not consented to by Thinklogical. Occurrences of events described in (i) –... -
Page 15: Our Address
Repairs may be made with refurbished parts. If repair or replacement is not possible, Thinklogical may keep the defective product and refund the amount that you paid for the defective product. These are Thinklogical’s sole obligations, and your exclusive remedies, for a breach of the limited warranty set forth above. -
Page 16: Appendix: Vda Quick Start Guides
Appendix: VDA Series Quick Start Guides (VDA-1, -2, -3 & -5) V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4... -
Page 17: Vda-2
V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4 Page 14... -
Page 18: Vda-3
V D A S e r i e s D V I S p l i t t e r s , R e v . C , M a y , 2 0 1 4 Page 15... -
Page 19: Vda-5
Single-Link DVI video source to two displays without signal loss. Installation is plug-and-play with no adjustments required. Each model of the VDA Series is compatible with most Thinklogical DVI Extenders. ® VDA-000005 Rack Mount Video Distribution Amp, 4 DVI Splitters...
