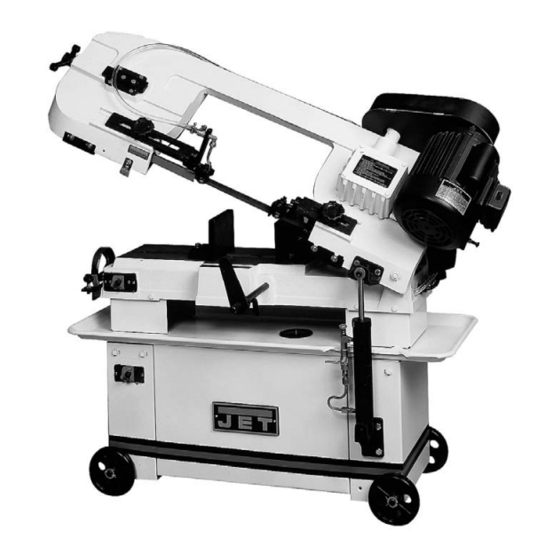

Jet 7-inch horizontal-vertical band saw
Hide thumbs Also See for HVBS-7MW:

Advertisement

This .pdf document is bookmarked
Operating Instructions and Parts Manual
7-inch Horizontal-Vertical Band Saw
Model HVBS-7MW
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-414459
Ph.: 800-274-6848
Revision H2 05/2013
www.waltermeier.com
Copyright © 2013 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HVBS-7MW and is the answer not in the manual?

Questions and answers

Gerardo Bautista
April 21, 2025

Sello de aceite

1 comments:
Mr. Anderson
May 11, 2025

The oil seal is an official OEM part designed to fit the Jet HVBS-7MW (model 414459) band saw.

This answer is automatically generated

Summary of Contents for Jet HVBS-7MW

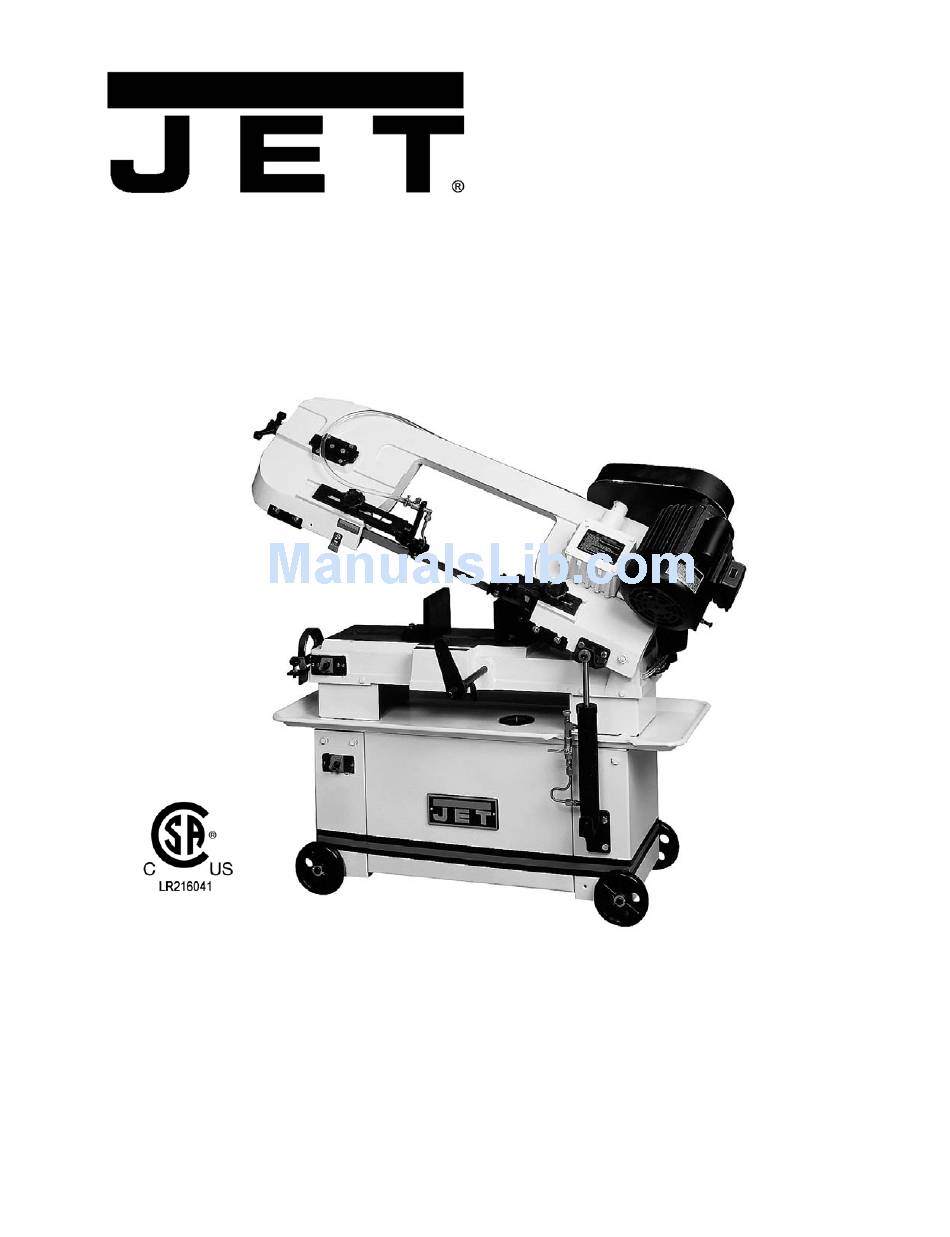

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 7-inch Horizontal-Vertical Band Saw Model HVBS-7MW WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414459 Ph.: 800-274-6848 Revision H2 05/2013 www.waltermeier.com Copyright © 2013 Walter Meier (Manufacturing) Inc.
  • Page 2: Warranty And Service

    Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
  • Page 3: Table Of Contents

    10.1.1 HVBS-7MW Bed Assembly – Exploded View ................16   10.1.2 HVBS-7MW Bow Assembly – Exploded View ................. 17   10.1.3 HVBS-7MW Bed and Bow Assemblies – Parts List ..............18   10.2.1 HVBS-7MW Cylinder Assembly – Exploded View ..............22  ...
  • Page 4: Safety Warnings

    10. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication. 11. Make certain the switch is in the OFF position 3.0 Safety warnings before connecting the machine to the power supply. 1. Read and understand the entire owner's 12.
  • Page 5: About This Manual

    This manual is provided by Walter Meier (Manufacturing) Inc. covering the safe operation and maintenance procedures for a JET Model HVBS-7MW Band Saw. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. Your machine has been designed and constructed to provide years of trouble-free operation if used in accordance with the instructions as set forth in this document.
  • Page 6: Specifications

    5.0 Specifications Model number ............................HBS-7MW Stock number .............................. 414459 Capacity: Round at 90° ........................... 7” (178mm) Round at 45° ..........................4-1/2” (144mm) Rectangle at 90°............2”H x 12”W (51x305mm); 7”H x 10-7/8”W (178 x 276mm) Rectangle at 45°..........7”H x 3-1/2”W (178 x 89mm); 5-1/2”H x 4-1/2”W (140 x 114mm) Throat depth ............................
  • Page 7: Setup And Assembly

    6.0 Setup and assembly 6.1 Shipping contents Band saw Wheel axles Wheels Split pins Strain clamps Material stop bar Material stop Belt cover Vertical cutting plate Figure 1 Tools required for assembly: #2 cross point screwdriver Pliers 6.2 Unpacking and clean-up 1.
  • Page 8: Coolant Tank Preparation

    5. Place lid back onto tank, and place tank assembly back into base. 6. Replace return hose back into the hole in the tank lid. 6.6 Electrical connections Electrical connections must made qualified electrician compliance with all relevant codes. This machine must be properly grounded to help prevent electrical shock and possible fatal injury.
  • Page 9: Voltage Conversion

    If an extension cord becomes necessary, The HVBS-7MW band saw is rated at 115/230V make sure the cord is in good condition and heavy and comes from the factory prewired at 115V. To enough to carry the current your product will draw.
  • Page 10: Adjustments

    7.0 Adjustments 7.1 Hydraulic feed selector The hydraulic feed selector is used to control the blade feed rate and to lock the bow in vertical position. To increase feed rate, turn knob (A, Figure 9) counter-clockwise. To decrease feed rate, turn knob (A) clockwise. To turn off flow of hydraulic fluid, turn lever (B) as shown in Figure 9.
  • Page 11: Blade Tension

    4. Adjust the movable vise parallel to the fixed 3. Turn blade tension knob (A, Figure 14) one vise by loosening bolt (A, Figure 13), adjusting and three quarter to two revolutions clockwise. to parallel, and tightening bolt. This equals approximately 23,000 lbs. of blade tension.
  • Page 12: Adjusting Blade Square To Table

    2. Raise bow to vertical position and lock in place 4. If adjustment is necessary, loosen bolts (A, by turning the hydraulic cylinder off. Figure 16) and rotate blade guide assemblies slightly in the same direction until the blade 3. Remove red blade guard assembly (A, Figure makes contact with the square along its entire 15) by removing two screws (B, Figure 15).
  • Page 13: Adjusting Blade Guide Bearings

    4. Turn nut (B, Figure 19) to adjust the eccentric 7.9 Adjusting blade tracking bearing snug to the blade. Blade should still move up and down freely when grasped as in Figure 20. Warning! Make sure power is Blade tracking adjustment requires running the saw with the back cover disconnected and hands are protected open.
  • Page 14: Adjusting Automatic Shutoff

    4. Place a fish-type scale under the blade tension 8.0 Operation handle and lift the saw bow. Scale should indicate approximately 13 to 15 lbs. Prior to Operation: 5. Adjust tension to approximately 13 to 15 lbs. by turning bolt (A, Figure 21). 1.
  • Page 15: Maintenance

    5. Place the saw bow in horizontal position again. 9.0 Maintenance Wipe out remaining oil with a rag. 6. Fill the gear box with approximately 3/4 pint of 90 weight gear oil. Disconnect machine from power source before making any repair or 7.
  • Page 16: Hvbs-7Mw Bed Assembly - Exploded View

    10.1.1 HVBS-7MW Bed Assembly – Exploded View...
  • Page 17: Hvbs-7Mw Bow Assembly - Exploded View

    10.1.2 HVBS-7MW Bow Assembly – Exploded View...
  • Page 18: Hvbs-7Mw Bed And Bow Assemblies - Parts List

    10.1.3 HVBS-7MW Bed and Bow Assemblies – Parts List Index No Part No Description Size 1 ....HVBS7MW-1 ..... Coolant Pan ....................1 2 ....HVBS7MW-2 ..... Base Leg (left) ....................1 3 ....HVBS7MW-3 ..... Base Leg (right) ..................... 1 4 ....
  • Page 19 70 ....HVBS7MW-70 ... Saw Bow (S/N: 8091100 and lower) .............. 1 70N .... HVBS7MW-70N ..Saw Bow (S/N: 8091101 and higher) ............1 70N1 ..HVBS7MW-70N1 ..Saw Bow (JET Mark) (S/N: 010218161 and higher) 1 71 ....HVBS7MW-71 ... Vent Plug * ....................1 72 ....
  • Page 20 Index No Part No Description Size 99 ....TS-0060111 ....Hex Cap Bolt............3/8”x2-1/2”..... 2 100 .... HVBS7MW-100 ..Brush ......................1 101 .... HVBS7MW-101 ..Nozzle Cock....................1 102 .... TS-0267021 ....Set Screw ..............1/4"x1/4” ......3 103 ....
  • Page 21 Index No Part No Description Size 157 .... TS-0710091 ....Lock Washer ............3/8” ........ 2 158 .... TS-0060051 ....Hex Cap Bolt............3/8”x1” ......1 159 .... HVBS7MW-159 ..Hex Cap Bolt............5/16”x3/4” ...... 1 160 .... HVBS7MW-160 ..Hex Cross Head Bolt w/ Lock Washer *....1/4"x1/2” ......4 ....
  • Page 22: Hvbs-7Mw Cylinder Assembly - Exploded View

    10.2.1 HVBS-7MW Cylinder Assembly – Exploded View 10.2.2 HVBS-7MW Cylinder Assembly – Parts List Index No Part No Description Size 13N .... HVBS17MW-13N ..... Cylinder Complete Assembly (S/N: 01028161 and higher) ..... 1 ....HVBS17MW-13N-1 ..Dust Cover ....................1 ....
  • Page 23: Electrical Connections

    11.0 Electrical Connections...
  • Page 24 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com www.waltermeier.com...
