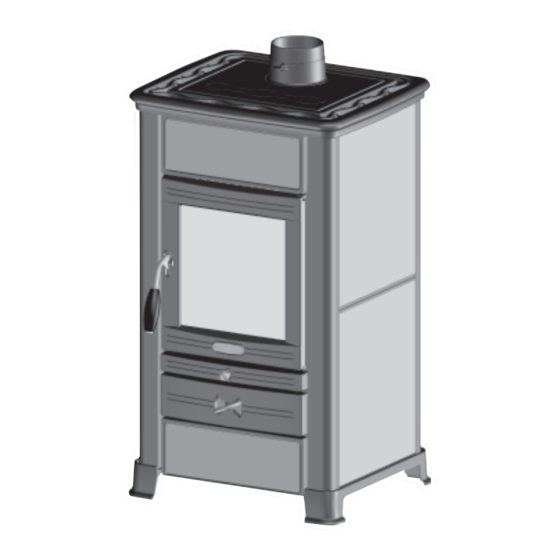

- Page 1 INSTRUCTIONS FOR INSTALLATION USE AND MAINTENANCE...
-
Page 2: Technical Characteristics
INSTALLATION (SECTION DEDICATED TO THE INSTALLER) 1.1 RULES AND REGULATIONS 1.2 PRELIMINARY OPERATIONS 1.3 POSITIONING THE APPLIANCE 1.4 PROTECTION OF THE FLOOR 1.5 SAFETY DISTANCE 1.6 CONNECTIONS 1.7 CHIMNEY OR CHIMNEY FLUE 1.8 CONNECTION OF THE APPLIANCE TO THE CHIMNEY FLUE AND EVACUATION OF COMBUSTION PRODUCTS 1.9 CHIMNEY COWL 1.10 MAKING THE CONNECTION TO THE CHIMNEY FLUE 1.11 TAKING COMBUSTION AIR FROM THE INSTALLATION ROOM... -
Page 3: Installation
INSTALLATION (SECTION DEDICATED TO THE INSTALLER) RULES AND REGULATIONS · Read this manual carefully as it contains important indications and instructions concerning the installation, use, maintenance and safety of the product. · This appliance must only be installed and used in a room deemed suitable by the specific authorities and in compliance with the relevant rules and regulations. -
Page 4: Safety Distance
SAFETY DISTANCE · From inflammable objects and support walls in armed concrete: - A > 1000 mm B > 550 mm C > 500 mm · Any inflammable objects placed above the appliance must be kept at a safe distance: at least 2 metres. Always take measurements from the outside surface of the appliance (fig. -
Page 5: Chimney Cowl
CONNECTION OF THE APPLIANCE TO THE CHIMNEY FLUE AND EVACUATION OF COMBUSTION PRODUCTS (see legislation UNI 10683) · The connection between the appliance being used and the chimney flue must receive exhaust fumes from one heat source only. · An appliance can consist of a fireplace and cooking oven with a single exhaust point to the chimney for which the manufacturer must provide the construction characteristics of the connections to the smoke ducts. - Page 6 1.11 TAKING COMBUSTION AIR FROM THE INSTALLATION ROOM · The appliance must be able to obtain the air necessary to guarantee regular operation through an external air vent. · The air vents must respect the following requirements: a) Minimum total free section of 200 cm²; b) Direct connection with the installation room c) Must be protected with a grill, a metallic net or a similar protection guard so long as it does not reduce the minimum section mentioned in point a) and is so positioned that they cannot be obstructed.
-
Page 7: Important Warnings
(SECTION DEDICATED TO THE USER) IMPORTANT WARNINGS · Read this manual carefully as it contains important indication and instructions concerning the use, maintenance and safety of the product. · All parts of this manual must be read and fully understood. Failure to do so shall be considered as improper use of the appliance which is tantamount to incorrect use of the appliance. -
Page 8: Loading The Fuel
METHANE 2,5 kg 1 kg WOOD ENERGY DEPENDING ON HUMIDITY Relative humidity % STARTING UP · The appliance must only be started up after the mounting and the connection of the smoke evacuation ducts has been completed. On a new stove, the paintwork finish needs to be completely dried out, therefore we recommend that you carefully follow the instructions below when first using the stove: - When first using, the appliance could emit odours which might be unpleasant;... - Page 9 · The adjustments for an optimum efficiency of our appliance are: - PRIMARY AIR INLET: closed - UPPER SECONDARY AIR INLET: 1/2 open - LOWER SECONDARY AIR INLET: 1/2 open - SMOKE VALVE (VIVA): closed - SMOKE VALVE (VIVA OVEN): 1/3 open PRIMARY AIR VIVA SMOKE VALVE OPEN CLOSED...
-
Page 10: Cleaning And Maintenance
· The cleaning of the inside must be done when the stove is cold, after first preparing the tools and spares necessary. · Remove the smoke discharge collar from the plate (fig. 8 ref. A). · Remove the residue deposits with a vacuum cleaner · Once the cleaning is completed, remount the smoke discharge collar. VIVA VIVA FORNO... -
Page 11: Troubleshooting
• Call in a qualified technician for an inspection. • Incorrect adjustment when lighting. • Check the indications in the "Adjustments" and "Fuel to be used" chapters. TECHNICAL CHARACTERISTICS VIVA VIVA FORNO Width Depth Height 1330 Weight of complete appliance Diameter of smoke exhaust Burnt power...
