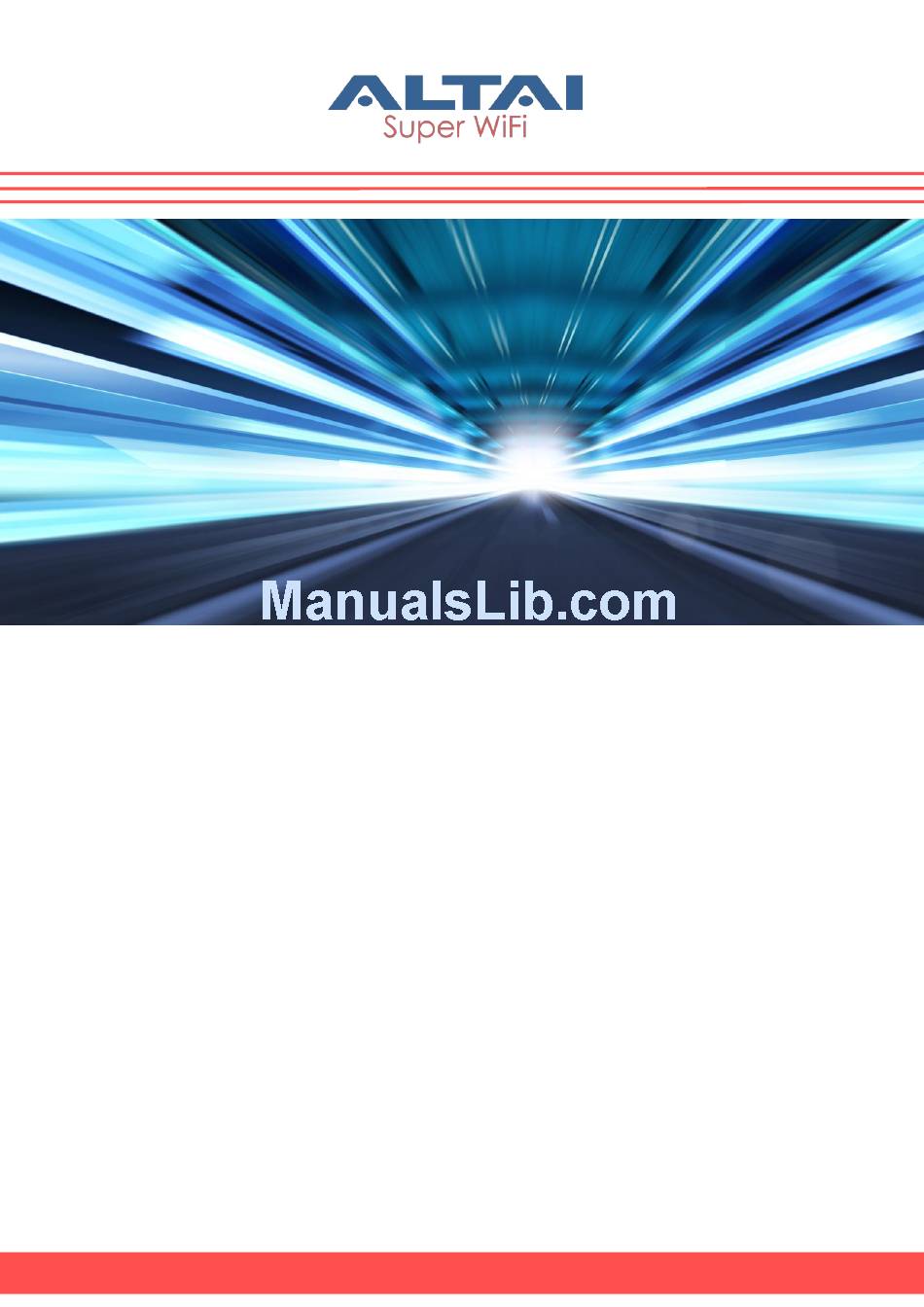

Page 1: Installation Guide
ALTAI A8 SUPER WIFI BASE STATION INSTALLATION GUIDE Version 1.2 Date: October, 2013 Altai Technologies Ltd. All rights reserved... - Page 2 A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Copyright © 2007 Altai Technologies Limited ALL RIGHTS RESERVED. Altai Technologies Limited Unit 209, 2/F, East Wing, Building 17, Hong Kong Science Park, Shatin, New Territories, Hong Kong Telephone: +852 3758 6000 Fax: +852 2607 4021 Web: www.altaitechnologies.com...
- Page 3 This document is provided for information purposes only. Altai Technologies reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
-
Page 4: Table Of Contents
Site Preparation........................9 Mounting A8 antenna on a pole ..................9 Mounting 5GHz Radio Antenna..................11 Mounting A8 Base Station on the Pole ................12 Mounting A8 Base Station on the Wall ................ 12 Connecting RF Cables ....................13 Weatherproofing the RF Connectors ................15 12.1. -
Page 5: Introduction
A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 1. Introduction This guide is designed to provide the information needed to mount A8 base station (BTS) and A8 antennas at the site location. The document is applicable for hardware platform A8 R3and the following models. -
Page 6: A8 Antenna Outlook
A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Figure 2-2 Top-view of A8 3. A8 Antenna Outlook Figure 3-1 A8 Antenna Altai Technologies Ltd. All rights reserved... -
Page 7: A8 Base Station Package
A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 4. A8 Base Station Package A 1 x A8 base station B 1 x metal mounting plate C 2 x metal mounting tapes D 4 x wall plug (left), 4 x self tapping metal screw (middle), 4 x flat washer (bottom) - Page 8 A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Figure 5-1 A8 Antenna Center-Mount Package Note: Parts C and Parts D are used to replace the large screw for antenna pole size with diameter from 35mm to 80mm. Please refer to the parts 14, 15, 16, 17 in Figure 5-2.
-
Page 9: Site Preparation
Please make sure that the network connection (Ethernet Cable) between central office and the site is properly connected. Make sure that there is AC electrical power supply for A8 base station at the site. Configure the A8 base station properly, e.g. assign an applicable IP address for A8 base station. - Page 10 A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Adjust the antenna to desired down tilt degree (0 to30 degrees), as shown in Figure 7-2. Adjust the Down tilt Degree. Figure 7-1 Mount antenna on pole Figure 7-2 Adjust the Down tilt Degree The antenna should look like this after it was mounted on the pole: Altai Technologies Ltd.
-
Page 11: Mounting 5Ghz Radio Antenna
Mount the 5GHz radio antenna to the pole. It is recommended that to install the standard A8 5GHz antenna, as shown in Figure 8-1, i.e. the connector is facing downward. Then refer to Section 0 in order to prevent water leakage. -
Page 12: Mounting A8 Base Station On The Pole
(Part E in Figure 4-1) to fix the metal plate, Figure 10-1. The fixed metal plate is shown in Figure 10-2. Following the steps on step 2 to step 4 of “Section9 - Mounting A8 Base Station on the Pole”. -
Page 13: Connecting Rf Cables
(it does not matter).1L means left port of sector 1. Connect an RF cable from each antenna RF port to the corresponding A8 BTS RF port based on the table below. The antenna RF port and A8 BTS RF port assignments are shown in Figure 2-2 and Table 11-1 respectively. - Page 14 A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Connect an RF cable from the 5G antenna RF port to the A8 BTS RF port “a”. Table 11-1 It is recommended to seal the RF cable-to-A8 BTS connections and RF cable-to- antenna connections with weatherproof materials to get the best performance, Figure 11-3.
-
Page 15: Weatherproofing The Rf Connectors
We recommend the following sealing materials for weatherproofing the RF connectors: High-quality, all-weather, black plastic electrical tape, preferably 3/4” (19mm) wide to make it easier to manipulate the tape around the A8 BTS RF ports. Altai Technologies Ltd. All rights reserved... -
Page 16: Installation Tips
3M Scotch Super 88 Vinyl Electrical Tape for this purpose. High-quality, all-weather, black butyl rubber tape, preferably 3/4” (19mm) wide to make it easier to manipulate the tape around the A8 BTS RF ports. Butyl rubber tape is self-amalgamating - it chemically bonds to itself, forming a strong, waterproof joint. -
Page 17: Preparing A8 Bts Rf Ports
Cut the butyl rubber tape into 1/5” (5mm) by 4” (100mm) strips. Wrap a strip of butyl rubber tape around the base of each A8 BTS RF port in the clockwise direction. Take extra care to make sure that the resulting butyl rubber ring would not hinder the tightening of the RF cable-to-A8 BTS connection. -
Page 18: Connecting Rf Cables
1, 3, 5, 7. Unplug other RF cable-to-A8 BTS connections to make room if necessary. For a detailed description on the weatherproofing procedures, refer to the sub-section “RF Cable-to-A8 BTS Connection.”... - Page 19 Start wrapping a layer of butyl rubber tape from the base of the A8 BTS RF port. Overlap the tape to half –width. Finish the wrap at 1” (25mm) above the electrical tape and cut the tape.
-
Page 20: Rf Cable-To-Antenna Connection
A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Figure 12-9 Wrap the Second Layer with Rubber Tape Figure 12-10 Second Layer Finished Figure 12-11 Wrap the Third Layer with Electrical Tape Figure 12-12 Third Layer Finished 12.6. RF Cable-to-Antenna Connection Tighten a RF cable-to-antenna connection with a torque wrench to the proper torque limit to ensure that correct internal seals and surface contacts are made. -
Page 21: Recommendation On Rf Cable And Antenna Pole
A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 cut the tape. Repeat this process for a second layer, and if enhanced UV protection is required, a third layer. Figure 12-13 Wrapping Direction of the Antenna End Figure 12-15 18dBi 5GHz antenna port with... -
Page 22: Antenna Pole Height And Size
Figure 13-2 At least 1m above any obstacle in front 14. Grounding Protection The A8 must be properly connected to earth ground. Failure to do so may result in equipment damage, injury or death. Product warranty does not cover damage... -
Page 23: Typical Site Setup
National Electric Code. The grounding screw is located at the bottom of A8 as showed in figure 14-1. Use 10 AWG wire with corrosion-resistant connectors for connecting to one or more approved grounding rods or building’s earthing network. - Page 24 A8 Installation Guide_ R3 Hardware Platform TPS13-010_rev1.0 Figure 15-1 Typical A8 Setup (using center-mounting kit with A8 pole mounted) Altai Technologies Ltd. All rights reserved...
