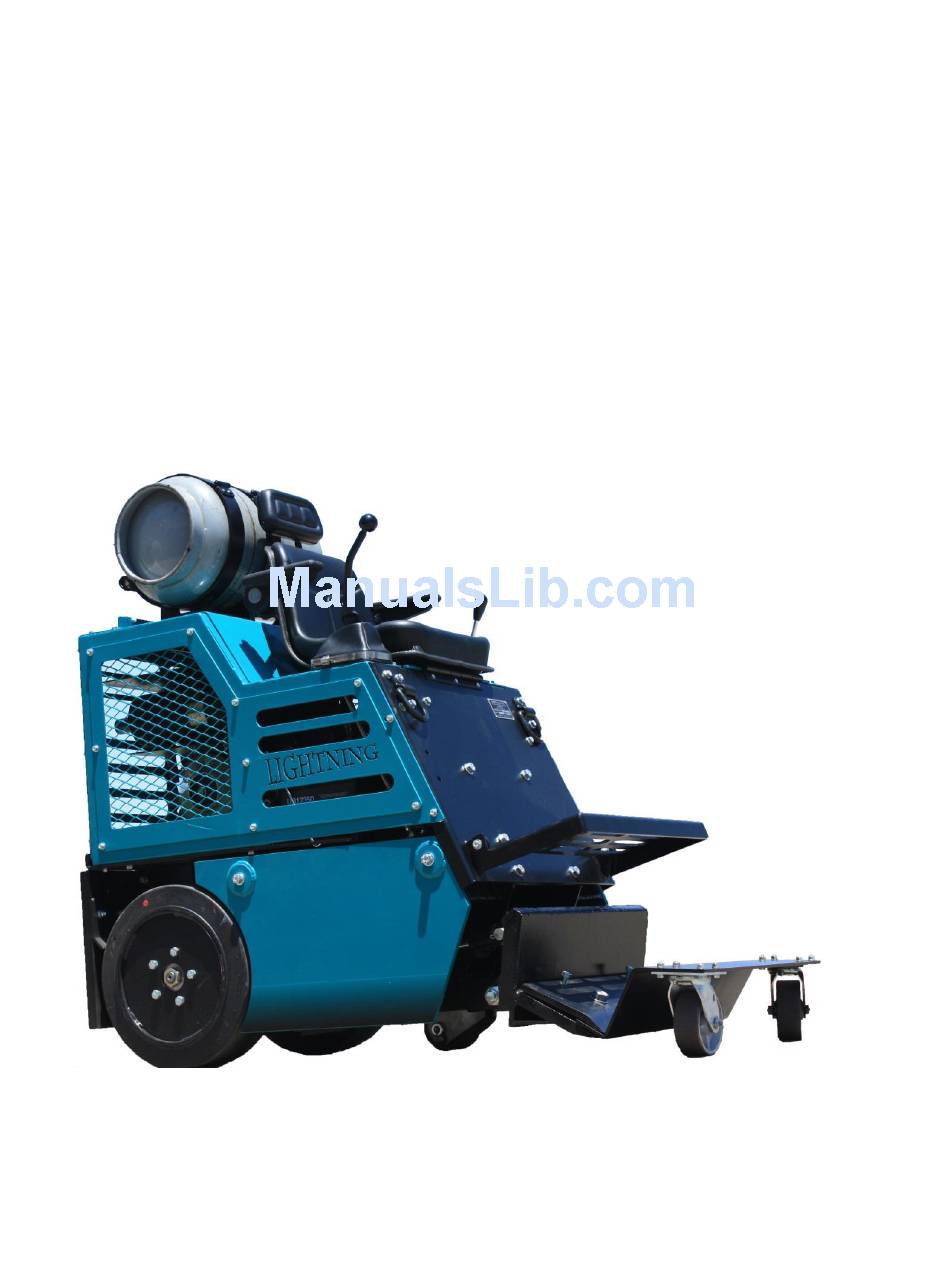

- Page 1 LIGHTNING EFI PROPANE RIDE-ON FLOOR SCRAPER Rev 10.2014 OPERATIONS AND MAINTENANCE MANUAL MUST BE READ BEFORE OPERATING SCRAPER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS LIGHTNING SECTION I GENERAL DESCRIPTION SECTION II SPECIFICATIONS SECTION III SAFETY AND PRECAUTIONS SECTION IV INSTRUMENTS AND CONTROLS SECTION V START-UP AND BREAK-IN SECTION VI MACHINE OPERATION SECTION VII PREVENTIVE MAINTAINANCE SECTION VIII ENGINE SECTION IX FRAME & COWLINGS... -
Page 3: Section I
SECTION I GENERAL DESCRIPTION Lightning A propane EFI engine powers the Lightning, driving a tandem hydrostatic pump system, creating a (skid-steer) zero turn radius drive train. Surface covering and coatings are removed by lowering a weighted blade onto the surface and moving forward under a high torque drive system. A flexible sharpened blade conforming to the floor surface then removes the surface coating. - Page 4 SAFETY WARNING CARBON MONOXIDE can cause severe nausea, fainting or death. Do not operate engine in closed or confined area without proper ventilation! A CO (Carbon Monoxide) monitor is recommended when operating scraper inside.
-
Page 5: Safety And Precautions
Wear proper eye and ear protection and heavy-duty work gloves at all times. Practice good Preventive Maintenance. Practice good housekeeping. Allow the Lightning to come to a complete stop, turn off engine, and chock rear wheels before performing any maintenance procedures. Replace worn parts when necessary. -
Page 6: Instruments And Controls
1-866-636-7763 for free replacement prior to operating the machinery. The Lightning is not a toy. All operators must be over 18 years of age, must have read and reviewed the safety and procedures manual before operating the machinery. - Page 7 View #1 In-seat view Steering Joystick Tachometer / Forward Hour Meter Down Left Right Tilt Up Tilt Down Reverse Blade Positioning Ignition Switch Oil Pressure Joystick Gauge Throttle...
- Page 8 VIEW #2 LEFT AND RIGHT SIDE DETAIL Propane Tank Steering Joystick Blade Positioning Joystick Footstep Blade Bar Hydraulic oil drain...
-
Page 9: Start-Up And Break-In
Lightning START-UP AND BREAK-IN The Lightning has been safety tested and run at our factory prior to shipping. The factory topped off all fluid levels; however, the propane tank shipped empty. Here is a recommended checklist of things to do before operating the Lightning: Raise engine covers and check oil level. -
Page 10: Machine Operation
It is just that simple to drive. The amount of movement on the joystick, and the level of the throttle, controls the speed of the Lightning. Throttle control is on the left side of the seat, taking the unit from idle to 3400 RPM. - Page 11 The Caster Wheel should not be in contact with the floor while scraping. The caster wheel will lift off the floor when the blade is lowered. Caster contact with the floor while scraping will negatively affect scraper productivity and steering. Caster wheel contact with hard debris while scraping can damage the caster wheel and shorten its life.
- Page 14 SECTION VII Preventative Maintenance OLLOW OHLER SUGGESTED SCHEDULE FOR ENGINE MAINTENANCE DAILY MAINTENANCE CHECK HYDRAULIC OIL INSPECT FOR HYDRAULIC OIL LEAKS INSPECT FOR PROPANE SYSTEM LEAKS SERVICE ENGINE AIR CLEANER RETORQUE WHEEL LUG BOLTS 20 HR MAINTENANCE ...
- Page 15 SECTION VIII ENGINE COMPONENTS LIST DESCRIPTION PART NUMBER ENGINE LE-001 GASKET, BREATHER LE-002 ENGINE DIPSTICK TUBE KIT LE-003 COOLING FAN, EXTERNAL, WHITE LE-004 ENGINE FLYWHEEL LE-005 FLYWHEEL FAN LE-006 STATOR ASSEMBLY LE-007 THROTTLE LINKAGE ASSEMBLY LE-008 AIR CLEANER COVER LE-009 ENGINE AIR FILTER WITH PRE-CLEANER LE-010 PRE-CLEANER FOR AIR FILTER...
- Page 16 IGNITION KEYS LE-042 IDLER PULLEY SPACER LE-043 BELTS (SET OF 2) LE-044 CHOKE CABLE (Non-EFI engine) LE-045 REAR HYDROSTAT QD BUSHING LE-046 THROTTLE CABLE CLAMP LE-047 GEAR PUMP DRIVE BELT LE-048 2 GROOVE 3V5.00 ENGINE DRIVE PULLEY LE-049 GEAR PUMP QD BUSHING LE-051 1 GROOVE PULLEY LE-052...
- Page 17 29. COWLING, RIGHT SIDE LFC-026 30. WEIGHT COVER, RIGHT SIDE LFC-027 31. FRAME, LEFT SIDE LFC-028 32. COWLING, LEFT SIDE LFC-029 33. WEIGHT COVER, LEFT SIDE LFC-030 34. FRAME, RIGHT SIDE LFC-031 35. LEFT ARM LFC-032 36. CROSSOVER ARM LFC-033 37.
- Page 18 OIL COOLER PLUG LH-019 HYDRAULIC HOSE KIT LH-020 HOSE – Left wheel motor LH-021 HOSE – Valve to tilt cylinder forward tee LH-022 HOSE – Valve to right tilt cylinder LH-023 HOSE – Left tilt cylinder front port LH-024 HOSE – Valve to tilt cylinder rear tee LH-025 HOSE –...
- Page 19 TRUNION LINKAGE ROD “A” 24-1/2” LSJ-019 TRUNION LINKAGE ROD “B” 15-1/2” LSJ-020 JOYSTICK BASE LSJ-022...
- Page 20 PROPANE PARTS TANK 20 lb LIP-001 TANK MOUNT ASSEMBLY LIP-002 TANK MOUNT TOGGLE & NUT LIP-003 TANK ALIGNING PIN LIP-004 QUICK COUPLER LIP-005 FITTING ¼” MPT x 5/16” hose end LIP-006 HOSE, Tank to bulkhead 12” LIP-007 BULKHEAD LIP-008 HYDROSTATIC RELIEF VALVE LIP-009 HOSE, Bulkhead to lock-off solenoid LIP-010...
- Page 21 Propane Tank - 20 lb. Propane Tank Mount Toggle & Nut Propane Quick Coupler Propane Fitting 1/4" MPT x 5/16” Hose End Propane Hydrostatic Relief Valve Propane Bulkhead Propane Tank Mount Assembly Tank Aligning Pin...
