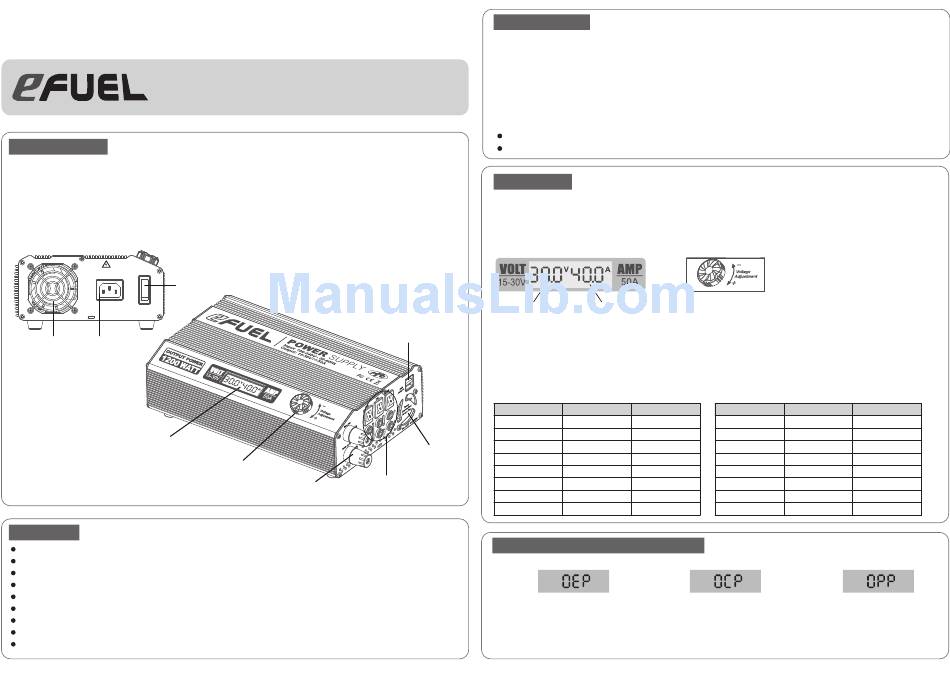

eFUEL SK-200015 Instruction Manual

INSTRUCTION MANUAL
1200W, 50A AC/DC SWITCHING
POWER SUPPLY

INTRODUCTION

Thank you for purchasing the eFUEL 1200W,
you will be very pleased with its performance because our AC/DC Switching Power Supply is designed
and manufactured by skilled professionals using the highest standard in workmanship. You can be
assured of many years of trouble free service.
Your eFUEL AC/DC switching Power Supply is designed to use household AC power source to power
equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 15-
30V DC power and can supply up to 50 amperes of continuous power.
CAUTION:
ON
Check the AC Voltage
Before POWER ON
Power
Switch
AC INPUT
100-240V OFF
Temp. Controlled Fan
Cooling AC Power
Fan Input Socket
Current & Voltage
Read Out

FEATURES

Active PFC: smaller AC input current less interference, and Conform to CE Regulations
One main DC power outputs, up to 50 amperes, three output(up to 10 amperes each) with ON/OFF switch.
Output voltage adjustable 15-30V
LCD indicates voltage and current amperes output
AC 100-240V worldwide operation: need not any alternative switcher, worldwide safe operation.
Two USB ports, 5 volts, 2100mA total for iPad, mobile phone, digital cameras and etc.
Smart cooling fans turned on upon the temperature automatically
Over current, over voltage, over load and over temperature protection
Short-circuit protection on output, safer and more reliable.
50A AC/DC Switching Power Supply. We are confident that
Voltage Adjustment Dial
(15V-30V)
3 Channels with
Main DC Output
ON/OFF Switch
(50A Max)
1

CONNECTIONS

Caution: Make all other connections before you connect the power supply to standard AC power
1. Turn the sleeves of the red and black binding output posts counterclockwise to expose the wire hole.
Insert the device's positive wire (usually red) into the red binding post's wire hole, then tighten the
2.
binding post's sleeve to secure the wire in place.
Insert the device's negative wire (usually black) into the black binding post's wire hole, then tightening
3.
the binding post's sleeve to secure the wire in place.
SK-200015
4. If you are using the banana plugs connection, insert the plugs into the terminal's jack.
Warnings: To avoid damage to both the power supply and the device:
Follow the correct polarity when connecting the power supply and the device.
Do not let the ends of the positive and negative wires touch each other.

OPERATION

To use the power supply after you connect the device to it, set POWER to turn it on with the power switch.
Please check all connections and confirm the wall AC outlet has power before you switch on the power
supply.
The LCD will display actual output voltage, current. If the voltage is NOT suitable for your charger or other
load, using the dial rotary to change the output voltage.
Output
Voltage
USB Power
5V / 2.1A To take advantage of eFUEL 1200W's full power capability, the output voltage should be 24V DC or
higher. Per Ohm's law, 24V x 50A = 1200W. Therefore, if you want to attain 1200W of output power, the
output voltage must set to 24V DC or higher.
The actual amount of output current feeding to the loading is also limited to 1200 Watts. If output voltage
is 30V, the max current is 40A.
Output Power Chart
Output Voltage(V) Max Current(A) Max Power(W)
15
16
17
Cooling
18
Fan
19
20
21
22

WARNING AND ERROR MESSAGE

In case of an error the screen will display the cause of error.
Over temperature protection.
Your power supply's overload protection circuit automatically shuts down the power supply when it is
overload and resets by turning POWER to OFF.
If OCP or OPP shows on LCD screen, set POWER to OFF, reduce the load (by using a device that does
not require more than 1200 watts), then set POWER to ON.
Output voltage
Output
adjustable 15-30V
Current
Output Voltage(V) Max Current(A) Max Power(W)
50.0 750 23
50.0 800 24
50.0 850 25
50.0 900 26
50.0 950 27
50.0 1000 28
50.0 1050 29
50.0 1100 30
Over current protection.
2
50.0 1150
50.0 1200
48.0 1200
46.2 1200
44.4 1200
42.9 1200
41.4 1200
40.0 1200
Over power protection.
