eFUEL SK-200013 Instruction Manual

INSTRUCTION MANUAL
INTRODUCTION
Thank you for purchasing the eFUEL 30A Switching DC Power Supply. We are confident that you will be
very pleased with its performance because our Switching DC Power Supply is designed and
manufactured by skilled professionals using the highest standard in workmanship. You can be assured of
many years of trouble free service.
Your eFUEL switching DC Power Supply is designed to use household AC power source to power
equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-
18V DC power and can supply up to 30 amperes of continuous power.

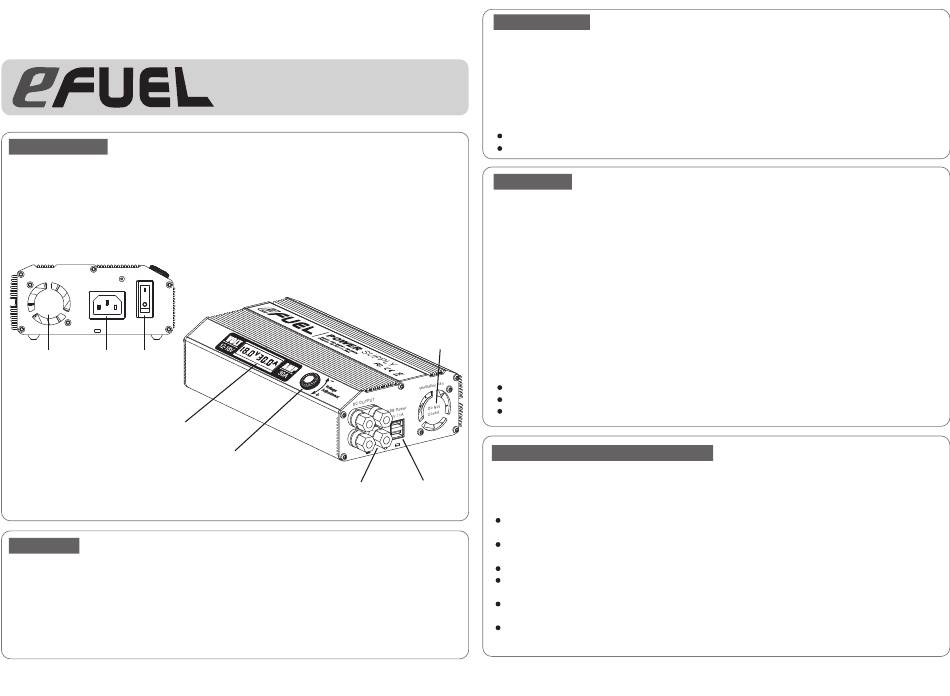

Ventilation Fan
Do Not
Cover!
Power
INPUT: 100-240V AC
Switch
Cooling AC Power Power
Fan Input Socket Switch
Current & Voltage
Read Out
Voltage Adjustment Dial (12V-18V)
FEATURES
* Two DC power outputs, up to 30 amperes
* Output voltage adjustable 12-18V
* Large LCD indicates voltage and current amperes output
* Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection
30A SWITCHING DC
POWER SUPPLY
USB Power
Dual DC
5V / 1A
Output
1
CONNECTIONS
Caution: Make all other connections before you connect the power supply to standard AC power
1. Turn the sleeves of the red and black binding output posts counterclockwise to expose the wire hole.
Insert the device's positive wire (usually red) into the red binding post's wire hole, then tighten the
2.
binding post's sleeve to secure the wire in place.
Insert the device's negative wire (usually black) into the black binding post's wire hole, then tightening
3.
the binding post's sleeve to secure the wire in place.
SK-200013
4. If you are using the banana plugs connection, insert the plugs into the terminal's jack.
Warnings: To avoid damage to both the power supply and the device:
Follow the correct polarity when connecting the power supply and the device.
Do not let the ends of the positive and negative wires touch each other.
OPERATION
To use the power supply after you connect the device to it, set POWER to turn it on with the power switch.
Please check all connections and confirm the wall AC outlet has power before you switch on the power
supply.
If the outlet has power, set POWER to OFF, reduce the load (by using a device that does not require
more than 30 amps), then set POWER to ON. Your power supply's overload protection circuit
automatically shuts down the power supply when it is overload and resets by turning POWER to OFF.
Caution: Place your power supply in a well ventilated open and cool area. Do not block the openings at
the fan suction on the side and the discharge openings on the other side.
Caution: To reduce the risk of energy hazard, be careful not to short the output terminal during operation.
Remove the output connections after use.
Cooling
Caution: Your power supply might cause TV or radio interference even when it is operating properly. To
Fan
determine whether your power supply is causing the interference, turn off your power supply. If the
interference goes away, your power supply is causing it.
Try to eliminate the interference by:
Moving your power supply away from the receiver.
Connecting your power supply to an outlet that is on a different electrical circuit from the receiver.
Contacting a qualified service technician forhelp.
IMPORTANT SAFETY INSTRUCTIONS
Danger: To reduce the risk of fire or electric shock, carefully follow these instructions. This manual
contains important safety and operating instructions for this power supply. Before you use the power
supply, read all the instructions and cautionary markings in this manual, on the power supply, and on the
product that you will connect to the power supply, to reduce the risk of injury:
Do not use the power supply near water (for example, a bathtub, washbowl, kitchen sink, laundry tub,
wet basement, or swimming pool).
Do not place the power supply on an unstable cart, stand or table. If the power supply falls, it could
injure a person or cause serious damage to the power supply.
Do not overload power outlets or extension cords. An overload can result in fire or electric shock.
Do not disassemble this unit; take it to a qualified service technician when service or repair is required.
Improper reassembly may result in a risk of electric shock or fire.
Do not use an attachment not recommended, this could result in a risk of fire , electric shock, or injury
to persons.
Never push any object into the slot in the power supply. It could touch dangerous voltage points or
short out parts resulting in a fire or electrical shock.
