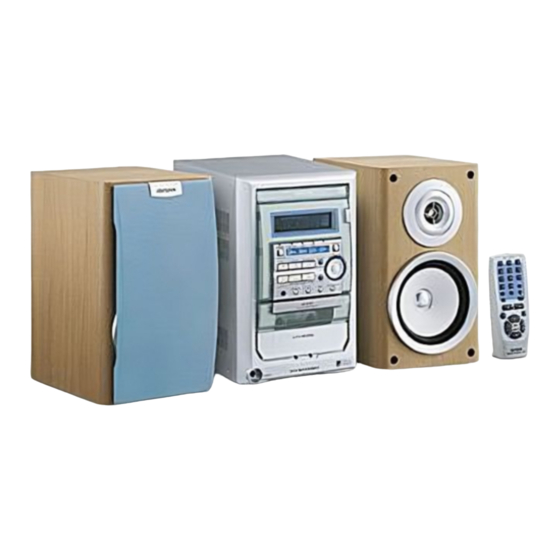

Aiwa XR-M130 Service Manual

Basic cd mechanism: 3zg-3 e2nf basic tape mechanism: 2zm-1 r8nf
Hide thumbs Also See for XR-M130:

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
COMPACT DISC
STEREO SYSTEM
• Replace this Service manual with "Revision Publishing" when it is issued.
XR-M130
XR-M150
BASIC CD MECHANISM: 3ZG-3 E2NF
BASIC TAPE MECHANISM: 2ZM-1 R8NF
S/M Code No. 09-006-426-2T3
HT
G

Advertisement

loading
Need help?

Need help?

Do you have a question about the XR-M130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiwa XR-M130

Summary of Contents for Aiwa XR-M130

  • Page 1 XR-M130 XR-M150 SERVICE MANUAL COMPACT DISC BASIC CD MECHANISM: 3ZG-3 E2NF STEREO SYSTEM BASIC TAPE MECHANISM: 2ZM-1 R8NF • Replace this Service manual with “Revision Publishing” when it is issued. S/M Code No. 09-006-426-2T3...

  • Page 2: Parts List

    REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME O ACCESSORY 87-043-115-010 1A FEEDER-ANT,FM HTSF XR-M130 O ACCESSORY 87-A90-030-010 1B ANT,LOOP AM-NC C HTSF XR-M130 O ACCESSORY 87-A90-030-010 1B ANT,LOOP AM-NC C XR-M150 O ACCESSORY 87-A90-118-010 0E ANT,WIRE FM(Z)
  • Page 3 0026 88-700-930-810 0E CAP,M 0.22-50 J LDS XR-M150 X CD 0028 88-266-810-810 0E CAP,SC 0.01-25 K SR DD400 HTSF XR-M130 X CD 0028 88-266-810-810 0E CAP,SC 0.01-25 K SR DD400 XR-M150 O CD 0029 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012...
  • Page 4 O CD 0075 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 XR-M150 O CD 0076 87-A10-102-080 0E CAP,E 1000-10 REA HTSF XR-M130 O CD 0076 87-A10-102-080 0E CAP,E 1000-10 REA XR-M150 O CD 0077 87-010-263-080 0E CAP,E 100-10 M 11L SME...
  • Page 5 DESCRIPTION SUFFIX MODEL NAME S CD IC 0010 87-001-982-010 1B IC,TA7291S XR-M150 X CD JR 0100 88-129-000-080 0E C-JUMPER,3216 HTSF XR-M130 X CD JR 0100 88-129-000-080 0E C-JUMPER,3216 XR-M150 X CD JR 0101 88-129-000-080 0E C-JUMPER,3216 HTSF XR-M130 X CD...
  • Page 6 DESCRIPTION SUFFIX MODEL NAME X CD JR 0256 88-118-000-080 0E C-JUMPER,S XR-M150 X CD JR 0257 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X CD JR 0257 88-118-000-080 0E C-JUMPER,S XR-M150 X CD JR 0273 88-129-000-080 0E C-JUMPER,3216 HTSF XR-M130 X CD...
  • Page 7 MODEL NAME X CD 0017 88-118-123-080 0E C-RES,S 12K-1/10W J XR-M150 X CD 0018 88-118-473-080 0E C-RES,S 47K-1/10W J HTSF XR-M130 X CD 0018 88-118-473-080 0E C-RES,S 47K-1/10W J XR-M150 X CD 0019 88-118-152-080 0E C-RES,S 1.5K-1/10W J HTSF XR-M130 X CD 0019 88-118-152-080 0E C-RES,S 1.5K-1/10W J...
  • Page 8 MODEL NAME X CD 0056 88-118-563-080 0E C-RES,S 56K-1/10W J XR-M150 X CD 0059 88-118-104-080 0E C-RES,S 100K-1/10W J HTSF XR-M130 X CD 0059 88-118-104-080 0E C-RES,S 100K-1/10W J XR-M150 X CD 0061 88-118-102-080 0E C-RES,S 1K-1/10W J HTSF XR-M130...
  • Page 9 MODEL NAME X CD 0101 88-118-103-080 0E C-RES,S 10K-1/10W J XR-M150 X CD 0102 88-118-392-080 0E C-RES,S 3.9K-1/10W J HTSF XR-M130 X CD 0102 88-118-392-080 0E C-RES,S 3.9K-1/10W J XR-M150 X CD 0103 88-118-101-080 0E C-RES,S 100-1/10W J HTSF XR-M130...
  • Page 10 0322 87-010-320-080 0E C-CAP,S 68P-50 J CH GRM XR-M150 O CNTL 0323 87-010-320-080 0E C-CAP,S 68P-50 J CH GRM HTSF XR-M130 O CNTL 0323 87-010-320-080 0E C-CAP,S 68P-50 J CH GRM XR-M150 O CNTL 0324 87-010-320-080 0E C-CAP,S 68P-50 J CH GRM...
  • Page 11 UNIT NAME REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME S CNTL 0318 87-020-465-080 0E DIODE,1SS133 HTSF XR-M130 S CNTL 0318 87-020-465-080 0E DIODE,1SS133 XR-M150 S CNTL 0320 87-020-465-080 0E DIODE,1SS133 HTSF XR-M130 S CNTL 0320 87-020-465-080 0E DIODE,1SS133...
  • Page 12 DESCRIPTION SUFFIX MODEL NAME X CNTL JR 0116 88-118-000-080 0E C-JUMPER,S XR-M150 X CNTL JR 0117 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X CNTL JR 0117 88-118-000-080 0E C-JUMPER,S XR-M150 X CNTL JR 0118 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X CNTL...
  • Page 13 DESCRIPTION SUFFIX MODEL NAME X CNTL JR 0200 88-129-000-080 0E C-JUMPER,3216 XR-M150 X CNTL JR 0201 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X CNTL JR 0201 88-118-000-080 0E C-JUMPER,S XR-M150 X CNTL JR 0202 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X CNTL...
  • Page 14 DESCRIPTION SUFFIX MODEL NAME S CNTL 0401 87-A30-087-080 0E C-FET,2SK2158 XR-M150 X CNTL 0301 88-121-473-080 0E RES,47K-1/8W J HTSF XR-M130 X CNTL 0301 88-121-473-080 0E RES,47K-1/8W J XR-M150 X CNTL 0310 88-118-183-080 0E C-RES,S 18K-1/10W J HTSF XR-M130 X CNTL...
  • Page 15 MODEL NAME X CNTL 0345 88-118-101-080 0E C-RES,S 100-1/10W J XR-M150 X CNTL 0346 88-118-152-080 0E C-RES,S 1.5K-1/10W J HTSF XR-M130 X CNTL 0346 88-118-152-080 0E C-RES,S 1.5K-1/10W J XR-M150 X CNTL 0347 88-118-102-080 0E C-RES,S 1K-1/10W J HTSF XR-M130...
  • Page 16 MODEL NAME X CNTL 0387 88-118-391-080 0E C-RES,S 390-1/10W J XR-M150 X CNTL 0388 88-118-391-080 0E C-RES,S 390-1/10W J HTSF XR-M130 X CNTL 0388 88-118-391-080 0E C-RES,S 390-1/10W J XR-M150 X CNTL 0389 88-128-391-080 0E C-RES, 390-1/8W J HTSF XR-M130...
  • Page 17 DESCRIPTION SUFFIX MODEL NAME O CNTL 0311 87-A90-095-080 0E SW,TACT EVQ11G04M XR-M150 O CNTL 0312 87-A90-095-080 0E SW,TACT EVQ11G04M HTSF XR-M130 O CNTL 0312 87-A90-095-080 0E SW,TACT EVQ11G04M XR-M150 O CNTL 0313 87-A90-095-080 0E SW,TACT EVQ11G04M HTSF XR-M130 O CNTL...
  • Page 18 UNIT NAME REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X KNOB 8A-CL9-205-010 -- FRAME,KEY-FUNC HTSF XR-M130 X KNOB 8A-CL9-205-010 -- FRAME,KEY-FUNC XR-M150 ! O OTHERS 82-NF5-229-010 0E PLATE,LOCK(*) HTSF XR-M130 ! O OTHERS 82-NF5-229-010 0E PLATE,LOCK(*) XR-M150...
  • Page 19 DESCRIPTION SUFFIX MODEL NAME X PLATE 8A-CL9-091-010 0E LBL,CAUTION AC CORD XR-M150 O PLATE 8A-MA6-203-010 1A PLATE,FL HTSF XR-M130 O PLATE 8A-MA6-203-010 1A PLATE,FL XR-M150 O POWER AMP 87-067-579-010 0E BVT2+3-8 W/0 SL0T HTSF XR-M130 O POWER AMP 87-067-579-010 0E BVT2+3-8 W/0 SL0T...
  • Page 20 REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME S POWER AMP 0211 87-020-465-080 0E DIODE,1SS133 HTSF XR-M130 S POWER AMP 0211 87-020-465-080 0E DIODE,1SS133 XR-M150 O POWER AMP 0231 87-A60-420-010 1A JACK,3.5 ST (MSC) HTSF XR-M130 O POWER AMP 0231 87-A60-420-010 1A JACK,3.5 ST (MSC)
  • Page 21 PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X POWER AMP 0214 88-118-102-080 0E C-RES,S 1K-1/10W J HTSF XR-M130 X POWER AMP 0214 88-118-102-080 0E C-RES,S 1K-1/10W J XR-M150 X POWER AMP 0215 88-118-103-080 0E C-RES,S 10K-1/10W J HTSF XR-M130...
  • Page 22 PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X POWER AMP 0264 88-118-105-080 0E C-RES,S 1M-1/10W J HTSF XR-M130 X POWER AMP 0264 88-118-105-080 0E C-RES,S 1M-1/10W J XR-M150 X POWER AMP 0265 88-118-103-080 0E C-RES,S 10K-1/10W J HTSF XR-M130...
  • Page 23 K NO. DESCRIPTION SUFFIX MODEL NAME O POWER SUPPLY 0151 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 HTSF XR-M130 O POWER SUPPLY 0151 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 XR-M150 S POWER SUPPLY 0101 87-A40-454-080 0E DIODE,1N5393 GW HTSF...
  • Page 24 PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X POWER SUPPLY 0111 88-118-221-080 0E C-RES,S 220-1/10W J HTSF XR-M130 X POWER SUPPLY 0111 88-118-221-080 0E C-RES,S 220-1/10W J XR-M150 X POWER SUPPLY 0112 88-118-103-080 0E C-RES,S 10K-1/10W J HTSF XR-M130...
  • Page 25 0405 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 XR-M150 O PRE-AMP 0406 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 HTSF XR-M130 O PRE-AMP 0406 87-010-188-080 0E C-CAP,S 6800P-50 K B C2012 XR-M150 O PRE-AMP 0407 87-010-426-080 0E C-CAP,S 0.012-25 K B...
  • Page 26 UNIT NAME REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME S PRE-AMP 0453 87-026-610-080 0E TR,KTC3198GR HTSF XR-M130 S PRE-AMP 0453 87-026-610-080 0E TR,KTC3198GR XR-M150 S PRE-AMP 0454 87-026-610-080 0E TR,KTC3198GR HTSF XR-M130 S PRE-AMP 0454 87-026-610-080 0E TR,KTC3198GR...
  • Page 27 REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X PRE-AMP 0414 88-118-222-080 0E C-RES,S 2.2K-1/10W J HTSF XR-M130 X PRE-AMP 0414 88-118-222-080 0E C-RES,S 2.2K-1/10W J XR-M150 X PRE-AMP 0415 88-118-681-080 0E C-RES,S 680-1/10W J HTSF XR-M130 X PRE-AMP...
  • Page 28 S PT PWB 0108 87-020-465-080 0E DIODE,1SS133 XR-M150 O PT PWB FC 0101 87-033-213-080 0E FUSE CLAMP,PFC5000 HTSF XR-M130 O PT PWB FC 0102 87-033-213-080 0E FUSE CLAMP,PFC5000 HTSF XR-M130 S PT PWB PR 0101 87-026-681-080 0E PROTECTOR,5A 491SERIES 60V...
  • Page 29 REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X PWB JR 0019 88-129-000-080 0E C-JUMPER,3216 HTSF XR-M130 X PWB JR 0019 88-129-000-080 0E C-JUMPER,3216 XR-M150 X PWB JR 0020 88-118-472-080 0E C-RES,S 4.7K-1/10W J HTSF XR-M130 X PWB JR 0020 88-118-472-080 0E C-RES,S 4.7K-1/10W J...
  • Page 30 REF NO. PARTS CODE K NO. DESCRIPTION SUFFIX MODEL NAME X PWB JR 0574 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X PWB JR 0574 88-118-000-080 0E C-JUMPER,S XR-M150 X PWB JR 0580 88-129-000-080 0E C-JUMPER,3216 HTSF XR-M130 X PWB JR 0580 88-129-000-080 0E C-JUMPER,3216...
  • Page 31 XR-M150 O SCREW 87-B10-231-010 0E QT1+3-12 SILVER CR XR-M150 O SCREW 87-B10-250-010 0E BVT2+3-12 W/O SLOT CR SILVER HTSF XR-M130 O SCREW 87-B10-250-010 0E BVT2+3-12 W/O SLOT CR SILVER HTSF XR-M130 O SCREW 87-B10-250-010 0E BVT2+3-12 W/O SLOT CR SILVER...
  • Page 32 DESCRIPTION SUFFIX MODEL NAME X VOL JR 0201 88-129-000-080 0E C-JUMPER,3216 XR-M150 X VOL JR 0203 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X VOL JR 0203 88-118-000-080 0E C-JUMPER,S XR-M150 X VOL JR 0205 88-118-000-080 0E C-JUMPER,S HTSF XR-M130 X VOL...
  • Page 33 SUFFIX MODEL NAME X VOL 0642 88-121-103-080 0E RES,10K-1/8W J XR-M150 X VOL 0649 88-118-102-080 0E C-RES,S 1K-1/10W J HTSF XR-M130 X VOL 0649 88-118-102-080 0E C-RES,S 1K-1/10W J XR-M150 X VOL 0650 88-118-102-080 0E C-RES,S 1K-1/10W J HTSF XR-M130...
  • Page 34 SCHEMATIC DIAGRAM _ 1 (MAIN)
  • Page 35 SCHEMATIC DIAGRAM _ 2 (TUNER)
  • Page 36 SCHEMATIC DIAGRAM _ 3 (FRONT)
  • Page 37 SCHEMATIC DIAGRAM _ 4 (CD)
  • Page 38 SCHEMATIC DIAGRAM _ 5 (PT: LH)
  • Page 39 SCHEMATIC DIAGRAM _ 6 (PT: U)
  • Page 40 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9820572 Printed in Singapore...

This manual is also suitable for:

Xr-m150
