Introduction

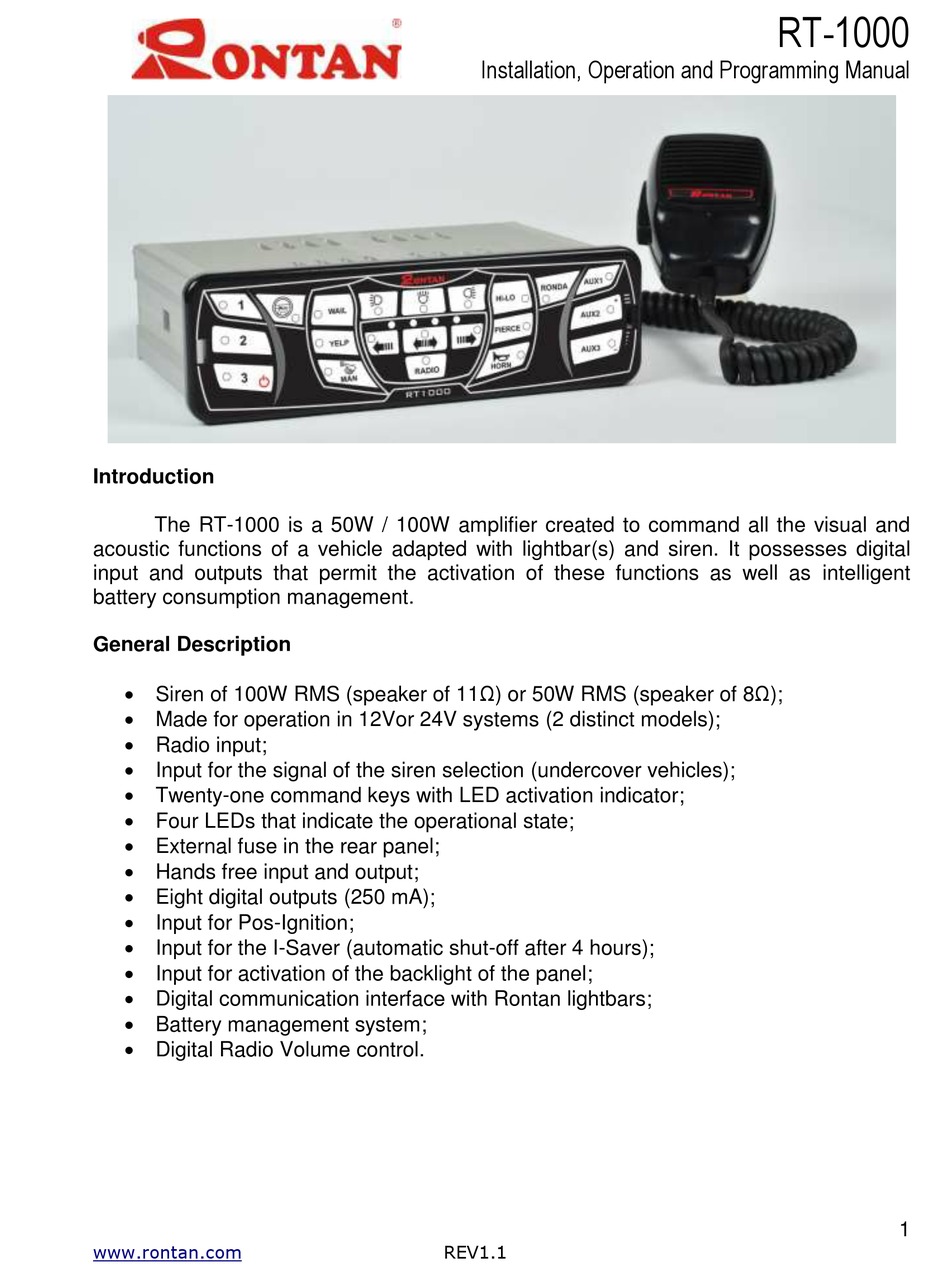

The RT-1000 is a 50W / 100W amplifier created to command all the visual and
acoustic functions of a vehicle adapted with lightbar(s) and siren. It possesses digital
input and outputs that permit the activation of these functions as well as intelligent
battery consumption management.
General Description
 Siren of 100W RMS (speaker of 11Ω) or 50W RMS (speaker of 8Ω);
 Made for operation in 12Vor 24V systems (2 distinct models);
 Radio input;
 Input for the signal of the siren selection (undercover vehicles);
 Twenty-one command keys with LED activation indicator;
 Four LEDs that indicate the operational state;
 External fuse in the rear panel;
 Hands free input and output;
 Eight digital outputs (250 mA);
 Input for Pos-Ignition;
 Input for the I-Saver (automatic shut-off after 4 hours);
 Input for activation of the backlight of the panel;
 Digital communication interface with Rontan lightbars;
 Battery management system;
 Digital Radio Volume control.
www.rontan.com
Installation, Operation and Programming Manual
REV1.1
RT-1000
1
