Rontan IS2100-M Generation 2 Installation And Operator's Manual

1 - Introduction
The SI2100 M is an amplifier of 50/100W developed for controlling all the functions of audible and
visual of vehicles equipped with light bars, auxiliary lights and sirens. This product has digital inputs
and outputs that command each device individually, and have intelligent management of energy
consumption.
2 – General Description
 Siren with 100W RMS (11 Ohms) or 50W RMS (8 Ohms)
 Radio input

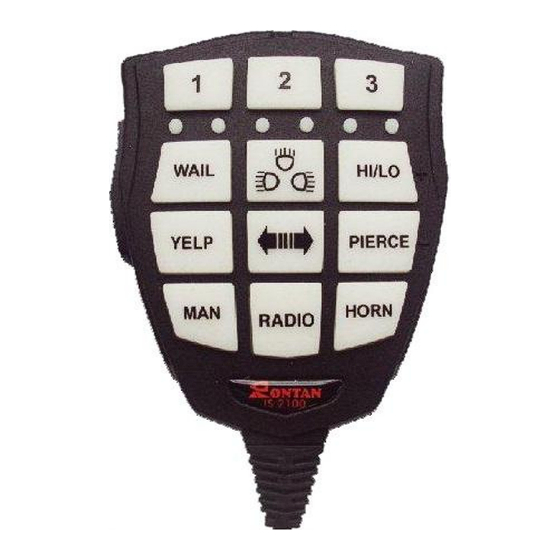

 Control with twelve buttons and built-in microphone with PTT (Push to Talk) command
 Input to enable and select siren tones
 Six LEDs indicating the operating status of the functions for routing traffic, and/or possibly any
error code in the system
 External fuse
 Eight outputs of 250mA
 Input for pos power (ignition)
 Input to activate the backlight of the panel (backlight);
 Input to enable I-Saver (turn off after 4 hours)
 Digital serial communication with the products of the Rontan Series-S and wide-E-Tech
 Battery management system
 Digital regulation of the audio volume for the radio and the microphone;
 Input and output for hands-free function (Hands Free);
3 - Uses
The IS2100 M is an amplifier that can be installed in ambulances, undercover vehicles, rescue
vehicles, police vehicles, tow trucks and any other vehicle where you need an acoustic or visual
communication. The Smart Siren can be used to control:
 Lightbars, auxiliary lights, stroboscopic lights, internal lights
 Sirens, headlights, trunk lights
 Any other device that could be electronically controlled
www.rontan.com.br
IS2100-M Generation 2
Installation, Program & Operation Manual
REV 1 Page 1
