Site Setup - Talon Digital Video Security System Installation And User Manual

T a l o n - N E T D V R

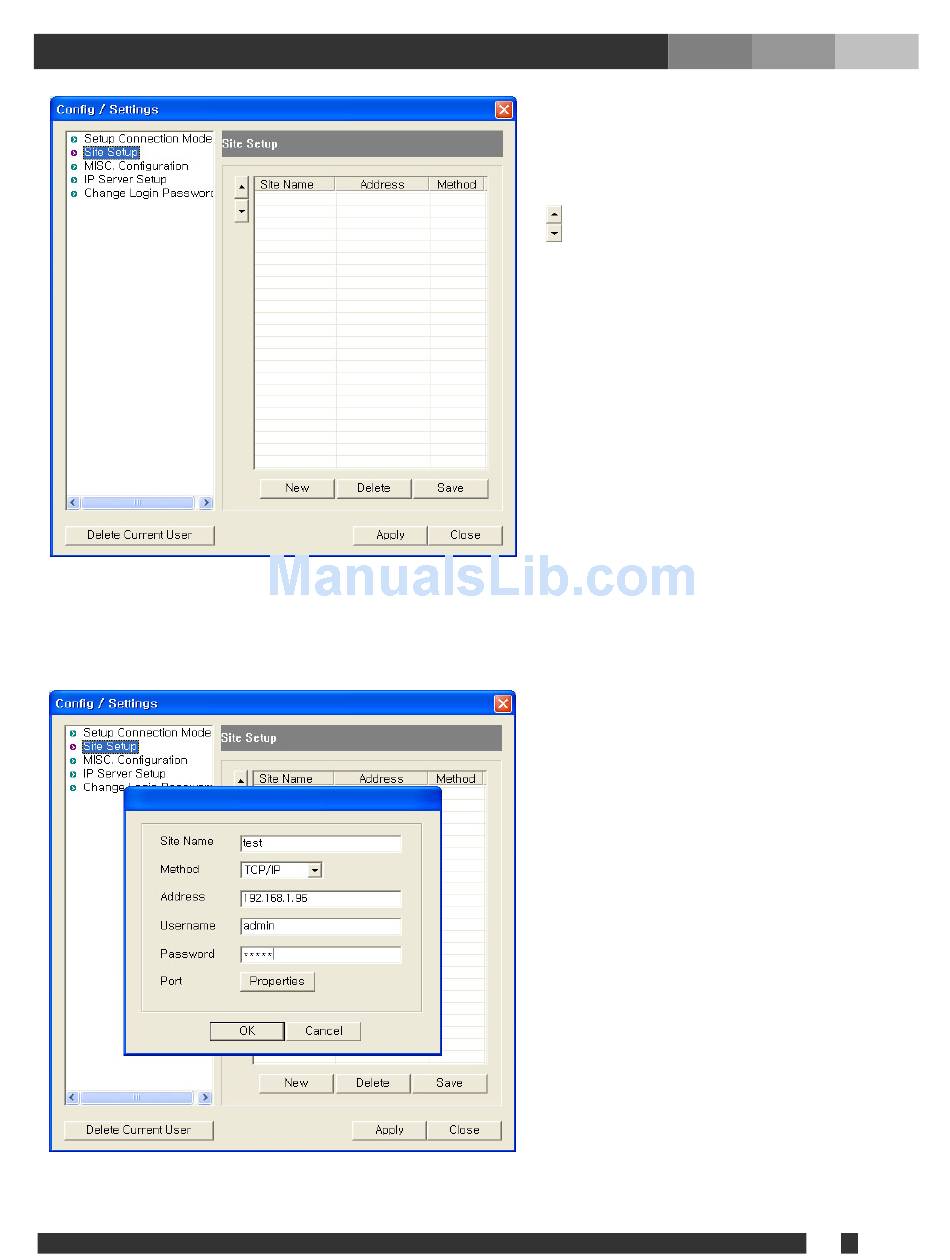

4.1.1. Site Setup

Note: Any changes will be effective once the Save button is clicked. Close or Apply without Save
will loose all changed information. The same site name can not be registered twice.
Click "New" to add a new site information.
• Password: Enter password, registered in Talon DVR System
• New: Add new site information.
• Delete: Delete the registered site.
• Save: Record any changes made.
• : allows users to sort the list of sites.
Select a site and press either one of the
arrow buttons to move an entry up/down.
• Apply: Apply any changed setting and
close the Config / Settings.
• Close: Close Config / Settings without
applying changes
• Site name: Assign system's name or site
name. In the use of IP Server, put the
Code No. , The code for Server side can
be set at "system->Use IP Server" in the
Talon DVR Setting.
Note: This code is also necessary for
Remote notify.
• Method: Select "TCP/IP" when you are
using LAN, cable modem, ADSL. In case
of IP Server, select "SERVER".
• Address: Assign IP address of system or
IP address in use of IP Server.
• User name: Enter ID, registered in Talon
DVR System.
6 Talon
