Instruction Manual
Professional Stopwatch
B
Thanks for purchasing this
professional stopwatch. Its
advanced Japanese CMOS,
combined scientific mechanical
theory makes sure your valuable
purchasing of a professional
stopwatch. Besides normal functions
of stopwatches,it has distinct advantage:
Segregated memory, data can be loaded
to computer and printed.

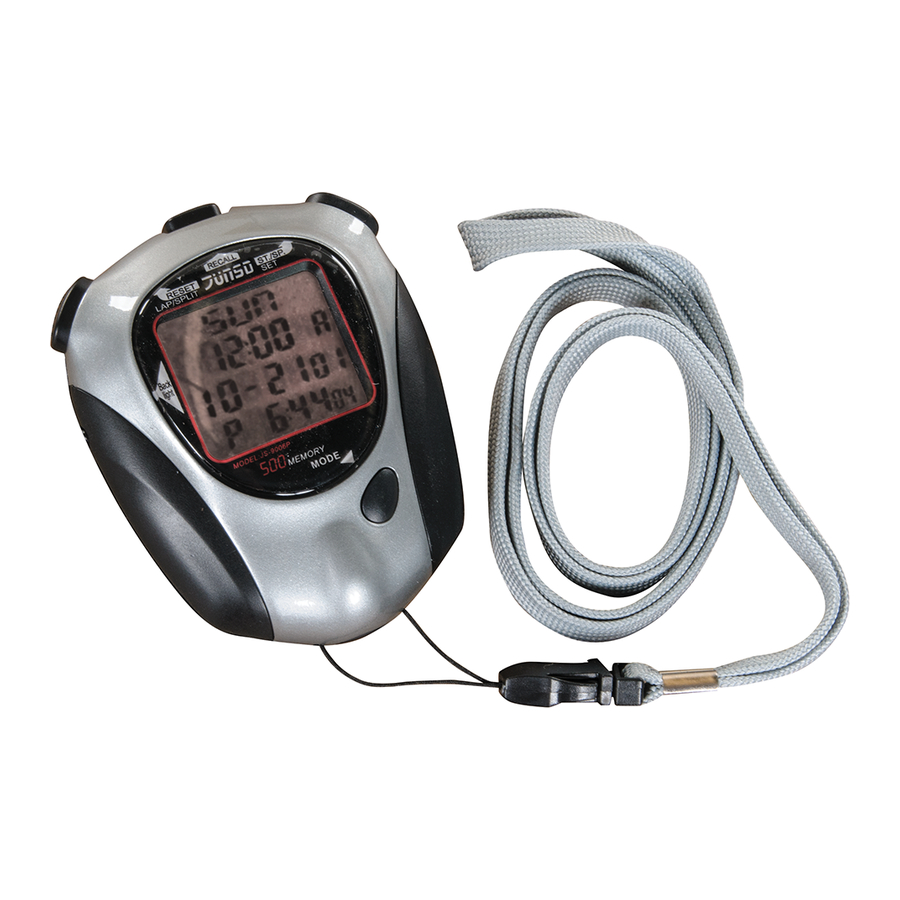

START/STOP
Button A
SET
RESET
Button B
LAP/SPLIT
SELECT
Button C
RECALL
Button D
MODE
-1-
C
Depress C to recall the 1 lap data
during the RECALL mode.
C
Depress C again to recall the 2 lap data.
C
Depress C again to recall the 3 lap data.
NOTE:
1. Depress C to recall the current lap and split data directly
during the STOP or RUNNING mode.
2. When RECALL display, with each press of C, the stored
data are recalled successively in the following order:
Lap/split 1
2
3
500
STOP TIME
AVE
BES
SLO
3. If the lap or split time is greater than 9 hours 59 min 59.99
sec in any segregated period time, the AVE, BES and SLO
information will be disabled.
4. If the lap counter is greater than 500, the stored data more
than 500 should be deleted when calculate AVE, BES and
SLO.
-4-
Picture 2
Picture 1
3) installation finished
2. Data printing
You can print the data, if there is lap/split memory
information in stopwatch.
1) Connect stopwatch to computer by transmission line
(If you have not installed the printing program, you will
see a dialog box NEW HARDWARE WAS
FOUND. Please close this dialog box
and back to Step 1: Software installation
to do it.)
2) Press D to choose printing style.
3) Double-click the program file:
610P_EN.exe (or Chinese version 610P_CN.exe). If
there is no this file now, please back to Step 2 of
software installation to copy the program file (Picture 3)
4) Press A to transmit the data to printing
window. When transmission finish,
there is END signal, as picture4.
(NOTE: If frequent transmission is not
needed, please do not Press A often. )
5) Finally, press FILE-> PRINT to execute
printing.
-7-
Depress A to start PACER.
A beeping sound of 320 beeps/
minute will sound. The beep counter
is at the center and PACER
frequency is at the lower row. The
beep counter has a range of 9999.
Depress A to stop PACER.
NOTE: Pacer will be reset if stopwatch is
switched to another mode.
C
FEATURES
A
CHRONOGRAPH
- Display of lap, split and running
chronograph
- Measure up to 9 hours 59 minutes and 59.99 seconds
- 500 recallable lap and split memories.
- Segregated memory (capability to memorise LAP time
of different races)
- Display of best (BES), slowest (SLO) and average
(AVE) lap time for the laps traversed.
D
- Lap counter (000-999)
- Data can be loaded to computer and printed
TIMER
- Dual timers which start one after another for use in
training programs.
- Be used as ordinary countdown timer if 2nd timer is
not set
PACER
- Presettable from 10 beeps/minute to 320 beeps/minute
- Display of pacer frequency, beep counter elapsed
simultaneously
CLOCK
- Display of hour, minute, second, month, date, day, year
and alarm, auto calendar
- 12/24 hour format option
5. The stored memory can be recalled during the STOP or
st
RUNNING status.
6. If the lap counter in the left up corner line display "000 "
and flash, it means that the memory is already full. So
please clear the stored data as previously indicated before
using it again.
7. When there is segregated memory, AVE, BES, SLO and
nd
STOP for every lap time take the total storage, so the lap
and split counters will be less than 500.
Depress D to return the CHRONO to the
stopped status. Depress A to restart
rd
counting or B to reset to "0".
D
NOTE:
1. After pressing button B to reset to "0",
press C button will enter into the
RECALL mode. The lower row will
display the segregated time number, the
middle and left up corner display year,
month, middle date, day and weekday.
The segregated time number stands for
the serial number of stored data. The biggest serial number
is the final memory and the smallest serial number is the
first memory. Press button B to select MCH (Memory
Chronograph), and then press button C to recall the
corresponding lap time record.
2. If there is no memory during counting, it can not go into
the RECALL mode when press C.
Picture 3
TIMER OPERATION
Depress D button until th e stopwatch goes to the TR
mode. The top row is the display for the 1st timer
and the middle row is the display for the 2nd timer .
Press and hold B button for 2 seconds to
go into the SET TR mode with the hour
digit of the 1st timer blinking. Press A
button to set to desired hour for
countdown. Press B to go to the first
digit in minutes and press A to set
D
minutes. Similarly by using B and A
buttons, the desired countdown time for
the 1st and 2nd timer can be set.
Press A to start countdown with the
"1" at the top right corner blinking
CARE OF YOUR STOPWATCH
WATER RESISTANCE
The stopwatch is designed to withstand accidental
contact with water such as splashes or rain, but it is not
designed for use in water. Do not operate the buttons
when the stopwatch is wet.
TEMPERATURE
Do not leave your stopwatch under direct sunlight or
LAP TIME
STA RT
CH RONOGRAPH OPERAT I ON
1
2
3
SPLIT TIME
-2-
The stopwatch will give "BiBiBi" sound during clearing
the data.
DATA DOWNLOAD AND PRINTING
1. Software installation
1) Put the CD into the CD-ROM driver. Open file in route:
2) Copy the program file (according to different language
-5-
and the timer setting counting down. When the 1st
timer approaches zero, the timer gives 4 beeps and
the 2nd timer starts counting down immediately.
When the 2nd timer approaches zero, it gives 2
beeps and the 4 digit counter at the lowest row
advances by1 automatically. At anytime during
Picture 4
countdown, pressing A will stop counting.
Remark:
1. When the 1st timer is set ,it is default 10 hour.
When the 2nd timer is not set, it is default of
zero (not working).
2. If only the 1st timer is set, the timer is used as
an ordinary countdown time and will give
automatically when the timer reaches zero .
PACER OPERATION
B will sequence the PACER frequency as
follows: 10, 20, 30, 40, 60, 80, 120, 160, 200, 220,
240, 320
-8-
careful of the screen of the TV set and the wearing of
clothing made of synthetic material in dry weather;
in such cases a very strong static electricity can be
generated.
MAGNETISM
Not affected.
CHEMICALS
Do not expose your stopwatch to solvents such as
gasoline and alcohol, the spray of cosmetics, cleaners,
Depress D to select the operating mode.
The chronograph indicator "CHRONO"
is shown. And the memory balance
number is shown in the left up corner.
Depress A to start.
D
Depress B to read the 1 lap time. LAP is
st
shown at the upper row, SPLIT is shown
at the middle row and the
RUNNING CHRONO is shown at the
bottom row.
D
Depress B to display the 2 lap time,
nd
and the lap counter is shown in the left
up corner.
Depress B to display the 3 lap time,
rd
and depress B again to display the 4
lap time. Operate as above procedure,
the lap counters within 500 will be
shown.
Depress A to stop counting.
-3-
3. After reset the stopwatch to "0", press B to select
MCH and confirm that the serial number
after MCH is the memory you want to
delete. Then press and hold A button for
3 seconds to clear the current MCH data.
If the stored data is already cleared. It
will beep and display "Ed", and the serial
number will decrease 1 automatically.
If pressing and holding button A more
than 6 seconds, it will beep and
display ALL CLEAR Ed, and all the
stored data can be cleared.
Driver\Win32 bit, Enter PL-2303 Driver Installer.exe, as
picture 1; click next , as picture 2; click finish .
"
"
"
version):
- Chinese version: software\chinese\JS-610P_CN.exe
- English version:
software\English\JS-610P_CN.exe
to your hard disk (if not, you must insert CD every time
when printing)
-6-
Depress D to select the PACER
mode.
The display will be as shown
with the last 2 digits at the lower
D
row blinking. At this status depress
-9-
