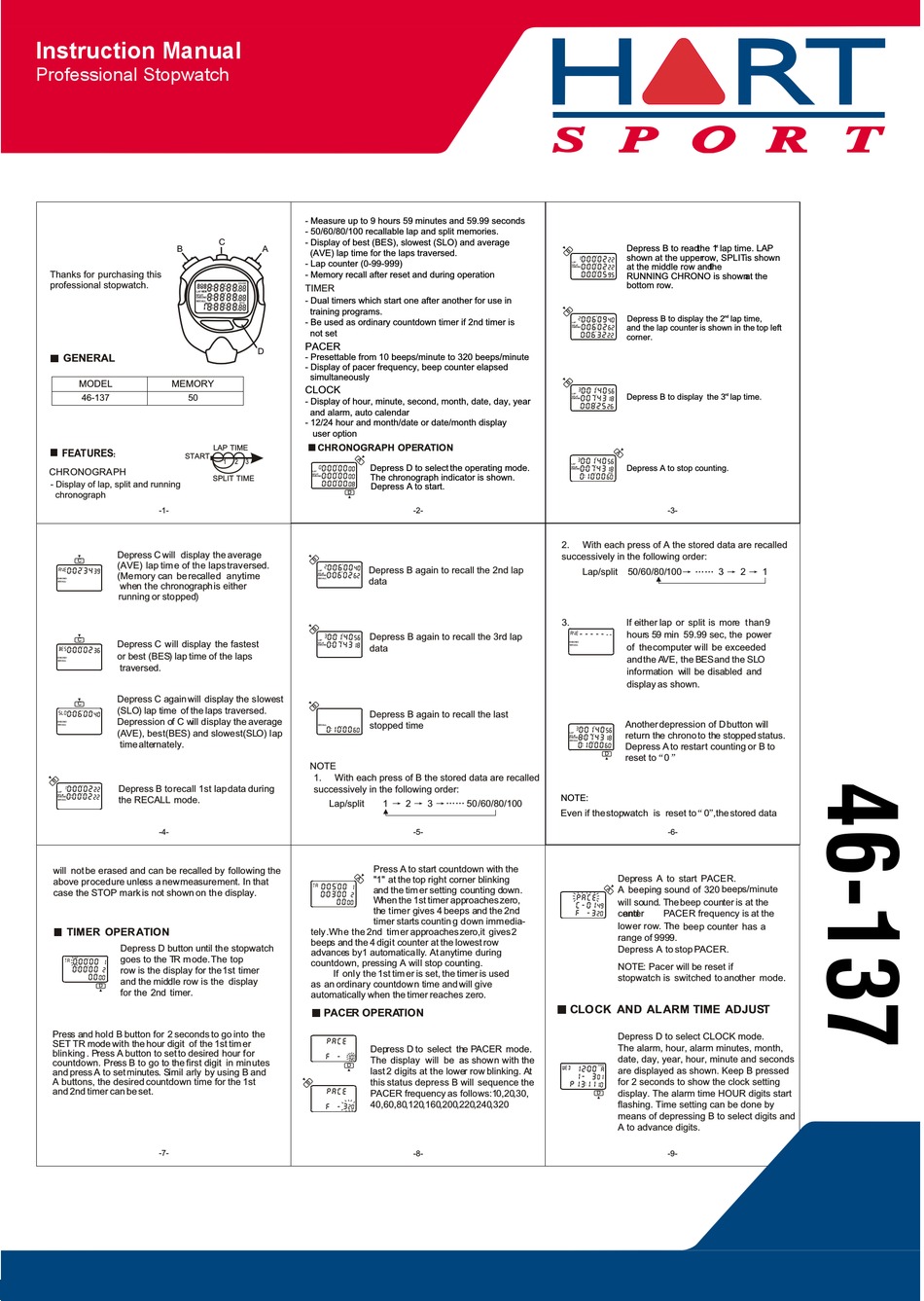

HartSport 46-137 Instruction Manual

Instruction Manual
Professional Stopwatch
B
Thanks for purchasing this
professional stopwatch.
GENERAL
MODEL MEMORY
46-137 50
FEATURES
START
CHRONOGRAPH
- Display of lap, split and running
chronograph
-1-
Depress C will display the average
C
(AVE) lap time of the laps traversed.
(Memory can be recalled anytime
when the chronograph is either
running or stopped)
C
Depress C will display the fastest
or best (BES) lap time of the laps
traversed.
Depress C again will display the slowest
C
(SLO) lap time of the laps traversed.
Depression of C will display the average
(AVE), best(BES) and slowest(SLO) lap
time alternately.
Depress B to recall 1st lap data during
the RECALL mode.
-4-
will not be erased and can be recalled by following the
above procedure unless a new measurement. In that
case the STOP mark is not shown on the display.
TIMER OPERATION
Depress D button until the stopwatch
goes to the TR mode. The top
row is the display for the 1st timer
and the middle row is the display
D
for the 2nd timer.
Press and hold B button for 2 seconds to go into the
SET TR mode with the hour digit of the 1st tim er
blinking . Press A button to set to desired hour for
countdown. Press B to go to the first digit in minutes
and press A to set minutes. Simil arly by using B and
A buttons, the desired countdown time for the 1st
and 2nd timer can be set.
-7-
NOTE: Alarm is automatically armed if alarm
hour or minute has been set. Alarm can also be
armed or disarmed by depressing C at normal time
mode. When alarm is armed " " will be on the
display and when not , " " will be not on the display.
When it reaches alarm time it will sound for 60 seconds.
- Measure up to 9 hours 59 minutes and 59.99 seconds
- 50/60/80/100 recallable lap and split memories.
C - Display of best (BES), slowest (SLO) and average
A
(AVE) lap time for the laps traversed.
- Lap counter (0-99-999)
- Memory recall after reset and during operation
TIMER
- Dual timers which start one after another for use in
training programs.
- Be used as ordinary countdown timer if 2nd timer is
not set
PACER
D
- Presettable from 10 beeps/minute to 320 beeps/minute
- Display of pacer frequency, beep counter elapsed
simultaneously
CLOCK
- Display of hour, minute, second, month, date, day, year
and alarm, auto calendar
- 12/24 hour and month/date or date/month display
user option
CHRONOGRAPH OPERATION
LAP TIME
1 2 3
Depress D to select the operating mode.
The chronograph indicator is shown.
SPLIT TIME
Depress A to start.
D
Depress B again to recall the 2nd lap
data
Depress B again to recall the 3rd lap
data
Depress B again to recall the last
stopped time
NOTE
1. With each press of B the stored data are recalled
successively in the following order:
Lap/split 1
Press A to start countdown with the
"1" at the top right corner blinking
and the tim er setting counting down.
When the 1st timer approaches zero,
the timer gives 4 beeps and the 2nd
timer starts countin g down immedia-
tely.Whe the 2nd timer approaches zero,it gives 2
beeps and the 4 digit counter at the lowest row
advances by1 automatically. At anytime during
countdown, pressing A will stop counting.
If only the 1st tim er is set, the timer is used
as an ordinary countdown time and will give
automatically when the timer reaches zero.
PACER OPERATION
Depress D to select the PACER mode.
The display will be as shown with the
D
last 2 digits at the lower row blinking. At
this status depress B will sequence the
PACER frequency as follows:10,20,30,
40,60,80,120,160,200,220,240,320
SHOCKS
Be careful not to drop your stopwatch or hit it against
hard surface, as it may cause a mechanical damage.
STATIC ELECTRICITY
The integrated circuit in your stopwatch can be
-2-
2.
successively in the following order:
3.
NOTE:
2 3 50/60/80/100
Even if the stopwatch is reset to 0 ,the stored data
-5-
CLOCK AND ALARM TIME ADJUST
-8-
BATTERY REPLACEMENT
When the display becomes dim or faded out, battery
replacement is necessary.
1. Unscrew and remove back cover.
2. Unscrew the battery contact and
take off the old battery.
3. Replace with fresh lithium battery
Depress B to read the 1 lap time. LAP
st
shown at the upper row, SPLIT is shown
at the middle row and the
RUNNING CHRONO is shown at the
bottom row.
Depress B to display the 2 lap time,
nd
and the lap counter is shown in the top left
corner.
Depress B to display the 3 lap time.
rd
Depress A to stop counting.
-3-
With each press of A the stored data are recalled
Lap/split 50/60/80/100 3 2
If either lap or split is more than 9
hours 59 min 59.99 sec, the power
of the computer will be exceeded
and the AVE, the BES and the SLO
information will be disabled and
display as shown.
Another depression of D button will
return the chrono to the stopped status.
Depress A to restart counting or B to
D
reset to 0
-6-
Depress A to start PACER.
A beeping sound of 320 beeps/minute
will sound. The beep counter is at the
center and PACER frequency is at the
lower row. The beep counter has a
range of 9999.
Depress A to stop PACER.
NOTE: Pacer will be reset if
stopwatch is switched to another mode.
Depress D to select CLOCK mode.
The alarm, hour, alarm minutes, month,
date, day, year, hour, minute and seconds
are displayed as shown. Keep B pressed
for 2 seconds to show the clock setting
display. The alarm time HOUR digits start
D
flashing. Time setting can be done by
means of depressing B to select digits and
A to advance digits.
-9-
