Summary of Contents for Vortec Magnetic Bike M900

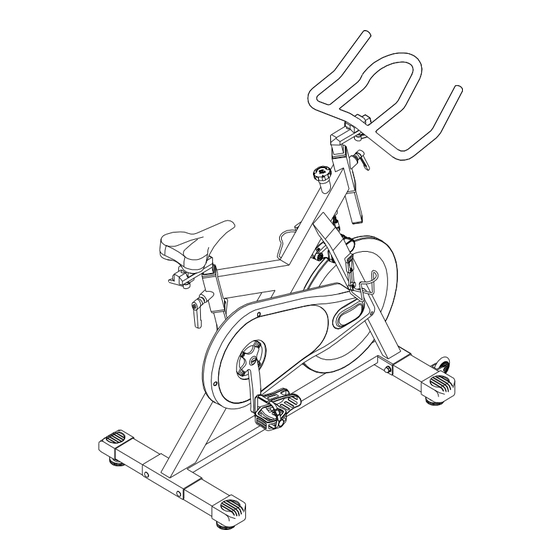

- Page 1 MAGNETIC BIKE M900 MANUAL...
- Page 2 M900 Assembly Diagrams...
- Page 3 M900 ASSEMBLY Step 1 (front foot) Attach the front foot (6) to the frame using the bolt (3),washer (4) and nut (5). Step 2 (rear foot) Attach the rear foot (2) to the frame using the bolt (3), washer (4) and nut(5). Step 3.
- Page 4 Step 4. (handlebar & stem) Attach handlebar (11) onto handle bar stem (14), assembly down plate (25), washer (12a) bolt (26) and lock lever (12), slide the handlebar (11) until reach your required position. Using lock lever for tightening. And then put the handlebar-stem set onto front tube, adjust to your ideal position., and then using lock lever (18) to tighten.
- Page 5 Step 6.7. (bottle cage) attach scresw (10) into bottle cage (9) on front frok in required position using a 4mmm allen key...
