- Page 1 MINI MHL/HDMI TO SCART Converter User manual...
- Page 2 Introduction The MINI MHL/HDMI to SCART converter which will convert digital MHL/HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal and smart Phone MHL signal to normal CVBS signal (standard-definition 480i, 576i,).So that can play on CRT TV, VHS VCR, DVD recorders,...
- Page 3 4. Compatible with HDMI1.3 5. Share your smart phone photos, music and movies on the TV n Package 1. Mini MHL/HDMI to SCART Converter 2. 5V1A DC Power Supply Adaptor 3. MHL to HDMI Cable 4. Operation Manual n Specifications Input ports 1xHDMI.
- Page 4 Input Resolution 640x480@60Hz,800x600@60Hz, 1024x768@60Hz,1280x720@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz, 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz,1080i50/60Hz, 1080p23.97/24/25/50/59.94/60Hz. CVBS output PAL,NTSC Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F elative Humidity 20 ~ 90% RH (Non-condensing) Power Consumption (Max)

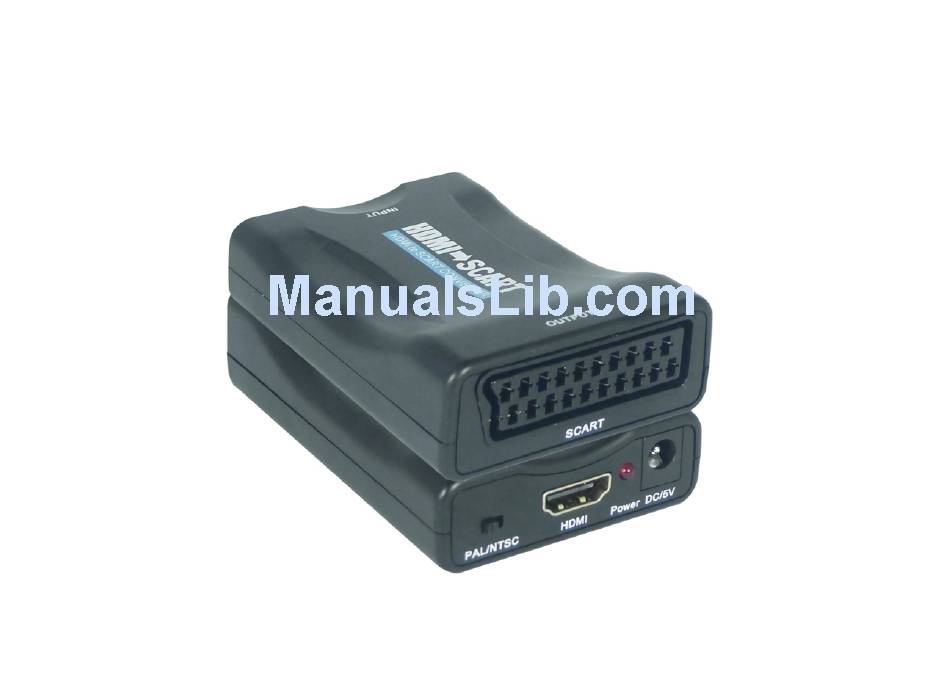

- Page 5 n Operation controls and Fuctions Front Panel Rear Panel 1) PAL/NTSC Switch: Switch the CVBS output format. 2) HDMI Input: Connect the HDMI to your source equipment such like DVD/Game console. 3) LED indicator: When the DC5V power on, the indicator will be light. 4) Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
- Page 6 n Application Example n Support MHL smart Phone series Samsung I9100,i9108,i9188,I997,Samsung Galaxy Note(i900) HTC sensation(HTC G14/G18/G19),HTC Flyer, HTC EVO 3D...
- Page 7 Z710,Z710e,Z710T LU6200, LG P940 SONY LT26i NOKIA Because of the different connecter, The Samsung smart phone Galaxy S3,S4 series ( I9300,I9308, I939 ,Note2 N7100 ,I9500) need add a micro usb 5pin to 11pin connector.
