- Page 1 MINI MHL TO SCART Converter User manual...

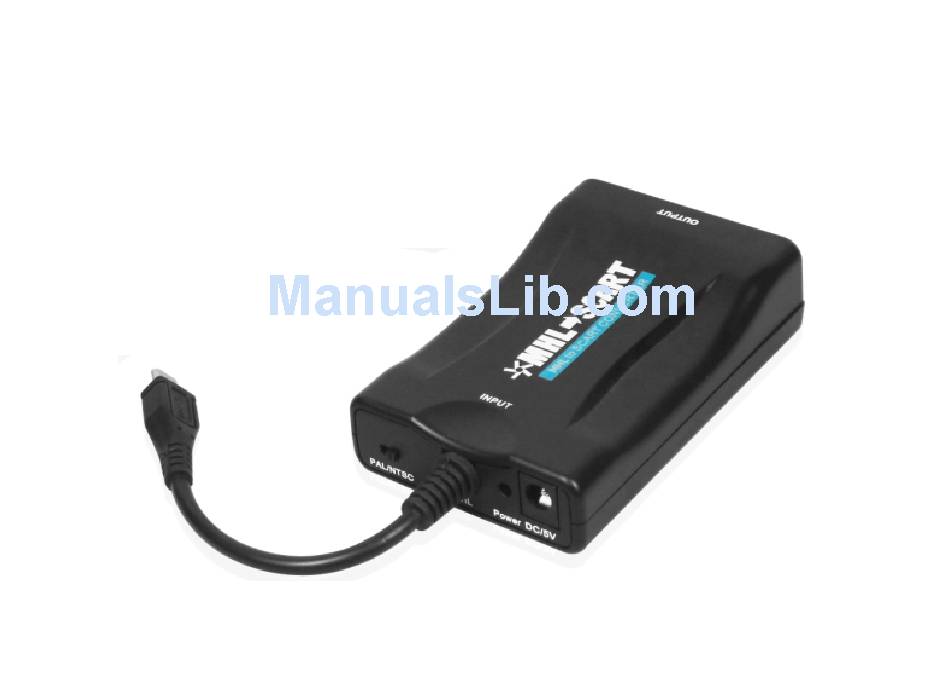

- Page 2 Introduction The MINI MHL to SCART converter which will convert digital MHL video and audio signal to composite video signal and the FL / FR stereo audio signal, Help users convert the smart Phone MHL signal to normal CVBS signal (standard-definition 480i, 576i,).So that can play on CRT TV, VHS VCR, DVD recorders, etc.
- Page 3 Package 1. Mini MHL to SCART Converter 2. 5V1A DC Power Supply Adaptor 3. Operation Manual n Specifications Input ports 1xMHL Output ports 1xSCART Dimensions(mm) 88(D)x58(W)x26(H) Wight (g) Input Resolution 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz,1080i50/60Hz, 1080p23.97/24/25/50/59.94/60Hz. CVBS output PAL,NTSC...
- Page 4 Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F elative Humidity 20 ~ 90% RH (Non-condensing) Power Consumption (Max) n Operation controls and Fuctions Front Panel Rear Panel 1) PAL/NTSC Switch: Switch the CVBS output format. 2) MHL Input: Connect the MHL to your Smart Phone.
- Page 5 5) SCART output: Connect the SCART output to your display equipment(like TV SET). n Application Example...
- Page 6 n Support MHL smart Phone series Samsung I9100,i9108,i9188,I997,Samsung Galaxy Note(i900) HTC sensation(HTC G14/G18/G19),HTC Flyer, HTC EVO 3D Z710,Z710e,Z710T LU6200, LG P940 SONY LT26i NOKIA Because of the different connector, The Samsung smart phone Galaxy S3,S4 series ( I9300,I9308, I939 ,Note2 N7100 ,I9500) need add a micro usb 5pin to 11pin connector.
