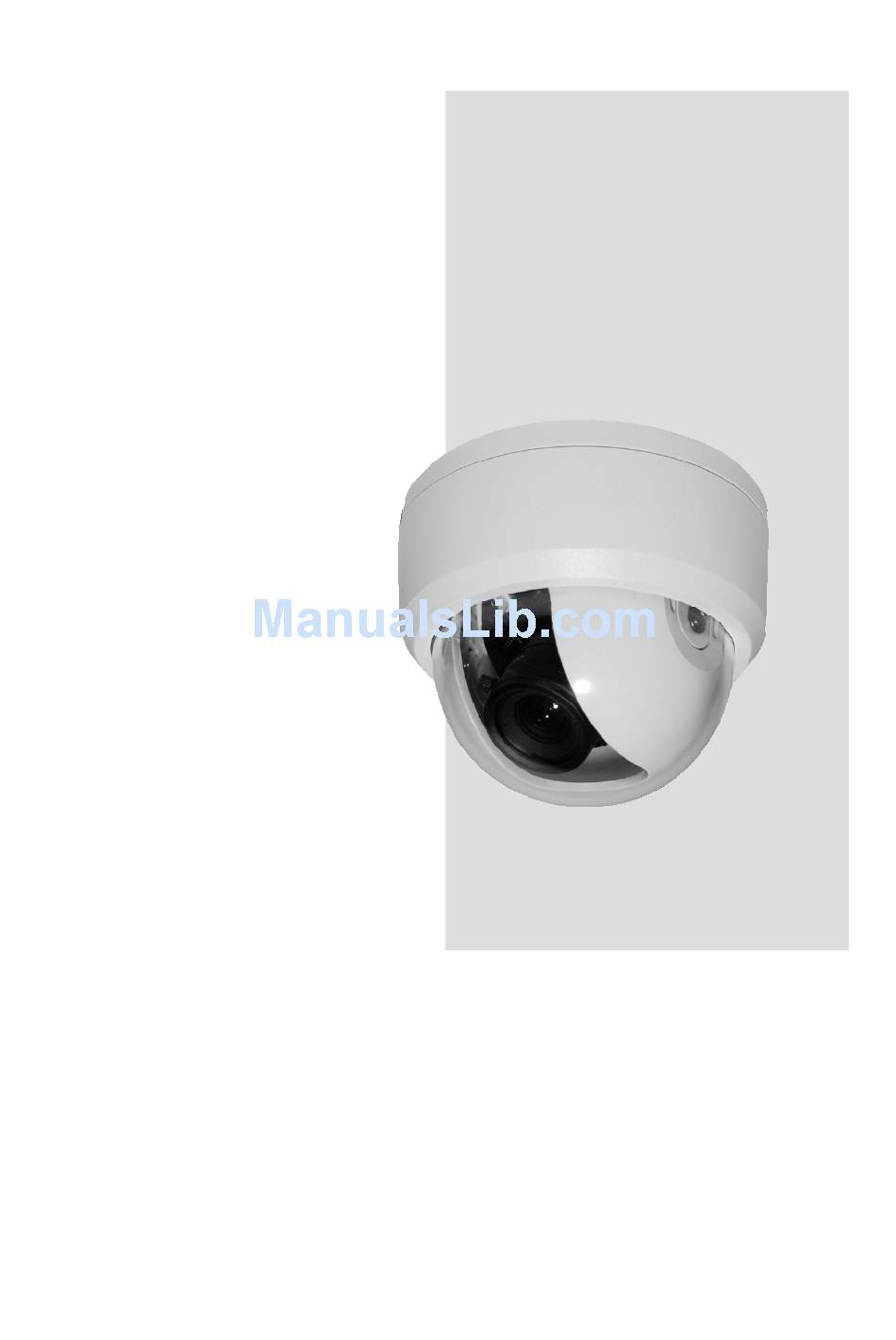

- Page 1 INSTRUCTION MANUAL D1 Plastic DOME CAMERA Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this appara tus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openi ngs. -
Page 5: Table Of Contents
Contents 1. Description ------------------------------------------------------------------6 1.1 Components - ------------------------------------------------------------------------------------------ 6 1.2 Key Features - ------------------------------------------------------------------------------------------ 7 2. Installation ------------------------------------------------------------------- 8 2.1 Overview----------------------------------------------------------------------------------------------------8 2.2 Connection------------------------------------------------------------------------------------------------14 2.3 Network Connection and IP Assignment ---------------------------------------------------------- 14 3. Operation -------------------------------------------------------------------- 16 3.1 Access from a browser -------------------------------------------------------------------------------- 16 3.2 Access from the internet ------------------------------------------------------------------------------ 17 3.3 Setting the admin password over a secure connection ------------------------------------------- 17 3.4 L ve View Page ----------------------------------------------------------------------------------------- 18... -
Page 6: Description
1. Description This manual applies to the Plastic Dome Network Camera. The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network camera s at the same time. -
Page 7: Key Features
1.2 Key Features Brilliant video quality • The Network Camera offers the highly effi cient H.264 video compression, which drastically reduces bandwidth and stor age requirements without compromising image quality. Motion JPEG is also supported for incre ased flexibility. • Dual or triple streams The Network Camera can deliver dual or triple video streams simultaneously at full frame rate in... -
Page 8: Installation
2. Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to conne ct an alarm cable additionally. For its fixation on different locations, please consult with an installer. - Page 9 • Extension Cable Wire Color Description Red: DC12V Main Power, 2pi n terminal, DC12V 380mA(4.6W) White: GND Ethernet, RJ-45 port compatible with 10/100Mbps PoE. Black Modular Jack • Installing & Adjusting Camera Module To mount the board camera on the camera mount bracket, place the four board camera supports on the fo ur slot holes near the front and the rear of the camera mount bracket.
- Page 10 Use the following drawings to install the camera module to the housing.
-
Page 11: Base Installation
• Base Installation Make mounting holes and cable hole in the place (ceiling) to which this dome. Camera is installed using the Template sheet. To remove dome cover, turn the dome cover counterclockwise until locators reach end of travel and pull off. Push the liner in the direction of the arrow (three ‘OPEN’ marks) and pull it out. - Page 12 Fasten Mounting screws(2X) and align the dome camera with it like above picture. Turn the dome camera to left direction about 16 degree. The assembly of the dome window cover and liner is in reverse order of disassembly Finally, lock dome window cover with locking screw(M2X4) from the accessory kit.
- Page 13 • Using the Quick install Adaptor (option) Use the optional Quick install Adaptor on wall or ceiling application 1. Install the Adaptor into the mounting surface and use the sc rews to adjust the position of the two locking arms on the Quick Install Adaptor 2.
-
Page 14: Connection
2.2 Connection • Connecting to the RJ-45 Connect a standard RJ-45 c able to the network port of the network dome camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub. - Page 15 Select the camera on the list and click right button of the mouse. You can see the pop-up menu as below. Select Assign IP. You cam see a Assign I P window. Enter the required IP address. ote: For more information, refer to the Smart Manger User’s Manual.
-
Page 16: Operation
3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 17: Access From The Internet
3.2. Access from the internet Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the video encoder from the Internet you must configure your broadband router to allow incoming data traffic to the video encoder. To do this, enable the NAT-traversal feature, which ill attempt to automatically configure the router to allow access to the video encoder. -
Page 18: Live View Page
3.4 Live View Page The live view page comes in eight screen modes like 704x480(576), 640x480, 352x240(288), and 20x240. Users are allowed to select the most suitable one out of those modes. Please, adjust the ode in accordance with your PC specifications and monitoring purposes. ) General controls Live V iew Page... - Page 19 Control toolbar The live v iewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles start and stop. The Start button connects to the network camera or start playing a video stream.
-
Page 20: Network Camera Setup
3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration. You can configure the network camera by clicking Setup in the top right-hand c orner of the Live View age. -
Page 21: 5.1 Basic Configuration
3.5.1 Basic Configuration 1) Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonym ous viewer login, which means that body may access the Live View page, as described below: he user list displays the authorized users and user groups (levels): User Group Authority... -
Page 22: Network
2) Network The network camera support both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address fo the video encoder can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the video encoders receive an IP address according to the configuration in th For more network router. -
Page 23: Video & Image
3) Video & Image • Stream1 Settin Codec: The codec settings are separated into MPEG4 and H.264. H.264 is a lso known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Mo tion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate. - Page 24 MPEG4 ASP(Advanced Simple Profile): Its notable technical features relative to the Simple Profile, which is roughly similar to H.263, including "MPEG"-style quantization, interlaced video, B pictures (also known as B Fr ames), Quarter Pixel motion compensation (Qpel), Global motion compensation (GMC). Resolution: It enables users to determine a basic screen size when having an access through the Web Browser or PC program.
-
Page 25: Date & Time
JPEG frame rate: Same as the Stream1 Setting. JPEG quality: Select the picture quality. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. -
Page 26: Video & Image
From the Time Mode section, select the preferred method to use for setting the time: Synchronize with computer time: sets the time from the clock on your computer. Synchronize with NTP Se rver: the video encoder will obtain the time from an NTP server every 60 minutes. - Page 27 Image • Image Appearance This page provides access to the advanced image settings for the network camera. Brightness: The image brightness can be adjusted in the range 1-10, where a higher value produces a brighter image. Color level: Select an appropriate level by entering a value in the range 1-10. Lower valu mean less color saturation.
- Page 28 Privacy Masking The privacy masking function allows you to mask parts of the video im age to be transmitted. You can t up to eight privacy masks and the color of privacy masks is black. The privacy masks are configured by Mask windows. Each window can be selected by clicking with mouse.
- Page 29 Webcasting The network camera can stream live video to a website. Copies the HTML code generated on the creen and paste it in page code of the website you want to display live video. Note: To use webcasting service, the Enable Anonymou s viewer login option must be checked.
-
Page 30: Event
3.5.3 Event ) Event-In On Boot This is used to trigger the event every time th e Network Transmitter is started. elect “Enable” to activate the motion event. - Page 31 Alarm In ect “Enable” to activate the alarm event. The network camera support 1 alarm input ports. Type: Choose the type of alarm you wish to use from the drop-down list. Dwell Time: Set the dwell time an e vent lasts for the specified dwell time from the point of detection of an alarm input.
- Page 32 Manual Trigger This option makes use of the manual trigger button provided on the live view page, which are used t start or stop the event type manually. Alternatively the event can be triggered via the product's API pplication Programming Interface).
- Page 33 Motion Motion detection is used to generate an alarm whenever movement occurs (or sto ps) in the video age. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.
- Page 34 To create a motion or mask window, follow steps: Click the right button of mouse to see the mouse menu. Select New Motion (or Mask) Window in the mouse menu. Click and drag mouse to designate a motion area. • Motion Detection Setting The beha vior for each window is defined by adjusting the Threshold and Sensitivity, as described...
-
Page 35: Event-Out
2) Event-Out SMTP(E-Mail) The Network Camera ca n be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. Mail Server/Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications an image email messages from the camera to predefined addresses via SMTP. - Page 36 To ensure that the login procedure is performed as securely as possible when using SMTP authentication, you must define the weakest authentication method allowed. Login Method: Set the Weakest method allowed to the highest/safest method supported by the mail server. The most secure method is listed in the drop-down list: Login / Plain •...
- Page 37 Remote directory: Specify the path to the directory where the uploaded images will be stored. If this directory does not already exist on the FTP server, there will be an error message when uploading. User name/Password: Provide your log-in information. •...
- Page 38 • HTTP Server Setting Name: The name of the HTTP event server. Use a descriptive name. URL: The network address to the server and the script that will handle the request. For example: http://192.168.12.244/cgi-bin/upload.cgi User name/Password: Provide your log-in information. •...
- Page 39 ▼ Record When the network camera detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the service. • Record Setting Overwrite: Click checkbox to overwrite the storage device.
-
Page 40: Event Map
Note2: Network File System (NFS) is a network file system protocol, allowing a user on a client computer to access files over a network in a manner similar to how local storage is accessed. NFS, like many other protocols, builds on the Open Network Computing Remote Procedure Call (ONC RPC) system. - Page 41 The event map allows you to change the settings and establish a schedule for each event trigger from the Network Camera. You can register the event map up to max. 15. Click Add button to make a new event map and you can see a popup window as below. •...
-
Page 42: System
3.5.4 System 1) Information You can enter the system information. This page is very useful when you refer device information after installation. • Device Name Configuration Enter the device name. • Location Configuration Enter the location information. You can enter that by four. -
Page 43: Security
2) Security Users User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •... - Page 44 HTTPS For greater security, the Network Camera can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
- Page 45 IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.
-
Page 46: Date & Time
3) Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select “Automatically adjustment for daylight saving time changes”. -
Page 47: Network
4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, and SNMP. - Page 48 Basic • IP Address Configuration: Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.
- Page 49 DDNS • Internet DDNS(Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the Network Camera even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/, or http://www.cctv-network.co.kr/.
- Page 50 RTP Have a setting for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams. For more information, please see the online help.
- Page 51 UPnP The Network Camera includes support for UPnP™. UPnP™ is enabled by default, and the Network Camera then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
- Page 52 QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.
- Page 53 • Auto Traffic Control Set a limitation on user network resources by designating the maximum bandwidth. Maximum bandwidth - In case of sharing other network programs or equipment, it is possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or kbit/s. Auto frame rate - Selected if not influenced by a network-related program or equipment without a limitation on the network bandwidth.
- Page 54 • NAT traversal Settings Enable - when enabled, the network transmitters attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the Network Camera (see System>Network>UPnP). automatic setting: The Network Camera automatically search for NAT routers on your network.
- Page 55 Zeroconfig Zeroconfig allows the network camera to create and assign IP address for network cameras and connect to a network automatically. Zero configuration networking (zeroconf), is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers. Zero configuration networking allows devices such as computers and printers to connect to a network automatically.
-
Page 56: Language
Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers. -
Page 57: Maintenance
6) Maintenance • Maintenance Server Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address... -
Page 58: Support
Note: Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades. 7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. -
Page 59: Playback
3.6 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording's start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows. - Page 60 Step forward play: go forward one frame of the video clip. Clip copy: copy the video clip. Zoom In: zoom in the video clip Full Screen: display full screen of the video. (3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis.
-
Page 61: Help
3.7 Help The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the Network Camera without a reference to the manual. -
Page 62: Resetting To The Factory Default Settings
3.8 Resetting to the factory default settings To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.6.6 System > Maintenance”) or use the control button on the network camera, as described below: •... -
Page 63: Appendix
4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the Network Camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be accessed... -
Page 64: Alarm Connection
4.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. 4.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. Inspect all connection cables for deterioration or other damage. -
Page 65: Product Specification
4.4 Product Specification Main Item Specification Image sensor 1/3” Sony CCD Active Array 704(H) x 480(V) Lens Varifocal 2.8mm ~ 12mm, F1.4, Auto IRIS 2.8mm – 73.6°(H) / 12mm – 17.8°(H) Angle of View Pan: 360° Tilt: 180° Camera Angle Adjustment Rotation: 360°... -
Page 66: System Requirement For Web Browser
System Requirement for Web Browser Operating System: Microsoft Windows 98, Microsoft Windows ME, Microsoft Windows 2000, Microsoft Windows XP, or Microsoft Windows Vista CPU: Over Pentium IV 2.4Ghz, 512MB RAM, 10GB free disk or higher VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) -
Page 67: Dome Camera
D1 Plastic DOME CAMERA Printed in Korea...
