Page 1: Operation Manual

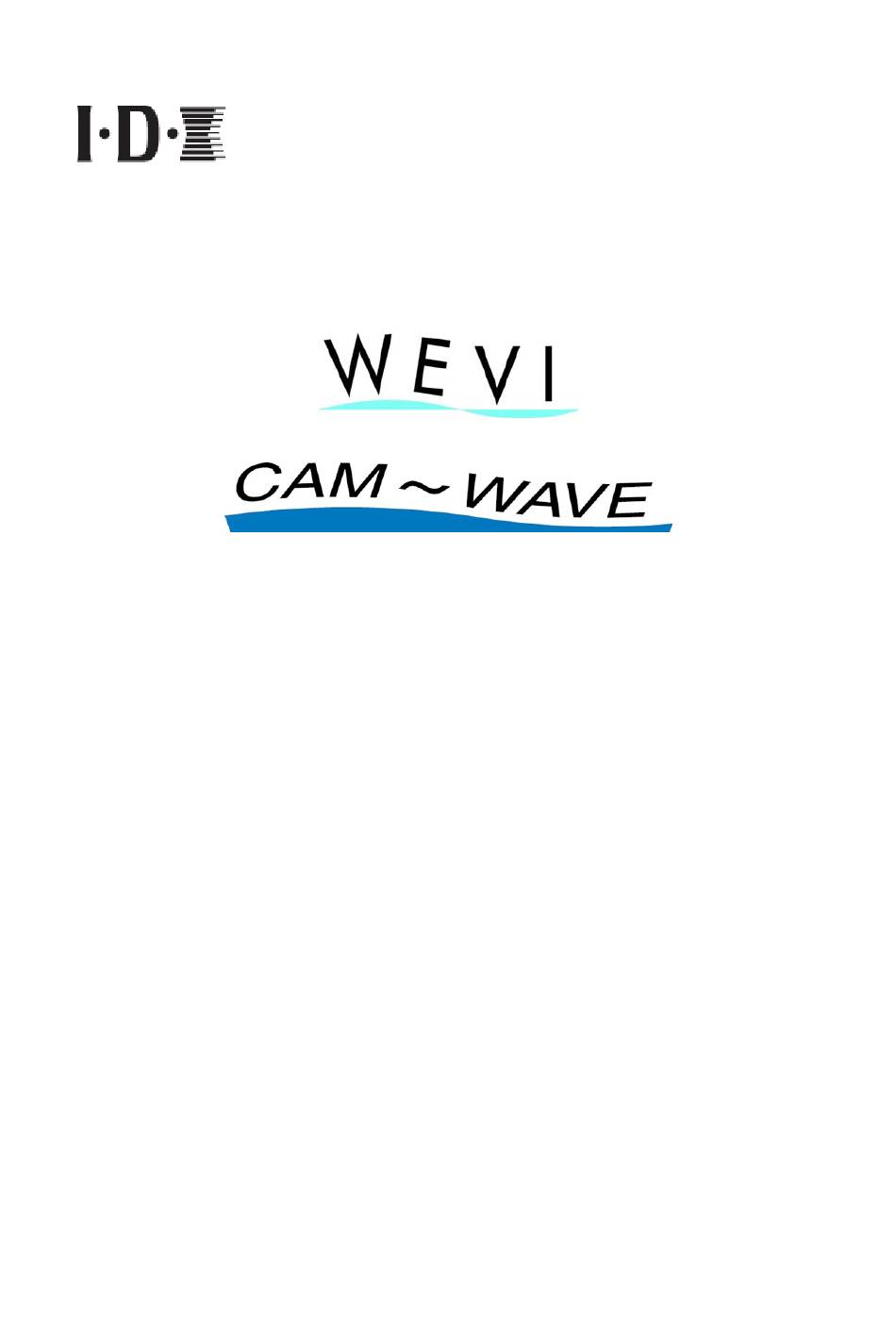

CW-5HD Operation Manual First edition IDX Company, Ltd. -
Page 2: Table Of Contents
SAFETY INSTRUCTIONS ..............2 CONTENTS ................5 1. PRODUCT OVERVIEW ..............5 2. GETTING STARTED ..............6 2.1. CW-5HD TX (Transmitter) ............6 2.2. CW-5HD RX (Reciever) ............8 3. LED INDICATOR ............... 10 3.1. LED indicator functions………………….…………………..…..……………….… 10 3.2. CW-5HD link initialisation …………………………………………..……………….. 11 4. - Page 3 Product misuse may cause fire, shock, injury, product failure or other hazards. Please read this manual prior to using your CW-5HD and retain for future reference.
- Page 4 Therefore a license for radio station use is not required to operate this product. CW-5HD uses 5GHz band radio frequencies and it has been shown not to interfere with medical devices. However, when in use, it is recommended to keep the CW-5HD at least 30cm (12in.) away from medical devices to ensure safety.
-
Page 5: Contents
＊ buildings, etc., the transmission distance of approximately 50m is not guaranteed. When CW-5HD is placed near a device such a TV, the TV image may be disrupted. Please ＊ increase the distance between TV and CW-5HD when this happens In locations with many other devices operating in the 5GHz wireless bandwidth, CW-5HD ＊... -
Page 6: Getting Started
Manual selection：CH1～CH4 Automatic selection：AUTO In AUTO position, transmitted frequency is selected automatically. 4. POWER MODE Selects transmitted output (HIGH/LOW) 5. POWER SW Turns ON/OFF the power of CW-5HD TX. 6. V-Mount Mounts V-Mount type Lithium Ion battery. - 6 -... - Page 7 MULTI ：Multicast mode 10. DC-IN Connects when external power supply is used. Connector XRL-4P male connector Input range DC 11～17V Pin assign No.1 ： negative(-) No.4 ：positive(+) 11. V-Plate Mounts CW-5HD TX to the V-Mount of selected source. - 7 -...
-
Page 8: Cw-5Hd Rx (Reciever)
1. LINK LEVEL LED Indicates intensity of received signal. 2. LINK LED Indicates link status (Link on or Searching). 3. POWER SW Turns ON/OFF the power of CW-5HD RX. 4. V-Mount Mounts V-Mount type Lithium Ion battery. - 8 -... - Page 9 Select link mode. ：Unicast mode MULTI：Multicast mode 8. DC-IN Connects to external power supply. Connector : XRL-4P male Input range : DC 11～17V Pin assign No.1：negative(-) No.4：positive (+) 9. V-Plate Mounts CW-5HD RX to V-Mount of selected device - 9 -...
-
Page 10: Led Indicator
3. LED indicators 3.1. LED indicator functions MODE STATUS LED Indicates the manually selected transmitted output power mode (HIGH/ LOW), and the UNICAST/MULTICAST setting. POWER MODE HIGH ：2 lights on POWER MODE LOW ：1 light on UNICAST ：LED light colour is Green MULTICAST ：LED light colour is Amber LINK LED Indicates the link status. -
Page 11: Cw-5Hd Link Initialisation
CW-5HD Link Initialisation (common to TX/RX) When the power switch of CW-5HD is turned on or the link of the transmitted signal is lost, the CW-5HD TX and CW-5HD RX will start to search for each other. The three LED lights will alternate on and off from bottom to top in sequence, repeating this process until a link is established. -
Page 12: Selection Of Frequencies And Transmit Output Power
4. Selecting frequencies and power output The CW-5HD TX is equipped with a FREQ SELECT switch and POWER MODE switch. With the FREQ SELECT switch, the transmitted frequency is set. The frequency selection is needed only on the TX. The frequency of the RX does not have to be selected because RX searches for the transmitted frequency automatically. -
Page 13: Link Modes - Unicast/Multicast
5. Link modes - UNICAST/MULTICAST The UNI/MULTI switch is used to select the link mode. The UNI/MULTI select switches on both the CW-5HD TX and CW-5HD RX must be set in the same mode. 5.1. UNICAST mode（1:1 communication） With UNI/MULTI switch in UNI position, CW-5HD links in UNICAST mode. In UNICAST mode, the link is made only between the same serial numbered pair of TX and RX (shipped as a pair). -
Page 14: Multicast Mode（1:N Communication
5.2. MULTICAST mode（1:n communication） With the UNI/MULTI switch in MULTI position, the CW-5HD links in MULTICAST mode, in which the CW-5HD TX can send video and audio to more than one CW-5HD RX. In MULTICAST mode, the transmitted signals are not encoded by 256bit AES encryption. -
Page 15: Operation Guide
6. Operation guide 6.1. Set up The CW-5HD does not include the various accessories that may be used in its operation. Please separately access the following items as needed for your specific application prior to use. BNC cable for HD-SDI or SDI signal connectivity IDX ENDURA system batteries or external power supply Note: Power supply;... -
Page 16: Unstable Reception
If reception is not stable, please look for the best condition by adjusting the location, height, and other environmental variables. When CW-5HD TX and RX are used close to each other, the received signal becomes too strong and may disturb the video signal. When they are placed close to each other (less than 3m as an example), set the POWER MODE switch of CW-5HD TX to LOW. -
Page 17: Notes On Use
（４）When the CW-5HD TX and RX are located close to each other, the received signal may be too strong and may disturb the video. When the CW-5HD TX and RX are used close to each other (say 3m or less as an example), set the POWER MODE switch of CW-5HD TX in LOW mode. -
Page 18: Specifications
III. Specifications 8. CW-5HD TX Video / Audio Video input signal HD-SDI (conforms to SMPTE 292M) SD-SDI (conforms to SMPTE 259M-C) BNC 1 type Video input connector BNC 1 type （input signal direct loop through） Video output connector SDI Embedded （only CH1,CH2 transmitted）... - Page 19 MULTI：Multicast mode（1:n communication / not encrypted） Status indicator LED in 2 colours: Red, Green ×3 Power Battery in：11-17V （using P-V2 IDX V-Mount） Power supply DC in：11-17V [XLR-4 male: No.1 positive (+)/ No.4 negative (-)] Power output V-Plate (IDX A-NH2E or equivalent)
-
Page 20: Cw-5Hd Rx
CH1:5745MHz, CH2:5765MHz, CH3:5785MHz, CH4:5805MHz Channels are selected automatically or manually. Transmitted Uplink output in Unicast mode output Automatically set according to the output from CW-5HD TX. MIMO / OFDM / JSCC Transmitting method Antennas Built-in pattern antennas - 2dBi each... - Page 21 Power Battery input：11-17V （using P-V2 IDX V-Mount） Power supply DC input：11-17V [XLR-4 male : No.1 negative (-)/ No.4 positive (+)] V-Plate（IDX A-NH2E or equivalent） Power output Applicable IDX ENDURA System Li-ion batteries batteries Battery input power is connected directly to camera side V-Mount.
- Page 22 The material contained in this manual consists of information that is the property of IDX Company, Ltd. and is intended solely for the use by the purchasers of the equipment described in this manual. IDX Company, Ltd. prohibits the duplication of any portion of this manual or the use herein for any application other that the operation or maintenance of the equipment described in this manual without the express written permission of IDX Company, Ltd.
- Page 23 Reference: CW-5HD English version manual only Release Note: 1 release TO: Valued Distributors, Customers Manual Corrective Notification – US version Effective immediately, the following corrections are made to the CW-5HD English version manual. Page 19: Before change: Battery in：11-17V （using P-V2 IDX V-Mount） Power supply DC in：11-17V [XLR-4 male: No.1 positive (+)/ No.4 negative (-)]...
