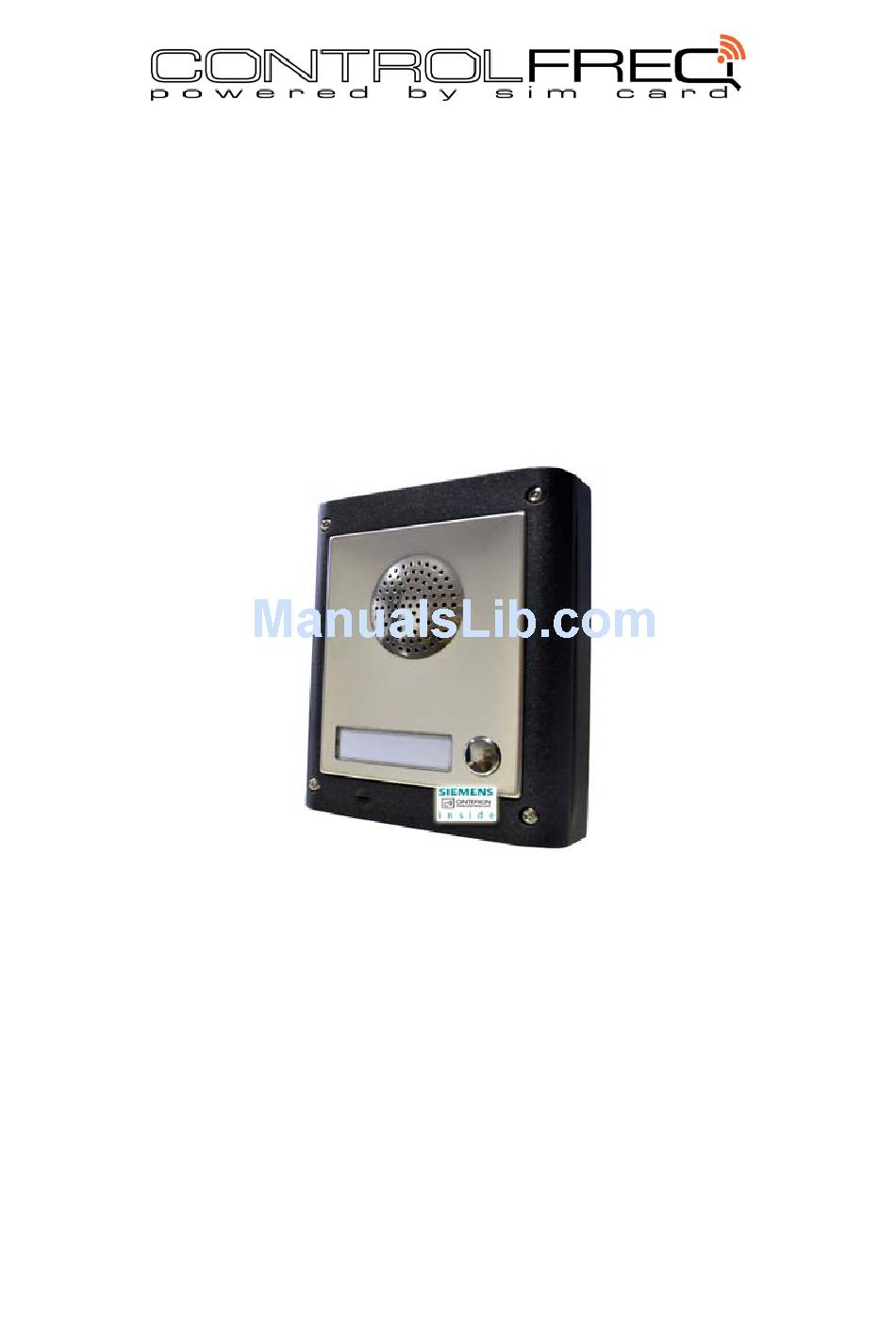

QUICK-FIT
COMPACT GSM INTERCOM SYSTEM
INSTALLATION MANUAL
Version: QUICK-FIT GSM-Installation-Manual_v1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICK-FIT and is the answer not in the manual?

Questions and answers

Summary of Contents for ControlFreq QUICK-FIT

  • Page 1 QUICK-FIT COMPACT GSM INTERCOM SYSTEM INSTALLATION MANUAL Version: QUICK-FIT GSM-Installation-Manual_v1.6...
  • Page 2: Table Of Contents

    START UP ................................8 LED DISPLAY ................................9 CLEAR ALL PROGRAMMED DATA FROM SIM ....................10 CONNECTION DIAGRAM ............................11 PROGRAMMING QUICK-FIT GSM ........................12 THE QUICK-FIT GSM PARAMETERS ........................13 ALARM SUPPORT................................13 OUTPUT MANAGEMENT ..............................17 SECURITY LEVEL - SL................................18 SET-UP PARAMETERS ...............................21 SMS MESSAGES EDITOR ..............................24...
  • Page 3 MANUAL GSM MODULE RETARD (MRES)........................37 10.20 RECEIVE S ) .............................37 TATUS OF INPUTS 10.21 RECEIVE QUICK-FIT GSM LOG.............................37 CHANGING PARAMETERS USING THE SMS COMMAND................... 38 DEFAULT SETTINGS ON QUICK-FIT GSM ......................39 TECHNICAL SPECIFICATION ..........................43 CONTROL FREQ GSM ............................44 Page 3 ...
  • Page 4 INSTALLATION MANUAL    Figures Figure 1: Enclosures options ........Error! Bookmark not defined. Figure 2: QUICK-FIT GSM Connection diagram ..........11 Figure 3: Input Connection diagram .............. 13 Figure 4: Output Connection diagram ............17 Tables Table 1: IN, ID and DD parameters..............14 Table 2: IN, ID, DD parameters example............
  • Page 5: For Your Safety

    QUICK‐FIT GSM  INSTALLATION MANUAL    1 FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger.
  • Page 6: Introduction

      2 INTRODUCTION QUICK-FIT GSM is a simple GSM intercom communication system that is designed to ensure low-cost, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom and Caller ID remote control.
  • Page 7: Features And Applications

    QUICK‐FIT GSM  INSTALLATION MANUAL    3 FEATURES AND APPLICATIONS Features: ⇒ Built-in 2 or 4 band GSM module ⇒ Up-to 4 buttons call support ⇒ 2 alarm inputs, 2 additional on extension connector ⇒ 2 outputs ( relay supported ), 2 additional on extension connector ⇒...
  • Page 8: Start Up

    INSTALLATION MANUAL    4 START UP ⇒ Insert SIM card to be used for QUICK-FIT GSM into a mobile phone that allows the use of the network the SIM card is on. Make sure the SIM card works before you start!!!
  • Page 9: Led Display

    QUICK‐FIT GSM  INSTALLATION MANUAL    LED DISPLAY GREEN LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order.
  • Page 10: Clear All Programmed Data From Sim

      6 CLEAR ALL PROGRAMMED DATA FROM SIM This is highly recommended when a SIM card you are going to use for the QUICK-FIT GSM is not new and it already has some data stored in the phone book memory.
  • Page 11: Connection Diagram

    QUICK‐FIT GSM  INSTALLATION MANUAL    7 CONNECTION DIAGRAM Before connection the QUICK-FIT GSM please take a look at connection diagram. Figure 1: QUICK-FIT GSM Connection diagram Page 11 ...
  • Page 12: Programming Quick-Fit Gsm

    8 PROGRAMMING QUICK-FIT GSM QUICK-FIT GSM device supports different types of programming: ⇒ To program QUICK-FIT GSM parameters put the SIM card into your personal GSM phone. Add programming parameters in SIM Card “Phone Book”. ⇒ You can program QUICK-FIT GSM remotely by SMS command.
  • Page 13: The Quick-Fit Gsm Parameters

    INSTALLATION MANUAL    9 THE QUICK-FIT GSM PARAMETERS To support versatile functionality of QUICK-FIT GSM different parameters are used. The parameters are divided in logical sections and are described in the following chapters. 9.1 ALARM SUPPORT Alarm reporting is supported by group of different parameters. First section is used to define the relations needed for alarm to be trigged.
  • Page 14: Table 1: In, Id And Dd Parameters

    Time delay for alarm reporting on input 3 Time delay for alarm reporting on input 4 Table 1: IN, ID and DD parameters Example: ♦ Direct programming on the SIM card QUICK-FIT GSM PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description...
  • Page 15 REMOTE REPORTING ALARM EVENTS Parameters used to define the way to report the alarm event. NOTE QUICK-FIT GSM device send SMS messages for reporting alarm events. 9.1.2.1 TN parameter Telephone numbers for remote alarm reporting are listed as TN parameters. Remote alarm reporting on QUICK-FIT GSM is done via SMS messages.
  • Page 16: Table 3: Remote Alarm Reporting Parameters

    9.1.3 CONTROLLING OUTPUTS BY DTMF QUICK-FIT GSM can control the outputs with the use of DTMF. This is very useful function in the intercom application. To control the outputs the user must press the combination of 2 digits. First digit is used to select the output (1 to 4), the second digit is used to activate (1) or deactivate (0) the output.
  • Page 17: Output Management

    Activate output 1 Deactivate output 2 Table 5: DTMF control example 9.2 OUTPUT MANAGEMENT QUICK-FIT GSM supports the possibility to report alarms from inputs and any other events locally via 4 outputs. The behavior is defined using next parameters 9.2.1 OS parameter QUICK-FIT GSM device has 2 dedicated relay and 2 OC transistor supported outputs.
  • Page 18: Security Level - Sl

    TN1 – TN5 can enter into programming and remote control of the QUICK-FIT GSM (dialing the QUICK-FIT GSM phone number or sending the SMS). NOTE When the SL level is 0, an access to the QUICK-FIT GSM is possible from any phone! IMPORTANT Before any SL number is programmed the QUICK-FIT GSM can accept Page 18 ...
  • Page 19: Table 8: Sl Parameter

    Numbers stored under parameters TN1 to TN5 have access to unit Table 8: SL parameter Example: ♦ Direct programming on the SIM card QUICK-FIT GSM PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Numbers stored under parameters TN1 to TN3 have...
  • Page 20: Table 10: Prepaid Card Validity Parameters

    SMS credit reply string set by network CREF Currency reference linked to CC1 parameter Table 10: Prepaid card validity parameters Example: ♦ Direct programming on the SIM card QUICK-FIT GSM PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description *1345#...
  • Page 21: Set-Up Parameters

    Different parameters are used to support versatile functionality of QUICK-FIT GSM. 9.4.1 HTN parameter Hidden telephone number is a parameter used in order to conceal the telephone number of the QUICK-FIT GSM device. The default value is set to “1” which means that the number is displayed. 9.4.2 ESC parameter Parameter is used to define the input used to cancle the outgoing call from the QUICK- FIT GSM device.
  • Page 22: Table 12: Set-Up Parameters

    SPK parameter SPK parameter enables you to change the incoming sound level. 9.4.8 ARST parameter ARST parameter defines periodic of auto restart time (in hours) of the QUICK-FIT GSM device. 9.4.9 ADF parameter Parameter is used to define voice refresh function, to prevent blocking of SIM in some networks.
  • Page 23: Table 13: Set-Up Parameters Example

    QUICK‐FIT GSM  INSTALLATION MANUAL    Name Number Description Hidden telephone number of the QUICK-FIT GSM device 29340 Manual fixing of the GSM provider (Simobil) Switch on Italian language Output sound level Input sound level 24 hours periodic test SMS Mute buzzer Input 2 is used as cancel button Table 13: Set-up parameters example.
  • Page 24: Sms Messages Editor

    Input 2, second part of message Input 3, second part of message Input 4, second part of message Table 14: Message parameters. Example: ♦ Direct programming on the SIM card QUICK-FIT GSM PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description #0House...
  • Page 25: Intercom

    QUICK-FIT GSM device calls the next number in XTN1-XTN5 call list. 9.6.3 DTMF auto dial functionality This function is used to provide a support for QUICK-FIT GSM device to be able select extended numbers via DTMF command. 9.6.3.1 SDNx parameter Parameter is used to set the DTMF number in auto self select function.
  • Page 26 QUICK‐FIT GSM  INSTALLATION MANUAL    9.6.4.2 TZEx parameter Parameter is used to configure the end time for the time zone functionality - 24h time format. 9.6.5 Table of parameters Name Comment ATN1 Button 1, Telephone number 1. ATN2 Button 1, Telephone number 2. ATN3 Button 1, Telephone number 3.
  • Page 27: Table 16: Intercom Parameters

    Button 8, time zone start period. TZEH Button 8, time zone end period. Table 16: Intercom parameters. Example: ♦ Direct programming on the SIM card QUICK-FIT GSM PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description ATN1 040713470 Button 1, Telephone number 1.
  • Page 28: Clip

    QUICK‐FIT GSM  INSTALLATION MANUAL    ♦ Remote programming by SMS ;ATN1=040713470;ATN2=+38643364850;RTNA=30;CTN1=040414414;CTN2=04 2340880;RTNC=40; 9.7 CLIP CLIP is used to provide the “free of charge” options to control the outputs. 9.7.1 CLPEN parameter Parameter used to enable CLIP functionality. 9.7.2 CLPOU parameter Parameter used to choose which output will be controlled by the CLIP functionality. 9.7.3 CLPI parameter This parameter, if set, is a precondition for CLIP function to control the output.
  • Page 29: Table 19: Clip Parameters Example

    QUICK‐FIT GSM  INSTALLATION MANUAL    Example: ♦ Direct programming on the SIM card QUICK-FIT GSM PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description CLPEN Enable CLIP functionality CLPOU CLIP control output 2 CLPI No input activation condition CLP1 040414414 CLIP number 1...
  • Page 30: Event Logging

    Parameter is used for defining the number of events printed out on PLOG request. 9.8.2 LOGI parameter Parameter is used to define the media used for loging of events on QUICK-FIT GSM. User can select between nonvolatile memory on QUICK-FIT GSM or select USB to transfer events directly via USB to PC.
  • Page 31: Special Sms Commands

    9.9.4 CLPCLR command Command is used to delete all CLP numbers. 9.9.5 MRES command Command is used to manually restart GSM module on QUICK-FIT GSM device. 9.9.6 SSRES command Command is used to manually restart QUICK-FIT GSM device. 9.9.7 Table of parameters...
  • Page 32: Table 22: Sms Commands

    QUICK‐FIT GSM  INSTALLATION MANUAL    LCRL Delete log on QUICK-FIT GSM device MRES Manual reset of GSM module SSRES Manual reset of QUICK-FIT GSM device Table 22: SMS commands. Example: ♦ Remote programming by SMS SMS commad Description ;ORC1=1; Activate output 1 ;ORC3=0;...
  • Page 33: Print-Out Of The Parameters

    ;PALL; 10.2 CHECK SW REVISION (PSW) By sending this command to QUICK-FIT GSM you receive SMS messages with current SW version running on QUICK-FIT GSM device: ;PSW; 10.3 CHECK SIGNAL QUALITY (PSQ)
  • Page 34: Receive Input Filter Value (Pid)

    QUICK‐FIT GSM  INSTALLATION MANUAL    10.7 RECEIVE INPUT FILTER VALUE (PID) By sending this command to QUICK-FIT GSM you receive SMS message with all currently programmed Input filters (ID1 – ID4): ;PID; 10.1 RECEIVE INPUT FILTER VALUE (POD) By sending this command to QUICK-FIT GSM you receive SMS message with all currently programmed direct output links (OD1 –...
  • Page 35: Receive Credit Pars Parameters (Pcref)

    QUICK‐FIT GSM  INSTALLATION MANUAL    10.7 RECEIVE CREDIT PARS PARAMETERS (PCREF) By sending this command to QUICK-FIT GSM you receive SMS message with all currently programmed credit parse parameters (CREF, CVODA…): ;PCREF; 10.8 RECEIVE ALL CLIP PARAMETERS (PCLP) By sending this command to QUICK-FIT GSM you receive SMS message with all currently programmed CLIP functionality related parameters (CLPEN, CLPOU, CLPI, CLPx): ;PCLP;...
  • Page 36: Receive Intercom Button 4 Paramaters (Pded)

      10.12 RECEIVE INTERCOM BUTTON 4 PARAMATERS (PDED) By sending this command to QUICK-FIT GSM you receive SMS message with all currently programmed button 4 group parameters ( DTN1, DTN2, DTN3, DTN4, DTN5, RTND, SDND, SDDD, TZSD, TZED ): ;PDED;...
  • Page 37: State Of The Outputs (Porc)

    10.19 MANUAL GSM MODULE RETARD (MRES) By sending this command to QUICK-FIT GSM shuts down GSM module and after a few second it switches the power of the GSM module ON again. The unit reboots all parameters from the SIM card.
  • Page 38: Changing Parameters Using The Sms Command

    ;+TN1=07796178765;IN1=1;IN2=1;OS1=15;OS2=1;ID1=120;LN1=1; Send SMS message to QUICK-FIT GSM telephone number and in a few seconds you receive SMS message from QUICK-FIT GSM. The sentence of the SMS must be the same as the one you have sent to QUICK-FIT GSM before.
  • Page 39: Default Settings On Quick-Fit Gsm

    QUICK‐FIT GSM  INSTALLATION MANUAL    12 DEFAULT SETTINGS ON QUICK-FIT GSM QUICK-FIT GSM PROGRAMMING TABLE Name Default Value Short Description Telephone number 1 Empty Telephone number 1 Empty Empty Telephone number 2 Empty Telephone number 3 Empty Telephone number 4 Input 1 control...
  • Page 40 Empty Check credit, TIM Italy Empty Check credit, Vodafone Italy Input used as cancel button Empty Tel. number of QUICK-FIT GSM device Hidden telephone number Auto answer ring number SIM card time validity Periodic test SMS timeout Network connection type...
  • Page 41 QUICK‐FIT GSM  INSTALLATION MANUAL    BTN3 Empty Button 2, Telephone number 3 BTN4 Empty Button 2, Telephone number 4 BTN5 Empty Button 2, Telephone number 5 RTNB Ring time, Button 2 SDNB DTMF number to send SDDB Delay for DTMF to send TZSB Time zone start interval TZEB...
  • Page 42: Table 24: Quick-Fit Gsm Default Settings

    HTN5 Empty Button 8, Telephone number 5 RTNH Ring time, Button 8 SDNH DTMF number to send SDDH Delay for DTMF to send TZSH Time zone start interval TZEH Time zone end interval Table 24: QUICK-FIT GSM default settings. Page 42 ...
  • Page 43: Technical Specification

    QUICK‐FIT GSM  INSTALLATION MANUAL    13 TECHNICAL SPECIFICATION Description Value Power Supply 13,8 - 24V AC/DC Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 75mA Tri band GSM module (QUAD optional) 900/1800 MHz * PCB dimensions 106 ×...
  • Page 44: Control Freq Gsm

    QUICK‐FIT GSM  INSTALLATION MANUAL    14 CONTROL FREQ GSM Office & Showroom Omnibus House 39 - 41 North Road London, N7 9DP United Kingdom Sales +44(0)203 551 0335 Support +44(0)203 551 0336 Email: gsm@controlfreq.co.uk Webshop: www.controlfreq.co.uk Page 44 ...
