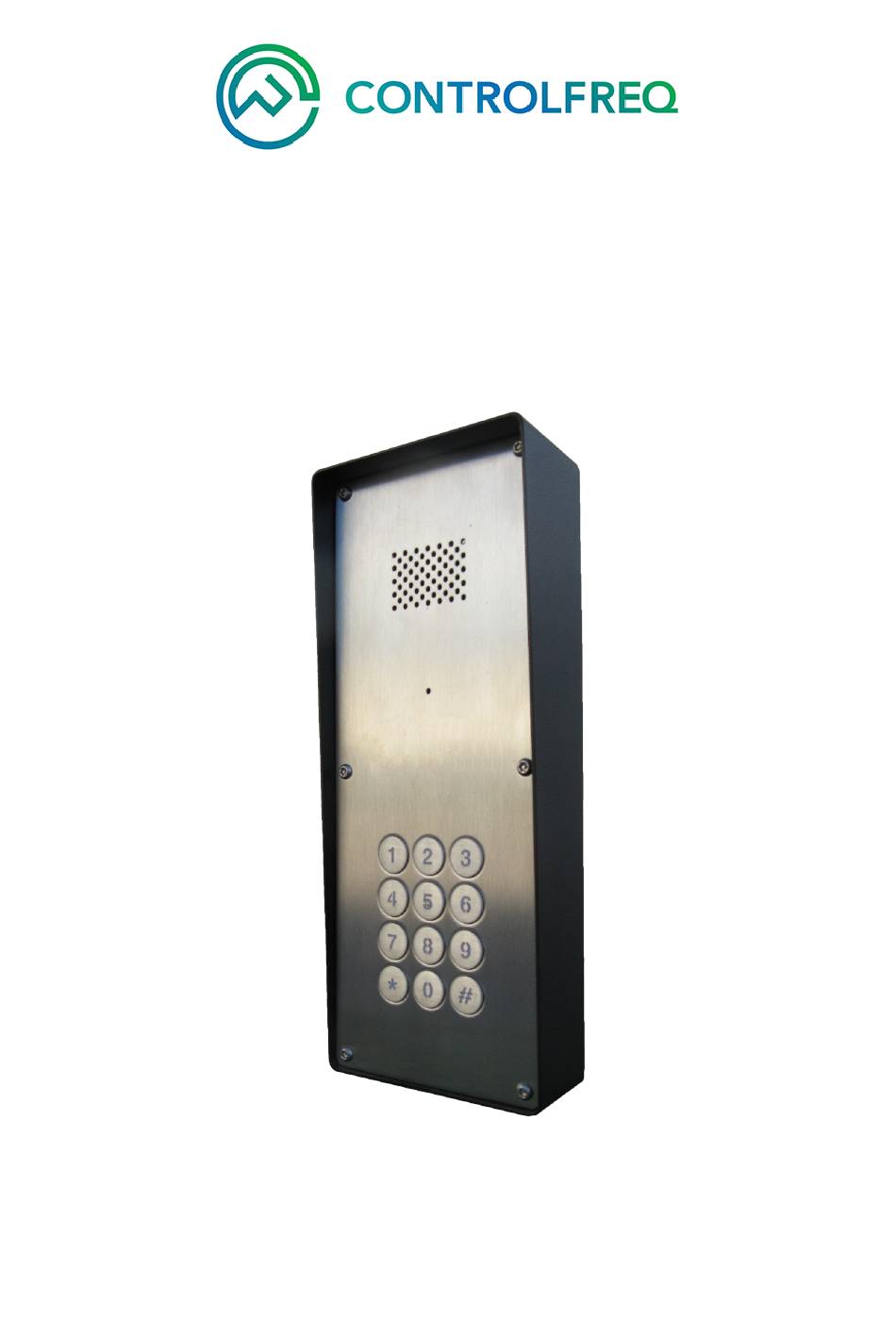

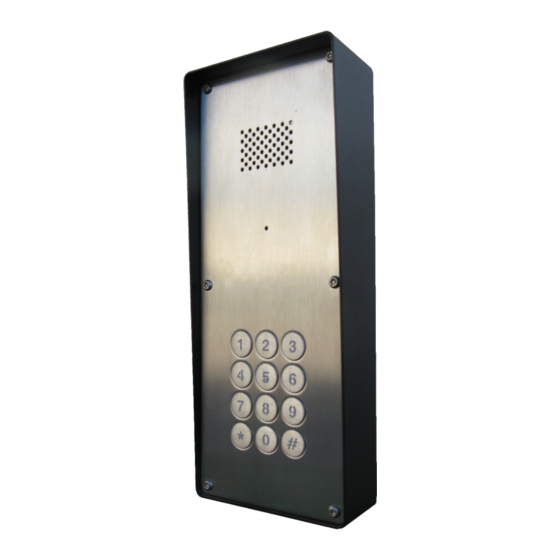

  • Page 1 K200-3G 3G GSM INTERCOM FOR UP TO 200 WAY COMPLETE MANUAL...

  • Page 2: Table Of Contents

    Contents TOC \t "Naslov 1, 1,Naslov 2, 2" 1. FOR YOUR SAFETY PAGEREF _TOC \H 5 2. INTRODUCTION PAGEREF _TOC1 \H 6 3. FEATURES AND APPLICATIONS PAGEREF _TOC2 \H 7 4. START UP PAGEREF _TOC3 \H 8 5. LED DISPLAY PAGEREF _TOC4 \H 9 6.
  • Page 3 1.18. RECEIVE PIN ACCESS CODES (PPIN) PAGEREF _TOC40 \H 39 1.19. RECEIVE SPIN ACCESS CODES PARAMETERS (PSPIN) PAGEREF _TOC41 \H 39 1.20. STATE OF THE CREDIT FOR THE PREPAID CARD PAGEREF _TOC42 \H 39 1.21. STATE OF THE OUTPUTS (PORC) PAGEREF _TOC43 \H 40 1.22.
  • Page 4 Figures Figure 1: K200 Connection Diagram……………….………………………………………………..… Figure 2: Input Connection diagram. Figure 3: Output Connection diagram Tables Table 1: IN, ID and DD parameters Table 2: IN, ID, DD parameters example Table 3: Remote alarm reporting parameters Table 4: Remote alarm reporting example Table 5: DTMF control example Table 6: Output management parameters Table 7: Output management parameters example...

  • Page 5: For Your Safety

    1. FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger.

  • Page 6: Introduction

    2. INTRODUCTION K200 is a simple GSM intercom communication system for multi apartments, that is designed to ensure low-cost, reliable and single box solution for intercom application. It is designed for unlimited range, wire free GSM intercom and CLIP support. In addition K200 supports alarm detection, stay-alive messages, credit warning (PAYG: supported on VF and O2 UK).

  • Page 7: Features And Applications

    3. FEATURES AND APPLICATIONS Features: ⇒ Built-in 4 band (2G) or 5 band (3G) GSM module ⇒ Keypad call support (up-to 200 apartments) ⇒ 1 direct call / trade button ⇒ Keypad Access entry support (by 4 digit PIN codes – up to 2000 codes are possible) ⇒...
  • Page 8 4. START UP USE A MICRO SIM CARD (the middle size) IMPORTANT ⇒ Insert SIM card to be used for K200 in your personal mobile phone. IMPORTANT ERASE THE PIN CODE! ⇒ Insert SIM card in K200 device. The unit must be switched OFF when you insert the SIM! ⇒...

  • Page 9: Led Display

    5. LED DISPLAY BLUE LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) RED LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order.

  • Page 10: Clear All Programmed Data From K200

    6. CLEAR ALL PROGRAMMED DATA FROM K200 This is highly recommended when a SIM card you are going to use for the K200 is not new and it already has some data stored in the phone book memory. By sending this SMS to K200 all programmed parameters and numbers are cleared: ;SDCLR;...

  • Page 11: Connecting Diagram

    7. CONNECTING DIAGRAM Before connection the K200 please take a look at connection diagram. Figure 1: K200 Connection diagram *Do not use the Power out (12V AUX) for electric lock driving! You can use it to power external sensors: Short-term current load (up to 1 minute) - up to 500mA; Long-term current load - up to 100mA! Use separate power source for door electric lock! Page PAGE 48...

  • Page 12: Programming K200

    8. PROGRAMMING K200 K200 device supports different types of programming: ⇒ You can program K200 remotely by sending text commands (SMS commands). ⇒ You can program K200 with Web server application. ⇒ You can program K200 with direct USB connection, with the use of configuration software running on PC.

  • Page 13: The K200 Parameters

    9. THE K200 PARAMETERS To support versatile functionality of K200 different parameters are used. The parameters are divided in logical sections and are described in the following chapters. 1.1. ALARM SUPPORT Alarm reporting is supported by group of different parameters. First section is used to define the relations needed for alarm to be trigged.

  • Page 14: Table 1: In, Id And Dd Parameters

    1.1.1.3. DD parameter This parameter is used to define the delay between the time that alarm input is trigged and the time that alarm is reported. 1.1.1.4. Table of parameters Name Comment Mode of operation for input 1 Mode of operation for input 2 Input time integration delay on input 1 Input time integration delay on input 2 Time delay for alarm reporting on input 1...
  • Page 15 1.1.2. REMOTE REPORTING ALARM EVENTS Parameters used to define the way to report the alarm event. NOTE K200 device send SMS messages for reporting alarm events. 1.1.1.1. TN parameter Telephone numbers for remote alarm reporting are listed as TN parameters. Remote alarm reporting on K200 is done via SMS messages.

  • Page 16: Table 3: Remote Alarm Reporting Parameters

    Table 3: Remote alarm reporting parameters Note: When telephone number (calling or messaging K200) is not on the CLIP list, not acknowledge event occurs (NAC). The telephone number responsible for this event can be send to TN user for notification. Example: ♦...

  • Page 17: Output Management

    Example: DTMF combination Description Deactivate ALL outputs Activate ALL outputs Activate output 1 Deactivate output 1 (if in latching mode) Activate output 1 Deactivate output 2 (if in latching mode) Table 5: DTMF control example 1.2. OUTPUT MANAGEMENT K200 supports the possibility to report alarms from inputs and any other events locally via 4 outputs.

  • Page 18: Table 6: Output Management Parameters

    ⇒ 1 – inverted 1.1.4. Table of parameters Name Comment Mode of operation for output 1 Mode of operation for output 2 Input 1 direct link to outputs Input 2 direct link to outputs NAC direct link to outputs Invert control for output 1 Invert control for output 2 1.1.0.

  • Page 19: Security Level - Sl

    ;OS1=1;OS2=14;OD1=1;OD2=2;OP1=1; 1.3. SECURITY LEVEL - SL SL parameter from 0 to 5 defines which telephone number stored in the phone book from TN1 – TN5 can enter into programming and remote control of the K200 (dialing the K200 phone number or sending the SMS). NOTE When the SL level is 0, an access to the K200 is possible from any phone! Before any SL number is programmed the K200 can accept ALL CALLS.

  • Page 20: Table 9: Sl Parameter Example

    Numbers stored under parameters TN1 to TN3 have access to unit Table 9: SL parameter example ♦ Remote programming by SMS ;SL=3; 1.4. PREPAID CARD CREDIT AND VALIDITY INFORMATION K200 can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, K200 offers the possibility of automatic checking mechanism for credit and time expiration.

  • Page 21: Table 10: Prepaid Card Validity Parameters

    ⇒ CC1 - This method can be used by any GSM provider that supports Unstructured Supplementary Service Data ⇒ CC2 - This method is dedicated to Italian TIM mobile provider ⇒ CC3 - This method is dedicated to Italian Vodafone mobile provider 1.1.1.3.

  • Page 22: Set-Up Parameters

    Vodafone Italy Low credit message will be send bellow 4 Table 11: Prepaid card validity parameters example ♦ Remote programming by SMS ;CC1=*448#;CC2=4916;CC3=404;LCV=4; 1.5. SET-UP PARAMETERS Different parameters are used to support versatile functionality of K200. 1.1.1. HTN parameter Hidden telephone number is a parameter used in order to conceal the telephone number of the K200 device.
  • Page 23 Italy is 22210. More information about national MCC/MNC codes can be acquired at: 1.1.6. MIC parameter MIC parameter enables you to change the sound level on microphone input. 1.1.7. SPK parameter SPK parameter enables you to change the speaker sound level. 1.1.8.

  • Page 24: Table 12: Set-Up Parameters

    Manual GSM provider selection Microphone volume control Speaker volume control ARST Time out control for automatic system restart Auto dial functionality ( Call TN1 ) Language selection Buzzer control Table 12: Set-up parameters. Example: ♦ Direct programming on the SIM card K200 PROGRAMMING TABLE Name Number...

  • Page 25: Table 14: Message Parameters

    1.6. SMS MESSAGES EDITOR You can write and send a short SMS message for each alarm input. The default message is English, but it is possible to change language with LNG parameter. Each message is built from 3 parts and user can write the first (User Location) and the second (alarm event) part of the message.

  • Page 26: Intercom

    #0House Location definition #1Kitchen Alarm input is from the kitchen Table 15: Message parameters example. ♦ Remote programming by SMS ;#0HOUSE=1;#1KITCHEN=1; 1.7. INTERCOM Intercom functionality is supported by a set of parameters, used to tweak the functionality to each user needs. For each keypad entry K200 incorporates a group of parameters.

  • Page 27: Table 16: Intercom Parameters

    KPA200 Call group 200, Telephone number 1. KPB200 Call group 200, Telephone number 2. KPN200 Call group 200, time out control for voice connection. KPT200 Call group 200, time out control for voice connection. KPO200 Call group 200, output 1 or output 2 ATN1 Call button 1st number called ATN2...

  • Page 28: Additional Call / Trade Button

    Table 17: Intercom parameters example. ♦ Remote programming by SMS ;KPA1=040713470;KPB1=+38643364850;KPT1=30;KPO1=1; ♦ Remote programming by SMS ;ATN1=040713470;ATN2=+38643364850;RTNA=25; All KPAx and KPBx numbers are at the same time used as intercom numbers and as CLIP numbers. NOTE Example: The users under parameters KPA1 and KPB1 can call K200 device and activate the output defined by the KPO1 parameter.

  • Page 29: Table 18: Trade Button Parameters

    Name Comment Trade / call button defined =1 (trade) =0 (direct call) TBZS Button enable interval start. TBZE Button enable interval end. Table 18: Trade button parameters. Example: ♦ Direct programming on the SIM card K200 PROGRAMMING TABLE Name Number Description Enable Trade button in input 1 TBZS...

  • Page 30: Table 20: Entering Pin Code Parameters

    1.1.2. Table of parameters Name Comment PIN1 Access entry code 1. PIN2 Access entry code 2. PIN3 Access entry code 3. PIN1998 Access entry code 1998. PIN1999 Access entry code 1999. PIN2000 Access entry code 2000. 1.1.0. 1.1.1. Table 20: Entering PIN code parameters. Example: ♦...

  • Page 31: Table 22: Entering Spin Access Code Parameters

    1.1.1. SPIN1 to SPIN100 SPINx parameters are the temporary SPIN access codes for controlling the relay output. SPINCx parameters are the determination, how many times SPINx code can be used. 1.1.2. Table of parameters Name Comment SPIN1 SPIN access code 1. SPIN2 SPIN access code 2.
  • Page 32 1.1.3. Using the keypad for activating the Output – opening the doors The user presses the 4 digit PIN access code and then presses the ’ ’ key on the keypad to confirm the entry. If the code is correct, the output relay is activated which triggers the electric lock, ramp, bollard, sliding doors, etc…...

  • Page 33: Table 24: Clip Parameters

    1.1.5. Table of parameters Name Comment CLPEN Enable CLIP functionality CLPOU Control output pin when CLIP event CLPI CLIP input activation condition CLP1 CLIP number 1 CLP100 CLIP number 100 1.1.0. 1.1.1. Table 24: CLIP parameters. Example: ♦ Direct programming on the SIM card K200 PROGRAMMING TABLE Name Number...

  • Page 34: Table 26: Log Parameters

    Up to 20.000 Log events can be stored. 1.1.1. LOGN parameter Parameter is used for defining the number of events printed out on PLOG request. 1.1.2. LOGI parameter Parameter is used to define the media used for LOGGING of events on K200. User can select between nonvolatile memory on K200 or select USB to transfer events directly via USB to PC.

  • Page 35: Table 28: Sms Commands

    1.13. SPECIAL SMS COMMANDS These commands can only be issued only over SMS message, and are used to control some special functions of K200 device. 1.1.1. ORC command Command is used to control outputs directly via SMS message 1.1.2. SDCLR command To clear all data on the device SDCLR command is used.

  • Page 36: Table 29: Sms Commands Example

    ;ORC1=1; Activate output 1 ;ORC2=0; Deactivate output 2 ;SDCLR; Clear all data on SIM ;LCLR; Delete log on K200 device ;MRES; Manual reset of GSM module ;SSRES; Manual reset of K200 device Table 29: SMS commands example. Page PAGE 48...
  • Page 37 10. PRINT-OUT OF THE PARAMETERS The authorised user can check the settings of ALL parameters on the K200. 1.1. RECEIVE ALL PARAMETERS (PALL) By sending this command to K200 you receive SMS messages with all parameters that are currently programmed in the unit: ;PALL;...
  • Page 38 1.10. RECEIVE ACCESS TELEPHONE NUMBERS (PSL) By sending this command to K200 you receive SMS message with programmed SL level: ;PSL; 1.11. RECEIVE OUTPUT PARAMETERS (POS) By sending this command to K200 you receive SMS message with all currently programmed Outputs parameters (OS1 – OS2): ;POS;...

  • Page 39: Receive Pin Access Codes (Ppin)

    User can use ;PKP=x,y; to limit the number of call groups to be printed. x = start group NOTE y = end group Example ;Pkp=1, 10; Prints first 10 call groups settings 1.17. RE CEIVE RADE BUTTON PARAMETERS By sending this command to K200 you receive SMS message with all currently programmed trade button settings: ;PTB;...

  • Page 40: State Of The Outputs (Porc) Pageref

    1.21. STATE OF THE OUTPUTS (PORC) By sending this command to K200 you receive SMS message with current outputs state. ;PORC; 1.22. MANUAL GSM MODULE RETARD (MRES) By sending this command to K200 shuts down GSM module and after a few second it switches the power of the GSM module ON again.

  • Page 41: Changing Parameters Using The Sms Commands

    11. CHANGING PARAMETERS USING THE SMS COMMANDS All programming parameters for K200 can also be sent by SMS command. Each SMS command should start and stop with semicolon. If the confirmation SMS is needed, put “+” at the beginning of the command SMS. The first SMS is SMS with telephone numbers (TN1 –...
  • Page 42 12. DE K200 FAULT SETTINGS ON K200 PROGRAMMING TABLE Name Default Value Short Description Empty Telephone number 1 Empty Telephone number 1 Empty Telephone number 2 Empty Telephone number 3 Empty Telephone number 4 Input 1 control Input 2 control Output 1 mode Output 2 mode Input 1 direct output link...
  • Page 43 Hidden telephone number Auto answer ring number SIM card time validity Periodic test SMS timeout Network connection type Microphone volume setting ( 0 - 40 ) Mute functionality Speaker volume setting ( 0 - 20 ) Low credit value Language selection Connection time out value LOGN Number of log events for printing out...
  • Page 44 KPA200 Empty Call group 200, Telephone number 1. KPB200 Empty Call group 200, Telephone number 2. KPN200 Call group 200, keypad dial number . KPT200 Call group 200, time out control for voice connection. KPO200 Call group 200, output . Call button enabled NOTE: =1 is Trade button enabled ATN1...

  • Page 45: Parameters Print-Out Commands

    13. PARAMETERS PRINT-OUT COMMANDS K200 PROGRAMMING TABLE Name Short Description PALL Prints all parameters available on K200. Prints SW version of K200. PDEA Prints call button ATN numbers. Prints GSM network signal quality of K200. Prints TNx numbers. Prints LNx links. Prints INx parameters.
  • Page 46 Table 31: K200 parameters print out commands. Description Value 12,0 – 20,0 V AC or Power Supply 12,0 – 24,0 V DC (1,0 – 2,0A) Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 80mA Quad band GSM module 850/900/1800/1900 MHz...
  • Page 47 14. TECHNICAL SPECIFICATIONS Description Value 12,0 – 20,0 V AC or Power Supply 12,0 – 24,0 V DC (1,0 – 2,0A) Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 40mA Quad band GSM module 850/900/1800/1900 MHz PCB dimensions 106 ×...
  • Page 48 15. CONTACTS Control Freq Ltd Leftfield 4 Longley Industrial Estate Brighton, BN1 4GY East Sussex United Kingdom PHONE +44(0)1273 257060 SUPPORT help.controlfreq.uk Page PAGE 48...
