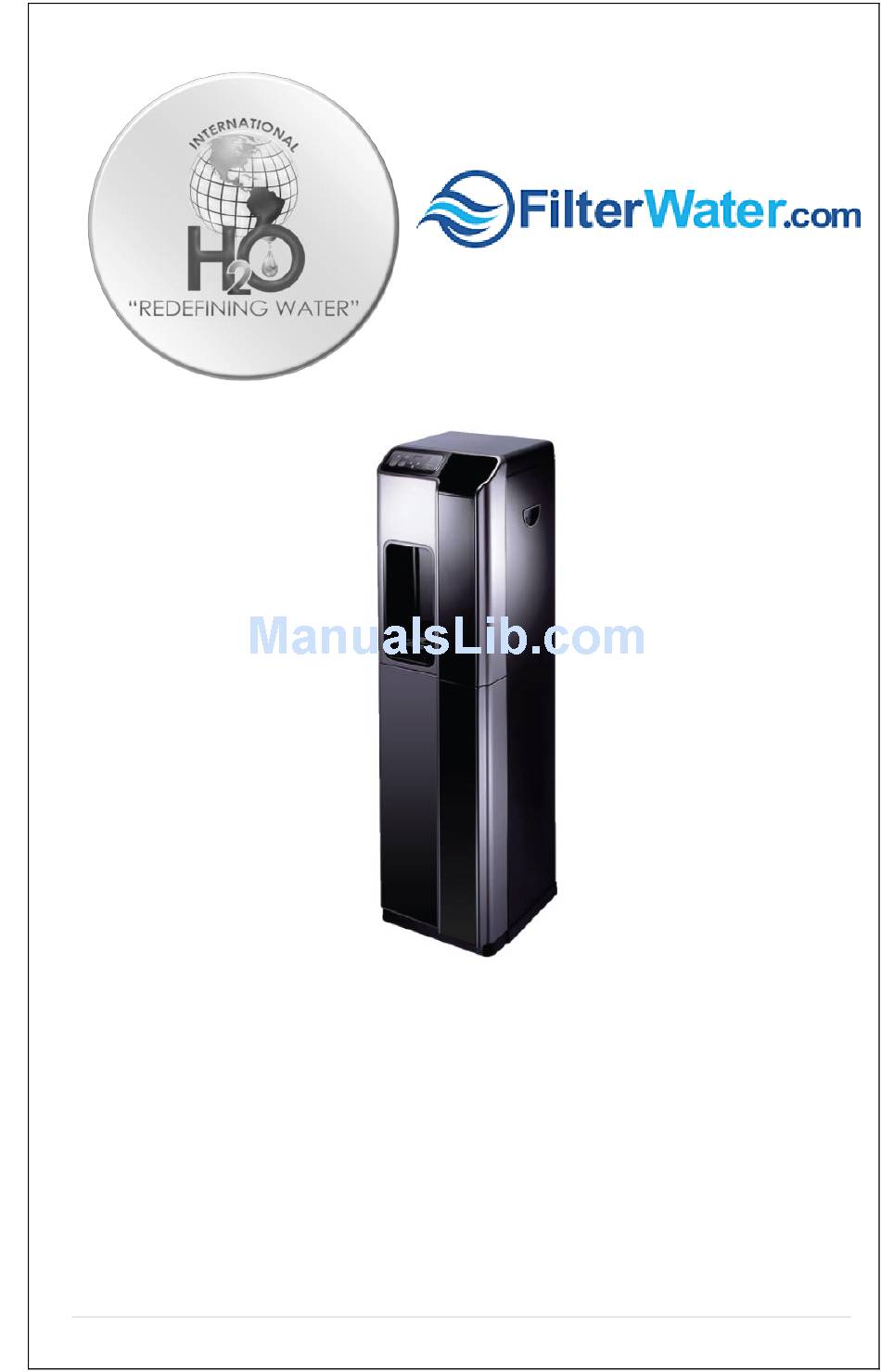

- Page 1 Model H2O 1000 Operation Manual - 1 - | P a g e...
-
Page 2: Table Of Contents
Table of Contents Introduction…….…………………………………………………………………………………3 Receiving………….…………………………………………………………………………….…..4 Description Model H2O 1000……………………………………………………………...5/6 Water Production Flow Chart….…………………………………………………………..7 Positioning the Cooler………………….……………………………………………………..8 Water Cooler Connections…………….…………………………………………………….9 Feed Water Connection……………….…………………………………………………..10 Drain Connection……………………….………………………………………………….….11 EZ Connections………………………….……………………………………………………...12 Start Up Flush……………………………………………………………………………..….13 Tank Flush…………………………………………………………………………………..14 Cleaning and Maintenance…………….…………………………………………………. 15 Filter Replacement………………………….………………………………………………...16 Reverse Osmosis Membrane Replacement.……………………………………….. 17 Troubleshooting……………………………………….……………………………………..18 Specifications………………………………………….………………………………………..19 Warranty……………………………………………………….……………………………..…..19... -
Page 3: Introduction
Introduction Congratulations on your purchase of our revolutionary Bottle-less Water Cooler! Our coolers are all designed to replace the conventional 5-gallon water bottles while eliminating the hassles of deliveries, lifting bottles, and by eliminating plastic bottles from landfills. Our coolers are designed to produce pure, great tasting water for the whole family that is clean and safe to drink. -
Page 4: Receiving
Receiving the Cooler Unpacking International H2O Inc. products are shipped completely assembled and ready to operate. Remove the top of the box and slide the water cooler out and save the box and packing materials. Inspection Inspect the cooler for shipping damage. Look at the exterior panels to see if they have been dented or damaged. - Page 5 Description Model H2O-1000 - 5 - | P a g e...
-
Page 6: Figure 2. Assembly Drawing, Model H2O
Figure 2. Assembly Drawing Model H2O-1000 Figure 3. Water Flow Chart - 6 - | P a g e... -
Page 7: Positioning The Cooler
Positioning the Cooler 1) It is not recommended to install this cooler in an area were water may cause severe or costly damage. 2) Do not position the cooler where it can be hit or bumped by vacuum cleaners or floor waxing machines. This can cause breaks in the waterline, connection fittings, and compressor tubing. -
Page 8: Water Cooler Connections
Water Cooler Connections When you receive the water cooler, the water connections on the back of the cooler have tube plugs in them. These tube sections must be removed before making all your connections. To remove the tube sections see Figure 7, “Disconnect”. The one-quarter inch plastic tubing should be used for making the Feed Water and Drain connections. -
Page 9: Feed Water Connection
Feed Water Connections To connect the feed water, use the supplied self-piercing saddle valve to connect to the cold water supply line under the sink. Attach the 1/4-inch tubing to the compression fitting on the side of the valve. Clamp the saddle valve over copper or plastic feed line (cold water only). -
Page 10: Drain Connection
Drain Connection The drain connection applies to models with Reverse Osmosis, “RO.” The black drain line in the back (Figure 4) must be hooked to the drain line ahead of the normal sink water trap. See Figure 5 below. Place the two-part drain saddle on the drain pipe before the drain trap. -
Page 11: Ez Connections
EZ Connections The standard tubing connections on the water coolers are EZ connect fittings. Use tubing and follow the instructions below in Figure 7 to make the connections. If you cut the tubing, make sure it is a square cut, fits squarely in the fitting, and seals properly. Cut the tube square. -
Page 12: Start Up Flush
Start-Up Flush Open lower front door to access filter assembly. Then, turn the water on at the at the water connection. This brings water to the ball valve. Disconnect the tube from the second stage carbon filter (red circle in figure bellow), and place a cup or pan right underneath the hole to catch water. -
Page 13: Tank Flush
Tank Flush Flush tanks flush by draining all water through the drain plug located on the back of the cooler. The tanks drain water through the dispensing spigots. Fill and empty the tanks three times with the filtered water. This ensures great tasting water. When the tank has filled again with filtered water, the cooler is ready to dispense water. -
Page 14: Cleaning And Maintenance
H2O-1000 Cleaning and Maintenance Sanitize Fill the main water tank with water. Add one to two teaspoons of liquid chlorine bleach. Let stand for five to 10 minutes. Drain the water, then let water from filters refill tank and drain a second time. Remember to drain from dispensing spigots also. -
Page 15: Filter Replacement
Note: Upon completion of cleaning, wait at least 10 minutes after the power cord is plugged in before turning on the Hot and Cold Water buttons. Filter Replacement The filter elements must be replaced at regular intervals to maintain the quality of the water. The H2O-750F and H2O-1000F have three stages of mechanical filtration. -
Page 16: Reverse Osmosis Membrane Replacement
Reverse Osmosis Membrane Replacement (every three years) RO versions (RO) a) Use the same procedure as above sec a-c. b) Remove the RO stage from the clips. Disconnect the white tubing from the RO housing cap. c) Remove the cap from the housing by unscrewing it. d) Using a pair of pliers, remove the RO element from the housing by grasping the tube end and pulling it out. - Page 17 - 17 - | P a g e...
-
Page 18: Troubleshooting
PROBLEM CAUSE SOLUTION No Power No electric current Make sure the cooler is flowing. plugged in and check for improper connections. Cold Water not cold The cooler is placed too Provide a minimum of enough close to the wall. a five inch space between wall and back Wire Condenser on of dispenser. -
Page 19: Specifications
Specifications Model No. H2O-750 H2O-1000 Voltage/Frequency AC110V AC110V Dimensions (L)13 x (W)15 x (H)42 (L)15 x (W)13 x (H)42 Weight (empty) 58 lb. 58 lb. Hot Water Tank Capacity .5 gal. .5 gal. Cold Water tank Capacity 1 gal. 1 gal. Power Consumption Hot Water: 500W Hot Water: 500W Cold Water: 100W Cold Water: 100W... - Page 20 www.Internationalh2o.ca Tel. (888) 982-8311 Fax (888) 982-8382 E-mail Info@internationalh2o.ca Your Trusted Vendor: www.FilterWater.com Tel. (800) 439-0263 Fax (215) 354-0304 E-mail Sales@FilterWater.com - 20 - | P a g e...
- Page 21 21 | P a g e...
