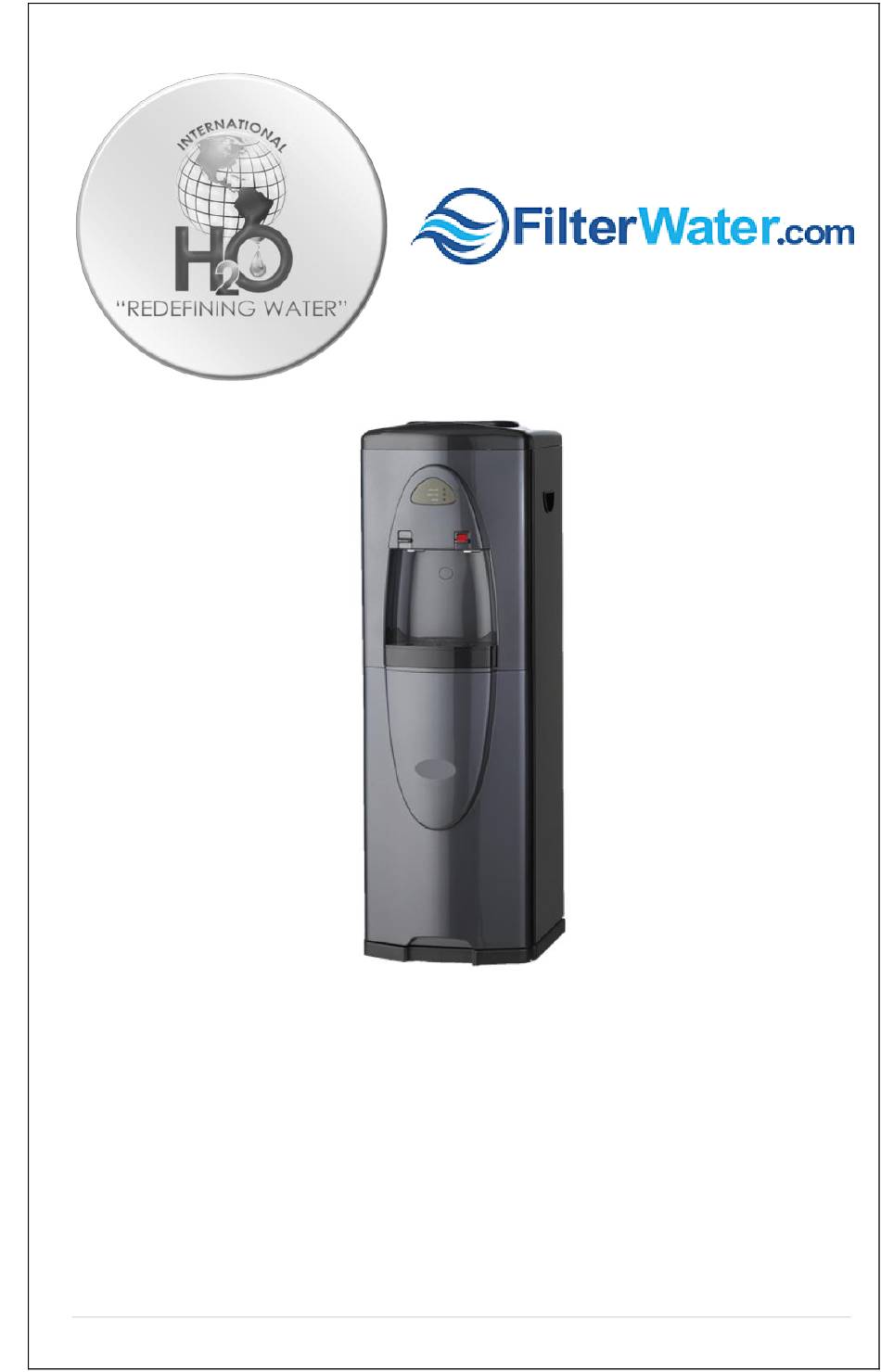

- Page 1 Model H2O-750 / FW-750 Operation Manual - 1 - | P a g e...
-
Page 2: Table Of Contents
Table of Contents Introduction…….…………………………………………………………………………………3 Receiving………….…………………………………………………………………………….…..4 Description Model H2O 750……………………………………………………………...5/6 Water Production Flow Chart….…………………………………………………………..7 Positioning the Cooler………………….……………………………………………………..8 Water Cooler Connections…………….…………………………………………………….9 Feed Water Connection……………….…………………………………………………..10 Drain Connection……………………….………………………………………………….….11 EZ Connections………………………….……………………………………………………...12 Start Up Flush……………………………………………………………………………..….13 Tank Flush…………………………………………………………………………………..14 Cleaning and Maintenance…………….…………………………………………………. 15 Filter Replacement………………………….………………………………………………...16 Reverse Osmosis Membrane Replacement.……………………………………….. 17 Troubleshooting……………………………………….……………………………………..18 Specifications………………………………………….………………………………………..19 Warranty……………………………………………………….……………………………..…..19... -
Page 3: Receiving
We manufacture a wide range of models to fit any home or office application. H2O-750 Model This model has two temperature faucets. The cold water is chilled around 44ºF and the hot water is heated at 180ºF. -
Page 4: Description Model H2O 750

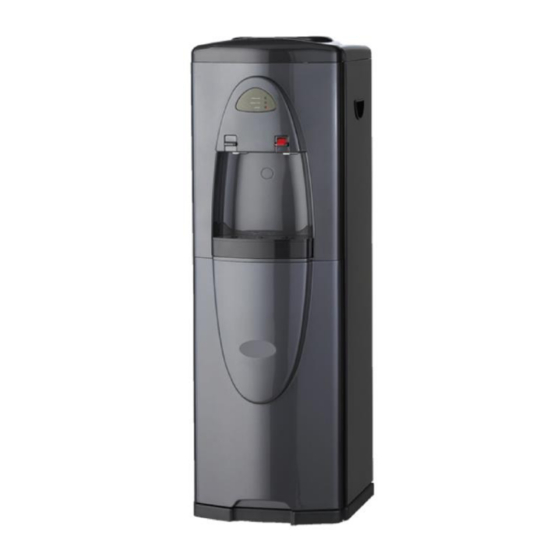

The Model H2O-750 provides water at two temperatures. The water is dispensed from two spigots—one “hot” and one “cold.” The assembly drawing is shown in Figure 1 for the H2O-750 and Figure 2 for the H2O-1000. Water flows from the filter system into the top tank, also known as the cold water tank. -
Page 5: Water Production Flow Chart
Figure 1. Assembly Drawing Model H2O-750 Water Production Flow Chart Model H2O-750 - 5 - | P a g e... - Page 6 & H2O-1000 Figure 3. Water Flow Chart - 6 - | P a g e...
-
Page 7: Positioning The Cooler
Positioning the Cooler 1) It is not recommended to install this cooler in an area were water may cause severe or costly damage. 2) Do not position the cooler where it can be hit or bumped by vacuum cleaners or floor waxing machines. This can cause breaks in the waterline, connection fittings, and compressor tubing. -
Page 8: Feed Water Connection
When you receive the water cooler, the water connections on the back of the cooler have tube plugs in them. These tube sections must be removed before making all your connections. To remove the tube sections see Figure 7, “Disconnect”. The one-quarter inch plastic tubing should be used for making the Feed Water and Drain connections. -
Page 9: Drain Connection
To connect the feed water, use the supplied self-piercing saddle valve to connect to the cold water supply line under the sink. Attach the 1/4-inch tubing to the compression fitting on the side of the valve. Clamp the saddle valve over copper or plastic feed line (cold water only). -
Page 10: Ez Connections
The drain connection applies to models with Reverse Osmosis, “RO.” The black drain line in the back (Figure 4) must be hooked to the drain line ahead of the normal sink water trap. See Figure 5 below. Place the two-part drain saddle on the drain pipe before the drain trap. -
Page 11: Start Up Flush
The standard tubing connections on the water coolers are EZ connect fittings. Use tubing and follow the instructions below in Figure 7 to make the connections. If you cut the tubing, make sure it is a square cut, fits squarely in the fitting, and seals properly. Cut the tube square. -
Page 12: Tank Flush
Open lower front door to access filter assembly. Then, turn the water on at the at the water connection. This brings water to the ball valve. Disconnect the tube from the second stage carbon filter (red circle in figure bellow), and place a cup or pan right underneath the hole to catch water. Open ball valve inside the cooler 1/4-turn. -
Page 13: Cleaning And Maintenance
Observe the water level when full, and see that the water input to the tank stops when it is full. Figure. 7 Back view of the Cooler Water Connections Model H2O-750 & H2O-1000 Cleaning and Maintenance - 13 - |... - Page 14 Sanitize Fill the main water tank with water. Add one to two teaspoons of liquid chlorine bleach. Let stand for five to 10 minutes. Drain the water, then let water from filters refill tank and drain a second time. Remember to drain from dispensing spigots also. Note: Upon completion of cleaning, wait at least 10 minutes after the power cord is plugged in before turning on the Hot and Cold Water buttons.
-
Page 15: Filter Replacement
Reverse Osmosis membrane filter. The three pre-filters must be replaced every six months. The Reverse Osmosis membrane must be replaced every three years. Replacement Procedures, Filtration Versions (F) H2O-750 and H2O-1000 Coolers a) TURN OFF POWER TO HOT/COLD ELEMENTS. -
Page 16: Reverse Osmosis Membrane Replacement
Reverse Osmosis Membrane Replacement (every three years) RO versions (RO) a) Use the same procedure as above sec a-c. b) Remove the RO stage from the clips. Disconnect the white tubing from the RO housing cap. c) Remove the cap from the housing by unscrewing it. d) Using a pair of pliers, remove the RO element from the housing by grasping the tube end and pulling it out. -
Page 17: Troubleshooting
PROBLEM CAUSE SOLUTION No Power No electric current Make sure the cooler is flowing. plugged in and check for improper connections. Cold Water not cold The cooler is placed too Provide a minimum of enough close to the wall. a five inch space between wall and back Wire Condenser on of dispenser. -
Page 18: Specifications
Specifications Model No. H2O-750 H2O-1000 Voltage/Frequency AC110V AC110V Dimensions (L)13 x (W)15 x (H)42 (L)15 x (W)13 x (H)42 Weight (empty) 58 lb. 58 lb. Hot Water Tank Capacity .5 gal. .5 gal. Cold Water tank Capacity 1 gal. 1 gal. - Page 19 Your Trusted Vendor: http://www.FilterWater.com Tel. (800) 439-0263 Fax (215) 354-0304 E-mail Sales@FilterWater.com Mailing Address: FilterWater.com P.O. Box 968 Southampton, PA 18966 - 19 - | P a g e...
