Allied Telesis PR-400 MI Setup Manual

PR-400 MI Set-Up Guide

*Note The modem can also function as a wireless Router

Table of Contents

Need help?

Do you have a question about the PR-400 MI and is the answer not in the manual?

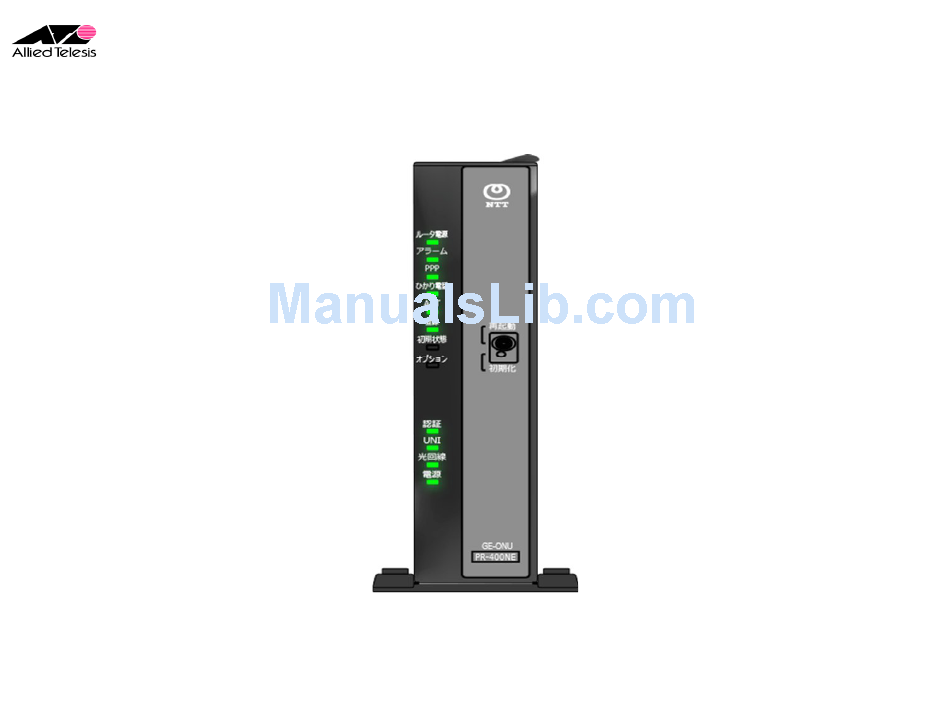

Page 1 PR-400 MI Set-Up Guide *Note The modem can also function as a wireless Router...
Page 2 Overview of Modem Lights...
Page 3 Plug-in your PC Step 1: Plug-in the Ethernet cable (RJ-45)from your PC or MAC into the LAN 1 port on the NTT Router Step 2: Verify that the Step 2: Verify that the connection on both ends are connected Step 3: Make sure that you have the OCN username and password that was sent to you via e-mail.
Page 4 Launch your Browser Step 1: Type “http://192.168.1.1” in your web browser Step 2: Press Enter or click here with your mouse mouse Note: These steps will allow access into the NTT Router...
Page 5 Enter login for router access You will be prompted twice for a user name Type in user for the login and user (lower case) and password. for the password both times. (lower case)
Page 6 Configure PPPoE on the NTT Router Step 1: Make sure that you have the user name and password that was sent to you available via email Step 2: In the top portion ISP1 will be located in the first block Step 3: Type in your PPPoE UserName (i.e., xxxxxxxx@ocn.ne.jp)
Page 7 Wireless Set-up for PR-400MI NTT Router Step 1: Unplug the Ethernet cable from the modem Step 2: Search for the wireless networks and look for the SSID-1 of the NTT Router (i.e. pr400mi-308c7f-1) Step 3: Locate the label on the back of the NTT Router that has the MAC Address and SSID the MAC Address and SSID Step 4:...
