Allied Telesis VisionNet Quick Install Manual

Basic Installation

Customers using a single jack for phone and internet:

1. Connect the DSL splitter to the wall phone outlet.

2. Connect phone cable from the phone port of the splitter and then to your phone.

Connect a phone cable to the DSL port of the splitter and then to the DSL port on the

back of your modem.

Customers using a multiport jack or using a single jack solely for internet:

1. Connect a phone cable to the DSL port of wall phone outlet and then to the DSL port

on the back of your modem.

All Customers:

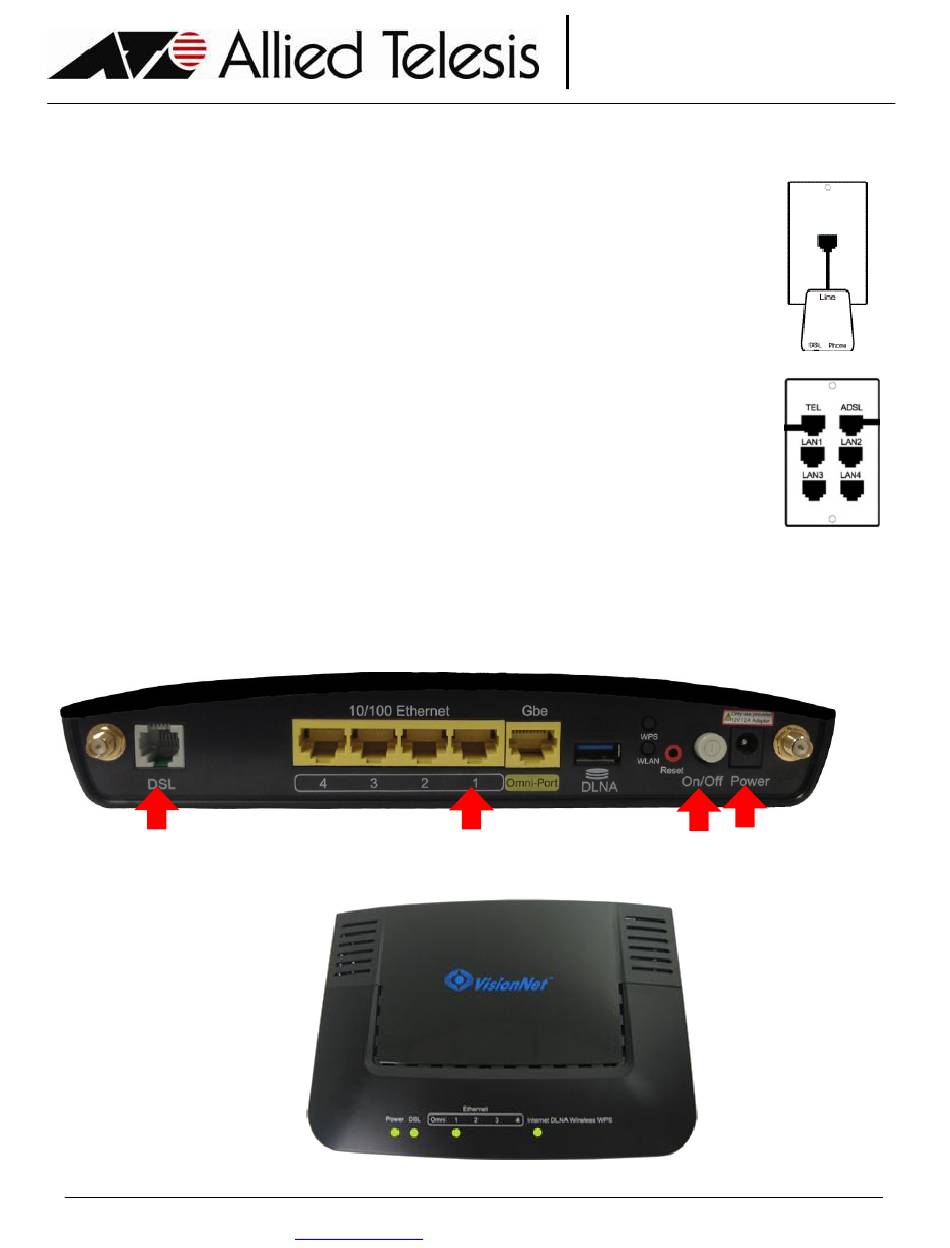

1. Connect one end of the data/Ethernet cable to the LAN 1 port on the back of your modem and

connect the other end to your computer or wireless router.

2. Connect power cable into the modem and plug into a power outlet. Make sure that the On/Off

button is depressed.

3. Verify the LED light activity on the front of your modem:

Allied Telesis Capital Corp. |

www.atcc-gns.com

VisionNet Modem

Quick Install Guide

Table of Contents

Do you have a question about the VisionNet and is the answer not in the manual?

Page 1 2. Connect power cable into the modem and plug into a power outlet. Make sure that the On/Off button is depressed. 3. Verify the LED light activity on the front of your modem: Allied Telesis Capital Corp. | www.atcc-gns.com...
Page 2 Changing your Wireless SSID 1. On the left-hand side of your screen, select the Wireless tab and then the SSID tab. 2. Enter the name you want for your wireless network in the SSID. 3. Click Apply/Save Allied Telesis Capital Corp. | www.atcc-gns.com...
Page 3 4. Within the Wireless tab, select Global Settings 5. In the channel drop-down option, select your desired channel. Note: try to avoid channels 6 & 11 as they are the most commonly used. 6. Click Apply/Save Allied Telesis Capital Corp. | www.atcc-gns.com...
Page 4 3. In the Select a Service menu, choose the service you would like to port forward to from the drop down menu. 4. Click Apply/Save Note: For Port Forwarding to work properly, the modem and your device may need to be power-cycled/restarted. Allied Telesis Capital Corp. | www.atcc-gns.com...
