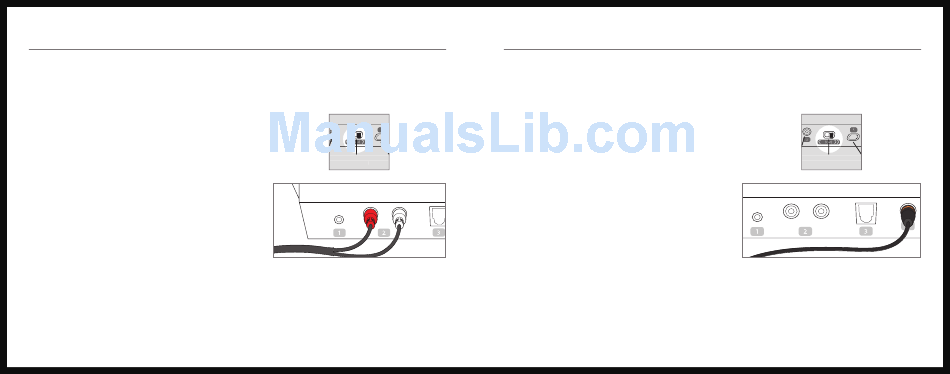

Connecting SurfLink Media and Media Source
RCA Cable Installation (most common connection option)
1. C onnect the red and white RCA cable plugs into the corresponding
red and white RCA jacks (labeled 2) on SurfLink Media.
2. S elect the signal type as Monaural or Binaural audio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. C onnect the opposite end of the red and
white RCA cable jacks into the corresponding
red and white RCA "AUDIO OUT" jacks on
the media source.
4. Place SurfLink Media in a desired location
that is in close proximity to the media source.
Once SurfLink Media has been turned on it will begin to stream the audio signal.
4
Volume Control Streaming Activation Power
Control
Optical Optical S/PDIF S/PDIF Monaural/Binaural Power Monaural/Binaural Power
Microphone RCA Jacks
TOSLINK SLINK Selection Selection
Connecting SurfLink Media and Media Source
S/PDIF Installation
1. C onnect the orange S/PDIF cable into the orange S/PDIF "AUDIO OUT" port (labeled 4)
on the media source.
2. S elect the signal type as Monaural or Binaural audio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. C onnect the opposite end of the orange
S/PDIF cable into the orange S/PDIF port
on the back of SurfLink Media.
4. Place SurfLink Media in a desired location
that is in close proximity to the media
source.
Once SurfLink Media has been turned on it will begin to stream the audio signal.
