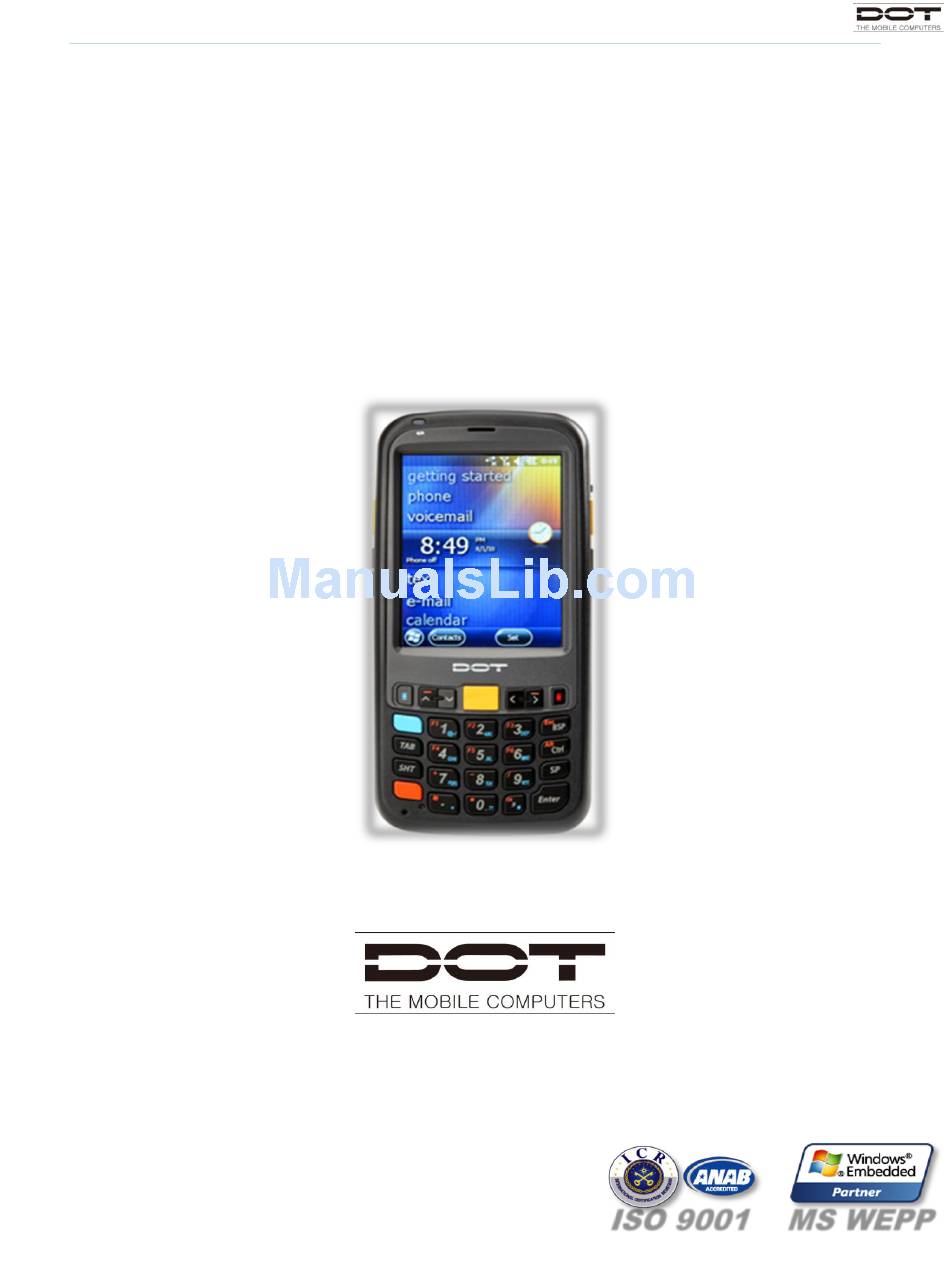

  • Page 1 DOTH-300 USER MANUAL ISO 9001 MS WEPP...

  • Page 2: Before Starting

    시작하기 전에... Before Starting… 1. This user manual can be changed without notice in accordance with improvement of the product or change in the functions. 2. This user manual has been prepared based on information available at present and may have technical or editorial errors or omissions. 3.
  • Page 3 DOTel Co., Ltd. Does not provide any warranty for all the software units loaded after PDAs are shipped out of the factory. 6. DOT is a trademark of DOTel Co., Ltd. protected by law. 7. The logos and product names, Microsoft, Windows and Internet Explorer, are trademarks of Microsoft and MS Windows CE software loaded in this product is a product officially licensed by Microsoft.
  • Page 4 1. Important Notices… Do not use the product while driving. Be sure to observe traffic related laws as, otherwise, it may cause a car accident. Be sure to carefully read this user manual as not observing the cautions may cause injury of the user or other persons, or physical losses.
  • Page 5 1. Important Notices… Do not handle the product with wet hands as it may cause malfunction of the product and, especially, if the AC adapter is handled with wet hands, there is a risk of electric shock. Use the LCD screen with a stylus pen provided by the manufacturer or a tool not pointed.
  • Page 6 1. Import Notices… Be careful when using the battery. If batteries not provided by the manufacturer are used, there is a risk of product failure or explosion. Also, keep the battery away to prevent children or pets from biting or sucking the battery. Be careful to prevent metal objects from contacting the charging terminals of the battery as it may cause fire.

  • Page 7: Before Using

    2. Before Using 2.1 Package Components ………………………………………………………………… Basic Components Tow Standard Battery Adapter Manual Body Earphone USB cable Snap-on Cradle Additional Components Cigar Jack Extended Battery Vehicle Mount Leather Case The specification and components of this product may change according to the situation of the manufacturer.

  • Page 8: Product Description

    2. Before Using… 2.2 Product Description ………………………………………………………………. Name of Each Part Name Description ① LCD Touch screen on which information is displayed ② Receiver Part used as receiver where sound is output during telephone conversation ③ Button Buttons used to enter phone numbers, or start or terminate the call ④...
  • Page 9 2. Before Using… 2.2 Product Description ………………………………………………………………. Explanation about Button Function Button Function These are used basically to enter numbers and can also be used to enter letters. The button is used to convert the function of key to English letter or symbol key. This button is used to delete one letter when entering letters.
  • Page 10 2. Before Using… 2.2 Product Description ………………………………………………………………. To Connect Power and Charge Connect the charging gender into the gender insertion hole at the bottom of the terminal. Connect the adaptor to the power connector at the right side of the gender. During charging, the LED at the right top of the product lights in red color and, when charging is completed, it changes to green...
  • Page 11 2. Before Using… 2.3 To connect with a PC ………………………………………………………………. To install Active Sync In order to connect (synchronize) PDA with a PC, Microsoft program called ActiveSync is required. For installation, execute ‘Install Program’ and press ‘Next’. At this time the PDA and PC should not be connected.
  • Page 12 2. Before Using… 2.3 To connect with a PC ………………………………………………………………. To install Active Sync We are fully prepared for installation of ActiveSync. Execute installation by pressing ‘install’. Installation of ActiveSync will be performed. It may take several minutes depending on the environment of the user PC.
  • Page 13 2. Before Using… 2.3 To connect with a PC ………………………………………………………………. To install Active Sync ‘Found New hardware’ starts after connecting. Driver will be executed automatically in PC . Installation of ActiveSync has been completed and synchronization will start. Install Active Sync and driver as above when OS of the PC you used is Windows 2000, Windows XP.

  • Page 14: User Interface

    3. User Interface 3.1 About the Home Screen ………………………………………………………………. Setting Locking Function The screen will be shown like the right picture after touching Device Unlocked on standby screen. Closing the function can be closed by touch sliding. The PIN number box is displayed after touch sliding if the PIN number is set.

  • Page 15: Wireless Manager

    3. User Interface 3.1 About the Home Screen ………………………………………………………………. Wireless Manager Wireless Manager can manage Bluetooth, Phone and Wi-Fi on/off. Efficient battery management is possible by ending unused functions Clock & Alarms Set date, time and alarm. The time is automatically set depending on the region setting and also can be controlled arbitrarily.
  • Page 16 3. User Interface 3.1 About the Home Screen ………………………………………………………………. Messaging Unread text message and Email can be checked. E-mail is needed to Setup processing that makes email interwork with user’s account. It needs an account address and a password. The explanation of the function of text message is on the next page.

  • Page 17: Searching The Internet

    3. User Interface 3.1 About the Home Screen ………………………………………………………………. Calendar It supports the function to manage appointments, anniversaries and schedule according to date. Alarm setting and writing the relative information are available Searching the Internet Input a word that you want to search for. Start searching the Internet.
  • Page 18 3. User Interface 3.1 About the Home Screen ………………………………………………………………. Getting Started ‘Getting Started’ Quick menu will be shown to set up several basic functions. You can make a decision whether Getting Stared is shown or not on Hone Screen through Add/remove Getting Started menu.
  • Page 19 3. User Interface 3.2 Title Bar Status Icons ………………………………………………………………. Icons The network, phone, volume, battery and time of current device is shown as icons on the status bar. The following is explaining the meaning of each icon. Title Bar Status Icon Descriptions Icons Explanation You have a new notification.
  • Page 20 3. User Interface 3.2 Title Bar Status Icons ………………………………………………………………. Icons Icons Explantion A bluetooth headset is detected. An ActiveSync connection has been established. There was a problem with the ActiveSync synchronization. An ActiveSync synchronization is in progress over USB. A UMTS network is available. Connecting to a UMTS network.
  • Page 21 3. User Interface 3.2 Title Bar Status Icons ………………………………………………………………. Icons Icons Explanation Bluetooth is on. Wi-Fi is on but not connected, and no networks are detected. Wi-Fi is not connected to a network, and other networks are detected. Other wireless networks are detected. Connected to a wireless network.
  • Page 22 3. User Interface 3.2 Title Bar Status Icons ………………………………………………………………. Icons Icons Explanation A voice call in on hold. There is no SIM card present in the computer. The volume is off and the phone is set to vibrate. The volume is on. The volume is off.

  • Page 23: Using The Phone

    4. Using the Phone 4.1 To use the phone function ………………………………………………………………. Start the phone function When you turn on the PDA, the standby screen is shown like the right picture. After that, you can use the phone function by touching Phone on the left bottom.
  • Page 24 4. Using the Phone 4.1 To use the phone function ………………………………………………………………. Designate abbreviated number You can designate abbreviated numbers using Speed Dial key on Phone Screen. It is progressing in the way of adding already saved number by Speed Dial. Call using abbreviated number You can make a call using the abbreviated number saved with a phone number.
  • Page 25 4. Using the Phone 4.2 To use the text message function ………………………………………………………………. Text message Text message function can be used by touching Text icon. Received messages can be checked and saved in, replies can be sent and the phone numbers can be saved in the directory.
  • Page 26 4. Using the Phone 4.2 To use the text message function ………………………………………………………………. Text message When you press the sky blue button It is the screen when you once in the Text Messages, you can press the sky blue key see the sky blue circle in the center of twice.

  • Page 27: Windows Media

    5. Others 5.1 Applications ………………………………………………………………. Windows Media Window Media supports the function that runs music and video files. File Explorer File manager supports Cut, Copy and Rename etc., like the functions of PC by File Explorer. It also provides Interface similar PC and is available to approach all files and folders inside and outside memory.
  • Page 28 5. Others 5.1 Applications ………………………………………………………………. Camera You can take a picture, shoot a file clip and edit a photo by Pictures & Video. Press ‘the image of Camera’ first and then press ‘Enter’ on the hard key pad. Task Manager Task Manager shows current running APP.

  • Page 29: Data Communication

    5. Others 5.1 Applications ………………………………………………………………. DATA Communication Click WI-FI icon on the bottom right-corner of the screen and touch ‘WLAN Insert’ like the left picture. Then, PHONE supports phone function and 3G DATA, WI-FI supports the function of on/off WI-FI. Internet Explorer You can use Internet through Internet Explorer after connecting WLAN and can see various internet...
  • Page 30 5. Others 5.1 Applications ………………………………………………………………. Bluetooth Activate Bluetooth. ‘setting’ -> ‘Bluetooth’ You can search peripheral Bluetooth devices like the left screen Touch ‘Add new device’ and search them. After searching a device, connect the device you are going to use.

  • Page 31: Problem Solving

    6. Others 6.1 Problem solving ………………………………………………………………… Problem solving Check followings first when a problem occurs while using the product. If the problem is still not solved, contact the customer center with the phone number below. A/S consultation phone no.: 02-850-3247 Solution Problem 1.
  • Page 32 6. Others 6.1 Problem solving ………………………………………………………………… Solution Problem 1. This product is designed to properly radiate the heat generated inside the product through the case. 2. If the product is used for a long The product seems to be hot. period of time or the adapter is connected for long, you may feel warmth from the case.
  • Page 33 6. Others 6.2 Guidance on customer support and after service ………………………………………………………………… 1. Guidance on after service center 1) Telephone number A/S consultation telephone : 02-850-3245 2) Consultation time Mon. through Fri. : 9:00~18:00 (Not available during lunch time,12:00~13:00, Saturdays, Sundays and holidays) 3) Web site Use the customer center after accessing the site at www.dotel.co.kr.
  • Page 34 6. Others 6.2 Guidance on customer support and after service ………………………………………………………………… 3) Warranty period -Main body: 1 year -Accessories (consumables): 6 months (battery and items excluding the main body) -Mandatory period to keep spare parts in stock: 3 years from the date of releasing the relevant model 4) Content of warranty When a problem occurs during normal use within the warranty period, the after...

  • Page 35: Product Warranty

    6. Others 6.3 Product Warranty …………………………………………………………………. Product Warranty Classification Content Model name DOTH-300 Date of purchase Purchased from Manufacturing no. One year from the date of purchase Warranty period Repair charge regulation Within warranty After warranty Product failure type period...
  • Page 36 6. Others 6.4 Communication and Product Specification …………………………………………………………………. Communication Specification Classification Content Frequency used: CDMA Transmission output: Modulation: Frequency used: MHz Number of channels: channels WLAN Transmission output: Modulation: Frequency used: MHz Number of channels: channels Bluetooth Transmission output: Modulation: 13.56MHZ Frequency used: MHz RFID...
  • Page 37 6. Others 6.4 Product Specification …………………………………………………………………. Product Specification Classification Content C P U ARM 11 PXA320 Windows Mobile 6.5.3 R A M 256MB R O M 512MB DISPLAY TFT LCD MODULE 3.5INCH,262K COLOR INTERFACE USB 2.0, 3.5 Phi Ear Jack Standard Type : 2400mA BATTERY Large capacity : 3600mA (option)
