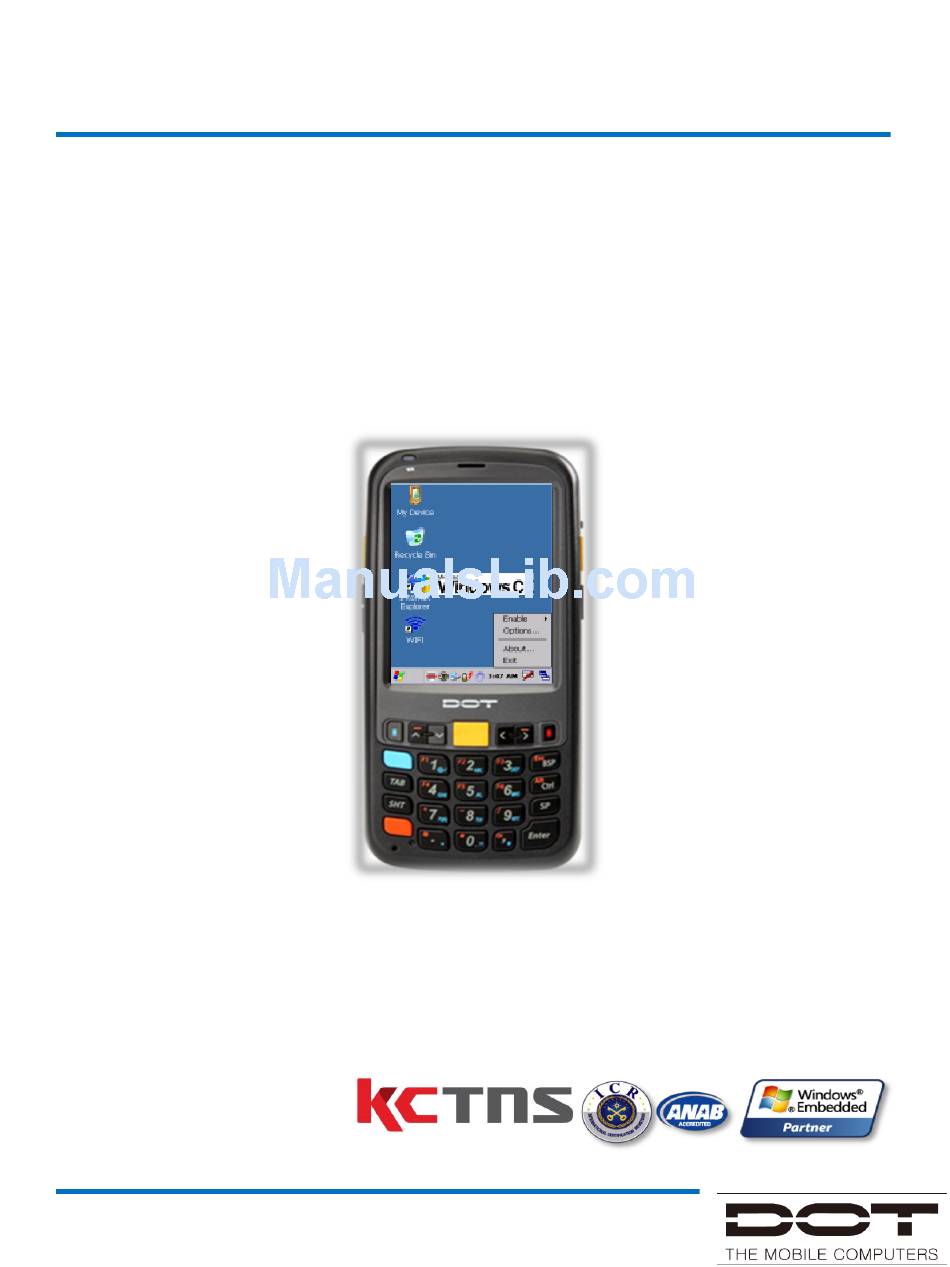

  • Page 1 DOTH-300 USER MANUAL ISO 9001 MS WEPP DOTH-300 Manual...
  • Page 2 Among the contents specified in this manual, the functions not installed in your product cannot be used. This product is a B grade domestic broadcasting/communication equipment. This product is electromagnetic compatibility registered domestic(B grade) equipment and is mainly for domestic use but can be used anywhere. DOTH-300 Manual...
  • Page 3 KCTNS Co., Ltd. does not provide warranty for the software loaded after the products is shipped out of the factory. DOT is a trademark of KCTNS Co., Ltd. and protected by law. The logos and product names, Microsoft, Windows and Internet Explorer, are trade marks of Microsoft, and MS Windows CE software loaded in this product is a product officially licensed by Microsoft.

  • Page 4: Contents In Package

    Snap on The images and accessories in the manual may not reflect the color, shape and contents of the actual product. Please contact us on the web at www.dotel.co.kr if you wish to purchase any additional or optional products. DOTH-300 Manual...

  • Page 5: Learning Basics

    ⑥ Battery Lock ⑦ Battery ⑧ Barcode Scanner Button ⑨ Earphone Jack ⑩ Volume key ⑪ Strap ⑫ Speaker ⑬ Sleep Button ⑭ LED • Red : Battery is charging • Green: Battery is fully charged ⑮ Mic. DOTH-300 Manual...
  • Page 6 ⑤ UHF Antenna ⑥ Battery Lock ⑦ Battery ⑧ Barcode Scanner Button ⑨ Earphone Jack ⑩ Volume key ⑪ Speaker ⑫ Sleep Button ⑬ Mic. ⑭ LED • Red : Battery is charging • Green: Battery is fully charged DOTH-300 Manual...
  • Page 7 ② Receiver: Speaker for telephone use ③ Button ④ Barcode Reader ⑤ UHF Antenna ⑥ Battery ⑦ Barcode Scanner Button ⑧ Volume key ⑩ LED • Red : Battery is charging ⑨ Sleep Button • Green: Battery is fully charged ⑪ Mic. DOTH-300 Manual...
  • Page 8 Turn on or off the and also used as a sleep mode. Barcode scan button Volume up and down while phone function is in use Space bar, execution, tab Shift and control Soft reset. Time, date and registry are kept. Hard reset. Time, date are should be reset. DOTH-300 Manual...

  • Page 9: Quick Setting

    - Volume Config : Adjust volume and configure sound - BackLight Config : Adjust display brightness and auto brightness / configure device power saving mode - Power Info : Check battery of device - System Info : Check system information of device DOTH-300 Manual...
  • Page 10 Keyboard Wedge 실행 Tap tray icon → Tap Option → Open KeyWedge Option 1. GeneralSet Turn on / off KeyWedge function. Show / Hide tray icon. Turn on / off auto run for KeyWedge. Select the module for KeyWedge function. DOTH-300 Manual...
  • Page 11 - Emul Type: 'Clipboard' → Outputs the result values in clipboard form 'Keyboard' → Outputs the result values in keyboard form - Notification: Alerts that the scan was successful through either sound or vibration When the setting is complete, tap on on the top of the screen to save. DOTH-300 Manual...
  • Page 12 - All Enable : Select all barcodes - All Disable : Unselect all barcodes - Factory Reset : All settings will be reset to its initial setting When the settings are complete, tap the on the top of the screen to save. DOTH-300 Manual...
  • Page 13 Keywedge 설정 Tap tray icon → Tap Option → Open KeyWedge Option 1. GeneralSet Turn on / off KeyWedge function. Show / Hide tray icon. Turn on / off auto run for KeyWedge. Select the module for KeyWedge function. DOTH-300 Manual...
  • Page 14 - Emul Type: 'Clipboard' → Outputs the result values in clipboard form. 'Keyboard' → Outputs the result values in keyboard form. - Notification: Alerts that the scan was successful through either sound or vibration. When the setting is complete, tap on on the top of the screen to save. DOTH-300 Manual...
  • Page 15 Att9 25dBm -1dB -2dB -3dB -4dB -5dB -6dB -7dB -8dB -9dB - Factory Reset: All settings will be reset to its initial setting. When the setting are complete, tap the on the top of the screen to save. DOTH-300 Manual...
  • Page 16 Desktop Check to maintain WLAN connection during 3. Tap WiFi ON Sleep Mode. 1. When WLAN is executed, a tray icon appears on the bottom tray of the Desktop. double tap → Opens configuration screen. DOTH-300 Manual...
  • Page 17 OK the SSID registered to the → Tap Apply wish to connect, Active Profile then tap Configure 9. When the connection is established the icon on the tray changes from → DOTH-300 Manual...
  • Page 18 - Registration : Select a Bluetooth device from the result list then tap Registration → Enter PIN code in the PIN code screen (Default is normally set to 0000 or 1234) → When the device is registered you will be moved to the Registered device list window. DOTH-300 Manual...
  • Page 19 - Disconnecting : Disconnects the device. - Delete : Deletes the device from the Registered device list. Displays the devices that has been previously paired. Displays the device name, ID, and other supporting profile information. DOTH-300 Manual...
  • Page 20 If the connection is frequently cut and instable, please does connect the product not to a separate hub but directly to the recognize the product. USB terminal of the PC. Please visit us on web www.dotel.co.kr for more FAQ in detail DOTH-300 Manual...

  • Page 21: Warranty

    If repair is impossible due to Replace after deducting a Non- Replace unavailability of repair part fixed amount of depreciation Repair Refund the amount after If replacement is impossible Refund deducting a fixed amount of depreciation plus 10 percents DOTH-300 Manual...

  • Page 22: Specification

    Barcode Scanner 1D Scanner, 2D Imager(Optional) WLAN IEEE 802.11 b/g/n, a/b/g (Optional) Camera 3M pixel with Auto focus & Flash HF RFID 13.56MHz ISO 15693 / ISO 14443 (MiFare) and B(optional) Dimensions 75(W) X 159(H) X 22(D) Weight 270g DOTH-300 Manual...
  • Page 23 Barcode Scanner 1D Scanner, 2D Imager(Optional) WLAN IEEE 802.11 b/g/n, a/b/g (Optional) Camera 3M pixel with Auto focus & Flash HF RFID 13.56MHz ISO 15693 / ISO 14443 (MiFare) and B(optional) Dimensions 75(W) X 159(H) X 22(D) Weight 270g DOTH-300 Manual...
  • Page 24 Bluetooth Ver2.0 Class ॥ Bluetooth Barcode Scanner 1D Scanner, 2D Imager(Optional) WLAN IEEE 802.11 b/g/n, a/b/g (Optional) Camera 3M pixel with Auto focus & Flash UHF RFID ISO 18000-6C, EPC Class1 Gen2 Dimensions 75(W) X 159(H) X 32(D) Weight 350g DOTH-300 Manual...
  • Page 25 Bluetooth Ver2.0 Class ॥ Bluetooth Barcode Scanner 1D Scanner, 2D Imager(Optional) WLAN IEEE 802.11 b/g/n, a/b/g (Optional) Camera 3M pixel with Auto focus & Flash HF RFID Frequency 865-928 MHz Dimensions 75(W) X 174(H) X 129(D) Weight 530g DOTH-300 Manual...
