321 E. Huron Street
Milford, MI 48381
(248) 685-3939
Fax: (248) 684-5406
http://www.michsci.com
mscinfo@michsci.com

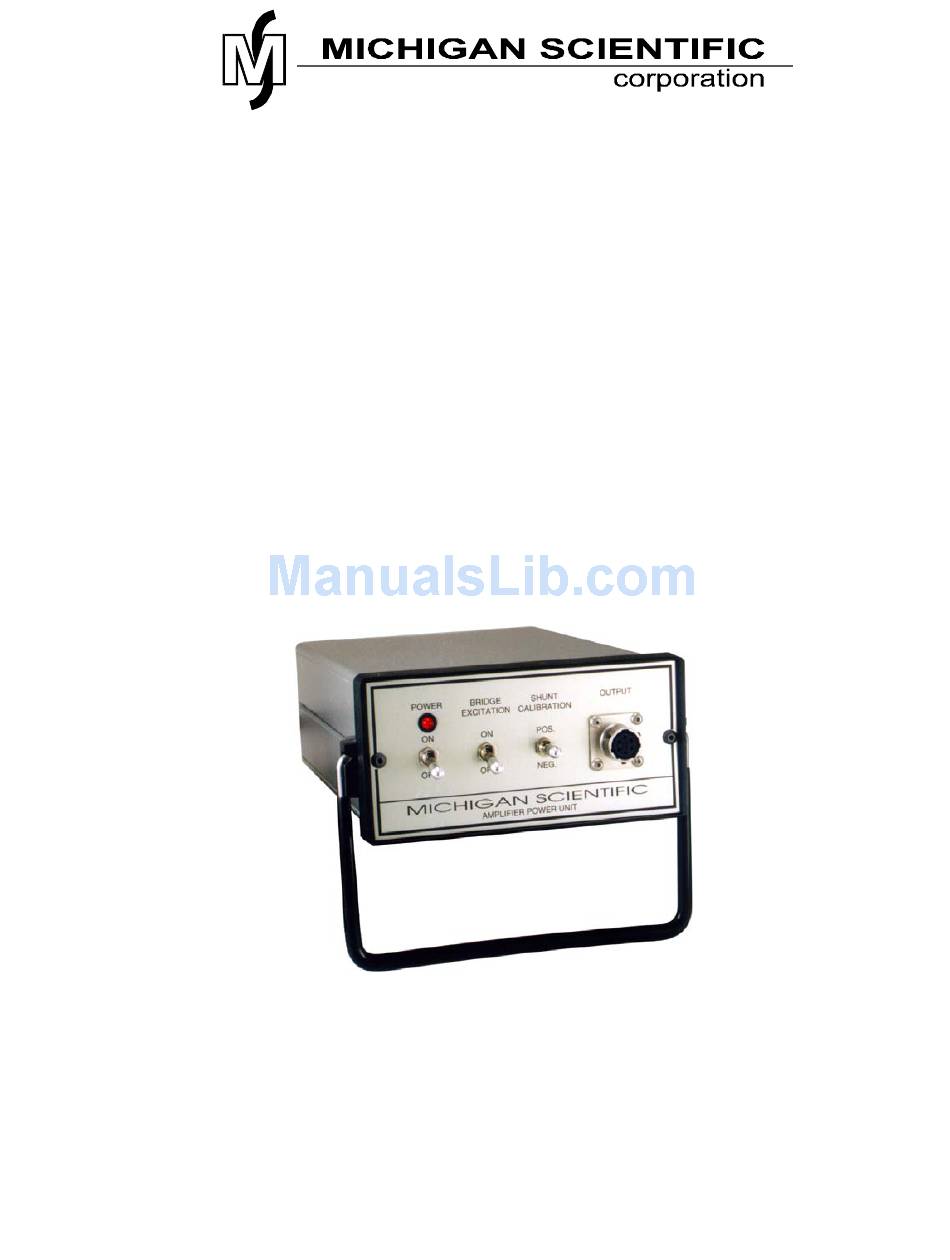

AC Remote Amplifier Control Unit
Michigan Scientific Corp.
(248) 685-3939
PS-AC-0.8
OPERATOR'S MANUAL
8500 Ance Road
Charlevoix, MI 49720
(231) 547-5511
Fax: (231) 547-7070
Page 1
(231) 547-5511
rev. 8/05
Advertisement
Table of Contents
Related Manuals for Michigan Scientigic PS-AC-0.8
Summary of Contents for Michigan Scientigic PS-AC-0.8
- Page 1 8500 Ance Road Milford, MI 48381 Charlevoix, MI 49720 (248) 685-3939 (231) 547-5511 Fax: (248) 684-5406 Fax: (231) 547-7070 http://www.michsci.com mscinfo@michsci.com PS-AC-0.8 AC Remote Amplifier Control Unit OPERATOR’S MANUAL Michigan Scientific Corp. Page 1 (248) 685-3939 (231) 547-5511 rev. 8/05...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ................................... 3 FEATURES....................................3 OPERATION................................... 4 .......................... 4 PERATION WITH TRAIN MPLIFIER ........................4 PERATION WITH HERMOCOUPLE MPLIFIER SPECIFICATIONS ................................. 5 OUTPUT CONNECTIONS..............................5 DIMENSIONS ..................................6 INPUT VOLTAGE.................................. 7 TROUBLESHOOTING................................7 Michigan Scientific Corporation Page 2 (248) 685-3939 (231) 547-5511... -
Page 3: Introduction
Michigan Scientific’s AC Remote Amplifier Control Unit is a complete system for controlling all Michigan Scientific Spinning Amplifiers. The PS-AC-0.8 powers the amplifiers, controls excitation to strain gage bridges, and commands Spinning Strain Gage Amplifiers to apply their internal shunt calibration resistor to the appropriate arm of the strain gage bridge. -
Page 4: Operation
Operation Operation with Strain Gage Amplifier The power switch on the PS-AC-0.8 unit activates the AC Remote Amplifier Control Unit and illuminates the LED. The bridge excitation switch, when used with the modular strain gage spinning amplifier, turns the excitation to the bridge on or off without turning off the amplifier. This is done by inverting the polarity of the + 15 V supply pins. -
Page 5: Output Connections
Specifications PARAMETER SPECIFICATIONS OUTPUT Voltage ± 15 V Maximum Voltage Error (No Load) ± 0.75 V Ripple and Noise Voltage (No Load) ± 60 mV 0.40 Ω Maximum Source Resistance Temperature Coefficient 0.30 %/°C Maximum Current 0.8 A < 50 µ s Maximum Transient Response INPUT Voltage... -
Page 6: Dimensions
Dimensions Michigan Scientific Corp. Page 6 (248) 685-3939 (231) 547-5511 rev. 8/05... -
Page 7: Input Voltage
Input Voltage Normal input voltage for the AC Remote Amplifier Control Unit is 120 VAC at 50/60 Hz. However, Michigan Scientic Corp. can modify the AC Remote Amplifier Control Unit to use 220 VAC or 240 VAC at 50/60 Hz. If the unit has been modified, it will be indicated on the rear panel near the power cord.
