- Page 1 Warranty Service purposes. Model Number Serial Number M0212-0 Web Site: http://panasonic.net © Panasonic Corporation 2012 Printed in Thailand...

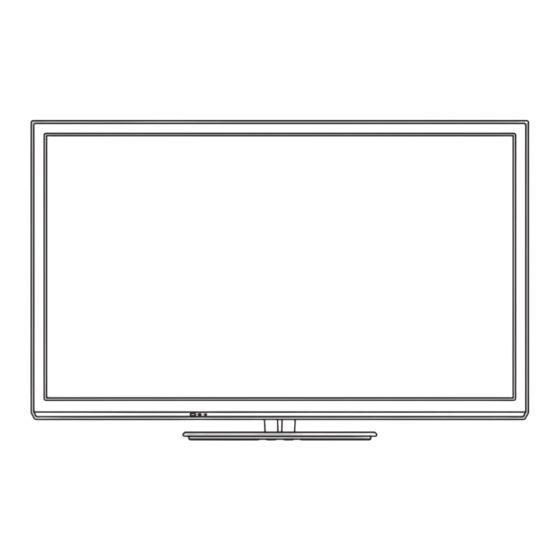

- Page 2 ST50H series Operating Instructions Plasma Television Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. English...
- Page 3 Bluetooth SIG, Inc. and any use ® of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 4 The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and...
-
Page 5: Safety Precautions
Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask away from this product your local Panasonic dealer to perform setup. ● Use approved pedestals (p. 7) / wall-hanging brackets at all times (p. - Page 6 TV off with Mains power On / Off switch, then turn it on again. ● Additional information for built-in wireless LAN and access point may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/ ■ Bluetooth wireless technology ®...
-
Page 7: Accessories / Options
Keep these parts out of reach of young children. Optional accessories Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories. 3D Eyewear set (Rechargeable type) ●... - Page 8 Do not use the pedestal if it becomes warped or physically damaged. ● If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened.
- Page 9 Assembly screw (5) Bracket Cover Base (black) ● ● ● TXFBL5Z0048 TXFBL5Z0049 TBL5ZX0310 (42” class) ● TBL5ZX0311 (50” class) M4 × 10 Assembly screw (7) Neck ● TXFBL5Z0094 (silver) (42” class) ● TXFBL5Z0063 (50” class) M5 × 16 ■ Assembling the pedestal Insert the tabs of the neck into the base Turn the base...
- Page 10 Removing the pedestal from the TV Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV. 1 Remove the assembly screws from the TV. 2 Pull out the pedestal from the TV. 3 Remove the assembly screw from the cover.
-
Page 11: Identifying Controls
Identifying Controls Remote Control INTERNET ([VIERA Connect]) (p. 18, 77) ● Displays VIERA Connect home screen. ● Confirms selections and choices. ● Press after selecting channel positions to quickly change channel. ● Displays the Channel List. [Option Menu] (p. 21) ●... - Page 12 Indicator / Control panel Remote control signal receiver ● Do not place any objects between the TV remote control signal receiver and remote control. C.A.T.S. (Contrast Automatic Tracking System) sensor ● Senses brightness to adjust picture quality when [Eco Mode] in the Picture Menu is set to [On]. (p.
-
Page 13: Basic Connection
Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first. Terminals SD Card slot (p. - Page 14 Note ● Keep RF (antenna) cable away from the mains lead to avoid and minimise mains interference pickup. ● Do not place the RF cable under the TV. To obtain optimum quality picture and sound, an aerial, the correct cable (75 Ω coaxial), and the correct terminating ●...
- Page 15 Network To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment. ● If you do not have any broadband network services, please consult your retailer for assistance. ● Prepare the internet environment for wired connection or wireless connection. ●...
-
Page 16: Auto Tuning
Auto Tuning Search and store TV channels automatically. ● These steps are not necessary if the setup has been completed by your local dealer. ● Please complete connections (p. 12 - 14) and settings (if necessary) of the connected equipment before starting Auto Tuning. - Page 17 Setup the network connection Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 18, 68). ● Please note that this TV does not support wireless public access points. ● Ensure the network connections (p. 14) and network environment are completed before starting setup. Select the network type [Wired] “Wired connection”...
- Page 18 4. After the access point setting is finished, perform the connection test Connection Test : succeeded Check wireless network connection. The test is successful and the TV is connected to Check acquired IP address. the network. Check for devices using same IP address. Check gateway connection.
- Page 19 VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from VIERA Connect home screen.
- Page 20 Watching TV Turn power on ● Mains power On / Off switch should be on. (p. 11) ■ VIERA Connect introduction banner appears Every time you turn on the TV, this banner appears at the bottom of the screen. You can access to VIERA Connect easily and enjoy the various contents.
-
Page 21: Other Useful Functions
Other useful functions Display Information banner Display Information banner ● Also appears when changing a channel. Example: Digital TV 20:35 Coronation Street All Digital Channels 20:00 - 20:55 BBC ONE WALES Channel position and name Current time Channel type ([Radio], [Data], etc.) / Programme Start / Finish time (Digital TV) Encrypted channel ( Channel number, etc. -
Page 22: Off Timer
Display the selectable settings for the current status Confirm or change the current status instantly ● To change select select / change access store [Multi Video] (Digital TV) [Channel Colour Set] (Analogue TV) Allows you to select the image (if available) Sets colour density (p. - Page 23 [16:9] [4:3 Full] Directly displays the image at 16:9 Displays a 4:3 image enlarged without distortion (anamorphic). horizontally to fit the screen. ● For Digital TV or HD signal [14:9] [Zoom1] Displays the image at the standard Displays a 16:9 letterbox or 4:3 image 14:9 without distortion.
-
Page 24: Using Tv Guide (Digital Tv)
Using TV Guide (Digital TV) TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). ● When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown. - Page 25 ■ To view a channel list of the selected category (Category list) select category Favourites All Digital Channels view All Digital Channels Favourites1 ● To list favourite channels Favourites2 (p. 41) Favourites3 Favourites4 Other useful functions View details of the programme Select the programme View details ●...
-
Page 26: Watching External Inputs
Watching External Inputs Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input. ● To connect the equipment (p. 12 - 14, 85 - 87) The remote control is capable of operating the contents or external equipment. (p. - Page 27 Pause / Resume Record Start recording How to change the code Each type of the Panasonic equipment has its own remote control code. Change the code according to the equipment you want to operate. Press and hold during the following operations...
-
Page 28: Viewing 3D Images
Viewing 3D images You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear. “Optional accessories” (p. 6) This TV supports [Frame Sequential] ∗ , [Side by Side] ∗ and [Top and Bottom] ∗ 3D formats. - Page 29 3D Eyewear (optional) ● Use the Panasonic 3D Eyewear that has this logo and supports Bluetooth wireless technology. ® “Full HD 3D Glasses™” logo indicates products that are compatible with the active shutter 3D glasses technology standards licensed by the Full HD 3D Glasses Initiative. The RF mark on...
- Page 30 ● Please consult the suppliers of contents or programmes for availability of this service. ■ 3D photos and 3D videos taken by 3D-compatible Panasonic products ● Available in Media Player (p. 59 - 61, 63) and Network services (p. 75) ■...
- Page 31 ■ To change 3D format manually When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting. During the above operation Select the mode select 3D Mode Selection (Manual) Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D...
- Page 32 3D Settings If the 3D images are not displayed correctly or seem unusual, adjust and setup the 3D settings. Display the menu Select [Picture] select Picture access Select [3D Settings] select P-NR access 3D Settings Access Screen Display Advanced Settings Reset to Defaults Select one of the following functions and set select...
-
Page 33: How To Use Viera Tools
How to Use VIERA TOOLS You can access some special features easily by using the VIERA TOOLS function. Display icons of the feature Select a feature select access VIERA Link ■ To return to TV ■ Follow the operations of each feature [Music] ∗... -
Page 34: How To Use Menu Functions
How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. Display the menu ● Displays the functions that can be set (varies according to the input signal). Select the menu Example: [Picture Menu] select Main Menu access... - Page 35 Menu list Menu Item Adjustments / Configurations (alternatives) Selects your favourite picture mode for each input [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] [Dynamic]: Improves contrast and sharpness for viewing in a bright room. [Normal]: Normal use for viewing in a normal lighting condition. [Cinema]: Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.
- Page 36 Menu Item Adjustments / Configurations (alternatives) Turns the screen off when you select [Off] [Off] / [On] ● The sound is active even if the screen turns off. Screen Display ● Press any buttons (except Standby) to turn the screen on. ●...
- Page 37 Menu Item Adjustments / Configurations (alternatives) Selects the mode for wobbling of the image to prevent panel “image retention” [Auto] / [On] Pixel Orbiter [Auto]: Automatically works only for the appropriate images and you rarely recognise the wobbling. Displays scrolling bar pattern to assist elimination of panel “image retention” ●...
- Page 38 Menu Item Adjustments / Configurations (alternatives) Automatically regulates large sound level differences between channels and Auto Gain Control inputs [Off] / [On] Volume Correction Adjusts the volume of individual channel or input mode Compensates for the low frequency sound due to the distance between the speakers and the wall [Over 30cm] / [Up to 30cm] ●...
- Page 39 Sets to control the TV with the devices connected to the network (p. 70) Software Update Checks for available software updates from the Panasonic website Selects whether to give a notification message when new software is found via New Software Message...
- Page 40 Menu Item Adjustments / Configurations (alternatives) Creates a list of favourite channels (p. 41) Favourites Edit ● For Digital TV Channel List Skips the unwanted channels or edits channels (p. 42) Auto Tuning Automatically searches for the receivable channels (p. 43) Manual Tuning Searches for the channels manually (p.
- Page 41 Menu Item Adjustments / Configurations (alternatives) VIERA Link Sets to use VIERA Link functions [Off] / [On] (p. 80) Automatically adjusts the picture settings according to the received HDMI content via HDMI cable [Off] / [Auto] ● This function is available if the connected equipment supports HDMI Content HDMI Content Type Type.
-
Page 42: Tuning And Editing Channels
Tuning and Editing Channels You can retune channels or make your favourite channel lists, skip unwanted channels, etc. Select the mode (p. 19) Display the menu and select [Setup] select Setup access Select [Digital TV Tuning Menu] or [Analogue TV Tuning Menu] select access Digital TV Tuning Menu... - Page 43 ■ To edit Favourites list While the cursor is in the Favourites field to edit ● ● To move the channel To delete the channel Select the new position Store ● To delete all channels ● To name the Favourites Set characters (maximum 10 characters) Store select...
- Page 44 Set all channels automatically [Auto Tuning] Automatically retune all channels received in the area. Start Auto Tuning Settings are made automatically Example: Digital TV Example: Digital TV Digital TV Auto Tuning Digital TV Auto Tuning Scan CH C1 All digital TV tuning data will be erased This will take about 7 minutes.
- Page 45 Update Digital TV channel automatically [Update Channel List] (Digital TV) You can add new channels, delete removed channels, update channel name and position automatically to the channel list. ● The channel list is updated while keeping your settings in [Favourites Edit], Digital TV Update Channel List Scan CH C1...
-
Page 46: Timer Programming
Timer Programming Timer Programming from Menu The Timer Programming menu allows you to choose programmes that you want to remind watching or record to the USB HDD or the SD Card. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode. - Page 47 Set timer programming event details Start making the settings Select the function ([USB HDD Rec.], [SD Card Rec.] or [Reminder]) [USB HDD Rec.] / [SD Card Rec.]: Records the programme to the USB HDD or the SD Card. When the start time comes, the channel will be switched automatically and the video and audio signals will be output.
- Page 48 ■ To edit a timer programming event Select the event ● To change a timer programming event ● To cancel a timer programming event temporarily Each time pressed: • Correct as necessary (p. 46) Timer off: cancel Timer on: stop cancelling ●...
-
Page 49: Child Lock
Child Lock You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch. Display the menu and select [Setup] select Setup access Select [Child Lock]... -
Page 50: Shipping Condition
Shipping Condition Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [USB HDD Setup] are reset (channels, picture, sound settings, etc.). ● To retune TV channels only, e.g. after moving house [Auto Tuning] in “Tuning and Editing Channels” (p. 43, 44) Display the menu and select [Setup] select Setup... -
Page 51: Updating The Tv Software
Updating the TV Software A new version of software may be released for download to enhance the performance or operations of the TV. If there is an update available, a notification message is displayed when the channel has the update information. ●... -
Page 52: Displaying Pc Screen On Tv
Displaying PC Screen on TV The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected. ● To connect PC (p. 86) Select the external input Select [PC] select Input Selection... -
Page 53: Advanced Picture Settings
Advanced Picture Settings You can adjust and setup the detailed picture settings for each Viewing Mode. ● To use this function completely, set [Advance] to [On] in the Setup Menu. (p. 40) ● For PC input mode, some functions are available without setting [Advance]. Display the menu and select [Picture] select Picture... -
Page 54: Usb Hdd / Sd Card Recording
USB HDD / SD Card Recording You can record the digital TV programmes to the connected USB HDD or inserted SD Card and enjoy playing back in various ways. ● Analogue TV programme cannot be recorded on the USB HDD / SD Card. ●... - Page 55 Setting for USB HDD / SD Card Format and setup the USB HDD with this TV in order to use it for recording. Depending on the conditions of the SD Card, the recording may not work properly. Formatting the SD Card with this TV will resolve this problem.
- Page 56 Mode USB HDD Setup Product Name : The USB HDD is available for recording / playing back. USB Drive A USB HDD 1 USB Flash Disk Only one USB HDD on the list is available for recording. USB HDD name is displayed : The USB HDD is available for playing back.
- Page 57 One touch direct TV recording [One Touch Recording] - What you see is What you record Records the current programme in the USB HDD or the SD Card immediately. Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes) ●...
-
Page 58: Using Media Player
Using Media Player Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the recording devices (SD Card / exclusive USB HDD). VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by simply inserting into the SD Card slot. - Page 59 Starting Media Player Insert the SD Card or USB Flash Memory to the TV (p. 57) ● To play back contents in the USB HDD, check the connection and settings are completed. (p. 53, 54) ● When the SD Card is inserted, switching to Media Player will be done automatically. Start Media Player ●...
- Page 60 Change the contents You can switch to the other mode of Media Player from the thumbnail view. ● The mode can be switched in the current device. While the thumbnail is displayed, Select the contents display the contents selection Contents Select select EXIT Select...
- Page 61 ■ To sort by folder, recorded date or recorded month Display the view selection in the thumbnail view Select the sort type [Folder view]: select Displays the thumbnail grouped by folder. access ● The files which are not into a folder will be collected to the folder named “/”. [Sort by Date] / [Sort by Month]: Displays the thumbnail grouped by the same date or month.
- Page 62 ■ To enjoy the saved 3D photos Saved 3D photos are displayed in the Thumbnail screen. Wear the 3D Eyewear and enjoy the 3D photos. Example: Thumbnail Media Player Photo All photos Saved 3D photo Photo Settings Setup the settings for Photo mode. Display the option menu Select [Slideshow Settings] Select the items and set...
- Page 63 Menu Item Adjustments / Configurations (alternatives) Selects enlarged or normal viewing on Single view and Slideshow [Normal] / [Zoom] ● This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or Screen Mode [Cinema] or when [Transition Effect] is set to [Motion]. ●...
- Page 64 Video and Recorded TV mode ● Supported file format (p. 90 - 91) Video mode (For SD Card or USB Flash Memory) The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Title view] The preview will start when the title / scene is highlighted if it supports Media Player Video...
- Page 65 ■ Video Setup Setup the settings for Video mode. ● Menu items and selectable options vary depending on the content. Display the option menu Select [Video Setup] Select the items and set select Option Menu Video Setup access / store Menu Item Adjustments / Configurations (alternatives)
- Page 66 ■ Playback from the list Select the content Start playback ● If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning. (USB HDD only) ●...
- Page 67 ● To change aspect ● To display the subtitle (if available) ● To confirm or change the current status (if available) “Display the selectable settings for the current status” (p. 21) ■ Chapter List (USB HDD only) You can start playback from the chapter list you select. ●...
- Page 68 Music mode ● Supported file format (p. 91) The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Folder view] ● To play back the selected folder Media Player Music Folder view Select the folder Start playback My Music_1...
-
Page 69: Using Network Services (Dlna / Viera Connect)
VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from VIERA Connect home screen. - Page 70 Network connections To use only DLNA features, you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment. ● If you do not have any broadband network services, please consult your retailer for assistance. ●...
- Page 71 Enables to control the TV from the network equipment (Smartphone, etc.) [Off] / [On] Network Remote ● Depending on the area, this function may not be available. For details, consult Control your local Panasonic dealer. ● For more information of this function (English only): http://panasonic.jp/support/global/cs/tv/...
- Page 72 Wired connection settings This setting is for the network connection by using the LAN cable. Select [Network Connection] and set to [Wired] select Connection Test access / store Network Connection Wired Wireless Network Settings IP/DNS Settings Network Link Settings If you make the network connection like “Example 2” (p. 69), you do not Software Update have to set [Acquire DNS Address], [Proxy] and [Proxy Port].
- Page 73 Select [Connection Test] and access to test select Connection Test Access access ● Performs automatic testing of the network connection for the TV. (It takes a while to test.) Connection Test : succeeded Check network cable connection. The test is successful and the TV is connected to the network. Check acquired IP address.
- Page 74 Select [Connection Test] and access to test select Connection Test Access access Performs automatic testing of the network connection for the TV. (It takes a while to test.) Connection Test : succeeded Check wireless network connection. The test is successful and the TV is connected to the network. Check acquired IP address.
- Page 75 Using DLNA features ® ● Ensure the preparation of the media server, network connections and network settings are completed. “Media server” (p. 68), “Network connections” (p. 69), “Network Setup” (p. 70 - 73) Display [VIERA TOOLS] and select [Media Server] select access Media Server...
- Page 76 For photo file [Single view] - Photos are displayed one at a time. Example: ● To display / hide the operation guide ● To return to list Single view ● To operate Single view ● To rotate 90° Single view To the previous photo EXIT Select...
- Page 77 Option menu for each content Setup the settings for Photo, Video and Music file operations. Display the Select [Slideshow Settings], [Video Setup] or Select the items and set option menu [Music Setup] select Option Menu access / store Slideshow Settings Video Setup Music Setup select...
- Page 78 ● The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services. ●...
-
Page 79: Link Functions (Viera Link)
Use fully wired HDMI compliant cable. ● Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2 or HDMI3 terminal via an HDMI cable. ● About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment. - Page 80 VIERA Link (HDMI and Audio out connections) Connected equipment Player theatre Blu-ray Disc theatre Amplifier Features Channel download – – – ∗ ∗ Easy playback – Power on link – Power off link Reduce unnecessary power ∗ – – consumption in Standby Auto standby for unnecessary ∗...
- Page 81 ” ∗ VIERA Link “ ∗ Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 5” function. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”. ● Some functions are not available depending on the equipment’s version of HDAVI Control. Confirm the connected equipment’s version of HDAVI Control.
- Page 82 Reduce unnecessary power consumption in Standby [Standby Power Save] Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 40) The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronisation with the TV On / Off state to reduce the consumption.
- Page 83 Pause Live TV programme [Pause Live TV] You can pause the current TV programme and resume later. The current TV programme will be recorded on HDD of the connected DIGA Recorder. ● This function is available with a DIGA Recorder which has HDD. ●...
- Page 84 Select [VIERA Link Control] select VIERA Link Menu Pause Live TV Start access Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema Select the equipment to access Select the type of the connected equipment and access. select VIERA Link Menu Pause Live TV Start...
- Page 85 Speaker control [Speaker Selection] You can control the theatre speaker with this TV remote control pointing at the TV’s signal receiver. ● If you cannot operate, check the settings and the equipment. “Summary of features” (p. 78, 79), “Preparations” (p. 80) Display [VIERA TOOLS] and select [VIERA Link] select access...
-
Page 86: External Equipment
External Equipment These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the basic connection (p. 12 - 14), the table (p. 87), and the specifications (p. 101, 102). ●... - Page 87 Headphones Rear of the TV (M3 stereo mini plug) ● To adjust volume [Headphone Volume] (p. 36) USB devices USB cable USB HDD Communication Camera AV2 IN (COMPONENT /VIDEO) adaptor (supplied) (Listening) (Viewing) Conversion adaptor (if necessary) Computer...
- Page 88 Types of connectable equipment to each terminal Terminal AV2 IN ∗ Features To watch 3D contents (Blu-ray Disc Player) To watch satellite broadcasts (Set top box) To watch videocassettes / DVDs (VCR / DVD player) To watch camcorder images (Video camera) To play games (Game equipment) ∗...
-
Page 89: Technical Information
Technical Information Channel Allocation (Analogue TV) Channel Asia / CIS / NZ / Indian South American American Japan China Hong Kong Plan W.Europe E.Europe Indonesia CATV Africa System CATV CATV Receive channel DISPLAY – – – – – – – –... - Page 90 Stereo / Bilingual Sound Selection (Analogue TV) When you receive the stereo / bilingual sound system, sound output modes can be selected by using the [MPX] in the Sound Menu. Audio Signal STEREO MAIN I SUB II MONO Mode Indicator NICAM ..Used in New Zealand, Singapore, Hong Kong etc.
- Page 91 MPEG2 MPEG Audio structure on the device is modified. ● This TV supports Motion JPEG DivX3 DivX4 Dolby Digital recorded by Panasonic LUMIX Camera ∗ DivX5 DivX6 Dolby Digital ● This TV is not available for playing back Plus H.264 BP/MP/HP .mov...
- Page 92 Dolby Digital DivX5 DivX6 .f4v Dolby Digital ● This TV supports this container H.264 BP/MP/HP Plus .m4v recorded by Panasonic products. For MPEG1 details, read the manual of the products. HE-AAC .mp4 MPEG2 MPEG Audio MPEG4 SP/ASP .flv H.264 –...
- Page 93 DivX DivX Certified to play DivX and DivX Plus HD (H.264/MKV) video up to 1080p HD including premium content. ® ® ® ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ®...
- Page 94 Electrical interference, static electricity, or erroneous operation may damage the data or device. ● Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.
- Page 95 HDMI connection HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment ∗ with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
- Page 96 ● You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD. ● Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/ ■ USB Keyboard ● The USB Keyboard requiring its driver is not supported.
- Page 97 Input signal that can be displayed ■ COMPONENT (Y, P (from AV2 IN terminal)), HDMI Signal name COMPONENT HDMI 525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1,125 (1,080) / 60i, 50i 1,125 (1,080) / 60p, 50p, 24p : Applicable input signal ■...
- Page 98 FAQs Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. White spots or shadow images (noise) ● Check the position, direction, and connection of the aerial.
- Page 99 Problem Causes / Actions ● Is “Sound mute” active? (p. 10) No sound is produced ● Is the volume set to the minimum? ● Sound level is low or Sound signal reception may be deteriorated. ● sound is distorted Set [MPX] (p. 37) in the Sound Menu to [Mono]. (Analogue TV) ●...
- Page 100 TV off with Mains power On / Off switch, then turn it on again. message appears ● Check foreign objects are not inside the USB port. ● Follow the message’s instructions. ● An error message appears If the problem persists, contact your local Panasonic dealer or the authorised service centre.
-
Page 101: Maintenance
Maintenance First, remove the mains plug from the socket outlet. Display panel, Cabinet, Pedestal Regular care: For stubborn dirt: Gently wipe the surface of the display panel, First clean the dust on the surface. Dampen a soft cloth with cabinet, or pedestal by using a soft cloth to clean the clean water or diluted neutral detergent (1 part detergent to 100 dirt or fingerprints. -
Page 102: Specifications
Specifications 42” class 50” class Model No. TH-P42ST50H TH-P50ST50H Power Source AC 220-240 V, 50 / 60 Hz Power rating 300 W 420 W Home Mode (based on IEC 62087 107 W 142 W Ed.2 measurement method) Standby condition 0.4 W 0.4 W Panel system Plasma panel... - Page 103 AUDIO L - R RCA PIN Type × 2 0.5 V[rms] AV1 IN 1.0 V[p-p] (75 Ω) VIDEO RCA PIN Type × 1 AUDIO OUT AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance) AUDIO L - R RCA PIN Type ×...
- Page 104 MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under LGPL.
