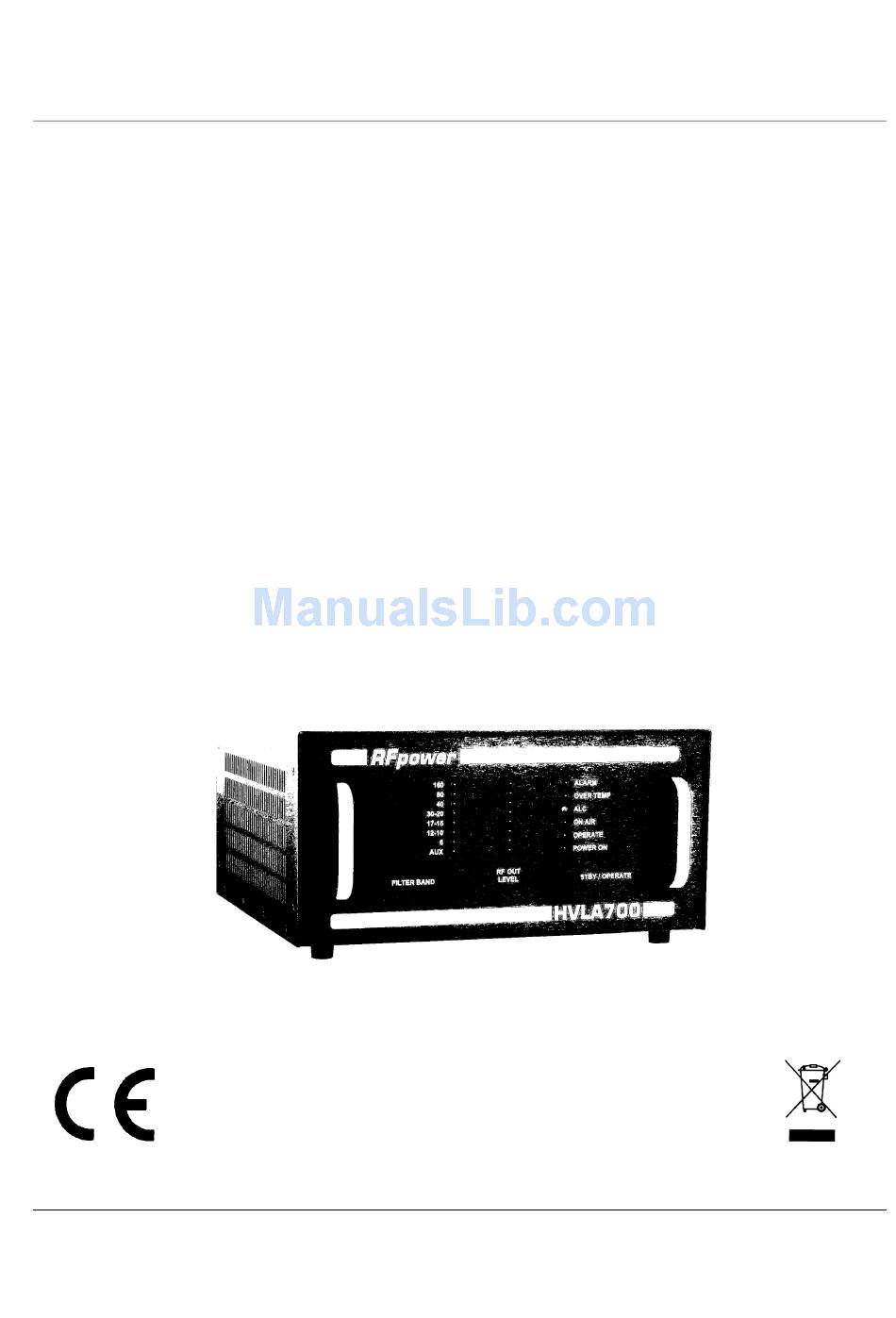

Page 1: Quick Start

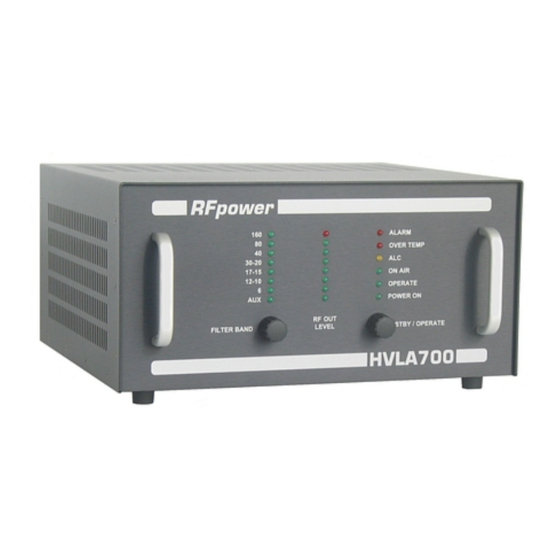

MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 QUICK START MANUAL SOLID STATE HF/VHF LINEAR AMPLIFIER 1.5-55 MHz RFpower model HVLA700AY Automatic for YAESU and ELECRAFT transceiver – - Manual for any other brand -... -
Page 2: Table Of Contents
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 SUMMARY Summary…………………………………………………………………………………………………………………………… page 2 Introduction – General Description……………………………………………………………………………… page 3 Technical Data………………………………………………………………………………………………………………….. page 4 Packing – Dislocation – Electrical Connections………………………………………………………… page 5 Operation…………………………………………………………………………………………………………………………… page 6 – 7 Warranty – Declaration of Conformity……………………………………………………………………….. page 8 Appendix…………………………………………………………………………………………………………………………….. -
Page 3: Introduction - General Description
Thanks for the preference granted us in the purchase of our solid state HF/VHF linear amplifier model HVLA700AY (in succession called amplifier). The professional construction, the use of selected and oversized components and the technical solutions adopted make it a high quality product, accurate and reliable during the time. -
Page 4: Technical Data
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 TECHNICAL DATA -Frequency Coverage: 1.5 to 55 MHz (all amateur frequencies) -Operation Mode: All modes -Filter Bandswitch: Automatic for YAESU and ELECRAFT transceiver – Manual for any other brand -Nominal Drive Power: 50 watts -AMP Input VSWR: 1.2:1 max. -
Page 5: Packing - Dislocation - Electrical Connections
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 PACKING After removing the amplifier from its packing, that you have to keep conserved, verify carefully that it hasn’t suffered damage in consequence of transport; in that case contact us immediately. DISLOCATION Place the amplifier in a way that all the controls are easily accessible and put it in a place far from souces of heat. -
Page 6: Operation
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 OPERATION a) Turn ON the amplifier operating on the switch placed on the back of the amplifier; the green LED labeled “POWER ON” placed on the frontal indicating the “stand-by” position of the amplifier will light. -
Page 7: Operation.............................................................................................................................................
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 ON THE ALC REGULATION “ALC LEVEL ADJ” On the back of the amplifier you find a knob labeled “ALC LEVEL ADJ” (in succession called knob) which serve for dosing the negative ALC voltage that has to be sent to the HF transceiver; seen that a specific voltage does... -
Page 8: Warranty - Declaration Of Conformity
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 WARRANTY All our products are guaranteed 5 years beginning from the date of documentation proving the purchase. RADIOCONTROLLI S.N.C. guarantees that the sold products are free from vices in the material and building. RADIOCONTROLLI S.N.C. will repair or replace, at one’s expense, the products that it considers affected with vices and that are included in the end of guarantee specified above. -
Page 9: Appendix
MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 APPENDIX Here are described the “pin” of the connector labeled “REMOTE” placed on the back of the amplifier. NOTE: the view is the one that appears from the back. Pin n°: Description: Connect to the plug of the transceiver named:... - Page 10 MANUALE INGLESE AMPLIFICATORE HVLA700AY REV.0 (page intentionally blank)
