Page 1: Quick Start

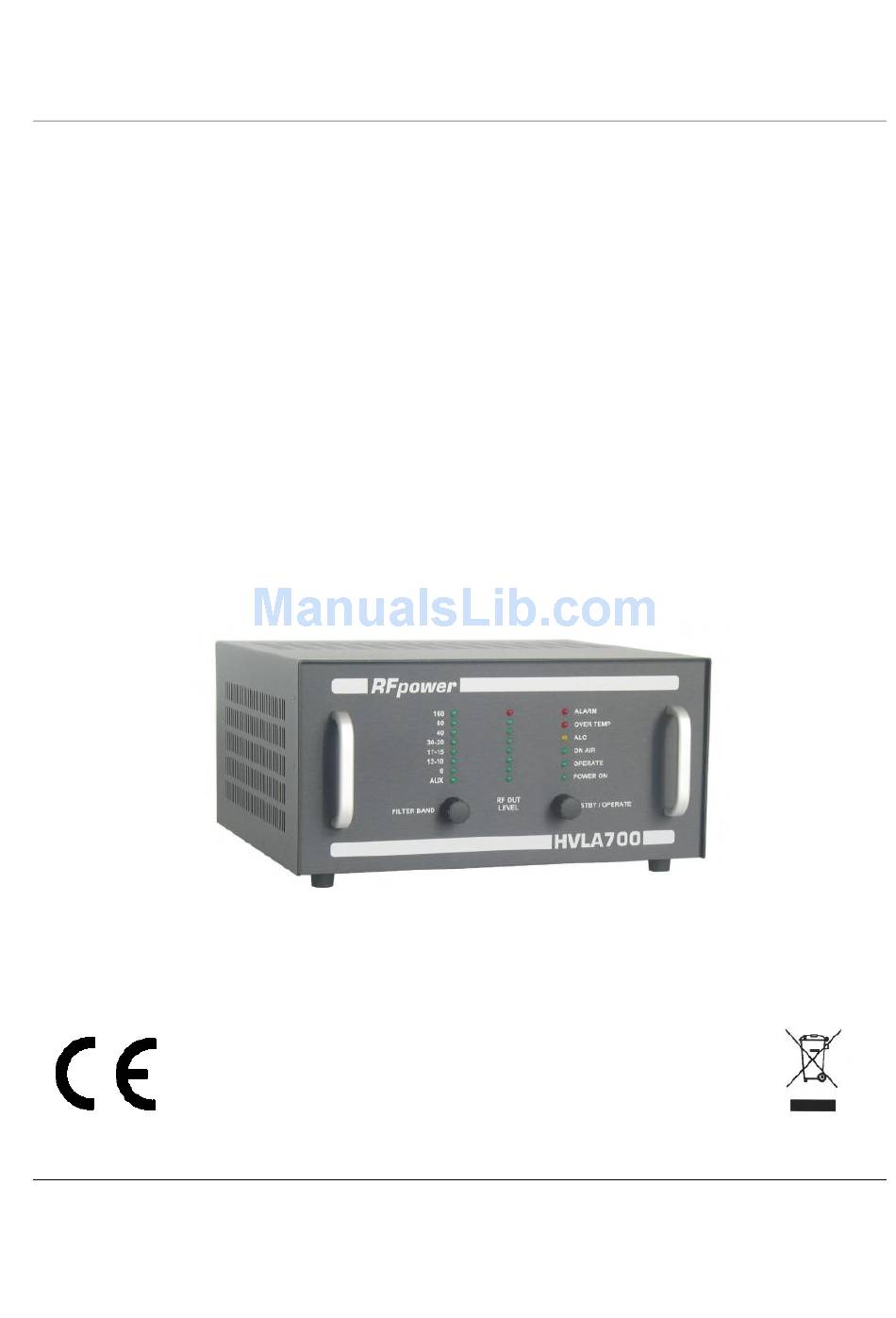

MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0 QUICK START MANUAL SOLID STATE HF/VHF LINEAR AMPLIFIER 1.8 - 54 MHz RFpower model HVLA700M - Manual for any transceiver -... - Page 2 MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0 SUMMARY Summary…………………………………………………………………………………………………………………………… page 2 Introduction – General Description……………………………………………………………………………… page 3 Technical Data………………………………………………………………………………………………………………….. page 4 Packing – Dislocation – Electrical Connections………………………………………………………… page 5 Operation…………………………………………………………………………………………………………………………… page 6 – 7...
-
Page 3: General Description

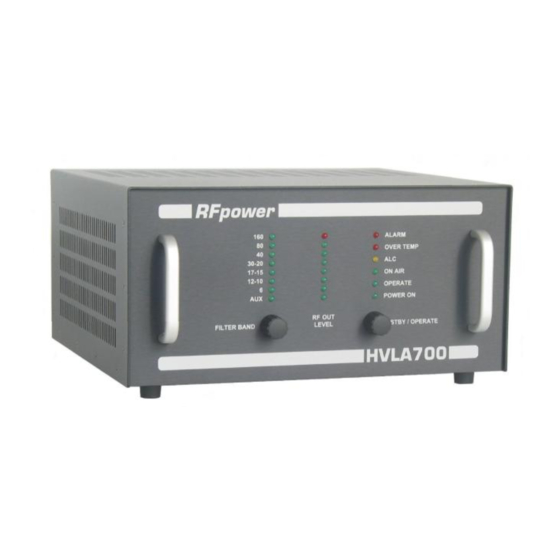

Thanks for the preference granted us in the purchase of our solid state HF/VHF linear amplifier model HVLA700M (in succession called amplifier). The professional construction, the use of selected and oversized components and the technical solutions adopted make it a high quality product, accurate and reliable during the time. -
Page 4: Technical Data
MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0 TECHNICAL DATA -Frequency Coverage: 1.8 to 54 MHz (all amateur frequencies) -Operation Mode: All modes -Filter Bandswitch: Manual -Nominal Drive Power: 50 watts -AMP Input VSWR: 1.2:1 max. -Protection Output VSWR (typ.): -Output Power: 700 watts - SSB-CW : do not exceed the output power level of 600 watts (HF) and 500 watts (VHF);... -
Page 5: Electrical Connection
MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0 PACKING After removing the amplifier from its packing, that you have to keep conserved, verify carefully that it hasn’t suffered damage in consequence of transport; in that case contact us immediately. DISLOCATION Place the amplifier in a way that all the controls are easily accessible and put it in a place far from sources of heat. - Page 6 MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0 OPERATION a) Turn ON the amplifier operating on the switch placed on the back of the amplifier; the green LED labeled “POWER ON” placed on the frontal indicating the “stand-by” position of the amplifier will light.
- Page 7 MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0 ON THE ALC REGULATION “ALC LEVEL ADJ” On the back of the amplifier you find a knob labeled “ALC LEVEL ADJ” (in succession called knob) dedicated to dose the negative ALC voltage that has to be sent to the HF transceiver; seen that a specific voltage does not exist, we recommend to operate in the following way: NOTE: transceiver initial settings = BAND: 20m - MODE: RTTY or FM - PWR OUT: 50 watts and “STBY-RTTY-...
- Page 8 MANUALE INGLESE AMPLIFICATORE HVLA700M REV.0...
