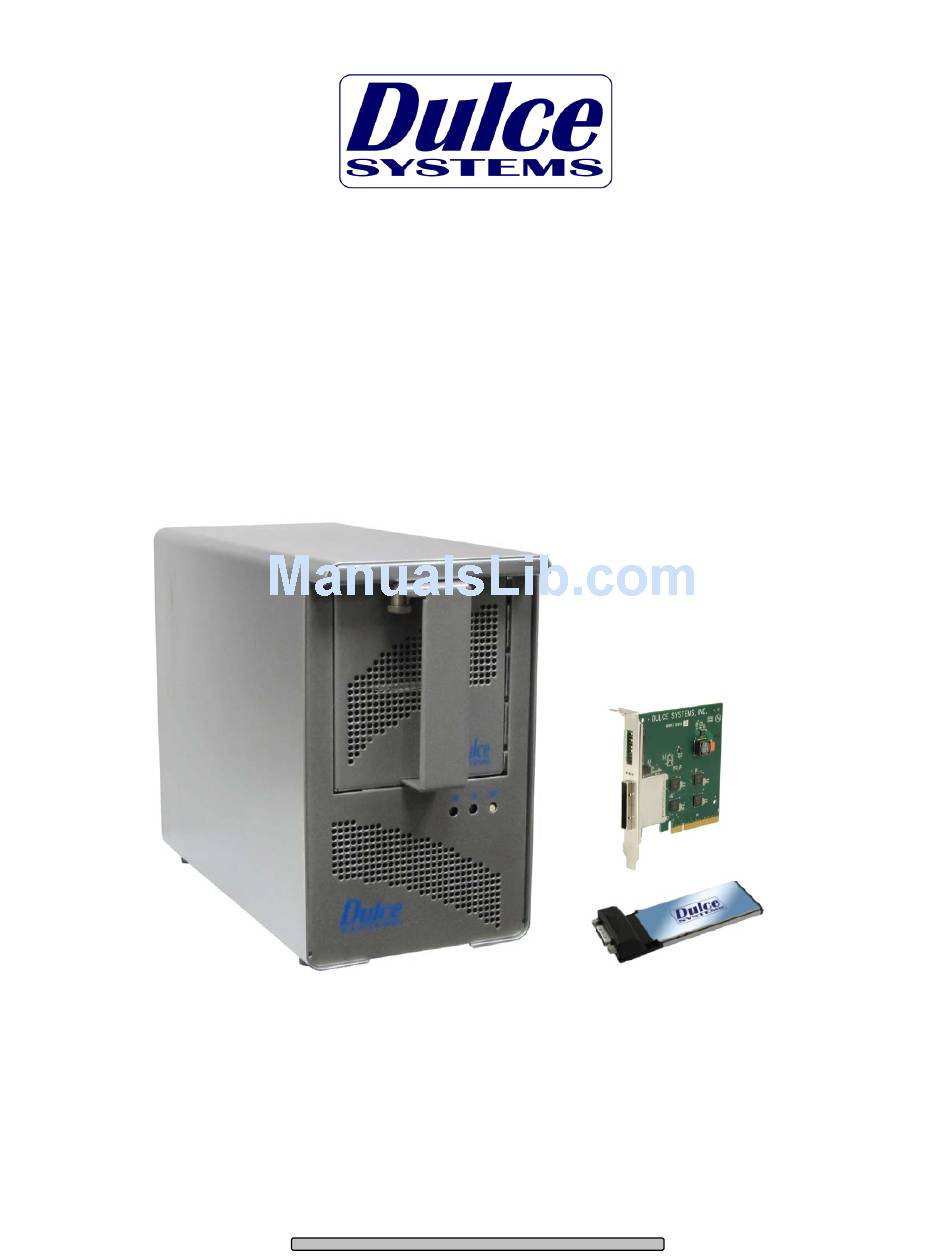

- Page 1 PRO DSqp with Quad Pack Portability Installation and User’s Manual Designed for Video Editing and Content Creation Professionals Document 900-0026-0 v1.1...
-
Page 2: Table Of Contents
PRO DSqp Installation and User’s Manual Table of Content 1. Introduction ..........................3 1.1. Safety Considerations...................... 4 1.1.1. SAFETY CONSIDERATIONS ................. 4 1.1.2. CONSIDÉRATIONS DE SÉCURITÉ ............... 5 1.1.3. SAFTY BERÜCKSICHTIGUNGEN ................. 6 1.1.4. CONSIDERACIONES DE SEGURIDAD ..............7 1.2. ... -
Page 3: Introduction
RAID storage system up and running so you can get to work quickly. For most typical video editing storage requirements, we have preconfigured the PRO DSqp for a much more streamlined installation. Refer to the Pre- configuration Sheet for the exact pre-configuration of your PRO DSqp, the default configured is for RAID 5 (efficient protection mode) and pre-formatted for Mac OS X. -
Page 4: Safety Considerations
PRO DSqp Installation and User’s Manual 1.1. Safety Considerations 1.1.1. SAFETY CONSIDERATIONS W A R N I N G RISK OF ELECTRIC SHOCK DO NOT OPEN WATER AND MOISTURE To reduce the risk of fire or electrical shock, do not expose unit to rain or moisture. -
Page 5: Considérations De Sécurité
PRO DSqp Installation and User’s Manual 1.1.2. CONSIDÉRATIONS DE SÉCURITÉ AVERTISSEMENT RISQUE DE DÉCHARGE ÉLECTRIQUE N'OUVRIR PAS EAU ET HUMIDITÉ Pour réduire le risque de feu ou de choc électrique, n'exposez pas d'unité pour pleuvoir ou l'humidité. Ne faites pas marcher d'unité près de l'eau – comme; la baignoire, la cuvette, l'évier ou la cuve de blanchisserie, la cave mouillée ou près... -
Page 6: Safty Berücksichtigungen
PRO DSqp Installation and User’s Manual 1.1.3. SAFTY BERÜCKSICHTIGUNGEN W A R N U N G ELEKTROSCHOCKGEFAHR NICHT ÖFFNEN WASSER UND FEUCHTIGKEIT Um eine Brand- oder Elektroschockgefahr weitgehend auszuschließen, Gerät nicht Regen oder Feuchtigkeit aussetzen. Gerät nicht in der Nähe von Bade- oder Waschwannen, Wasch- oder Spülbecken, feuchten Kellern oder... -
Page 7: Consideraciones De Seguridad
PRO DSqp Installation and User’s Manual 1.1.4. CONSIDERACIONES DE SEGURIDAD ADVERTENCIA GEFAHR DES STROMSCHLAGS NICHT ÖFFNEN AGUA Y HUMEDAD Para reducir el riesgo de fuego o electrochoque, no exponga la unidad para llover o humedad. No haga funcionar la unidad cerca del agua – como; bañera, lavatorio, fregadero o tina de lavandería, sótano mojado o cerca de una piscina. -
Page 8: System Requirements
Phone 818-435-6007 818-576-0324 E-mail support@dulcesystems.com www.dulcesystems.com If the product requires service, please contact Dulce Systems’ Technical Support and obtain an RMA number. Ship the product properly packaged to: Dulce Systems Attn: RMA 9620 Topanga Canyon Place, Suite E Chatsworth, CA 91311... -
Page 9: Getting Started
PRO DSqp Installation and User’s Manual 2. Getting Started The PRO DSqp comes pre-assembled and ready for use, just install the Quad Pack and the supplied PCI-e (PCI-express) HBE (Host Bus Extender) for desktop or the ExpressCard Adapter if using a laptop, connect the cables, install the software driver and RAID Console. -
Page 10: Overview
3.1. The Bezel The PRO DSqp does not have a front bezel that needs to be removed to access the Disk Module (Quad Pack). The Disk Module (Quad Pack) is held by a spring loaded Lock Pin that you simply pull down on to release the Disk Module (Quad Pack). -
Page 11: Front, Back And Adapters
PRO DSqp Installation and User’s Manual 3.3. Front, back and adapters Front and Rear Views Removable Quad Pack Disk Module Enclosure Cooling Fan Uplink Config Switches Alarm Reset Uplink Port x8 Temp Uplink Port x1 Power Plug Power Supply power is remotely... -
Page 12: Installation
PRO DSqp Installation and User’s Manual 4. Installation Please follow these few steps to install the PRO DSqp. This process typically takes about 20 minutes to complete. Overview of installation: • Disk Module Quad Pack Installation • Host Bus Extender or ExpressCard Adapter installation •... -
Page 13: Host Bus Extender Card (Desktop)
PRO DSqp Installation and User’s Manual 4.2. Host Bus Extender Card (desktop) The HBE is for installation in a desktop computer with an available PCI-e slot. Turn off the computer and unplug the power source before proceeding with the Host Bus Extender (HBE) Card installation. -
Page 14: Switch Settings (Hbe Usage Only)
Determine the correct switch settings for PCI-e speed and cable length, set both the HBE and PRO DSqp to the same configuration. The HBE Card and the PRO DSqp enclosure can operate at 1, 4 or 8 lane speed configurations. The maximum speed will be determined by the capability and selection of the computer’s PCI-e slot. -
Page 15: Hbe Card Installation
PRO DSqp Installation and User’s Manual Cable length selection The PRO DSqp is pre-configured for cable length of 1 to 7-meters, this step can be skipped if the cable is within this range. If a 10-meter cable is to be used, change the switch setting accordingly. -
Page 16: Hbe Cable Connection
PRO DSqp Installation and User’s Manual 4.2.3. HBE Cable Connection The HBE PCI-e x8 cable carries 8 lanes of the PCI-e interface. The green tab is up in this orientation. To remove, pull the tab to unlock the latches and then pull the metal body to remove the connector. -
Page 17: Windows Pc Connection
The ExpressCard Adapter is for installation in a laptop equipped with an available ExpressCard 34 slot. ExpressCards are rated at PCI-e x1 speed (250MB/sec). Turn off the laptop and PRO DSqp, insert the ExpressCard and connect the x1 cable. No switch setting adjustments are required when using the Uplink Port x1. -
Page 18: Driver Installation
PRO DSqp Installation and User’s Manual 4.4. Driver Installation 4.4.1. Mac Pro – Expansion Slot Utility settings This section applies exclusively to the Apple Mac Pro produced in 2006 and 2007. Skip this section for Mac Pros from Early 2008 and later as well as all other computers. -
Page 19: Mac Driver Installation
Open it and follow the simply steps outlined in the Install Read Me document. After driver installation, reboot the computer and the PRO DSqp icon will appear on the desktop. Your new storage is now ready to go to work. -
Page 20: Windows Xp/2000 Driver Installation
PRO DSqp Installation and User’s Manual 4.4.3. Windows 7 / XP / 2000 and Server Driver Installation After boot, Windows will detect the RAID Controller and launch the “Found New Hardware Wizard.”, click Cancel to dismiss the wizard. Download the latest driver and utility appropriate for your version of Windows. -
Page 21: Raid Console Installation
PRO DSqp Installation and User’s Manual 4.5. RAID Console Installation 4.5.1. Apple Mac RAID Console Installation The RAID Console is automatically installed during the driver installation process. No additional steps are required to install the RAID Console. You may proceed directly to the RAID Console Operation section. -
Page 22: Raid Console Operations
PRO DSqp Installation and User’s Manual 5. RAID Console Operations 5.1. Start RAID Console GUI The RAID Console is where all of the management and maintenance of the storage unit is accomplished. After the installation process, the RAID Console is executed from your computer’s Web Browser. - Page 23 PRO DSqp Installation and User’s Manual (Page left blank intentionally) Page 23...
-
Page 24: Start Windows Pc Raid Console Gui
PRO DSqp Installation and User’s Manual 5.1.2. Start Windows PC RAID Console GUI Start the RAID Console from Start > All Programs > Areca Technology > ArcHttpSrvGUI > Areca HTTP Proxy Server GUI. • The ARCHTTP service will start • Double click on the Controller #01 to start the RAID Console •... - Page 25 PRO DSqp Installation and User’s Manual • Welcome screen of RAID Console after successful login: Page 25...
-
Page 26: Change Raid Mode - Deleting / Creating
5.2. Change RAID Mode – Deleting / Creating This procedure will erase all data on the PRO DSqp. Changing the RAID mode requires the current RAID Set to be deleted first, and then create a new RAID Set with the new RAID mode. -
Page 27: Create A Raid Set
PRO DSqp Installation and User’s Manual 5.2.2. Create a RAID Set No need to wait for hours of format, simply select the No Init option in the Volume Initialization Mode field. For Windows XP (32 bit) with larger than 2TB RAID, read next section. -
Page 28: Create >2Tb Raid Set For Windows Xp (32Bit)
PRO DSqp Installation and User’s Manual 5.2.3. Create >2TB RAID Set for Windows XP (32bit): If RAID is larger than 2TB, configure using multiple 2TB Volumes and then use Windows to span them together. This will end up with one drive letter of the full capacity of the RAID. - Page 29 PRO DSqp Installation and User’s Manual To view and confirm the Volume settings, select Information > RaidSet Hierarchy. In Windows Disk Management, make these volumes as Dynamic Disks and span them together to make one large disk. Spanning is recommended as oppose to striping.
-
Page 30: Alarm Conditions / Degraded Raid Set
6. Alarm Conditions / Degraded RAID Set There are two possible sources for alarms: one from the front of the drive enclosure, the other from the RAID Controller installed inside the PRO DSqp. Enclosure Alarms (front right) (Audible and red indicators): •... -
Page 31: Replacing A Disk Module
PRO DSqp Installation and User’s Manual 6.1. Replacing a Disk Module Dulce does recommend shipping the Disk Module (Quad Pack) back to Dulce for service. A defective Disk Module can be easily replaced if you chose to do yourself. Drive Hot Swapping is not an option with the PRO RXqp without interruption to your workflow. -
Page 32: Formatting And Partitioning
PRO DSqp Installation and User’s Manual 7. Formatting and Partitioning 7.1. Apple OS X Formatting The PRO Q are shipped pre-configured for Mac OS X, the RAID will appear on the desktop after driver installation and reboot. Should it be necessary to re-format and partition the RAID, use the Apple Disk Utility. -
Page 33: Create A New Partition
PRO DSqp Installation and User’s Manual 7.1.2. Create a new partition Select Dulce on the left side drive list, click on Partition tab, change Volume Scheme to 1 Partition, change Name as desired, click on Partition on lower right. The drive will appear on the desktop after successful completion of the Partition. -
Page 34: Windows Xp / Vista Formatting
PRO DSqp Installation and User’s Manual 7.2. Windows 7 / XP / Vista and Server Formatting Start Disk Management (can be found at Control Panel > System and Maintenance > Administrative Tools > Computer Management. Under Storage.) If the RAID shows up as Unknown / Not Initialized, right click on the disk and Initialize it. - Page 35 PRO DSqp Installation and User’s Manual Right click the Unallocated segment and select New Simple Volume. Enter the desired Volume Size, assign the desired Drive Letter or Path, check Perform a Quick Format at the Format Partition screen. Page 35...
-
Page 36: Raid Level Descriptions
PRO DSqp Installation and User’s Manual 8. RAID Level Descriptions Although the RAID Controller supports a large variety of RAID Levels, RAID 0 or RAID 3 are most commonly used for video and content creation purpose. RAID Description Advantage Disadvantage... -
Page 37: Limited Warranty
Products arising from a defect in any Product. WHAT THE WARRANTY PERIOD IS Dulce Systems warrants your PRO DSqp product for 36 months. The warranty period begins at the date of shipment to the original end user, company or organization. -
Page 38: Product Registration
PRO DSqp Installation and User’s Manual 10. Product Registration R E G I S T E R N O W It will take only one minute to register. Please visit our web site and register online. www.dulcesystems.com/register A valid proof of purchase might be required to further validate the Products warranty eligibility, the valid proof of purchase document must show the product model, serial number, purchase date, and supplier name. -
Page 39: Appendix A
PRO DSqp Installation and User’s Manual 11. Appendix Appendix A Replacing a Disk Module in the Quad Pack A defective Disk Drive can be easily replaced. Drive Hot Swapping is not an option with the PRO RXqp without interruption to your workflow. If the RAID is operating in one of the drive redundant RAID modes (1, 3, 5, 6) we need to identify the downed disk drive. - Page 40 PRO DSqp Installation and User’s Manual Lock Pin First remove the 4 screws located here using a Phillips screwdriver: Remove these 4 screws first. 2 screws on top, 2 screws on the bottom. After those screws are removed set the Disk Module (Pack) on the table with the handle facing up and remove the 16 screws (8 on each side) from the colored portion of the Disk Module (Pack).
- Page 41 Now that the Disk Module (Quad Pack) has been put back together with the new disk drive installed. With the power off install the Disk Module (Pack) back into the Pro DSqp chassis. Power on the system In a redundant RAID mode, rebuild will start automatically after replacement of a defective disk drive.
- Page 42 PRO DSqp Installation and User’s Manual This screen shot denotes disk drive #4 has begun rebuilding. The reconstruction time to complete can vary on a couple factors: The size of the disk drive. If you continue to work on the array during the reconstruction.
- Page 43 PRO DSqp Installation and User’s Manual (Page left blank intentionally) Page 43...
- Page 44 PRO DSqp Installation and User’s Manual www.dulcesystems.com Page 44...
